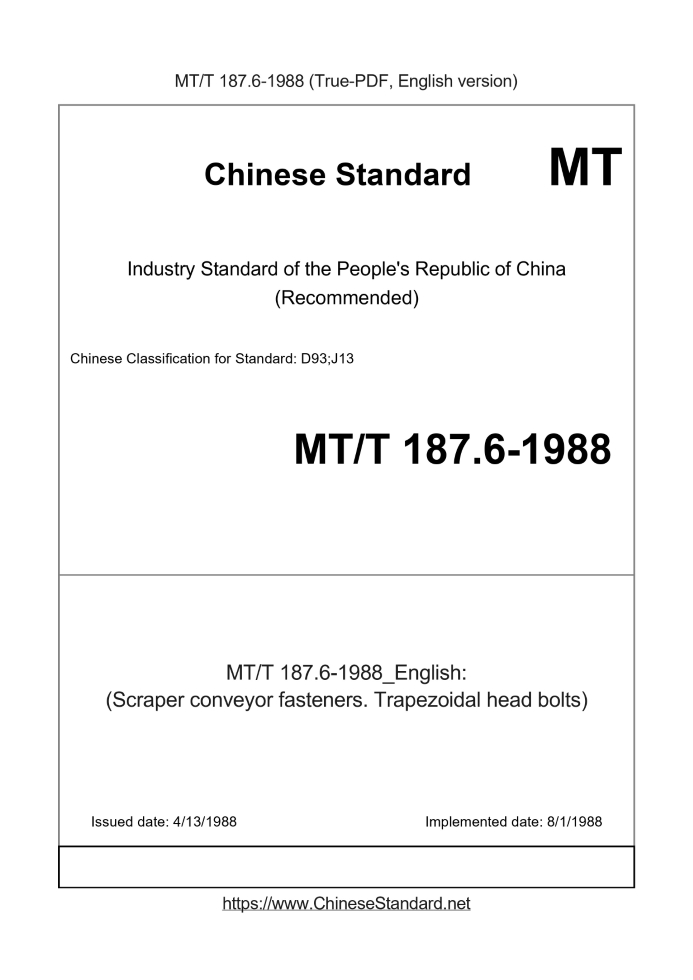

MT/T 187.6-1988 English PDF

US$139.00 · In stock
Delivery: <= 2 days. True-PDF full-copy in English will be manually translated and delivered via email.
MT/T 187.6-1988: (Scraper conveyor fasteners. Trapezoidal head bolts)

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
MT/T 187.6-1988	139	Add to Cart	2 days	(Scraper conveyor fasteners. Trapezoidal head bolts)

Similar standards

MT/T 716   MT/T 661   MT 76   MT/T 717   MT 233

Basic data

Standard ID: MT/T 187.6-1988 (MT/T187.6-1988)
Description (Translated English): (Scraper conveyor fasteners. Trapezoidal head bolts)
Sector / Industry: Coal Industry Standard (Recommended)
Classification of Chinese Standard: D93;J13
Classification of International Standard: 73.100.99
Word Count Estimation: 3,353
Date of Issue: 4/13/1988
Date of Implementation: 8/1/1988
Quoted Standard: MT 187.1
Summary: This standard applies to coal mine scraper conveyor or transfer machine used trapezoidal head bolts (hereinafter referred to as bolts).

MT/T 1:

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
(Scraper conveyor fasteners.Trapezoidal head bolts) Ministry of Coal Industry Standards (Confirmed in.2004) Scraper conveyor fasteners Trapezoidal head bolt 1988-04-13 Approved 1988-08-01 Approved by the Ministry of Coal Industry of the People's Republic of China

Contents

1 Scope of application 1 2 Normative references 1 3 Product Category 1 4 Technical requirements 3 Scraper conveyor fasteners Trapezoidal head bolt

1 Application

This standard applies to trapezoidal head bolts (hereinafter referred to as bolts) used in scraper conveyors or transferers of coal mines.

2 Reference standards

MT 187.1 Scraper conveyor fastener bolt technical specifications

3 Product Categories

3.1 There are three specifications of M20, M24 and M30. 3.2 Type and size are shown in the figure below and Tables 1 and 2. Table 1 mm d 20 24 30 Basic size 22 26 32 Limit deviation ± 1 ± 1 ± 1 H 17 0-1 20 0-1 25 0-1 H1 7 ± 0.5 8 ± 0.5 10 ± 0.5 D 38 0-1 45 0-1 65 0-1 r 2 2.5 c 2 2.5 3 Table 2 mm L M20 M24 M30 L0 (including screw tail) and weight per 1,000 steel bolts Basic size limit deviation L0 weight kg≈ L0 weight kg≈ L0 weight kg≈ 80 ± 1.5 50 360.3 ± 1.75 50 374.4 50 384.5 50 396.6 50 408.7 55 516.7 50 432.9 55 551.7 50 457.1 55 586.7 ± 2.0 50 481.3 55 621.7 50 505.5 55 656.7 60 922.7 50 529.7 55 691.7 60 976.7 50 553.9 55 726.7 60 1030.7 55 761.7 60 1034.7 ± 2.5 55 796.7 60 1138.7 55 831.7 60 1192.7 55 866.7 60 1246.7 55 901.7 60 1300.7 60 1408.7 60 1462.7 60 1516.7 Limit deviation of L0 5 0 3.3 Marking example. Trapezoidal head bolts with coarse teeth common thread, large diameter 24mm, length 110mm, mechanical performance class 8.8. Bolt M20 × 110-8.8MT 187.6-88 3.4 Marking description. bolt product name M20 × 110 Specifications -8.8 Performance level MT 187.6-88 Standard code

4 Technical requirements

4.1 The mechanical properties of the bolt are not less than 8.8. 4.2 The technical conditions of bolts are in accordance with the provisions of MT 187.1. Additional information. This standard was proposed by the Technology Development Department of the Ministry of Coal Industry of the People's Republic of China. This standard is under the jurisdiction of the Taiyuan Branch of the Coal Research Institute. This standard was drafted by Harbin Coal Mine Machinery Research Institute. The main drafters of this standard are Ji An and Cong Peijian. This standard entrusts Taiyuan Branch of Coal Science Research Institute with interpretation. ......
