JT/T 301-2019 English PDFUS$339.00 · In stock

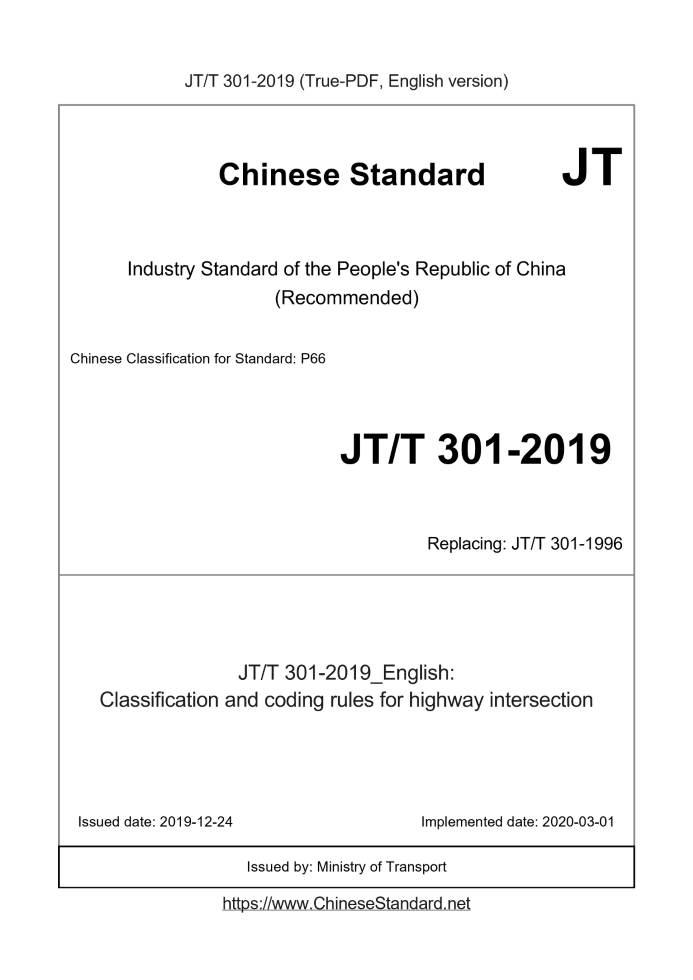

Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. JT/T 301-2019: Classification and coding rules for highway intersection Status: Valid JT/T 301: Historical versions
Basic dataStandard ID: JT/T 301-2019 (JT/T301-2019)Description (Translated English): Classification and coding rules for highway intersection Sector / Industry: Highway & Transportation Industry Standard (Recommended) Classification of Chinese Standard: P66 Word Count Estimation: 14,127 Date of Issue: 2019-12-24 Date of Implementation: 2020-03-01 Older Standard (superseded by this standard): JT/T 301-1996 Issuing agency(ies): Ministry of Transport JT/T 301-2019: Classification and coding rules for highway intersection---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Classification and coding rules for highway intersection ContentsForeword III 1 Scope 1 2 Normative references 1 3 Highway cross classification 1 4 Codes for Formulation of Highway Crossing Types 1 5 Classification and Code of Highway Crossing Forms 2 6 Highway crossing branch code 4 7 Highway Cross Code Coding Rules 5 8 How to use the code 5 Reference 7 JT/T 301-2019ForewordThis standard is in accordance with GB/T Draft the rules given in 1-2009. This standard replaces JT/T 301-1996 "Highway Crossing Classification and Coding Rules". Compared with JT/T 301-1996, this standard In addition to editorial changes, the main technical changes are as follows. --- Restructured and formatted the original standard; --- Modify the expression of the original standard "highway management level" to "highway administrative level" (see 4.1, Appendix A of.1996 edition) --- Removed Appendix A of the original standard and adjusted the relevant content to 4. 1 (see 4.1, Appendix A of the.1996 edition); --- Deleted the appendix B of the original standard and adjusted the relevant content to 6. 1 (see 6.1, Appendix B to the.1996 edition); --- Expand the route number in the original standard "Highway Crossing Code Structure" from three to four (see 8.1,.1996 version 8.1); --- Change the original standard cross code encoding symbol from "A" to "F" (see 8.2,.1996 version 8.2). This standard is proposed by and under the jurisdiction of the Technical Committee on Transportation, Information, Communications and Navigation Standardization. This standard was drafted. Scientific Research Institute of Ministry of Transport, Jiangxi Provincial Transportation Design and Research Institute Co., Ltd. The main drafters of this standard. Tian Lin, Zhang Xiaoming, Jing Yanping, Wang Wei (Science Research Institute of the Ministry of Transport), Chen Zongwei, and Wang Wei (Jiangxi Provincial Government) Communication Design and Research Institute Co., Ltd.), Zheng Jianming, Zhang Jing, Huang Jialin, Zhang Shifang. The previous versions of the standards replaced by this standard are. --- JT/T 301-1996. JT/T 301-2019 Highway cross classification and coding rules1 ScopeThis standard specifies the classification rules for highway cross classification, code for types of highway cross classification, classification and code for road cross classification, and road cross classification. Branch code, coding rules and code structure. This standard applies to the identification, management, and exchange of national highway cross information.2 Normative referencesThe following documents are essential for the application of this document. For dated references, only the dated version applies to this article Pieces. For undated references, the latest version (including all amendments) applies to this document. GB/T 917-2017 Road route identification rules and national road numbers Ⅲ Highway cross classification 3． 1 The classification of road crossing includes the types of road crossing and the forms of road crossing. 3． 2 The types of highway crossings are classified according to the administrative level of the intersecting highways. 3． 3 Highway intersections are classified according to the number of intersecting roads, the angle of intersection, and the composition.4 Codes for road crossing types4． 1 The type code of highway crossing is an alphabetic code that is composed of the alphabetic identifiers of the administrative grades of the intersecting highways or with railways and other roads. The codes are arranged in order of highest administrative rank. Highway administrative grade codes are represented by highway administrative grade alphabetic identifiers, which should Conform to GB/T 917-2017 5. 1 provisions. See Table 1 for highway administrative grades and the alphabetic identifiers for railways and other roads. Table 1 Alphabetical identifiers of highway administrative levels and railways and other roads Classified letter identifier National Road G Village Road C Provincial Highway S Special HighwayＺ County Road X Railway T Country RoadＹ Other RoadＱ 4． 2 In principle, the code of the type of highway crossing shall not exceed four digits. Example 1. The national and provincial highway cross codes use GS. Example 2. The cross code of two provincial roads and one county road use SSX. Example 3. The cross code of national, provincial and county roads can use GSX. JT/T 301-20195 Classification and Code of Highway Crossing Forms5． 1 Highway crossing forms are divided into highway and highway plane crossing, highway and highway three-dimensional crossing, highway and railway crossing and highway and other roads. Road crossing four categories. 5． 2 The form code of highway crossing consists of two digit codes. See Table 2 for the crossing form and codes. 5． 3 Expansion bits are reserved between various types of codes, and users can expand them as needed. Table 2 Cross forms and codes Cross form category name code typical legend Road to highway or other Road level crossing Plane crossing 10 T-shaped cross 11 Zigzag cross 12 Cruciform cross 13 Diagonal crossing 14 Dislocation crossing a 15 Multi-fork crossing 16 Round cross 17 JT/T 301-2019 Table 2 (continued) Cross form category name code typical legend Road to highway or other Road level crossing Other forms of plane crossing 29 Road to highway or other Three-dimensional road crossing Three-dimensional cross 30 Separate three-dimensional cross 31 Flare Stereo Crossing 41 Rhombus Stereo Crossing 42 Circular solid cross 43 Alfalfa Leaf Stereo Crossing 45 Directional Stereo Crossing 51 Combined three-dimensional cross 55 Roads and highways (or Other roads) other forms of standing Body cross Highway and rail plane cross Plane crossing 70 JT/T 301-2019 Table 2 (continued) Cross form category name code typical legend Road and railway stereo cross Three-dimensional cross 80 Three-dimensional cross-road crossing 81 Crossing the railway three-dimensional cross 82 Highways and other roads cross Cross 90 with other roads a The distance between the two intersections at a misaligned intersection is determined by the user according to actual needs.6 Highway Crossing Branch Code6. 1. Highway crossing branch refers to the intersection branch that radiates to the surroundings with the highway crossing as the center. The code of the highway crossing branch is assigned by the highway. The two-digit code of the quadrant position and direction where the fork branch is located is assembled. The four quadrant position codes are 1, 3, 5, 7, and 8 directions. The code value is 1 to 8. 6. 2 The code structure of highway cross-branching is shown in Figure 1. Figure 1 Code structure of highway crossing branches 6. 3 The quadrant coordinates of the road crossing branches use the road crossing nodes as the origin, and use N, E, S, and W to indicate the four directions of north, east, south, and west, respectively. It is divided into four quadrants of northwest, northeast, southwest, and southeast. The quadrants are represented as NW, SE, SW, and NE. The quadrant coordinates of the road crossing branches are shown in Figure 2. public The cross-branch codes are shown in Table 3. Note. NE = 1, SE = 3, SW = 5, NW = 7, E = 2, S = 4, W = 6, and N = 8. Figure 2 Coordinates of the quadrants of the highway crossing branches JT/T 301-2019 Table 3 Branch Codes for Highway Crossings name Quadrant direction Code NE is facing north 18 NE Northeast 11 SE is facing east 32 SE SE 33 SW southbound 54 SW southwest 55 NW 76 to the west NW Northwest 777 Highway Crossing Code Coding Rules7. 1. A highway cross code consists of a highway cross identifier, a four-digit sequence number, and an extension bit. The structure of a highway cross code is shown in Figure 3. Figure 3 Code structure of highway crossing 7. 2 "F" is the road crossing identifier. 7. 3 The sequence number is sequentially coded from the beginning to the end in the upward direction of each route with the province as the range. 7. 4 The last digit is the expansion position. Highways increase in number of highway crossings due to reasons such as new routes or rerouting. Use the extension bit. Charge "0" when it is not extended. 7. 5 When two or more routes cross, only highway crossings on high-level administrative routes are coded; if different routes For the same administrative level, highway crossings with smaller route numbers are coded. To avoid double coding, the intersecting routes have low administrative ranks The large highway crosses, and the coding is no longer repeated.8 How to use the code8. 1 Highway cross code and route number, administrative division code combination structure When road crossing is used as a feature point on a route for coding, the route number, road crossing code, and six administrative divisions are used. The structure of the word code is shown in Figure 4 for the structure of the road crossing code, route number, and administrative division code. The route number should conform to GB/T 917 Provisions. Figure 4 Code structure of highway crossing JT/T 301-2019 8. 2 Highway plane and three-dimensional cross code assembly structure When the highway crossing is used as a spatial range entity for coding, the structure of the highway plane and three-dimensional crossing code combination is shown in Figure 5. Note 1. The cross level refers to the number of structural layers of three-dimensional cross, which is represented by a one-digit code. If there are × layers in the three-dimensional intersection, use the number ×. The four-level crossing is indicated by "4". Note 2. The plane crossing level code is "0". Fig. 5 Highway plane and three-dimensional cross code assembly structure JT/T 301-2019 references [1] GB/T 12409-2009 Geographic grid [2] GB J 124-1988 Standard for Terminology of Road Engineering [3] JT G B01-2014 Technical Standards for Highway Engineering [4] JT G/T D21-2014 Detailed Design Rules for Highway Crossing JT/T 301-2019 ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of JT/T 301-2019_English be delivered?Answer: Upon your order, we will start to translate JT/T 301-2019_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of JT/T 301-2019_English with my colleagues?Answer: Yes. The purchased PDF of JT/T 301-2019_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version JT/T 301-2019?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version JT/T 301-2019 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
