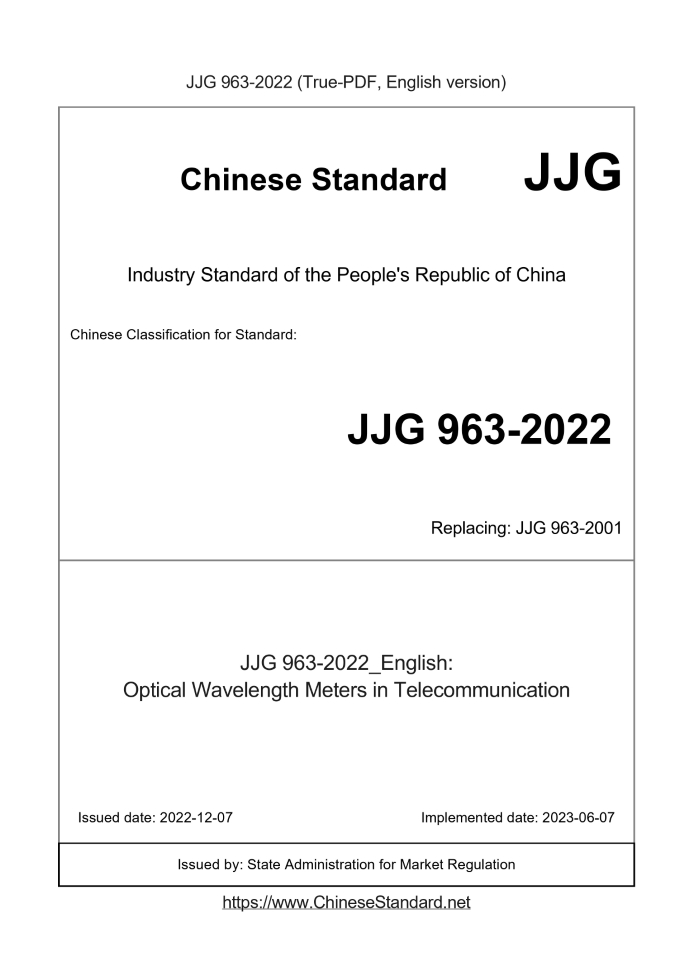

JJG 963-2022: Optical Wavelength Meters in Telecommunication
Status: Valid

JJG 963: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJG 963-2022	279	Add to Cart	3 days	Optical Wavelength Meters in Telecommunication	Valid
JJG 963-2001	479	Add to Cart	3 days	Verification Regulation of Optical Wavelength Counters in Telecommunication	Obsolete

Similar standards

JJG 134 JJG 249 JJG 972

Basic data

Standard ID: JJG 963-2022 (JJG963-2022)
Description (Translated English): Optical Wavelength Meters in Telecommunication
Sector / Industry: Metrology & Measurement Industry Standard
Word Count Estimation: 14,145
Date of Issue: 2022-12-07
Date of Implementation: 2023-06-07
Issuing agency(ies): State Administration for Market Regulation

JJG 963-2022: Optical Wavelength Meters in Telecommunication

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
National Metrology Verification Regulations of the People's Republic of China Optical Wavelength Meter for Communication Released on 2022-12-07 2023-06-07 Implementation Released by the State Administration for Market Regulation Verification regulation of optical wavelength meter for communication Replace JJG 963-2001 Responsible unit. National Optical Metrology Technical Committee Main drafting unit. National Communication Metrology Station Participated in the drafting unit. Shanghai Institute of Metrology and Testing Technology China Institute of Metrology This regulation entrusts the National Optical Metrology Technical Committee to be responsible for interpretation The main drafters of this regulation. Zhang Yingyan (National Communications Metrology Station) Sun Xiaoqiang (National Communications Metrology Station) Participating drafters. Yue Lei (National Communications Metrology Station) Fu Dongbo (National Communications Metrology Station) Ming Xia (Shanghai Institute of Metrology and Testing Technology) Xu Nan (National Institute of Metrology)

Introduction (Ⅱ) 1 Scope(1) 2 Overview(1) 3 Metrological performance requirements (1) 3.1 Wavelength resolution(1) 3.2 Wavelength Indication Error(1) 3.3 Power indication error(1) 4 General technical requirements (1) 4.1 Signs(1) 4.2 Appearance(1) 4.3 Function keys(1) 5 Measuring Instrument Control(1) 5.1 Test conditions (1) 5.2 Verification items (2) 5.3 Verification method (3) 5.4 Processing of verification results (5) 5.5 Verification period(5) Appendix A Recommended Format for Verification Records of Optical Wavelength Meters for Communications (6) Appendix B Recommended Format of Verification Certificate and Verification Result Notification of Communication Optical Wavelength Meter (Inner Page) (7)

Introduction

JJF1002-2010 "Rules for Compilation of National Metrology Verification Regulations", JJF1001-2011 "General Metrology Terminology and Definition", JJF1059.1-2012 "Assessment and Expression of Measurement Uncertainty" together constitute the support for the revision of this regulation The basic series of specifications. This regulation is a revision of JJG 963-2001 "Optical Wavelength Meter for Communication". Compared with JJG 963-2001, The main technical changes are as follows. --- Added power indication error verification items and verification methods; ---Delete the wavelength of the calibration point in the 633nm band, and change the wavelength measurement range to (1270~1650)nm; --- In the wavelength indication error verification method, two verification methods are given, namely the standard optical wavelength meter verification method and the wave Long-term stable light source test method; --- The tunable laser source, optical coupler and standard optical power meter are added to the verification equipment, and 633nm is deleted Wavelength stabilized light source, optical isolator and self-focusing fiber. The release status of previous versions of this regulation is as follows. ---JJG 963-2001. Verification regulation of optical wavelength meter for communication

1 Scope

This regulation applies to optical wavelength meters for communication in the wavelength range of (1270~1650) nm (hereinafter referred to as optical wavelength gauge) for the first verification, subsequent verification and inspection in use.

2 Overview

The optical wavelength meter is a special instrument for accurately measuring the wavelength of lasers used in communication systems, equipment and instruments, especially in In the wavelength division multiplexing system, the optical wavelength meter is used to monitor the wavelength and power of multiple optical channels. The optical wavelength meter usually adopts a Michelson interferometer structure with an optical path difference of more than ten centimeters, by measuring the reference beam and The ratio of the interference orders of the measured beams under the same optical path difference can be used to obtain the ratio of the wavelengths of the two beams of light. When a stem of the interferometer When the arm moves in a straight line, the number of interference fringes will change, and the information of the interference fringes will be converted into electrical pulses and Exact count of rows. If the wavelength of the reference beam is λ0, the number of interference fringes between the reference beam and the measured beam is measured by the counter, that is The orders are m0 and m respectively, then the wavelength of the measured beam is λ=m0λ0/m.

3 Metering performance requirements

3.1 Wavelength Resolution Wavelength resolution ≤ 1pm. 3.2 Wavelength indication error Maximum allowable error. ±8pm. 3.3 Power indication error Maximum allowable error. ±0.5dB (1550nm).

4 General technical requirements

4.1 Logo It has a label indicating the name, model, manufacturer name, serial number and date of manufacture of the instrument. 4.2 Appearance The appearance must not have any mechanical damage affecting the working performance. 4.3 Function keys All kinds of adjustment knobs, switches, and buttons are clearly marked, and should work normally, without looseness, and in good contact. The screen display is clear.

5 Measuring instrument control

5.1 Test conditions 5.1.1 Environmental conditions 5.1.1.1 Ambient temperature. (23±5)°C, the temperature change during the verification shall not exceed ±2°C. ......
