JJG 383-2002 English PDF

US$389.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.

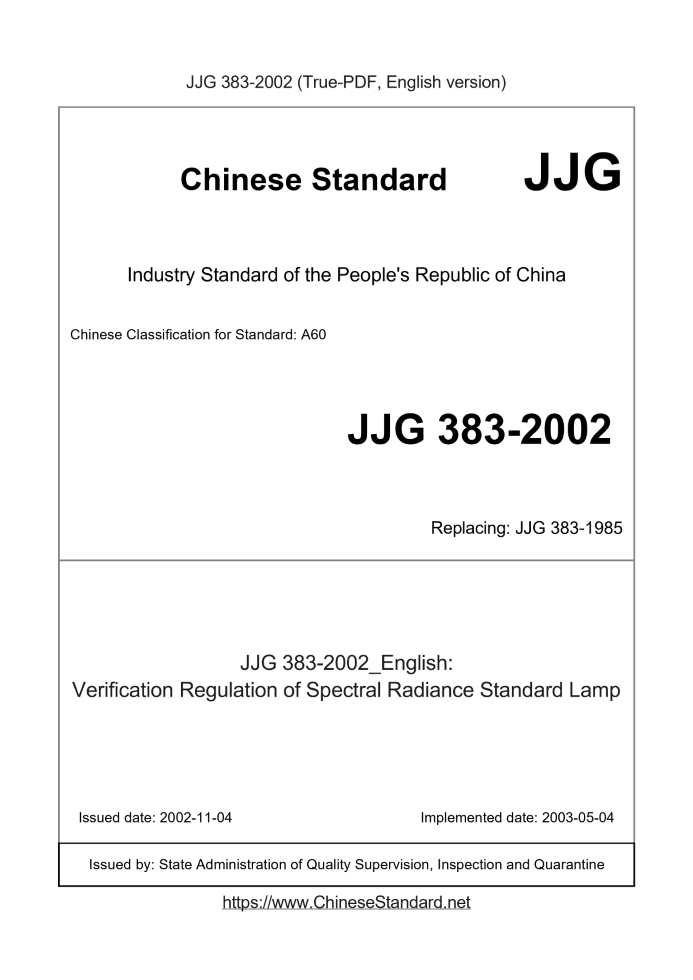

JJG 383-2002: Verification Regulation of Spectral Radiance Standard Lamp
Status: Valid

JJG 383: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJG 383-2002	389	Add to Cart	3 days	Verification Regulation of Spectral Radiance Standard Lamp	Valid
JJG 383-1985	599	Add to Cart	4 days	Verification Regulation of the Spectral Radiance Standard Lamp	Obsolete

Similar standards

JJG 178   JJG 245   JJG 810   JJG 452   JJG 211   JJG 385

Basic data

Standard ID: JJG 383-2002 (JJG383-2002)
Description (Translated English): Verification Regulation of Spectral Radiance Standard Lamp
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A60
Word Count Estimation: 15,182
Date of Issue: 2002-11-04
Date of Implementation: 2003-05-04
Older Standard (superseded by this standard): JJG 383-1985
Issuing agency(ies): State Administration of Quality Supervision, Inspection and Quarantine
Summary: This standard applies to 250 ~ 2500nm wavelength range of spectral radiance standard lamp (referred to standard lamp) for initial verification, testing and use of the follow-up inspection. Shape identification, prototype testing spectral radiance standard lamp in the performance requirements for the measurement can be performed with reference to the order.

JJG 383-2002: Verification Regulation of Spectral Radiance Standard Lamp

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Verification Regulation of Spectral Radiance Standard Lamp National Metrology Verification Regulations of the People's Republic Spectral radiance standard lamp Released on November 11,.2002 Implementation of.2003-05-04 The General Administration of Quality Supervision, Inspection and Quarantine issued Replacing JJG 383-1985 This regulation was approved by the General Administration of Quality Supervision, Inspection and Quarantine on November 4,.2002, and It will take effect on May 4,.2003. Focal Point. National Optical Metrology Technical Committee Drafted by. China Institute of Metrology This procedure entrusts the National Optical Metrology Technical Committee to explain The main drafters of this procedure. Dai Caihong (China Institute of Metrology) Yu Jialin (China Institute of Metrology)

table of Contents

1 Scope (1) 2 Overview (1) 3 Metrological performance requirements (1) 3.1 Stability (1) 3.2 Temperature field uniformity (2) 3.3 Repeatability (2) 3.4 annual rate of change (2) 3.5 Uncertainty of spectral radiance value of standard lamp (2) 4 General technical requirements (2) 5 measuring instrument control (2) 5.1 Verification conditions (2) 5.2 Verification project (3) 5.3 Verification method (4) 5.4 Processing of verification results (7) 5.5 Verification cycle (7) Appendix A Evaluation of Uncertainty of Standard Lights for 250~2500nm Spectral Radiation Brightness (8) Appendix B Spectral Radiation Brightness Standard Lamp Verification Original Record Format (9) Appendix C Spectral Radiation Brightness Standard Lamp Verification Certificate Inner Page Format (10) Spectral radiance standard lamp verification procedure

1 Scope

This procedure applies to the first of the spectral radiance standard lamps (referred to as standard lamps) in the range of 250~2500nm. Sub-tests, subsequent tests and in-use tests. Spectral radiance standard lamp calibration and prototype test Performance requirements can be implemented with reference to this procedure.

2 Overview

Spectral radiance standard lamp is a standard gauge for maintaining and transmitting spectrally dense metrics of radiance With. It can also be used to calibrate the spectral radiance distribution and spectral spokes of various radiation sources in the 250~2500nm spectral range. Calibration of the radiometer, etc. The unit of spectral intensity of radiance is μW·cm -2 · nm -1 · sr -1 . Spectral radiance standard lamp is a special tungsten lamp with two models. BDW with quartz window and BW type without window. BW standard lamp for visible and near infrared radiation, BDW standard lamp for violet External, visible and near-infrared radiation bands. The electrical parameters of BW and BDW standard lamps are shown in Table 1. See Figure 1 and Figure 2. Table 1 Electrical parameters of standard lamps Specifications Model Rated Current/A Rated Voltage/V Rated Power/W BW type 18~22 12 210~270 BDW type 20~25 12 240~300 Figure 1 BW type standard lamp structure diagram 1-glass shell; 2-frame; 3-pointer; 4-tungsten belt Figure 2 BDW standard lamp structure 1-glass shell; 2-frame; 3-quartz window; 4-pointer; 5-tungsten belt

3 Metrological performance requirements

3.1 Stability ......
