JJG 1160-2019 English PDF

Q: How long will the true-PDF of English version of JJG 1160-2019 be delivered?

Upon your order, we will start to translate JJG 1160-2019_English as soon as possible, and keep you informed of the progress. The lead time is typically 2 ~ 4 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of JJG 1160-2019_English with my colleagues?

Yes. The purchased PDF of JJG 1160-2019_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

US$399.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.

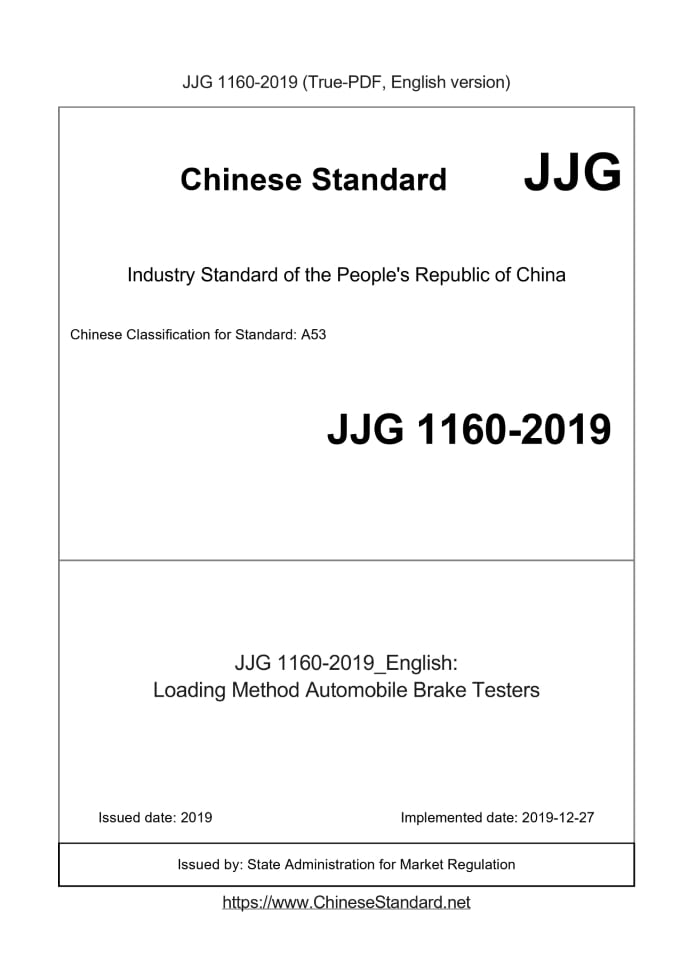

JJG 1160-2019: Loading Method Automobile Brake Testers
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJG 1160-2019	399	Add to Cart	4 days	Loading Method Automobile Brake Testers	Valid

Similar standards

GB/T 36126 JJG 1107 GB/T 1885 JJF 1070 JJG 1170 JJG 1167

Basic data

Standard ID: JJG 1160-2019 (JJG1160-2019)
Description (Translated English): Loading Method Automobile Brake Testers
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A53
Classification of International Standard: 17.100
Word Count Estimation: 18,158
Date of Issue: 2019
Date of Implementation: 2019-12-27
Issuing agency(ies): State Administration for Market Regulation

JJG 1160-2019: Loading Method Automobile Brake Testers

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
(Verification Regulations of Automobile Loading Brake Inspection Platform) People's Republic of China National Metrological Verification Regulations Vehicle Loading Brake Inspection Bench Published on.2019-09-27 2019-12-27 Implementation Released by the State Administration for Market Regulation Vehicle Loading Brake Inspection Bench Verification Regulations Focal Point. National Legal Metrology Management Metrology Technical Committee Main drafting unit. Jiangxi Institute of Metrology and Testing Zhejiang Institute of Metrology Gansu Metrology Research Institute Participating in the drafting unit. Xiamen Metrology Verification and Testing Institute Foshan Analyzer Co., Ltd. Shijiazhuang Huayan Transportation Technology Co., Ltd. This Regulation is entrusted to the National Legal Metrology Management Metrology Technical Committee to be responsible for the interpretation The main drafters of this regulation. Dai Yingyun (Jiangxi Institute of Metrology and Testing) Ye Zhenzhou (Zhejiang Institute of Metrology) Gao Decheng (Gansu Metrology Research Institute) Participating drafters. Huang Jie (Jiangxi Institute of Metrology and Testing) Jiang Tao (Xiamen Metrology Inspection and Testing Institute) He Guihua (Foshan Analyzer Co., Ltd.) Di Jianhui (Shijiazhuang Huayan Transportation Technology Co., Ltd.)

content

Introduction (Ⅱ) 1 Scope(1) 2 References (1) 3 Terms and units of measurement(1) 4 Overview(2) 5 Measurement performance requirements (2) 5.1 The height of the busbar on the auxiliary drum from the ground (2) 5.2 Lifting height and stability of lifting device(2) 5.3 Braking performance measuring device(2) 5.4 Shaft (wheel) weight measuring device (3) 6 General technical requirements (3) 6.1 Appearance(3) 6.2 General requirements (3) 7 Measuring Instrument Control(3) 7.1 Verification Conditions (3) 7.2 Verification items (4) 7.3 Verification method (5) 7.4 Processing of Verification Results (7) 7.5 Verification Period(7) Appendix A Vehicle Loading Brake Inspection Bench Verification Record (8) Appendix B Verification Certificate Inner Page Format (11) Appendix C Format of the Inner Page of the Notification of Verification Result (12)

Introduction

This regulation is based on JJF1001-2011 "General Metrology Terms and Definitions", JJF1059.1-2012 "Inaccurate Measurement" "Sentimental Evaluation and Representation", JJF1002-2010 "Rules for Compilation of National Metrological Verification Regulations" are the basic series of specifications to be formulated. Part of the technical content of this regulation refers to JJG 906-2015 "Roller Reaction Brake Inspection Bench", JJG 1014 "Special Axle (Wheel) Weight Instrument for Motor Vehicle Inspection" and GB 21861-2014 "Motor Vehicle Safety Technical Inspection Items and Methods" Law" and GB 18565-2016 "Comprehensive Performance Requirements and Inspection Methods of Road Transport Vehicles". This regulation is published for the first time. Vehicle Loading Brake Inspection Bench Verification Regulations

1 Scope

This regulation is applicable to the vehicle loading brake inspection bench with "bench body lifting device" (hereinafter referred to as the loading brake the first test, subsequent tests, and inspections in use.

2 Reference documents

This specification references the following documents. JJG 906-2015 Roller reaction brake inspection bench JJG 1014 Special axle (wheel) weight instrument for motor vehicle inspection GB 18565-2016 Comprehensive performance requirements and inspection methods for road transport vehicles GB 21861-2014 Motor Vehicle Safety Technical Inspection Items and Methods For dated references, only the dated version applies to this Regulation; for undated references, The latest version (including all amendments) applies to this regulation.

3 Terminology and units of measurement

JJG 906-2015 "Roller Reaction Brake Inspection Bench" and JJG 1014 "Special Shaft (Wheel) for Motor Vehicle Inspection" The following terms and units of measurement as defined in "Heavy Instruments" are applicable to this regulation. 3.1 main drum mainroller The roller is driven by the direct coupling or chain of the drive motor through the deceleration mechanism. Note. According to the provisions of GB/T 13564-2005, the main drum should generally be higher than the auxiliary drum (0~30) mm. 3.2 auxiliary roller auxiliary roller A roller driven by the main roller through a chain. The wheel braking force measured by the brake table when the wheel of the tested vehicle slides on the upper busbar of the active drum (wheel locks) Ratio to the gravity load of the wheel. Dimensionless quantity. The maximum deviation from the zero value displayed by the instrument when the brake table is under no-load operation. The unit is ten Newtons (daN). The special force measuring lever is fixed outside the drum to apply torque to the drum, and the rotation center of the torque is in the drum On the extension line of the axis, the special force measuring lever should be able to directly apply torque to the main drum. For the brake platform with the third roller, when the detected vehicle brakes, the linear speed of the third roller follows the linear speed of the braking wheel. The speed slows down and slows down. At the moment when the drive motor of the brake table automatically stops, the line speed of the main drum and the line speed of the third drum The percentage of the difference and the linear speed of the main drum. ......
