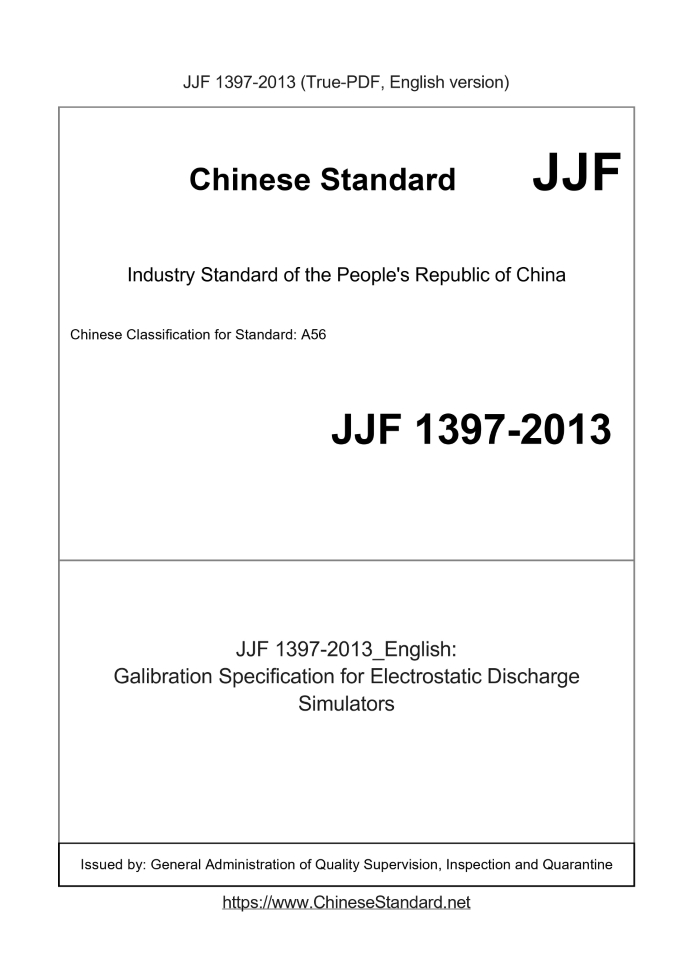

JJF 1397-2013: Galibration Specification for Electrostatic Discharge Simulators
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJF 1397-2013	439	Add to Cart	4 days	Galibration Specification for Electrostatic Discharge Simulators	Valid

Similar standards

JJF 1234 JJF 1396 JJG 376 JJF 1388 JJF 1389 JJF 1387

Basic data

Standard ID: JJF 1397-2013 (JJF1397-2013)
Description (Translated English): Galibration Specification for Electrostatic Discharge Simulators
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A56
Classification of International Standard: 17.220
Word Count Estimation: 19,13
Quoted Standard: GB/T 4365-2003; GB/T 17626.2; IEC 61000-4-2-2008
Adopted Standard: IEC 61000-4-2: 2008, NEQ
Regulation (derived from): ?State AQSIQ Announcement 2013 No. 28
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine
Summary: This standard applies pursuant to GB/T 17626. 2 "electromagnetic compatibility test and measurement techniques-Electrostatic discharge immunity test" and IEC 61000-4-2-2008 "EMC (Electromagnetic compatibility (EMC). Part Testing and measurement techniques

JJF 1397-2013: Galibration Specification for Electrostatic Discharge Simulators

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Galibration Specification for Electrostatic Discharge Simulators People's Republic of China National Metrology Technical Specifications ESD simulator calibration specification Issued on. 2013-02-16 2013-05-16 implementation The State Administration of Quality Supervision, Inspection and Quarantine released ESD simulator calibration specification eSimulators Focal point. the National Radio Technical Commission metering Drafting units. China Institute of Metrology This specification commissioned the National Radio Technical Commission responsible for the interpretation of measurement The main drafters of this specification. Huang Pan (China Institute of Metrology) Xie Ming (China Institute of Metrology) Drafters participate. Liu Baiji (China Institute of Metrology)

Introduction (Ⅱ) 1 Scope (1) 2. References (1) 3 Terms (1) 3.1 Hold Time (1) 3.2 Transfer impedance (1) 4 Overview (1) 4.1 ESD simulator uses (1) 4.2 Structure ESD simulator (2) 5 Metrological characteristics (2) 5.1 Output voltage (2) 5.2 contact discharge current (2) 6 calibration conditions (3) Environmental conditions 6.1 (3) 6.2 calibration equipment (3) 7 calibration items and calibration methods (4) 7.1 General inspection (4) 7.2 Calibration method (4) 8 calibration results expression (6) 9 Recalibration interval (6) Original record format in Appendix A (7) Appendix B Calibration Certificate page format (8) Appendix C Evaluation of Uncertainty Example (10)

Introduction

The calibration specification is based on GB/T 17626.2 "Electromagnetic compatibility - Testing and measurement techniques - Electrostatic discharge immunity Tests "and IEC 61000-4-2.2008" Electromagnetic compatibility - Testing and measurement techniques Electrostatic discharge immunity test " (Electromagneticcompatibility (EMC) -Part 4-2. Testingandmeasurementtechniques- Electrostaticdischargeimmunitytest) calibration requirements for ESD simulator compiled. This specification is the first release. ESD simulator calibration specification

1 Scope

This specification applies according to GB/T 17626.2 "Electromagnetic compatibility - Testing and measurement techniques - Electrostatic discharge immunity Tests "and IEC 61000-4-2.2008" Electromagnetic compatibility - Testing and measurement techniques Electrostatic discharge immunity test " (Electromagneticcompatibility (EMC) -Part 4-2. Testingandmeasurementtechniques- The instrument was calibrated Electrostaticdischargeimmunitytest) electrostatic discharge simulator requirements, other types ESD simulator implementation. 2. References This specification refers to the following documents. GB/T 4365-2003 Electrotechnical terminology Electromagnetic compatibility (idtIEC 60050 (161).1990) GB/T 17626.2 electromagnetic compatibility test and measurement techniques - Electrostatic discharge immunity test IEC 61000-4-2.2008 Electromagnetic compatibility - Testing and measurement techniques - Electrostatic discharge immunity test (Elec- tromagneticcompatibility (EMC) -Part 4-2. Testingandmeasurementtechniques- Electrostaticdischargeimmunitytest) For dated references, only the dated edition applies to this specification; undated reference documents Member, the latest edition (including any amendments) applies to this specification.

3 Terms

3.1 holding time holdingtime Prior to discharge, leaving the test voltage drop due to leakage of not more than 10% of the time interval. 3.2 Transfer impedance transferimpendence ESD target - Attenuator - defined transfer impedance of the cable is injected into the current and the current output target input Voltage precision than 50Ω load (the precise load is placed at one end of the cable, replace the oscilloscope load). Note. ESD simulator calibration procedure, if the current Isys injected onto the target, then the oscilloscope displays a voltage Vosc. In order to use the current display voltage to calculate the unknown, we need to determine the low-frequency transfer impedance. Low-frequency transfer impedance can pass Determined through the following steps. ● In the front-end electrostatic discharge target injection 1A DC current Isys. The front end of the current target is to discharge that side. ● In the cable end and the connection end of the oscilloscope, connect a 50Ω load precision. 50Ω load tolerance of ± 1%. ● voltage V50 measurement precision 50Ω load. The transfer impedance. Zsys = V50 Isys

4 Overview

4.1 ESD Simulator uses ......
