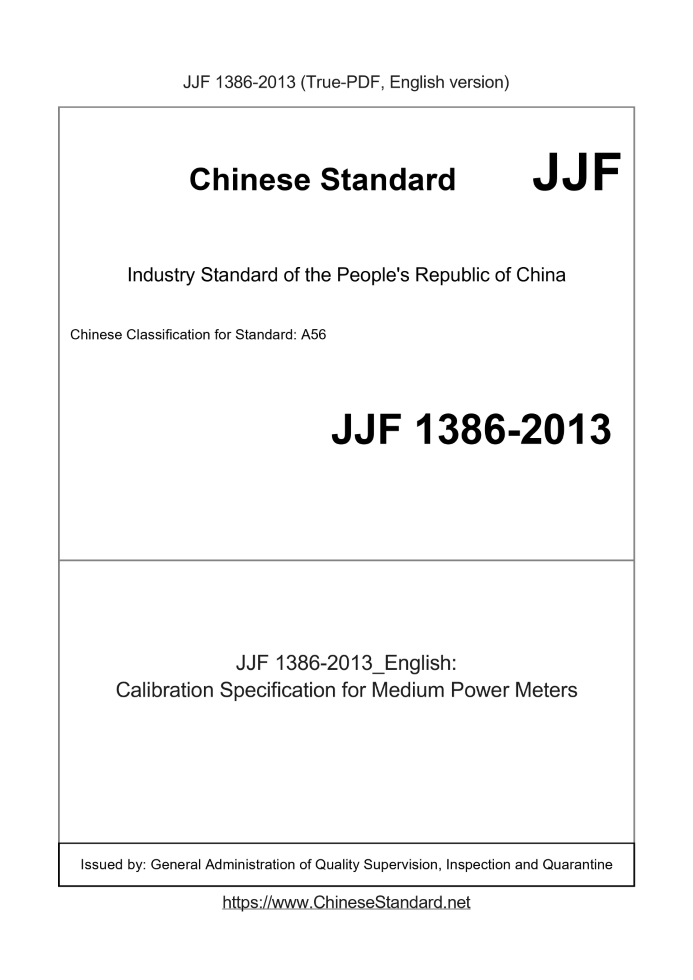

JJF 1386-2013: Calibration Specification for Medium Power Meters
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJF 1386-2013	599	Add to Cart	5 days	Calibration Specification for Medium Power Meters	Valid

Similar standards

JJF 1234 JJF 1396 JJG 376 JJF 1388 JJF 1389 JJF 1387

Basic data

Standard ID: JJF 1386-2013 (JJF1386-2013)
Description (Translated English): Calibration Specification for Medium Power Meters
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A56
Classification of International Standard: 17.220
Word Count Estimation: 26,268
Regulation (derived from): AQSIQ Announcement No. 7 of 2013
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine
Summary: This standard applies to the frequency range of 1 MHz ~ 40 GHz, power range of 0. 1 W ~ 500 W types of RF and microwave power meter calibration.

JJF 1386-2013: Calibration Specification for Medium Power Meters

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Calibration Specification for Medium Power Meters People's Republic of China National Metrology Technical Specifications The power meter calibration specification Issued on. 2013-01-06 2013-04-06 implementation The State Administration of Quality Supervision, Inspection and Quarantine released The power meter calibration specification Focal point. the National Radio Technical Commission metering The main drafting units. China Aerospace Science and Industry Corporation Second Hospital 203 Participated in the drafting unit. China Institute of Metrology Beijing Qingyun Aviation Instrument Co., Ltd. This specification commissioned the National Radio Technical Commission responsible for the interpretation of measurement The main drafters of this specification. Yang Xu Jun (China Aerospace Science and Industry Corporation hospital 203) Hou Hai Jiao (China Aerospace Science and Industry Corporation hospital 203) Drafters participate. ASTRONAUTIC (China Aerospace Science and Industry Corporation hospital 203) Liuxin Meng (China Institute of Metrology) Dai Ming Zhen (Beijing Qingyun Aviation Instrument Co., Ltd.)

Introduction (Ⅱ) 1 Scope (1) 2 Overview (1) 3 Metrological characteristics (1) 4 calibration conditions (1) 4.1 Calibration of environmental conditions (1) 4.2 Calibration Equipment (1) 5 calibration items and calibration methods (3) 5.1 appearance and working properly check (3) 5.2 DC power calibration (3) 5.3 Calibration factor/RF power calibration (5) 5.4 Calibration voltage standing wave ratio (9) 6 calibration expression (10) 7 Recalibration interval (10) Appendix A calibration record format (11) Appendix B Calibration Certificate page format (13) Appendix C Evaluation of Uncertainty in Measurement Examples (15) Appendix D where water load, power meter calibration (20)

Introduction

This specification based JJF 1071-2010 "National Calibration Specifications writing rules" and JJF 1059-1999 "test Evaluation and Expression of Uncertainty "Writing. This specification was first released, mainly for the frequency range of 1MHz ~ 40GHz, power range from 0.1W ~ 500W by type and calibration method in which the power meter terminal were Regulation set. Calibration projects include. DC power or RF power calibration factor and voltage standing wave ratio. Given in the Appendix Measuring alternating comparison, the standard transfer method and direct method of measuring the power meter calibration factors Calibration Uncertainty Evaluation instance. The power meter calibration specification

1 Scope

This specification applies to the calibration frequency range of 1MHz ~ 40GHz, power range from 0.1W ~ 500W each RF and microwave power meter calibration types.

2 Overview

The power meter is used to measure the power of the microwave signal equipment, access systems based on their different ways, can be divided through Through type and terminal type two types. Meter usually consists of small directional coupler power meter and composed by the formula of power, the use of a directional coupler coupled adjacent portion of the arm Power, after detecting an indication of the magnitude of power through. Wherein the terminal is a power meter can be used as a terminal load absorbed power, while indicating the magnitude of the power meter Device. Press measuring principle can be divided calorimeter where power meter, thermocouple type of power meter.

3 Metrological characteristics

DC power range. 0.1W ~ 9W; Calibration factor measurement uncertainty. 2.0% ~ 9% (k = 2); VSWR. greater than 1.00. Note. The above indicators are not used to determine eligibility for reference only.

4 calibration conditions

4.1 Calibration environmental conditions Ambient temperature. (23 ± 5) ℃; Relative humidity. less than 80%; Power supply. voltage (220 ± 11) V, frequency (50 ± 1) Hz; Other. around no effect mechanical vibration and electromagnetic interference calibration system to work. 4.2 Calibration Equipment Calibration equipment must be certified by the agency and are subject to legal metrology within the validity period, or registered calibrated real Calibration laboratories, and within the recommended recalibration interval specified by the user. Major equipment calibration as follows. 4.2.1 Signal Generator Frequency range. 1MHz ~ 40GHz; Frequency stability. better than 1 × 10-6/5min; Amplitude stability. better than 0.01dB/5min; Output power range. -70dBm ~ 20dBm. ......
