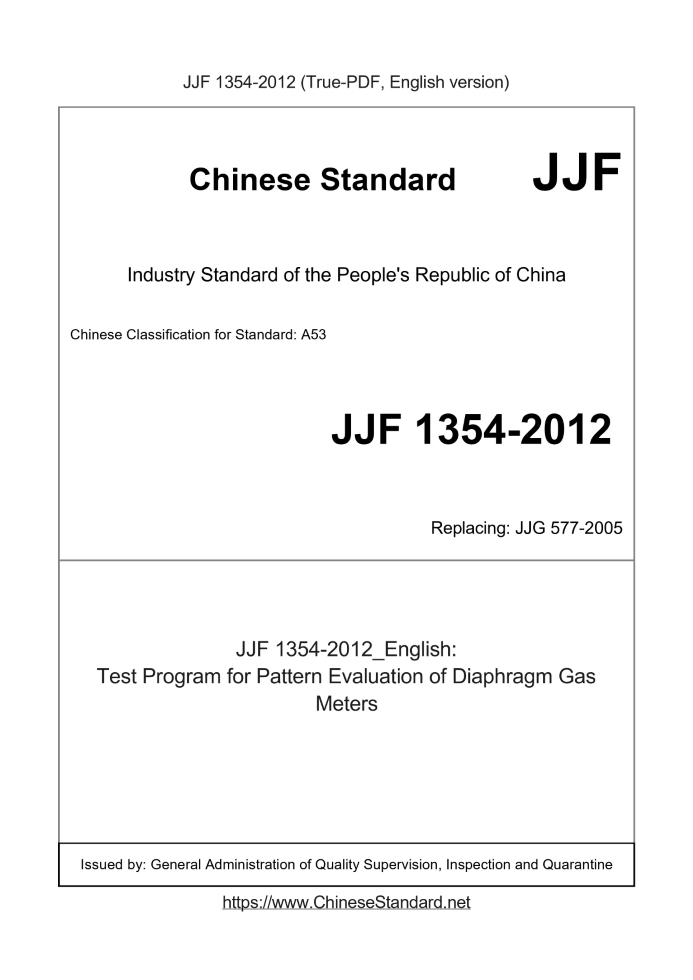

JJF 1354-2012: Test Program for Pattern Evaluation of Diaphragm Gas Meters
Status: Valid

JJF 1354: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJF 1354-2012	1109	Add to Cart	7 days	Test Program for Pattern Evaluation of Diaphragm Gas Meters	Valid
JJF 1354-1990	279	Add to Cart	3 days	O.T.N. of Primary Standard of Viscosity	Obsolete

Similar standards

GB/T 36126 JJF 1368 GB/T 1885 JJF 1356.1 JJF 1344 JJF 1355

Basic data

Standard ID: JJF 1354-2012 (JJF1354-2012)
Description (Translated English): Test Program for Pattern Evaluation of Diaphragm Gas Meters
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A53
Classification of International Standard: 17.120
Word Count Estimation: 48,412
Older Standard (superseded by this standard): JJG 577-2005
Quoted Standard: JJG 577; JJF 1001-2011; JJF 1004; GB/T 2423.1; GB/T 2423.2; GB/T 2423.3; GB/T 6968-2011; GB/T 17626.2; GB/T 17626.3; GB/T 17626.4; GB/T 17626.5; OIML R137-1 & 2-2012; OIML D11-2004; EN 1359-1998 + A1-2006
Adopted Standard: OIML R137-1-2012, NEQ; OIML R137-2-2012, NEQ
Regulation (derived from): AQSIQ Announcement No. 132 of 2012
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine
Summary: This standard applies to diaphragm gas meter (hereinafter referred to as gas meter) of type evaluation.

JJF 1354-2012: Test Program for Pattern Evaluation of Diaphragm Gas Meters

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Test Program for Pattern Evaluation of Diaphragm Gas Meters People's Republic of China National Metrology Technical Specifications Diaphragm Gas Meter Type Evaluation Outline Issued on. 2012-09-03 2013-03-03 implementation The State Administration of Quality Supervision, Inspection and Quarantine released Diaphragm Gas Meter Type Evaluation Outline ofDiaphrag Instead of JJG577-2005 Appendix A type evaluation outline Focal point. the National Technical Committee on Metering flow capacity Main drafting unit. Beijing Institute of Metrology detection Chongqing Institute of Metrology and Quality Inspection Zhejiang Institute of Metrology Participated in the drafting unit. Chongqing avant-garde Crom Table industry limited liability company Pioneer Electronics Technology Co., Ltd. in Hangzhou Zhejiang Gold high-tech Co., Ltd. This specification flow capacity commissioned the National Technical Committee responsible for the interpretation of measurement The main drafters of this specification. Yangyou Tao (Beijing Institute of Metrology detection) Liao new (Chongqing Institute of Metrology and Quality Inspection) Kim Lan (Zhejiang Institute of Metrology) Drafters participate. Ho Yi Chao (Beijing Institute of Metrology detection) Chen Hailin (Chongqing avant-garde Crom Table industry limited liability company) Xie Jun (Hangzhou Pioneer Electronics Technology Co., Ltd.) Guo Gang (Zhejiang Gold high-tech Co., Ltd.)

Introduction (Ⅲ) 1 Scope (1) 2. References (1) 3 Terms (1) 4 Overview (2) 4.1 principles and purposes (2) 4.2 Structure (2) 5 legal management requirements (3) 5.1 units of measurement (3) 5.2 marks, and logos (3) 5.3 External structure of claim (4) 6 measurement requirements (4) 6.1 accuracy class and the maximum permissible error (4) 6.2 error curve (4) 6.3 Pressure loss (4) 6.4 Minimum Scale (5) 6.5 flow range (5) 7 General Requirements (6) 7.1 Appearance and marked (6) 7.2 functional requirements (6) 7.3 environmental adaptability (7) Durability 7.4 (8) 7.5 Remote Control (8) 7.6 electromechanical transducer (8) 7.7 explosion-proof (8) 7.8 Overload flow (8) Durability 7.9 (8) 8 pattern evaluation item list (9) 9 pilot projects test methods and conditions (11) 9.1 Test conditions (11) 9.2 Performance Measurement (13) 9.3 Pressure loss (14) Tightness 9.4 (15) 9.5 anti-reverse function (16) 9.6 Control Function (17) 9.7 prompts (19) 9.8 immunity protection (20) 9.9 temperature tolerance test (21) 9.10 storage performance (22) 9.11 Electromagnetic compatibility (23) 9.12 Durability (26) 9.13 Remote Control (27) 9.14 electromechanical transducer (27) 9.15 explosion-proof (28) 9.16 overload flow (28) 9.17 Durability (28) 10 types of evaluation results determined principle (29) 10.1 individual decision rules (29) 10.2 Comprehensive decision rules (29) Determining (29) the product 10.3 Appendix A pattern evaluation original record format (30) Appendix B to select the number of prototypes and products (40)

Introduction

This specification is based on the national standard GB/T 6968-2011 "diaphragm gas meter", the International Organization of Legal Metrology (OIML) International Recommendation R137-1 Close Current Situation diaphragm gas meter industry for JJG577-2005 version A "type evaluation test program" into the appendix Line revision. The main technical indicators and national standards equivalent to international recommendations. Compared with this specification version JJG577-2005 Appendix A "type evaluation test program", the main technical change as follows. --- Cancel the measurement level, using the level of accuracy of representation; --- Modify the counter technical requirements; --- Modify the parameters of the gas meter flow range; --- Modify the test environment requirements; --- Cancel the torque effect on performance requirements; --- Cancel the standard deviation of the test; --- In place of the electromechanical conversion conversion error; --- Changed the time indication error test minimum ventilation requirements; --- Increased anti-reverse function tests; --- Increasing the temperature of the aptitude test; --- Increasing the control valve leakage test; --- Increased traffic overload test. JJG577-2005 Appendix A of the previously issued as follows. --- JJG577-1994 "diaphragm gas meter" Appendix 2 "full-performance test items the gas meter, apparatus and law"; --- JJF 1086-2002 "diaphragm gas meter stereotypes qualification program." Diaphragm Gas Meter Type Evaluation Outline

1 Scope

This instruction applies to diaphragm gas meter (hereinafter referred to as gas meter) of pattern evaluation. 2. References This specification refers to the following documents. JJG577 diaphragm gas meter JJF 1001-2011 common measurement terms and definitions JJF 1004 flow measurement terminology and definitions GB/T 2423.1 Environmental testing for electric and electronic products Part 2. Test methods Test A. Cold GB/T 2423.2 Environmental testing for electric and electronic products Part 2. Test methods Test B. Dry heat GB/T 2423.3 Environmental testing for electric and electronic products Part 2. Test methods Test Cab. constant wet Thermal Test GB/T 6968-2011 diaphragm gas meter GB/T 17626.2 Electromagnetic compatibility Testing and measurement techniques - Electrostatic discharge immunity test GB/T 17626.3 electromagnetic compatibility test and measurement technology RFEMS test GB/T 17626.4 Electromagnetic compatibility Testing and measurement techniques - Electrical fast transient burst immunity test GB/T 17626.5 electromagnetic compatibility test and measurement technology surge (impact) immunity test OIMLR137-1 OIMLD11.2004 General requirements for electronic measuring instruments (Generalrequirementsforelectronic measuringinstrument) EN1359.1998 A1.2006 Diaphragm Gas Meter (DiaphragmGasMeters) These documents contain provisions which through reference in this specification the terms of this specification. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply this standard, however, encourage Whether the latest versions of these files according to the study of this specification parties to reach an agreement. For undated references the File, the latest edition (including any amendments) applies to this specification.

3 Terms

3.1 Maximum flow qmax maximumflow-rateqmax In line with the upper limit of the gas meter flow measurement performance requirements. 3.2 Minimum flow rate qmin minimumflow-rateqmin Gas meter flow measurement in line with the lower performance requirements. 3.3 Transitional Flow qt transitionalflow-rateqt Interposed between maximum flow and minimum flow, the gas meter flow range is divided into "zones of high" and "low zone" stream the amount. Gas meter corresponding maximum permissible error in the upper zone and lower zone each. qt is 0.1qmax. ......
