JJF 1205-2008_English: PDF (JJF1205-2008)
| Standard ID | USD | BUY PDF | Lead-Days | Standard Title (Description) | Status |
| JJF 1205-2008 | 669 |
Add to Cart
|
5 days
|
Calibration Specification for Harmonious and Flicker Analysis System
| Valid |
| JJF 1205-1990 | 199 |
Add to Cart
|
2 days
|
O.T.N. of 0.640μm Wavelength Primary Standard
| Obsolete |
| Standard ID | JJF 1205-2008 (JJF1205-2008) | | Description (Translated English) | Calibration Specification for Harmonious and Flicker Analysis System | | Sector / Industry | Metrology & Measurement Industry Standard | | Classification of Chinese Standard | A56 | | Classification of International Standard | 17.220 | | Word Count Estimation | 29,299 | | Date of Issue | 2008-04-23 | | Date of Implementation | 2008-07-23 | | Quoted Standard | GB 17625.1-2003; GB 17625.2-2007; GB/T 17626.7; GB/T 4365-2003 | | Drafting Organization | Measurement Science and Technology Institute of China | | Administrative Organization | National Radio Measurement Technical Committee | | Regulation (derived from) | AQSIQ Announcement No. 45 of 2008 | | Issuing agency(ies) | State Administration of Quality Supervision, Inspection and Quarantine | | Summary | This standard applies to new manufacturing, use and post-repair harmonic range of not more than 40 times, to meet the GB 17625. 1-2003 and GB 17625. 2-2007 standard requirements for harmonics and flicker analyzer calibration. |

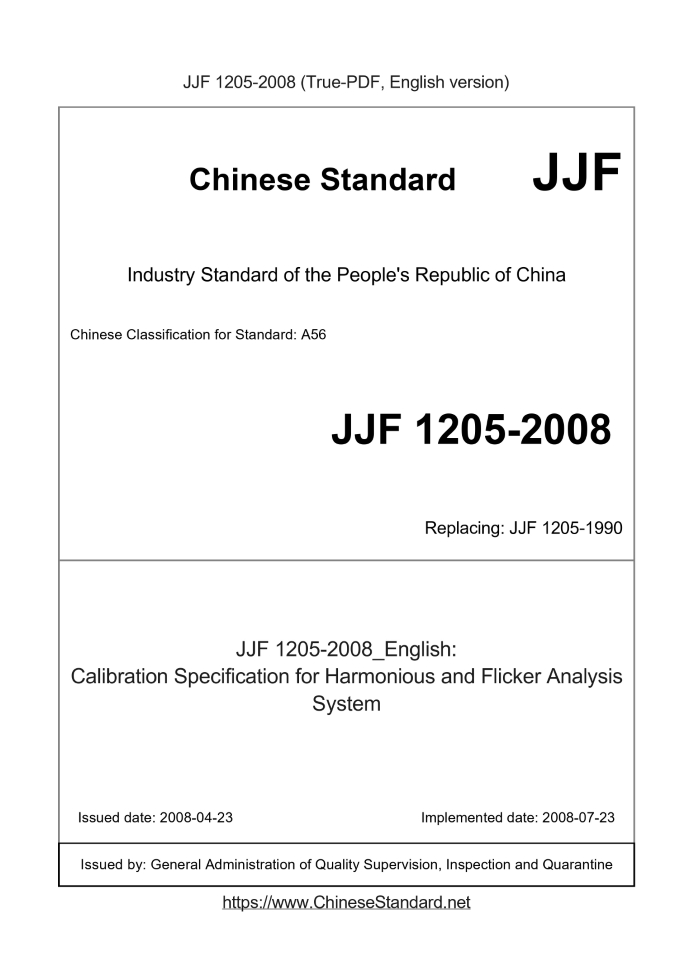

JJF 1205-2008
Calibration Specification for Harmonious and Flicker Analysis System
People's Republic of China National Metrology Technical Specifications
Harmonics and flicker analyzer calibration specification
Posted 2008-04-23
2008-07-23 implementation
The State Administration of Quality Supervision, Inspection and Quarantine released
Harmonics and flicker analyzer calibration specification
This specification by the State Administration of Quality Supervision, Inspection and Quarantine approved on April 23, 2008, and from
From July 23, 2008 into effect.
Focal point. the National Radio Technical Commission metering
Drafting units. China Institute of Metrology
The specification of the National Radio Technical Commission responsible for the interpretation of measurement
The main drafters of this specification.
Wang Weilong (China Institute of Metrology)
Xie Ming (China Institute of Metrology)
Huang Pan (China Institute of Metrology)
Drafters participate.
Wu Vanadium (China Institute of Metrology)
table of Contents
1 Scope (1)
2. Referenced Documents (1)
3 Terms and Definitions (1)
4 Overview (1)
5 Metrological characteristics (2)
Calibration Condition 6 (2)
6.1 environmental conditions (2)
Major equipment 6.2 calibration (2)
7 calibration items and calibration methods (3)
7.1 appearance and working properly check (3)
7.2 Current and linear calibration (3)
7.3 Calibration voltage amplitude (3)
7.4 current frequency response calibration (3)
7.5 Power Calibration (4)
7.6 A class of harmonic calibration (4)
Class 7.7 D harmonic calibration (4)
7.8 Calibration transient harmonics (4)
7.9 Flashing Calibration (5)
7.10 interharmonic calibration (6)
7.11 entity built calibration reference impedance (6)
7.12 Calibration pure power (7)
8 calibration results expression (8)
9 Recalibration interval (8)
Appendix A calibration record format (9)
Appendix B Calibration Certificate pages (15)
Evaluation of Uncertainty Appendix C Examples (21)
Harmonics and flicker analyzer calibration specification
1 Scope
This calibration specifications applicable to the manufacture of new harmonic range use and repair after no more than 40 times, to meet
GB 17625.1-2003 and harmonics and flicker analyzer calibration GB 17625.2-2007 standard requirements.
2 Citations
GB 17625.1-2003 Electromagnetic compatibility - Limits for harmonic current emissions (equipment input current ≤16A)
GB 17625.2-2007 Electromagnetic compatibility limits of no more than 16A rated current of the device in low voltage power supply system
Voltage fluctuation and flicker generated restrictions
GB/T 17626.7 electromagnetic compatibility test and measurement technology power supply systems and equipment connected harmonics, interharmonics
Measurements and instrumentation guidelines
GB/T 4365-2003 Electrotechnical terminology Electromagnetic Compatibility
When using this specification it should be noted that using the currently valid version of the documents cited.
3 Terms and Definitions
3.1 interharmonic interharmonics
Those in power supply frequency harmonic frequency components between.
3.2 flicker flicker
Luminance or spectral distribution caused by time-varying light stimulation unstable visual effects.
3.3 short-term flicker indicator value Pst short-termflickerindicator
Evaluation of short-term (a few minutes) within a blink of severities; Pst = 1 indicates the sensitivity of a conventional threshold.
3.4 Long-term flicker indicator value Plt long-termflickerindicator
Severities within Pst flicker with a continuous assessment of the value of time (a few hours).
4 Overview
Harmonics and flicker analyzer is mainly used to measure the EUT (equipment under test) injected into the grid at work in harmonic content
Volume; changes in its variability and grid voltage EUT caused in the grid frequency. The block diagram shown in Figure 1.
1 harmonics and flicker analyzer block diagram of FIG.
......
|
