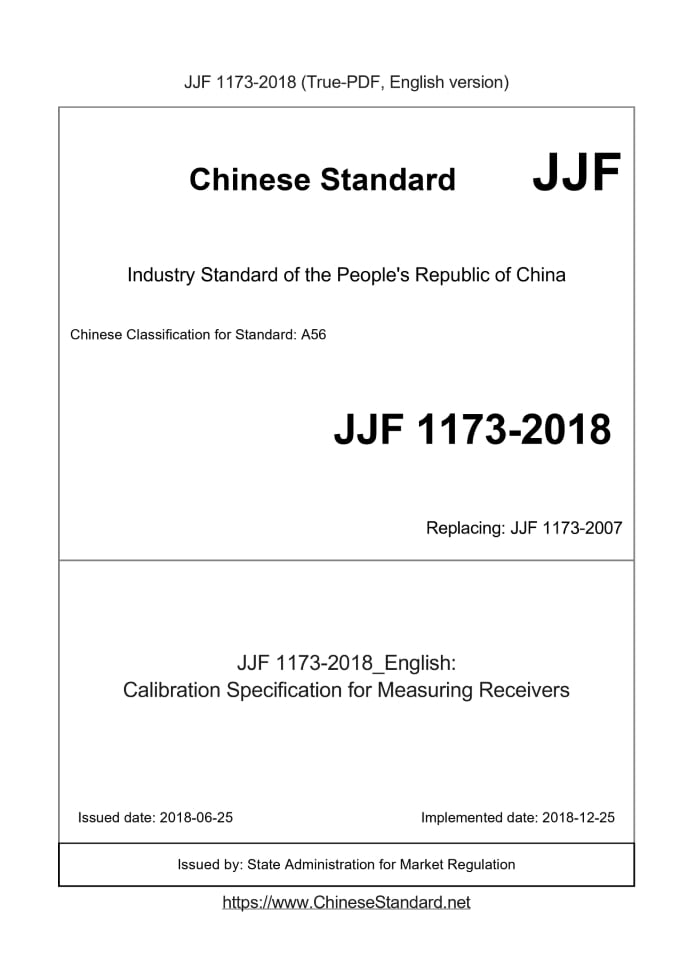

JJF 1173-2018 English PDFStandard Briefing:Stadard ID: JJF 1173-2018Stadard Title: Calibration Specification for Measuring Receivers Price (USD): 829 Lead day (Deliver True-PDF English version): 5 days Status: Valid Evolution and Historical Versions:
Basic Data:
Contents, Scope, and Excerpt:JJF 1173-2018 Calibration Specification for Measuring Receivers National Metrology Technical Specification of the People's Republic Measurement receiver calibration specification Published on.2018-06-25 2018-12-25 implementation State Administration of Markets issued Measurement receiver calibration specification Replace JJF 1173-2007 Focal Point. National Radio Measurement Technology Committee Main drafting unit. 203 of the Second Academy of China Aerospace Science and Industry Corporation China Institute of Metrology Participated in the drafting unit. Beijing Aerospace Flight Control Center This Code entrusts the National Radio Measurement Technical Committee to explain The main drafters of this specification. Li Wenyi (203 of the Second Academy of China Aerospace Science and Industry Corporation) Wu Weiping (203 of the Second Academy of China Aerospace Science and Industry Corporation) He Zhao (China Institute of Metrology) Participate in the drafters. Wu Yuanwu (203 of the Second Academy of China Aerospace Science and Industry Corporation) Zhang Yichi (China Institute of Metrology) Li Hongjun (Beijing Aerospace Flight Control Center) Han Rui (203 of the Second Academy of China Aerospace Science and Industry Corporation) table of Contents Introduction (II) 1 range (1) 2 Overview (1) 3 Measurement characteristics (1) 3.1 Output Reference Frequency (1) 3.2 Frequency measurement (1) 3.3 Tuning Level (1) 3.4 Frequency Modulation, Phase Modulation (1) 3.5 amplitude modulation (1) 4 Calibration conditions (2) 4.1 Environmental conditions (2) 4.2 Measurement standards and other equipment (2) 5 Calibration items and calibration methods (3) 5.1 Calibration Project (3) 5.2 Appearance and normality check (4) 5.3 Output Reference Frequency (4) 5.4 Frequency Measurement (4) 5.5 Tuning Level (4) 5.6 Frequency Modulation, Phase Modulation (6) 5.7 amplitude modulation (8) 6 Calibration result expression (10) 7 re-study interval (11) Appendix A Original Record Format (12) Appendix B Calibration Certificate Page Format (15) Appendix C Example of Uncertainty Evaluation (18) Appendix D Bessel function zero value method FM frequency offset (31) introduction This specification is based on JJF 1071-2010 "National Metrology Calibration Specification Writing Rules", related terms and measurements Uncertainty assessment follows JJF 1001-2011 "General Terms and Definitions" and JJF 1059.1-2012 Two documents of Uncertainty Evaluation and Representation. This specification is a revision of the JJF 1173-2007 Measurement Receiver Calibration Specification. Relative to the original specification, this regulation The main technical changes of Fan are as follows. 1) Extend the carrier frequency range to 100 kHz to 50 GHz, and increase the frequency offset to 500 kHz. Measurement performance requirements; calibration project increases output reference frequency, frequency measurement; adjustment amplitude calibration increases attenuator calibration Quasi-law 2) Delete power calibration, FM frequency response and amplitude modulation frequency response calibration. The release of previous versions of this specification. ---JJF 1173-2007. Measurement receiver calibration specificationScopeThis specification applies to the calibration of measurement receivers in the frequency range from 100 kHz to 50 GHz. 2 Overview The measurement receiver is an instrument used to measure weak signals. The measurement receivers covered by this specification are mainly used for RF/ Microwave signal generator (with analog modulation function) and attenuator measurement, mainly by frequency, tuning level and modulation Component measurement and other functional modules, with frequency, tuning level, amplitude modulation, frequency offset and demodulation distortion The number of measurement functions. 3 Measurement characteristics 3.1 Output reference frequency 10MHz, the maximum allowable error. ± 1 × 10-9. 3.2 Frequency measurement a) Frequency measurement range. 100kHz~50GHz; b) Maximum allowable error. ± (1 × 10 -6 ~ 1 × 10-9). 3.3 tuning level a) Tuning level range. -120dB~0dB (100kHz~26.5GHz); -110dB~0dB (26.5GHz~50GHz); b) Maximum allowable error. ± (0.02dB~0.3dB). 3.4 Frequency modulation, phase modulation a) FM frequency offset measurement range. 0kHz~500kHz; maximum allowable error. ±(1%~1.5%); b) Phase modulation phase deviation measurement range. 0~500rad; maximum allowable error. ±(1%~4%); c) demodulation distortion. ≤ 0.3%; d) Remaining frequency modulation. ≤ 1 Hz (effective value); e) Amplitude modulation suppression. ≤ 10Hz. 3.5 amplitude modulation a) Measurement range of amplitude adjustment. 5%~99%; b) Relative maximum allowable error. ± (0.5% ~ 1.5%); c) demodulation distortion. ≤ 0.3%; d) Remaining amplitude modulation. ≤0.01% (effective value); e) Frequency modulation suppression. ≤ 0.2%. Note. The above technical indicators are not qualified for judgment and are only for reference. ...... |
