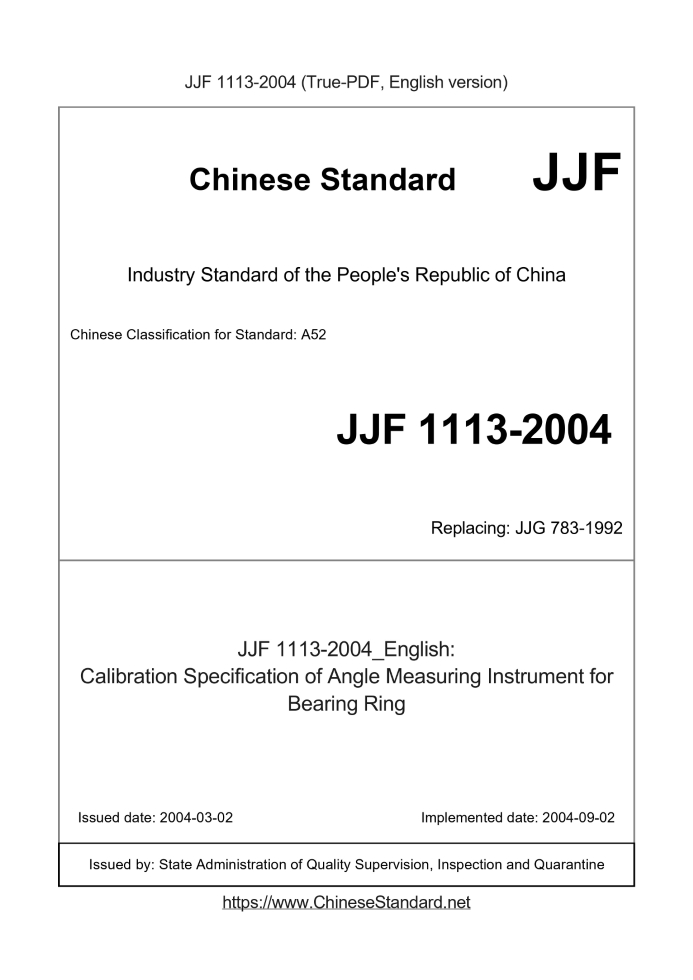

JJF 1113-2004: Calibration Specification of Angle Measuring Instrument for Bearing Ring

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJF 1113-2004	559	Add to Cart	3 days	Calibration Specification of Angle Measuring Instrument for Bearing Ring

Similar standards

JJG 1114 JJF 1280 JJF 1126 JJF 1105 JJG 1109 JJG 1113

Basic data

Standard ID: JJF 1113-2004 (JJF1113-2004)
Description (Translated English): Calibration Specification of Angle Measuring Instrument for Bearing Ring
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A52
Classification of International Standard: 17.040
Word Count Estimation: 16,185
Date of Issue: 2004-03-02
Date of Implementation: 2004-09-02
Older Standard (superseded by this standard): JJG 783-1992
Quoted Standard: JJF 1001-1998; JJF 1059-1999; JJF 1094-2002; JB/T 6637-1993; JJG 118-1996; JJG 396-2002
Regulation (derived from): Administration of Quality Supervision, Inspection and Quarantine No. 24 of 2004
Issuing agency(ies): State Administration of Quality Supervision, Inspection and Quarantine
Summary: This standard applies to standard parts bearing ring angle measuring instrument calibration.

JJF 1113-2004: Calibration Specification of Angle Measuring Instrument for Bearing Ring

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Calibration Specification of Angle Measuring Instrument for Bearing Ring National Metrology Technical Specification of the People's Republic Bearing ring angle standard gauge measuring instrument calibration specification Released on.2004-03-02 2004-09-02 implementation The General Administration of Quality Supervision, Inspection and Quarantine issued Bearing ring angle standard parts Gauge calibration specification Replace JJG783-1992 This specification was approved by the General Administration of Quality Supervision, Inspection and Quarantine on March 02,.2004, and Implemented on September 2,.2004. Focal Point. National Geometric Angle Measurement Technical Committee Main drafting unit. Shandong Institute of Metrology Participated in the drafting unit. Yantai Bearing Instrument Co., Ltd. This specification entrusts the focal point to be responsible for interpretation The main drafters of this specification. Li Xiaohe (Shandong Institute of Metrology) Xia Yuhong (Shandong Institute of Metrology) Yu Zhishan (Shandong Institute of Metrology) Participate in the drafters. Sun Huiqing (Shandong Institute of Metrology) Bao Yongde (Yantai Bearing Instrument Co., Ltd.)

1 Scope (1) 2 Citations (1) 3 Overview (1) 4 Measurement characteristics (1) 4.1 Surface roughness of each working surface (1) 4.2 Indicators (2) 4.3 Inductive force and force measurement of the indicating mechanism (2) 4.4 Proofreading cylinder (2) 4.5 Flatness of the sinusoidal gauge block support surface (2) 4.6 Flatness of the sinusoidal vertical arm working face (2) 4.7 Instrument Zero Error (2) 4.8 Instrument indication error (2) 4.9 Instrument repeatability (2) 5 Calibration conditions (3) 5.1 Environmental conditions (3) 5.2 Calibration Instruments and Other Equipment (3) 6 Calibration items and calibration methods (3) 6.1 Surface roughness of each working surface (3) 6.2 Indicators (3) 6.3 Inductive force and force measurement of the indicating mechanism (3) 6.4 Flatness of the sinusoidal gauge block support surface (3) 6.5 Flatness of sinusoidal vertical arm working face (3) 6.6 Instrument zero error (4) 6.7 Instrument indication error (4) 6.8 Instrument repeatability (5) 7 Calibration result expression (5) 8 re-study interval (5) Appendix A Technical Requirements for Proofing Cylinders (6) Appendix B Technical requirements for standard conical gauges (7) Appendix C Uncertainty Analysis of Instrumental Indication Error Measurement Results (8) Appendix D Calibration Certificate Contents (11) Bearing ring angle standard gauge measuring instrument calibration specification

1 Scope

This specification applies to the calibration of the bearing ferrule angle standard measuring instrument.

2 Citations

This specification refers to the following documents. JJF 1001-1998 General measurement terms and definitions JJF 1059-1999 Measurement Uncertainty Evaluation and Representation JJF 1094-2002 Measuring instrument characteristic evaluation JB/T 6637-1993 Standard requirements for standard bearings for rolling bearings JJG118-1996 Torsion spring type comparator verification procedure JJG396-2002 Inductance Micrometer Calibration Procedure Use of this specification should be done with the current valid version of the above cited documents.

3 Overview

Bearing ring angle standard measuring instrument (hereinafter referred to as angle measuring instrument) is mainly used for bearing ring angle standard parts Measurement. The appearance of the instrument is shown in Figure 1 and Figure 2. figure 1 1-base; 2-sine ruler; 3-correction cylinder; 4-sine ruled arm; 5--indication mechanism drive lever; 6- indicator sensor; 7-arm; 8-slide; 9-parallel rail

4 Measurement characteristics

4.1 Surface roughness of each working surface ......
