JJF 1083-2002 English PDF

US$559.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.

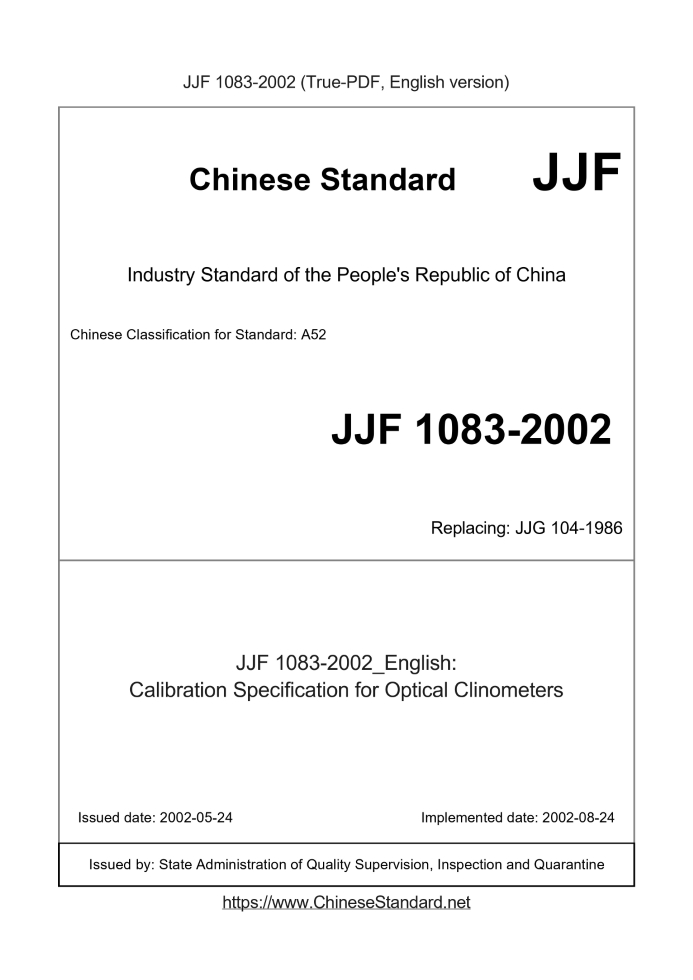

JJF 1083-2002: Calibration Specification for Optical Clinometers
Status: Obsolete

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJF 1083-2002	559	Add to Cart	3 days	Calibration Specification for Optical Clinometers	Obsolete

Similar standards

JJG 1114   JJF 1280   JJF 1126   JJG 1088   JJF 1088   JJG 1083

Basic data

Standard ID: JJF 1083-2002 (JJF1083-2002)
Description (Translated English): Calibration Specification for Optical Clinometers
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A52
Word Count Estimation: 14,179
Date of Issue: 2002-05-24
Date of Implementation: 2002-08-24
Older Standard (superseded by this standard): JJG 104-1986
Issuing agency(ies): State Administration of Quality Supervision, Inspection and Quarantine
Summary: This standard applies to "and l 'optical inclinometer calibration indexing is 10. Optical inclinometer other division value can also be calibrated with reference to this specification.

JJF 1083-2002: Calibration Specification for Optical Clinometers

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Calibration Specification for Optical Clinometers National Metrology Technical Specification of the People's Republic Optical inclinometer calibration specification Released on.2002-05-24 2002-08-24 implementation The General Administration of Quality Supervision, Inspection and Quarantine issued Instead of JJG104-1986 This specification was approved by the General Administration of Quality Supervision, Inspection and Quarantine on May 24,.2002, and It will take effect on August 24,.2002. Focal Point. National Geometric Angle Measurement Technical Committee Main drafting unit. Hubei Institute of Metrology and Testing Technology This specification is interpreted by the focal point The main drafters of this specification. Chen Jianqiang (Hubei Institute of Metrology and Testing Technology) Yang Shuqin (Hubei Institute of Metrology and Testing Technology)

table of Contents

1 Scope (1) 2 Citations (1) 3 Overview (1) 4 Measurement characteristics (1) 4.1 Zero correctness (1) 4.2 Maximum indication error (2) 5 Calibration conditions (2) 5.1 Environmental conditions (2) 5.2 Measurement standards and other equipment (2) 6 Calibration items and calibration methods (3) 6.1 Calibration Project (3) 6.2 Calibration Method (3) 7 Expression of calibration results (5) 8 re-study interval (5) Appendix A Example of Calculation of Maximum Indication Error of Optical Inclinometer (6) Appendix B Special Fixtures (8) Appendix C Calibration Certificate Contents (9) Optical inclinometer calibration specification

1 Scope

This specification applies to calibrations with an indexing value of 10′′ and 1′ optical inclinometer. Other tilting values of the optical inclinometer are also available. Refer to this specification for calibration.

2 Citations

This specification refers to the following documents. JJF 1001-1998 General measurement terms and definitions JJF 1059-1999 Measurement Uncertainty Evaluation and Representation JB/T 9344-1999 Optical Inclinometer Use of this specification should be done with the current valid version of the above cited documents.

3 Overview

An optical inclinometer is a gauge based on the principle of a levelometer for measuring a plane (or cylindrical surface) The angle between the slope of the horizontal plane and the plane (or cylindrical surface). The main part name of the optical inclinometer is shown in Figure 1. figure 1

4 Measurement characteristics

4.1 Zero correctness 4.1.1 Zero error based on the flat working surface of the bottom plate. ......
