JG/T 524-2017 English PDF

Q: How long will the true-PDF of English version of JG/T 524-2017 be delivered?

Upon your order, we will start to translate JG/T 524-2017_English as soon as possible, and keep you informed of the progress. The lead time is typically 2 ~ 4 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of JG/T 524-2017_English with my colleagues?

Yes. The purchased PDF of JG/T 524-2017_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

US$369.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.
JG/T 524-2017: High-pressure airless spraying machine
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JG/T 524-2017	369	Add to Cart	4 days	High-pressure airless spraying machine	Valid

Similar standards

JB/T 2985 JGJ 276 JB/T 5943 JG/T 525 JG/T 523 JGJ 332

Basic data

Standard ID: JG/T 524-2017 (JG/T524-2017)
Description (Translated English): High-pressure airless spraying machine
Sector / Industry: Building & Construction Industry Standard (Recommended)
Classification of Chinese Standard: P97
Classification of International Standard: 91.220
Word Count Estimation: 16,151
Date of Issue: 2017-11-27
Date of Implementation: 2018-05-01
Older Standard (superseded by this standard): JG/T 5018-1992
Quoted Standard: GB/T 191; GB/T 3797; GB/T 9439; GB/T 12361; GB/T 13384; JB/T 5943
Regulation (derived from): Housing and Urban-Rural Development Bulletin 2017 No. 1734
Issuing agency(ies): Ministry of Housing and Urban-Rural Development of the People's Republic of China
Summary: This standard stipulates the terms and definitions, types, requirements, test methods, inspection rules, and signs for paints, resins, solvents, adhesives, and other high-pressure airless sprayers (hereinafter referred to as sprayers) that do not contain solid particles for fluid media spraying or transportation. Packaging, transportation and storage. This standard applies to normal pressure high-pressure airless sprayers with a working pressure of 8 MPa to 50 MPa and a maximum flow rate of no more than 100 L/min.

JG/T 524-2017: High-pressure airless spraying machine

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

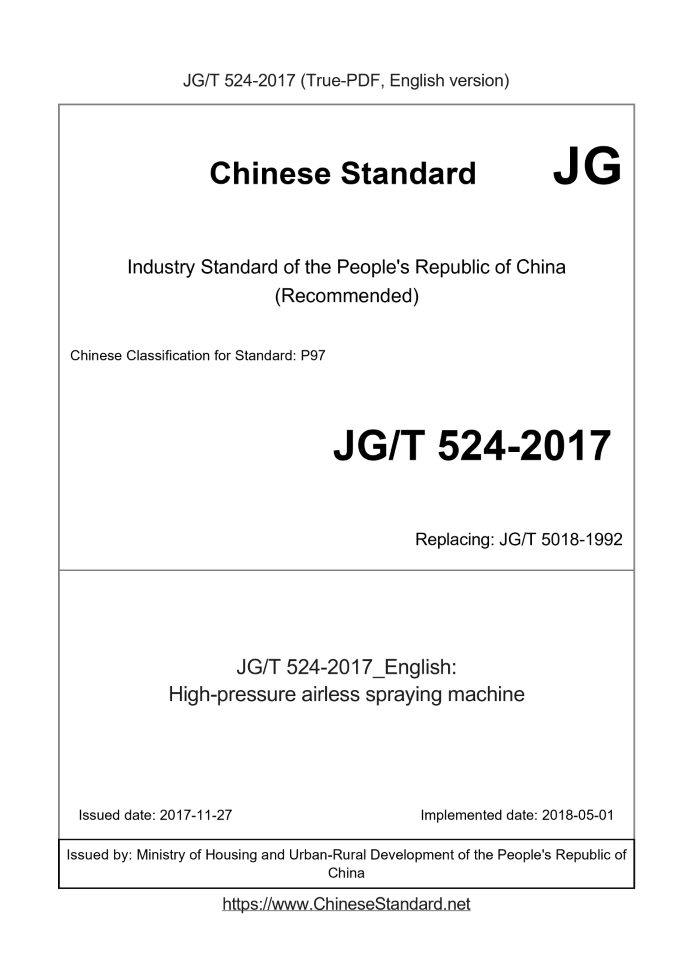

High-pressure airless spraying machine ICS 91.220 P97 People's Republic of China Construction Industry Standard Replace JG/T 5018-1992 High pressure airless spraying machine Released on.2017-11-27 2018-05-01 implementation Ministry of Housing and Urban-Rural Development

Content

Foreword III 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Model 2 5 Requirements 2 6 Test method 4 7 Inspection rules 6 8 Marking, packaging, transportation and storage 7 Appendix A (informative) Test Table 8

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces JG/T 5018-1992 "High Pressure Airless Spraying Machine". The main technical changes compared to JG/T 5018-1992 are as follows. --- Revised the scope of application of high pressure airless sprayer (see Chapter 1); --- Updated some normative references (see Chapter 2); --- Increased and revised terms related to high pressure airless spray technology (see Chapter 3); --- Removed the main parameters and series of high pressure airless sprayer design (see Chapter 4); --- Requirements for the degree of protection of electrical systems (5.1.11); --- Re-requires the life of the suction valve (5.2.11). This standard was proposed by the Institute of Standardization of the Ministry of Housing and Urban-Rural Development. This standard is under the jurisdiction of the Building Construction Safety Standardization Technical Committee of the Ministry of Housing and Urban-Rural Development. This standard was drafted. China Academy of Building Research, China Academy of Building Research Construction Mechanization Research Branch, Beijing Construction Machinery Institute of Chemical Research, China Construction Education Association, Construction Machinery Vocational Education Professional Committee, China Construction Machinery Industry Association User Work Committee, China Construction Machinery Industry Association Concrete Products Machinery Branch, Langfang Kaibo Construction Machinery Technology Co., Ltd., National Construction Engineering Quality Supervision Inspection Center, Zhongtai Construction Group Co., Ltd., Shandong Dejian Group Co., Ltd., Beijing Yanjing Engineering Management Co., Ltd., Beijing Huayou Xinye Engineering Technology Co., Ltd., Wuhan Dongfang Construction Group Co., Ltd., Hebei Construction Group Qianqiu Pipe Industry Co., Ltd., Zhejiang Second Construction Set Group Co., Ltd., Langfang City Construction Engineering Group Corporation, Zhongcheng Investment Group No. 8 Engineering Bureau Co., Ltd. The main drafters of this standard. Cao Guozhen, Wang Chunxi, Zhou Lei, Shi Xiaohu, An Zhifang, Liu Chengyu, Lu Weitao, Hu Zhaowen, Wang Zhenxi, Wang Haidong, Zhang Gangquan, Ma Fenggong, Xu Zhenghong, Fang Qunying, Fan Liangyi, Chen Chunlei, Hu Changling, Wang Qian, Chen Yining, Cheng Zhi, An Qingjiu, Guo Yuzeng, Dong Xiang, Wu Bingtian. The previous versions of the standards replaced by this standard are as follows. ---JG/T 5018-1992. High pressure airless spraying machine

1 Scope

This standard stipulates that high-pressure airless spraying machines for spraying or conveying fluids, such as paints, resins, solvents, adhesives, etc. The terms and definitions, models, requirements, test methods, inspection rules, marking, packaging, transportation and storage are referred to as spraying machines. This standard is applicable to normal temperature high pressure airless spraying machine with working pressure of 8MPa~50MPa and maximum flow not more than 100L/min.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 191 packaging storage and transportation icon GB/T 3797 electrical control equipment GB/T 9439 gray iron castings General technical conditions for GB/T 12361 steel die forgings General technical conditions for GB/T 13384 mechanical and electrical product packaging General technical conditions for JB/T 5943 construction machinery welding parts

3 Terms and definitions

3.1 Airless spray highpressureairlessspraying The high-pressure fluid medium is instantaneously ejected through the conveying system, the spray gun, and the nozzle, and rapidly expands and atomizes to shoot the coating surface to form a coating. 3.2 Construction equipment that uses the principle of high pressure airless spraying. 3.3 Rated working pressure ratedcapacity The allowable pressure at the pump outlet when the sprayer is in operation. Note. The unit is MPa. 3.4 Rated flow ratedflow The volume of fluid medium that can be pumped per unit of time at rated pressure. Note. The unit is L/min. 3.5 Maximum flow maximumflow Stable flow rate of the spray gun nozzle when the spray gun is not equipped with a nozzle. Note. The unit is L/min. ......
