JG/T 214-2017 English PDF

US$259.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
JG/T 214-2017: Building hardware for windows and doors--Shoot bolts
Status: Valid

JG/T 214: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JG/T 214-2017	259	Add to Cart	3 days	Building hardware for windows and doors--Shoot bolts	Valid
JG/T 214-2007	239	Add to Cart	3 days	Building hardware for windows and doors. Latch bolts	Obsolete

Similar standards

JG/T 125   GB/T 14370   JG/T 402   JG/T 215   JG/T 213   JGJ 214

Basic data

Standard ID: JG/T 214-2017 (JG/T214-2017)
Description (Translated English): Building hardware for windows and doors--Shoot bolts
Sector / Industry: Building & Construction Industry Standard (Recommended)
Classification of Chinese Standard: Q73
Classification of International Standard: 91.060.50
Word Count Estimation: 11,194
Date of Issue: 2017-12-22
Date of Implementation: 2018-08-01
Older Standard (superseded by this standard): JG/T 214-2007
Quoted Standard: GB/T 2828.1; GB/T 5823; GB/T 14436; GB/T 32223
Regulation (derived from): The Ministry of Housing and Urban-Rural Development Announcement No. 1776 of 2017
Issuing agency(ies): Ministry of Housing and Urban-Rural Development of the People's Republic of China
Summary: This standard stipulates the classification and marking, requirements, test methods, inspection rules and signs, packaging, transportation and storage of building doors and windows. This standard applies to construction double-flange doors and windows with the plug.

JG/T 214-2017: Building hardware for windows and doors--Shoot bolts

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

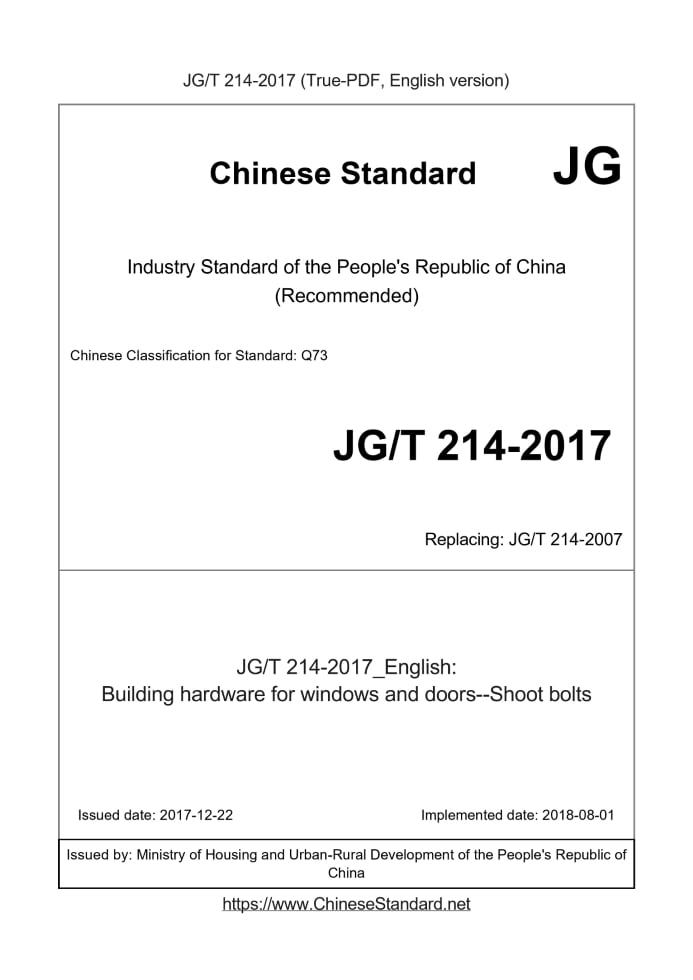

Building hardware for windows and doors.Shoot bolts ICS 91.060.50 Q73 People's Republic of China Construction Industry Standard Replace JG/T 214-2007 Building door and window hardware latch Released on.2017-12-22 2018-08-01 implementation Ministry of Housing and Urban-Rural Development

Content

Foreword I Introduction II 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Classification and Marking 2 5 Requirements 2 6 Test method 3 7 Inspection rules 6 8 Marking, packaging, transportation and storage 7

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces JG/T 214-2007 "Building Door and Window Hardware Inserts". Main technical content compared to JG/T 214-2007 The changes are as follows. --- Added bolt (see 3.1), latch lever (see 3.2), latch seat (see 3.3), latch body (see 3.4) and drive unit (see 3.5) Language and definition; --- Modified the definition of single-action latch (see 3.1.1) and linkage latch (see 3.1.2); --- Increased classification by performance (see 4.1.3); --- Increase the main parameter code of the effective overlap (see 4.1.4b); --- Increased the performance requirements of Class I plugs (see Table 1) and test methods (see 6.4); --- Increased the anti-destructive requirements of the drive components (see Table 1) and test methods (see 6.4.3); --- Revised the lateral anti-destruction requirements (see Table 1) and test methods (see 6.4.4) of the pin of the class II latch; --- Increased the axial anti-destructive requirements (see Table 1) and test methods (see 6.4.5.2) for the pin of the Class II pin. This standard was proposed by the Institute of Standardization of the Ministry of Housing and Urban-Rural Development. This standard is under the jurisdiction of the Standardization Technical Committee for Building Products and Components of the Ministry of Housing and Urban-Rural Development. This standard was drafted. China Building Metal Structure Association, Noto Franck Construction Hardware (Beijing) Co., Ltd., Chunguang Hardware Co., Ltd. Division, Gewu Trading (Shanghai) Co., Ltd., ASSA ABLOY Guoqiang (Shandong) Hardware Technology Co., Ltd., China Academy of Building Research, Sigiriya Aobi Window Door Hardware (Sanhe) Co., Ltd., Qingdao Lixing Yangshi Door and Window Fittings Co., Ltd., Guangdong Jianlang Hardware Products Co., Ltd. Donghe Building Hardware Co., Ltd., National Building Materials Industry Building Hardware Plumbing Product Quality Supervision, Inspection and Testing Center, Yinke Gated (Zhuhai Free Trade Zone) Co., Ltd., Jiangxi Fenfa Technology Co., Ltd., Beijing Xifei Century Door and Window Curtain Wall Engineering Co., Ltd., Shandong Junqiang Hardware Co., Ltd., Dalian Shide Technology Development Co., Ltd., Guangdong Aolijian Construction Hardware Co., Ltd., Zhejiang Xing Samsung Hardware Co., Ltd. Company, Beijing Milan Window Energy-saving Building Materials Co., Ltd., Shenyang Yuanda Aluminum Engineering Co., Ltd., Zhejiang Ruide Construction Hardware Co., Ltd. The main drafters of this standard. Liu Xuqiong, Dai Hongliang, Lin Wenwei, Liang Shilin, Sun Jichao, Lu Dongrui, Wang Liang, Yuan Zhibing, Du Wanming, Li Juncai, Gu Xiuzhi, Wei Jun, Chen Ming Tan, Yang Wei, Hua Mingjie, Fan Huaiqi, Chen Yunxiang, You Jun, Pan Fu, Xu Changli, Dai Weihong, Liao Bangyu. The previous versions of the standards replaced by this standard are. ---JG/T 214-2007.

Introduction

Building Door & Window Hardware contains 12 standards. ---GB/T 32223 General requirements for building doors and windows hardware ---JG/T 124 Construction door and window hardware transmission mechanism handle ---JG/T 125 Building Door & Window Hardware Hinges (Hinges) ---JG/T 126 Building Door and Window Hardware Drive Locker ---JG/T 127 Building door and window hardware sliding support ---JG/T 128 Building door and window hardware support ---JG/T 129 Building door and window hardware pulley ---JG/T 130 Building door and window hardware single point lock ---JG/T 213 Building door and window hardware spinning handle ---JG/T 214 Building Door and Window Hardware Latch ---JG/T 215 Building Door and Window Hardware Multi-Point Locker ---JG/T 393 Building door and window hardware double-sided handle Building door and window hardware latch

1 Scope

This standard specifies the classification and marking, requirements, test methods, inspection rules and signs, packaging, transportation and storage of bolts for building doors and windows. This standard applies to the construction of double-sliding door and window bolts.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 2828.1. Sampling and sampling procedures - Part 1 . Batch-to-batch sampling plan searched by the acceptance quality limit (AQL) GB/T 5823 building door and window terminology GB/T 14436 General Rules for Industrial Product Assurance Documents GB/T 32223 General requirements for building doors and windows hardware

3 Terms and definitions

The following terms and definitions as defined in GB/T 5823 apply to this document. 3.1 Latch shootbolt A device with a double-sliding door and window sash locking function. 3.1.1 Single action latch singleactionshootbolt A latch that enables one-way locking. 3.1.2 Linkage bolt connectedshootbolt A latch that enables simultaneous bi-directional locking. 3.2 Lever rod shoot Reciprocating motion in the latch, with a locking function. 3.3 Pin holder keep Used in conjunction with the latch lever to achieve the door and window lock function. 3.4 Latch body boltbody Mounted on the door and window fan, the housing that transmits the pin and the load of the drive component. 3.5 Drive unit drivingpart A component that drives the movement of the latch lever. ......
