JG/T 194-2018 English PDF

Q: How long will the true-PDF of English version of JG/T 194-2018 be delivered?

Upon your order, we will start to translate JG/T 194-2018_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of JG/T 194-2018_English with my colleagues?

Yes. The purchased PDF of JG/T 194-2018_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

Q: Should I purchase the latest version JG/T 194-2018?

Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version JG/T 194-2018 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.

US$349.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
JG/T 194-2018: Ventilating duct for residential kitchen and bathroom
Status: Valid

JG/T 194: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JG/T 194-2018	349	Add to Cart	3 days	Ventilating duct for residential kitchen and bathroom	Valid
JG/T 194-2006	359	Add to Cart	3 days	Ventilating duct for residential kitchen and bathroom	Obsolete

Similar standards

JG/T 125 GB/T 14370 JG/T 402 JG/T 565 JG/T 562 JGJ/T 194

Basic data

Standard ID: JG/T 194-2018 (JG/T194-2018)
Description (Translated English): Ventilating duct for residential kitchen and bathroom
Sector / Industry: Building & Construction Industry Standard (Recommended)
Classification of Chinese Standard: Q72
Classification of International Standard: 61.060.40
Word Count Estimation: 15,138
Date of Issue: 2018-06-26
Date of Implementation: 2018-12-01
Older Standard (superseded by this standard): JG/T 3028-1995; JG/T 194-2006
Quoted Standard: GB 175; GB/T 1499.1; GB/T 2828.1; GB 8076; GB/T 9978.1; GB/8T 14684; GB 50096; GA/T 798; JGJ 51; JGJ 63; JGJ/T 309; JG/T 436; QB/T 3897; CECS 390
Regulation (derived from): Ministry of Housing and Urban-Rural Development Announcement 2018 No. 130
Issuing agency(ies): Ministry of Housing and Urban-Rural Development of the People's Republic of China
Summary: This standard specifies the terms and definitions, classification and marking, general provisions, requirements, test methods, inspection rules, marking, transportation and storage of exhaust (gas) products (hereinafter referred to as exhaust pipes) in residential kitchens and bathrooms. This standard applies to steel mesh cement prefabricated pipes in residential kitchen and bathroom exhaust (gas) road systems.

JG/T 194-2018: Ventilating duct for residential kitchen and bathroom

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

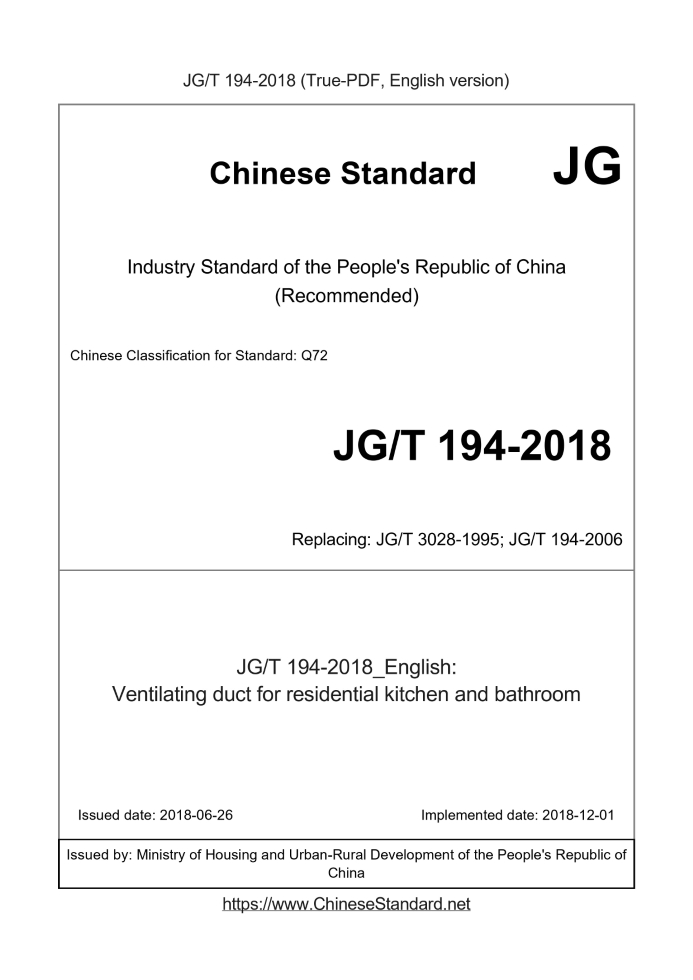

Ventilating duct for residential kitchen and bathroom ICS 91.060.40 Q72 People's Republic of China Construction Industry Standard Replacing JG/T 3028-1995, JG/T 194-2006 Residential kitchen and bathroom exhaust (gas) products Published on.2018-06-26 2018-12-01 implementation Ministry of Housing and Urban-Rural Development

Content

Foreword III 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Classification and Marking 2 5 General Provisions 3 6 Requirements 5 7 Test method 6 8 Inspection rules 7 9 Marking, transport and storage 8 Appendix A (Normative) Fire Test Method 9

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces JG/T 3028-1995 "Residential Kitchen Exhaust Duct" and JG/T 194-2006 "Residential Kitchen and Toilet Exhaust Road". Compared with JG/T 3028-1995 and JG/T 194-2006, the main technical contents except for editorial changes are as follows. --- Remove the contents of the flue for the coal stove; --- Clarified that this standard is limited to prefabricated pipes of steel mesh cement; --- Increased the size and size of the exhaust product; ---Propose the minimum flow cross-sectional area and minimum wall thickness requirements for the type of exhaust product; --- Replace the anti-flexible impact with a soft object impact; --- Give the wall thickness test method; --- Cleared the factory inspection and type inspection items. This standard was proposed by the Institute of Standardization of the Ministry of Housing and Urban-Rural Development. This standard is under the jurisdiction of the Standardization Technical Committee for Building Products and Components of the Ministry of Housing and Urban-Rural Development. This standard is drafted by. Shenyang Jianzhu University, China Real Estate Association Materials and Facilities Committee, China Building Standard Design Research Research Institute Co., Ltd., Sichuan Fire Research Institute of the Ministry of Public Security, National Construction Engineering Quality Supervision and Inspection Center, Hangzhou Jiankebang Testing Technology Service Company, National Building Fire Safety Product Safety and Quality Supervision and Inspection Center, Shanxi Academy of Building Research, Hangzhou Boss Electric Co., Ltd. Division, Chengdu Residential Tobacco Airway Industry Association, Henan Province Exhaust Gas Industry Association, Wuhan Ventilation Flue Enterprise Association, Hangzhou Xiaomi Environmental Technology Company, Beijing Danxuan Kitchen and Bathroom Technology Research Center, Shenzhen Wanju Technology Co., Ltd., Guangzhou Caidie Energy Saving Technology Co., Ltd., Hangzhou State Kangju Yaoxin Cement Product Factory, Shandong Zhongke Henderson Building Materials Co., Ltd., Beijing Lihao Wuyuan Building Materials Co., Ltd., Jiangxi Longren High-tech Co., Ltd. Co., Ltd., Hubei Xinneng High-tech Co., Ltd., Dongguan Shunmei Energy-saving Building Materials Technology Co., Ltd., Shanxi Zhongzhi Kechuang Environmental Protection Technology Co., Ltd. Co., Ltd., Wuxi Jinshi Building Products Co., Ltd., Hubei Qingwei Residential Exhaust Road Operation Management Co., Ltd., Hainan Henderson Technology Co., Ltd. Company, Qingdao Shengzexing and Trading Co., Ltd., Fujian Shoucong Shihao Industrial Co., Ltd. The main drafters of this standard. Wang Yueren, Lin Tao, Feng Gong, Luo Wenbin, Shang Shaowen, Wang Liangwei, Tong Yu, Guo Haifeng, Wang Cong, Wang Xiaohua, Lu Weijie, Yue Zenglong, Jia Yingze, He Feng, Wu Nan, Xu Yiyuan, Wang Fangfang, Wang Qiding, Zhang Qi, Nie Fayu, Chen Xiaoxing, Han Wenqiang, Gong Shouyi, Gao Qingwen, Xu Renchun, Pan Chuanxiang, Zhang Yan, Zhao Chenfeng, Pan Xiaoyan, Zheng Zhijian, Liu Shaozhen, Yi Mingsong, Liu Shan, Xu Changhua, Jin Xin, Chen Gonghua, Shu Shujin, Yu Zeyang, Wang Renlin. The previous versions of the standards replaced by this standard are. ---JG/T 3028-1995 "Residential kitchen exhaust pipe"; ---JG/T 194-2006 "Residential kitchen, bathroom exhaust duct". Residential kitchen and bathroom exhaust (gas) products

1 Scope

This standard specifies the terms and definitions, classifications and markings of exhaust (gas) products (hereinafter referred to as exhaust ducts) in residential kitchens and bathrooms. General rules, requirements, test methods, inspection rules, signs, transportation and storage. This standard applies to steel mesh cement prefabricated pipes in residential kitchen and bathroom exhaust (gas) road systems.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only the dated version applies to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB 175 universal Portland cement GB/T 1499.1 Steel for reinforced concrete - Part 1. Hot rolled round bars GB/T 2828.1. Sampling procedures for sampling by sampling - Part 1 . Batch-to-batch sampling plan, searched by AQL GB 8076 concrete admixture GB/T 9978.1 Fire resistance test methods for building components - Part 1. General requirements GB/T 14684 construction sand GB 50096 residential design code GA/T 798 oil exhaust fire check valve JG J51 Lightweight Aggregate Concrete Technical Regulations JG J63 concrete water standard JG J/T 309 Building Ventilation Effect Test and Evaluation Criteria JG/T 436 building ventilation air volume control valve QB/T 3897 galvanized welded wire mesh CECS390 residential exhaust system application technical regulations

3 Terms and definitions

The following terms and definitions apply to this document. 3.1 Exhaust duct ventilatingduct A pipe product used to exclude smoke or toilet turbidity generated in kitchen cooking activities, and is a concentrated exhaust pipe in a residential kitchen or bathroom. The basic components of the system. 3.2 Residential kitchen, bathroom exhaust (gas) road system centralizedizedexhaustsystemforresidentialkitchenorbathroom Set in the kitchen or bathroom in the same vertical position in the residential building, generally by the range hood or exhaust fan, fire check valve, row The airway and roof anti-backflow hood are used to eliminate oil fumes or dirty gas, and have anti-mite, anti-backflow and fire prevention functions. 3.3 Oil exhaust smoke fire check valve dischargingoilfumefirepreventioncheckvalve Fire check valve. ......
