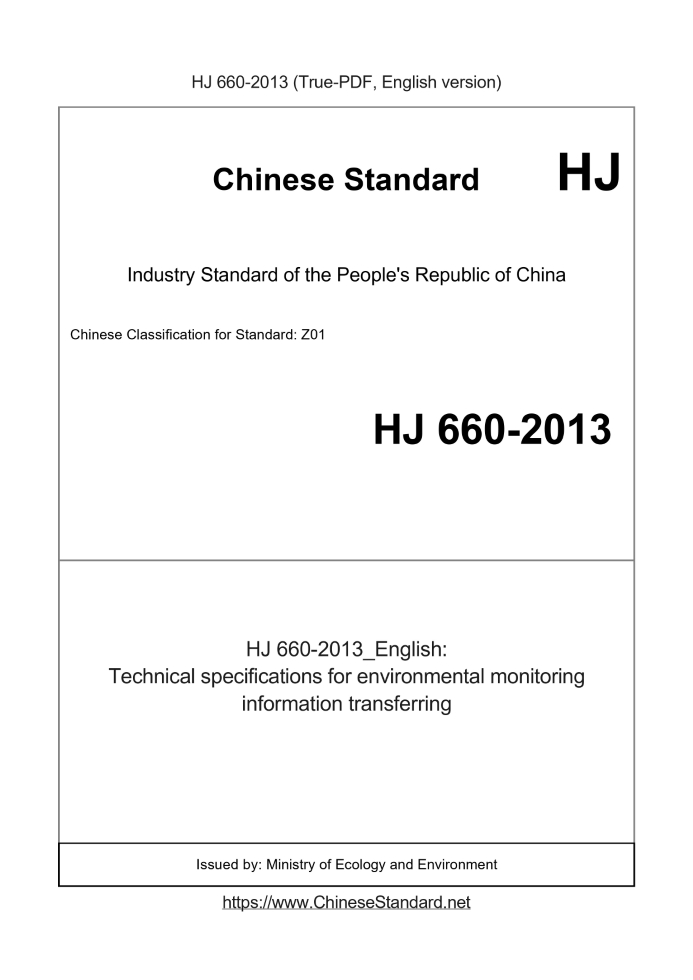

HJ 660-2013 English PDFUS$529.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email. HJ 660-2013: Technical specifications for environmental monitoring information transferring Status: Valid
Basic dataStandard ID: HJ 660-2013 (HJ660-2013)Description (Translated English): Technical specifications for environmental monitoring information transferring Sector / Industry: Environmental Protection Industry Standard Classification of Chinese Standard: Z01 Classification of International Standard: 13.020 Word Count Estimation: 20,294 Quoted Standard: GB 2312; GB 3095; GB 3096; GB 3838; GB 15618; GB 16297; GB/T 16705; GB/T 16706; HJ 524; HJ 525; HJ/T 75; HJ/T 212; HJ/T 352 Regulation (derived from): Department of Environmental Protection Notice No. 56 of 2013 Issuing agency(ies): Ministry of Ecology and Environment Summary: This standard specifies: Environmental Monitoring Information transfer mode, the transmission process, transmission data formats and code definitions. This standard applies to: environmental monitoring of information between all levels of national environ HJ 660-2013: Technical specifications for environmental monitoring information transferring---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Technical specifications for environmental monitoring information transferring Hua Guoguo retaining ring standard in the People's Republic of family Guarantee Environmental monitoring information transfer technical regulations Technical Specifications for Environmental Monitoring Information Transferring (Release) Issued on.2013-09-18 2013-12-01 implementation Issued by the Ministry of Environmental Protection Table of ContentsPreface II 1. Scope ..1 2 Normative references ..1 3 Terms and Definitions .1 4 Abbreviations 2 5 environmental monitoring information transfer mode ..2 6 Environmental Monitoring Information data types and data transmission frequency .4 7 ..4 environmental monitoring information transfer process 8 environmental monitoring information transfer data file format 5 Appendix A (normative) Environmental Monitoring Information Schema Description ..9 Appendix B (normative) Code pollutants and units 10 Annex C (informative) environmental monitoring information transfer XML File Example 16ForewordTo implement the "People's Republic of China Environmental Protection Law", "People's Republic of China Air Pollution Prevention Law," "People's Republic Water Pollution Prevention Law "and" People's Republic of China Environmental Noise Pollution Prevention Law "to regulate the environmental monitoring and guidance letter Information transmission, formulation of this standard. This standard specifies the transmission mode of environmental monitoring information transfer processes, data formats and codes of the definition of transmission. The Standard Appendix A, Appendix B is normative appendix, Appendix C is informative appendix. This standard was first published. This standard is developed by the Ministry of Environmental Protection Science, Technology organization. This standard is mainly drafted by. China National Environmental Monitoring Center, Shanghai Environmental Monitoring Center. This standard MEP September 18, 2013 for approval. This standard shall be December 1, 2013 implementation. The standard explanation by the Ministry of Environmental Protection. Environmental monitoring information transfer technical regulations1 ScopeThis standard specifies the transmission mode of environmental monitoring information transfer processes, data formats and codes defined transmission. This standard applies to all levels of the national environmental monitoring stations, monitoring stations at all levels and the automatic transmission between the units concerned environmental monitoring information Transport activities. Without limiting the expansion of the content standard monitoring information transmission environments other than those specified in this standard, but the content can not be extended and Conflict with the provisions of this standard.2 Normative referencesThis standard references the following documents or the terms. For undated references, the effective version applies to this standard. GB 2312 exchange information with Chinese characters coded character set basic set GB 3095 Ambient Air Quality Standard GB 3096 acoustic environment quality standards GB 3838 Surface Water Quality Standards GB 15618 Soil Environmental Quality Standards GB 16297 Air Pollutant Emission Standards GB/T 16705 environmental pollution category code GB/T 16706 environmental pollution category code HJ 524 Code Name of atmospheric pollutants HJ 525 water contaminants Code Name HJ/T 75 stationary sources Continuous Emission Monitoring Technical Specifications HJ/T 212 pollution-line automatic monitoring (monitoring) system data transmission standards HJ/T 352 Environmental pollution automatic monitoring information transmission, switching technology (for Trial Implementation)3 Terms and DefinitionsThe following terms and definitions apply to this standard. 3.1 Automatic Stations (Automatic Monitoring Station) It refers to continuous environmental monitoring on-line automatic monitoring of various environmental factors or sources of pollutant emissions monitoring terminal and its subsidiaries facility. Such as automatic water quality monitoring stations, automatic air monitoring stations, water pollution automatic monitoring stations and the like. 3.2 Environmental Monitoring Information (Environmental Monitoring Information) It refers to the process of environmental monitoring, environmental monitoring objects (such as various environmental factors, pollution, etc.) monitoring the implementation (including manual Monitoring and automatic monitoring) arising from observations and measurements.4 AbbreviationsThe following abbreviations apply to this standard. FTP file transfer protocol (File Transfer Protocol) Extensible Markup Language XML (Extensible Markup Language) VPN virtual private network (Virtual Private Networks)5 environmental monitoring information transfer mode5.1 four national environmental monitoring network structure and information transfer mode 5.1.1 four national environmental monitoring network structure Four national environmental monitoring network structure progressively from the bottom up are. District (County) environmental monitoring, prefectural (city) Environmental monitoring stations, provincial (municipal) Environmental Monitoring Station, China National Environmental Monitoring Center. 5.1.2 Environmental monitoring information transfer mode Environmental monitoring information from the station to the next level up a gradual transfer station, and finally to China National Environmental Monitoring Center, as shown in Figure 1 FIG. 5.2 automatic monitoring network structure and information transfer mode 5.2.1 automatic monitoring network structure Automatic monitoring network structure step by step from the bottom up are. District (County) environmental monitoring, prefectural (city) Environmental Monitoring Station, Provinces (municipalities) Environmental Monitoring Station, China National Environmental Monitoring Center. 5.2.2 Automatic monitoring information transfer mode a) sequential transmission. automatic monitoring station data from the next level up a gradual transfer station, and finally to China Environmental Monitoring Terminus; b) cross-level transmission. automatic monitoring data can be environmental monitoring stations by the district (county) directly to the provinces (municipalities) or Environmental Monitoring Station By China Environmental Monitoring Station transmission can also be directly transmitted by the Environmental Monitoring Station (city) to the China Environmental Monitoring Station, as Figure 2. Figure 1 four national environmental monitoring network structure and information transfer mode2 automatic monitoring network structure and information transfer mode6 Environmental Monitoring Information data types and data transmission frequency6.1 Environmental Monitoring Information Data Type Environmental monitoring information data type based environmental monitoring service differentiation, routine environmental monitoring business are 11 species, its Should environmental monitoring information and data type codes shown in Table 1. Table 1 Environmental Monitoring Information and data type codes Business type data type code Ambient air Ambient air monitoring data AQ Precipitation precipitation monitoring data AR Surface water surface water quality monitoring data WQ Drinking water Drinking water quality monitoring data WD Groundwater Groundwater quality monitoring data WG Coastal waters offshore seawater quality monitoring data WS Soil soil environmental quality monitoring data SQ Noise Noise monitoring data NQ Exhaust gas pollution monitoring data AW Waste water pollution monitoring data WW Biological biomonitoring data SW Exceeded more than 11 kinds, such as environmental monitoring information data type, self-coding extension, the code for the two capital English word mother. 6.2 Environmental monitoring information data transmission frequency Data by defining the start time and end time data generated two properties to determine the type of data is found, a small When the average daily averages, quarterly averages, the annual average of the relevant standards or statistical frequency value, as per the monitoring station The actual data collection situation. XML data must meet the data requirements of the definition, otherwise regarded as invalid data. When a monitoring point at the same time heavy data When re-present to the first subject, prevents data from being modified.7 environmental monitoring information transfer process7.1 Environmental monitoring information transmission operating environment Environmental monitoring information transmission channel to the State Environmental Protection business network as the main transmission channel, in no condition to use the country Set up VPN network data transmission channel based on the case of home Internet business network of environmental protection. 7.1.1 data sender The data sender can access the State Environmental Protection business network through the private network for transmission; or install a wired or wireless Internet routing equipment, to provide the necessary VPN encrypted Internet gateway link, install the VPN data encryption gateways to the composition based on Internet-VPN data transmission network. 7.1.2 Data receiver a) the data recipient shall be consistent with the data sender, or access to the State Environmental Protection business network through the private network to enter Line transmission; or install a wired or wireless Internet routing equipment, to provide the necessary VPN encrypted Internet gateway links, install VPN Data encryption gateway to the composition of Internet-based VPN data transmission network. b) deploy FTP data reception and database hardware and software environment. The establishment of shared directories c) in the data recipient opened FTP service on the basis of the shared directory structure described as follows. 1) a directory of FTPROOT; 2) the establishment of two directories in a directory, two directories for receiving uploaded environmental monitoring business various types of XML File, two directory service type code corresponding to 6.1 listed in Table 1 name. 3) Each of these directories are provided user name and password, and set the corresponding read and write permissions. 7.2 Environmental monitoring information data transmission Subordinate stations or automatic monitoring stations regularly send data to the monitoring station or parent station hosted. Monitoring data basis having According to generate the XML file format, XML file format requirements see 8, specific transmission process is as follows. a) the recipient data entry daily zero establish the current date in the "FTPROOT \\ [corresponding service type folder]" directory Catalog, directory name uses the date "YYYYMMDD" format (eg 20,090,101 represents January 1, 2009). b) data sender will need to upload the data to generate a predetermined XML file format is sent to the above directory. c) the data receiver scanning "FTPROOT \\ [corresponding service type folder]" directory under today's date, which was lower Data XML file parsing and import database. 7.3 Environmental monitoring information transfer data file naming convention Transmit data files named by the data type code, four part-time data generation, district number, order number, for Between the various components of an underscore "_" connection, and description of the components shown in Table 2. Table 2 Transfer files name and description of the structure of the composition Filename consisting Description Data type two characters, a description of the data file data types, data file data types in Table 1. Date and time 14 characters, use the date when the minutes and seconds "YYYYMMDDhhmmss" the format, Wherein the time in 24-hour format (eg 20090101123015 represents January 1, 2009 12.30.15). Administrative number six characters, data acquisition administrative division code point belongs. Sequence number four characters for the data acquisition points Administrative Region belongs not repeated coding, starting with 0001.8 environmental monitoring information transfer data file format8.1 Data file format and composition Transmit data files in XML standard format, and a statement by the inclusion of two parts. 8.2 Declarations section Declaration data exchange data files that match XML1.0 specification, file encoding to implement the provisions of GB 2312. Use XML Language expressed as follows. \u003c?xml version=\"1.0\" encoding=\"gb2312\"?\u003e 8.3 package portion Composition 8.3.1 package portion In part by the inclusion of specific packet header and transmitting data composed of a plurality of transmission data from the data records, data recording package Containing a plurality of data items. The composition shown in Figure 3. transfer data Header Data record 1 Data record n .. Consisting of 3 transport packet portion FIG. Package body section should perform the following requirements. a) All content package portion is placed in the tag \u003cBody\u003e . \u003c/Body\u003e between. b) placed in the header tags \u003cHead\u003e .. \u003c/Head\u003e Between the content it contains, see 8.3.1. c) all of the transmission data is placed in the tag \u003cData\u003e .. \u003c/Data\u003e between. d) each placed in a data record mark \u003cItem\u003e\u003c/Item\u003e between. 8.3.2 Header Header (Head, also known as the head element) is a public part of the telegram, which contains the sender id, receiver id, file Generation time and the number of records four properties. Table 3 lists the properties of the message header Attribute identifies the meaning of The sender id Data sender node number by six and four administrative number of the administrative Sequence number within the monitoring of the composition (unique ID). fsfid No recipient node id data reception side, represented by the number six administrative regions. jsfid File generation time Time-based file generated using "YYYYMMDDhhmmss" format , Where the 24-hour time system. wjscsj Records show the number of records uploaded. jls Items 1 items n Header in the tag \u003cHead\u003e .. \u003c/Head\u003e Between, the file format is as follows. \u003c?xml version=\"1.0\" encoding=\"gb2312\"?\u003e \u003cBody\u003e \u003cHead fsfid=\"\" jsfid=\"\" wjscsj=\"\" jls=\"\" /\u003e \u003cData\u003e \u003cItem ./\u003e \u003c/Data\u003e \u003c/Body\u003e 8.3.3 transmission of data content All transmitted data is placed in the tag \u003cData\u003e .. \u003c/Data\u003e Between, it contains business types, data generation start time And the time between the end of three data attributes. Table 4 lists the properties of the data content Attribute identifies the meaning of Service type Service type of the transmission data, the code shown in Table 1. ywlx Data generation start time for \u003cData\u003e Start time stamp in the data generated using "YYYYMMDDhhmmss" format, where the 24-hour time system. sjcssj End Time Data for \u003cData\u003e End time stamp in the data generated by using "YYYYMMDDhhmmss" format, where the 24-hour time system. If found, the instantaneous value of the item may be empty; if the statistical value, End time data should be noted. sjjssj Within a file can contain multiple \u003cData\u003e .. \u003c/Data\u003e Mark represents a time a certain type of business data. One \u003cData\u003e .. \u003c/Data\u003e Tags may comprise a plurality of data records, each data record is placed in the tag \u003cItem\u003e\u003c/Item\u003e between. Data record contains two attributes, as shown in Table 5. Table 5 lists the properties of data records Attribute identifies the meaning of Code Pollutant Pollutant code table in Appendix B. pollutant_code Numerical values corresponding pollutants. value The results and the data transmission format is as follows. \u003c?xml version=\"1.0\" encoding=\"gb2312\"?\u003e \u003cBody\u003e \u003cHead fsfid=\" \" jsfid=\" \" wjscsj=\" \" jls=\" \" /\u003e \u003cData ywlx=\" \" sjcssj=\" \" sjjssj=\" \"\u003e \u003cItem pollutant_code=\" \" value=\" \" /\u003e \u003cItem pollutant_code=\" \" value=\" \" /\u003e \u003cItem pollutant_code=\" \" value=\" \" /\u003e \u003c/Data\u003e \u003cData\u003e \u003c/Data\u003e \u003c/Body\u003e Schema 8.4 of environmental monitoring information transfer XML file Schema environmental monitoring information transfer XML file is described in Appendix A.Appendix A(Normative) Environmental Monitoring Information Schema Description \u003c?xml version=\"1.0\" encoding=\"gb2312\"?\u003e \u003cxs.schema attributeFormDefault=\"unqualified\" elementFormDefault=\"qualified\" \u003cxs.element name=\"Body\"\u003e \u003cxs.complexType\u003e \u003cxs.sequence\u003e \u003cxs.element name=\"Head\"\u003e \u003cxs.complexType\u003e \u003cxs.attribute name=\"fsfid\" type=\"xs.unsignedInt\" use=\"required\" /\u003e \u003cxs.attribute name=\"jsfid\" type=\"xs.unsignedInt\" use=\"required\" /\u003e \u003cxs.attribute name=\"wjscsj\" type=\"xs.unsignedLong\" use = "required" / > \u003cxs.attribute name=\"jls\" type=\"xs.unsignedByte\" use=\"required\" /\u003e \u003c/xs.complexType\u003e \u003c/xs.element\u003e \u003cxs.element name=\"Data\"\u003e \u003cxs.complexType\u003e \u003cxs.sequence\u003e \u003cxs.element maxOccurs=\"unbounded\" name=\"Item\"\u003e \u003cxs.complexType\u003e \u003cxs.attribute name=\"pollutant_code\" type = "xs. string" use = "required" / > \u003cxs.attribute name=\"value\" type=\"xs.decimal\" use = "required" / > \u003c/xs.complexType\u003e \u003c/xs.element\u003e \u003c/xs.sequence\u003e \u003cxs.attribute name=\"ywlx\" type=\"xs.string\" use=\"required\" /\u003e \u003cxs.attribute name=\"sjcssj\" type=\"xs.unsignedLong\" use = "required" / > \u003cxs.attribute name=\"sjjssj\" type=\"xs.unsignedLong\" use=\"required\" / > \u003c/xs.complexType\u003e \u003c/xs.element\u003e \u003c/xs.sequence\u003e \u003c/xs.complexType\u003e \u003c/xs.element\u003e \u003c/xs.schema\u003eAppendix B(Normative) Pollutants codes and units B.1 codes and units of air pollutants Table B.1 ambient air, acid rain, air pollution monitoring profile and emission monitoring and monitoring programs commonly used, excerpt HJ 524-2009 Table 2 in section 7.2 of atmospheric pollutants and related indicators name code table. Table B.1 Air Pollutant Index name and related codes and users profile Code Name Unit Chinese a01001 temperature ℃ a01002 humidity% a01006 pressure KPa a01007 wind speed m/s a01008 degree wind a01020 visibility m a05024 ozone mg/m3 a06001 Precipitation mm a06003 rainfall pH dimensionless a06004 Conductivity us/cm a06005 sulfate ions mg/L a06006 nitrate ion mg/L a06007 Fluoride mg/L a06008 Chloride mg/L a06009 ammonium ion mg/L a06010 Calcium mg/L a06011 Magnesium mg/L a06012 Sodium mg/L a06013 Potassium mg/L a20044 lead μg/m3 a21001 ammonia mg/m3 a21003 NO mg/m3 a21004 nitrogen dioxide mg/m3 a25010 chlorobenzene mg/m3 a25023 nitrobenzene mg/m3 a25040 Benzene solubles mg/m3 a25044 benzo [a] pyrene mg/m3 a26001 aniline mg/m3 a26022 trimethylamine mg/m3 a28001 dimethyl sulfide mg/m3 a2801......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of HJ 660-2013_English be delivered?Answer: Upon your order, we will start to translate HJ 660-2013_English as soon as possible, and keep you informed of the progress. The lead time is typically 2 ~ 4 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of HJ 660-2013_English with my colleagues?Answer: Yes. The purchased PDF of HJ 660-2013_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
