HJ 1199-2021 English PDFUS$359.00 ยท In stock

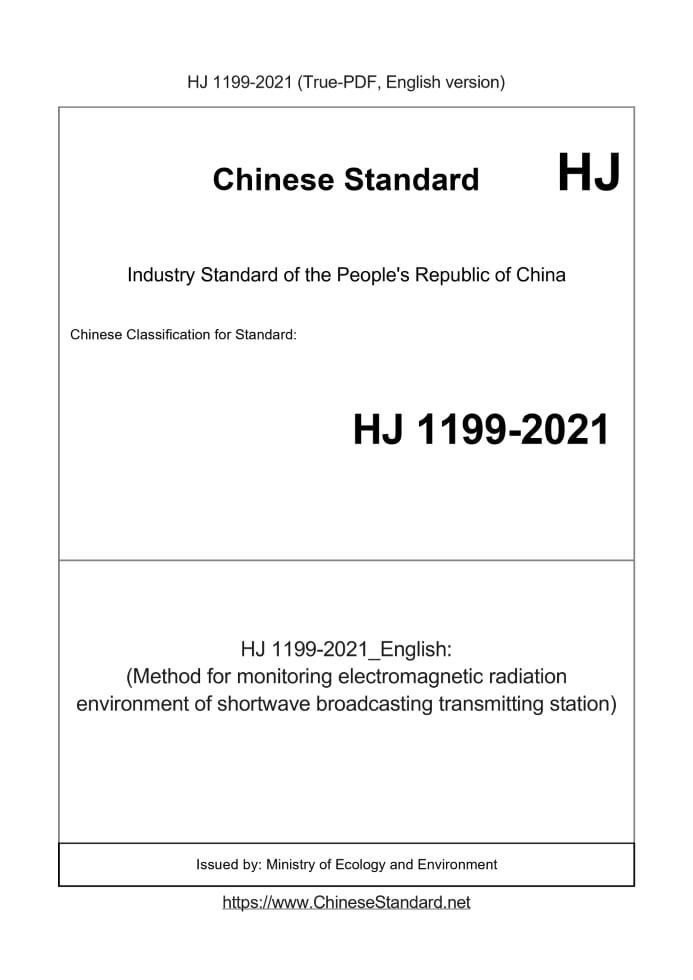

Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email. HJ 1199-2021: (Method for monitoring electromagnetic radiation environment of shortwave broadcasting transmitting station) Status: Valid
Basic dataStandard ID: HJ 1199-2021 (HJ1199-2021)Description (Translated English): (Method for monitoring electromagnetic radiation environment of shortwave broadcasting transmitting station) Sector / Industry: Environmental Protection Industry Standard Word Count Estimation: 15,154 Issuing agency(ies): Ministry of Ecology and Environment HJ 1199-2021: (Method for monitoring electromagnetic radiation environment of shortwave broadcasting transmitting station)---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. (Method for monitoring electromagnetic radiation environment of shortwave broadcasting transmitting station) National Ecological Environment Standard of the People's Republic of China Electromagnetic radiation environment monitoring method for shortwave broadcasting transmitter Monitoring method for electromagnetic radiation environment of short-wave broadcasting transmitting station This electronic version is the official standard text, which is reviewed and typeset by the Environmental Standards Institute of the Ministry of Ecology and Environment. Published on 2021-10-29 2022-01-01 Implementation Released by the Ministry of Ecology and Environment directory Foreword...ii 1 Scope...1 2 Normative references...1 3 Terms and Definitions...1 4 Monitoring conditions...1 5 Monitoring methods...2 6 Quality Assurance...4 Appendix A (Informative Appendix) Environmental Monitoring Record of Electromagnetic Radiation of Short Wave Broadcast Transmitting Station...5 Appendix B (Informative Appendix) Content and Format of Environmental Monitoring Agency Monitoring Report...8 Electromagnetic radiation environment monitoring method for shortwave broadcasting transmitter 1 Scope of applicationThis standard specifies the technical requirements for the content and methods of electromagnetic radiation environmental monitoring for shortwave broadcasting transmitters. This standard applies to electromagnetic radiation environment monitoring of shortwave broadcasting transmitters.2 Normative referencesThis standard refers to the following documents or clauses thereof. For dated references, only the dated version applies to this standard. For undated references, the latest edition (including all amendments) applies to this standard. HJ 1112 Environmental Impact Assessment Technical Guidelines for Radio and Television HJ 1152 Construction Project Completion Environmental Protection Acceptance Technical Specifications Radio and Television3 Terms and DefinitionsThe following terms and definitions apply to this standard. 3.1 short-wave broadcasting Sound broadcasting and digital broadcasting working in the short-wave frequency band (2.3 MHz ~ 26.1 MHz). 3.2 transmitting station A radio station consisting of one or more transmitters and an antenna feeder system. 3.3 electromagnetic radiation environment-sensitive target Electromagnetic radiation environmental impact assessment and monitoring should focus on the objects. Including residences, schools, hospitals, office buildings, factories, etc. A building for living, working or studying.4 Monitoring conditions4.1 Environmental conditions The environmental conditions during monitoring should meet the requirements for the use of monitoring instruments. 4.2 Monitoring instruments 4.2.1 Basic requirements The working performance of the monitoring instrument should meet the requirements of the electromagnetic field to be measured, and the working frequency can cover the transmitting frequency of the monitored short-wave broadcasting transmitter. Rate. The monitoring instrument should use a frequency-selective electromagnetic radiation monitor, and the monitoring frequency and bandwidth should be selected from the emission frequency of the measured object in the normal working state. and bandwidth. The monitoring instrument should use a probe (antenna) with isotropic response, and the monitoring instrument bracket should be made of non-conductive material that is not easily affected by moisture. The detection method of the monitoring instrument shall be the root mean square value detection method, and the reading of the monitoring instrument shall be the average value within any continuous 6 minutes. 4.2.2 Frequency Selective Electromagnetic Radiation Monitor Frequency selective electromagnetic radiation monitor refers to the ability to receive and process the spectral components of a specific emission within the response frequency range of the instrument. The basic requirements of its electrical performance are shown in Table 1. 4.3 Monitoring conditions The monitoring of shortwave broadcasting transmitting station shall be carried out under normal operating conditions of the transmitting antenna.5 Monitoring methods5.1 Basic requirements 5.1.1 The monitoring scope is the same as the electromagnetic radiation environmental impact assessment scope in HJ 1112 or HJ 1152. 5.1.2 The monitoring location and frequency should be based on the representativeness of monitoring data, environmental quality characteristics, changes and environmental impact assessment, and environmental protection after completion. The requirements for nursing acceptance are determined. 5.1.3 When monitoring the short-wave broadcasting transmitting station, the cross-section monitoring path should select the direction of the maximum radiation field strength of the antenna under test, and the maximum Field strength; the direction of the maximum radiated field strength is given and positioned by the construction unit or the antenna design unit. 5.2 Data collection 5.2.1 Before monitoring, the basic information of the shortwave broadcasting transmitting station under test should be collected, including. name of the shortwave broadcasting transmitting station, construction location, radio frequency, transmit power, transmit bandwidth, antenna type and number, operating status, etc. 5.2.2 According to the nature and purpose of monitoring, the collected information also includes. antenna distribution, emission direction, modulation method, transmitter operation safety, etc. wait. 5.3 Monitoring factors The electromagnetic radiation environment monitoring factor of shortwave broadcasting transmitter is radio frequency electromagnetic field, and the monitoring parameters are electric field intensity (or power density), magnetic field strength. In the far-field area, the monitoring parameters are electric field strength, power density or magnetic field strength; in the near-field area, the electric field strength, magnetic field strength and strength. See HJ 1112 for the division of far and near fields. 5.4 Monitoring points 5.4.1 General provisions The monitoring points shall be implemented in accordance with the relevant regulations of HJ 1112 or HJ 1152. 5.4.2 Monitoring of Environmentally Sensitive Targets of Electromagnetic Radiation When monitoring outside the building, the points should be preferentially arranged at the place closest to the antenna in the daily life or work of the public. (e.g. ladders) or by special means (e.g. climbing). When monitoring in a building, the point is preferentially arranged at the window (balcony) position facing the short-wave antenna, and the probe (antenna) should be placed on the window frame (at the sun). You can also select the central position of the room within the interface of the station. The distance between the probe (antenna) and household appliances and other equipment is not less than 1 m. The layout of monitoring points should consider the electromagnetic field distribution on different floors facing the transmitting antenna side. When the emission direction of the short-wave antenna is variable, the electromagnetic radiation environment-sensitive targets within the evaluation range of different emission directions should be monitored. 5.4.3 Section Monitoring Omnidirectional antenna. Starting from the geometric center point of the ground projection of the antenna, the monitoring path is carried out along the direction of the maximum radiation field strength of the antenna. Monitoring point The distance is generally 10 m, and the distance between monitoring points can also be set according to the site conditions, and the monitoring is carried out sequentially to the evaluation range. Directional antenna. starting from the geometric center point of the ground projection of the antenna, monitoring the maximum radiation along the antenna lobe (main lobe, side lobe or back lobe). The direction of the field strength is carried out. The distance between monitoring points is generally 10 m, and the distance between monitoring points can also be set according to site conditions, and the monitoring to evaluation is performed in sequence. scope. The monitoring point should be selected in a flat and open place, and avoid buildings, trees, metal structures (such as barbed wire, iron frames, etc.) electrical wiring, etc. 5.5 Monitoring altitude The monitoring instrument probe (antenna) is 1.7 m away from the ground (or standing plane). 5.6 Monitoring readings During monitoring, the distance between the probe (antenna) of the monitoring instrument and the torso of the monitoring personnel shall not be less than 2 m, and avoid or minimize the accidental incidents in the surrounding area. interference from other sources of electromagnetic radiation. The monitoring time of each monitoring point is not less than 6 minutes, the sampling rate of data acquisition is not less than 1 time/second, and the monitoring instrument is read for 6 consecutive minutes. Clock monitoring average. 5.7 Recording 5.7.1 Recording of shortwave broadcasting transmitter information Record the basic and other information collected in Section 5.2. 5.7.2 Recording of monitoring conditions Record ambient temperature, relative humidity, weather conditions. Record the monitoring date, monitoring start and end time, monitoring personnel, monitoring instrument model and serial number and probe (antenna) model and serial number. 5.7.3 Recording of monitoring results Record the schematic diagram of the monitoring sites on site, and mark the locations of shortwave antennas, monitoring sites and other known sources of electromagnetic radiation. Record the name of the monitoring point, the horizontal distance between the monitoring point and the short-wave antenna, the height difference and the monitoring data. Save the spectrum distribution map of each monitoring point. Refer to Appendix A for the content and format of on-site monitoring records and monitoring reports.6 Quality Assurance6.1 The monitoring agency shall have the capability and conditions suitable for the electromagnetic radiation environmental monitoring business it is engaged in. 6.2 The selection of monitoring points shall be representative and shall meet the requirements of Section 5.4. 6.3 Monitoring instruments (including antennas or probes) should be regularly checked or calibrated and used within the validity period of their certificates. 6.4 The instrument should be checked before and after each monitoring to ensure that the instrument is in normal working condition. 6.5 The monitoring personnel shall be professionally trained, and the on-site monitoring work shall be carried out with no less than 2 monitoring personnel. 6.6 Interference factors, including human interference factors and environmental interference factors, should be excluded during monitoring. 6.7 The selection of abnormal data in monitoring and the data processing of monitoring results shall be handled according to statistical principles. 6.8 Any archived or reported monitoring results should be reviewed. 6.9 A complete file of monitoring documents should be established. ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of HJ 1199-2021_English be delivered?Answer: Upon your order, we will start to translate HJ 1199-2021_English as soon as possible, and keep you informed of the progress. The lead time is typically 2 ~ 4 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of HJ 1199-2021_English with my colleagues?Answer: Yes. The purchased PDF of HJ 1199-2021_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
