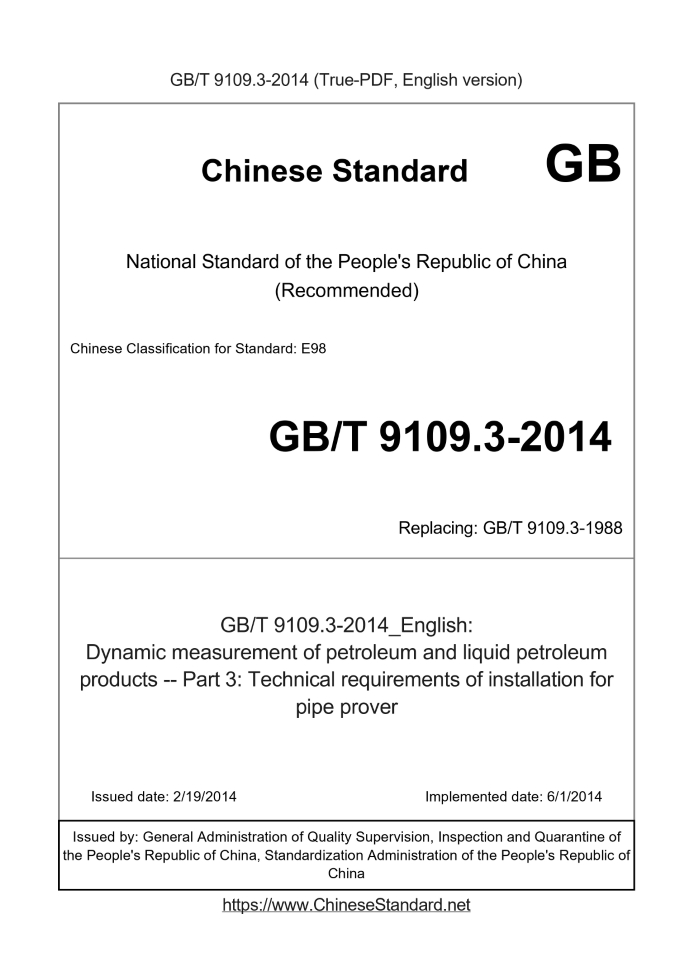

GB/T 9109.3-2014: Dynamic measurement of petroleum and liquid petroleum products -- Part 3: Technical requirements of installation for pipe prover
Status: Valid

GB/T 9109.3: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 9109.3-2014	509	Add to Cart	4 days	Dynamic measurement of petroleum and liquid petroleum products -- Part 3: Technical requirements of installation for pipe prover	Valid
GB/T 9109.3-1988	479	Add to Cart	4 days	Dynamic measurement of crude oil--The technical stipulations of installation for fixed pipe provers	Obsolete

Similar standards

GB/T 18604 GB/T 21447 GB/T 9109.5 GB/T 43926 GB/T 18603 GB/T 9109.1

Basic data

Standard ID: GB/T 9109.3-2014 (GB/T9109.3-2014)
Description (Translated English): Dynamic measurement of petroleum and liquid petroleum products -- Part 3: Technical requirements of installation for pipe prover
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: E98
Classification of International Standard: 75.180.30
Word Count Estimation: 22,298
Date of Issue: 2/19/2014
Date of Implementation: 6/1/2014
Older Standard (superseded by this standard): GB/T 9109.3-1988
Quoted Standard: GB/T 9109.1; GB/T 17286.2; GB 50093; GB 50231; GB 50235; GB 50253; GB 50275
Regulation (derived from): National Standard Announcement 2014 No. 2
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This Standard specifies the design of oil and liquid petroleum products dynamic measurement volume pipe system design, installation, construction and acceptance of technical requirements. This Standard applies to the volume of the tube to the oil and liqu

GB/T 9109.3-2014: Dynamic measurement of petroleum and liquid petroleum products -- Part 3: Technical requirements of installation for pipe prover

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Dynamic measurement of petroleum and liquid petroleum products Part 3. Technical requirements of installation for pipe prover ICS 75.180.30 E98 National Standards of People's Republic of China Replacing GB/T 9109.3-1988 Petroleum and liquid petroleum products - Dynamic measurement Part 3. Volume tube mounting technical requirements Part 3. Technicalrequirementsofinstalationforpipeprover Issued on. 2014-02-19 2014-06-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Preface Ⅰ 1 Scope 1 2 Normative references 1 3 General requirements 1 4 System 1 4.1 Prover Selection 1 Design 4.2 Volume 2 pipe system 4.3 Design of water flooding method Verification System 4 4.4 Auxiliary system design 5 5 Installation 6 5.1 Preparation before installation volume tube 6 5.2 Installation of the volume of the tube body 8 5.3 volume of hydraulic pipe system installation 8 5.4 water flooding method verification system, auxiliary system installation 8 5.5 instrumentation and control system installation 8 5.6 Pressure Test 8 5.7 purging and cleaning 8 6 Commissioning 8 Appendix A (normative) prover range selection 10 Appendix B (informative) ultrasonic flowmeter test tube volume value volume recommended 12 Annex C (informative) volume tube mounting Step 13

Foreword

GB/T 9109 is divided into four parts. --- GB/T 9109.1 Dynamic measurement of crude oil general principles; --- GB/T 9109.2 Oil and dynamic measurement of liquid petroleum products - Part 2. flowmeter installation technical requirements; --- GB/T 9109.3 dynamic measurement of oil and liquid petroleum products - Part 3. Volume tube mounting technical requirements; --- GB/T 9109.5 Petroleum and liquid petroleum products - Calculation of oil dynamic measurement. This part of GB/T 9109 Part 3. This section drafted in accordance with GB/T 1.1-2009 given rules. This Part replaces GB/T 9109.3-1988 "Dynamic measurement of crude oil fixed standard volume tube mounting technical requirements." This portion GB/T 9109.3-1988 compared to the main changes in the technical content is as follows. --- The standard name changed to "oil and liquid petroleum products dynamic measurement - Part 3. Volume tube mounting technical requirements"; --- Modify the scope, increase in oil and liquid petroleum products; --- Modify the standard structure, an increase in Chapter 3; --- Increasing the density meter tube import volume requirements to install filters; --- Increase the requirements for the import and export volume of the tube temperature, pressure meter accuracy and installation position; --- Increasing the volume of the tube outlet is calculated minimum backpressure; --- Selection requirements increased volume of the tube; --- Increasing the volume of one-way and two-way volume of tube pipe installation procedures; --- Remove the imported contents of the installation of a small volume prover. This part of the National Oil and Gas Standardization Technical Committee (SAC/TC355) and focal points. This section is drafted. a large national oil and gas flow metering stations. The main drafters of this section. An Shumin, Zhang Jingang, Gao Jun, Sun Ce, Gao Zhenhua, Zhao Chenghai. This part of the standard replaces the previous editions are. --- GB/T 9109.3-1988. Petroleum and liquid petroleum products - Dynamic measurement Part 3. Volume tube mounting technical requirements

1 Scope

GB/T 9109 provisions of this part of the design of oil and liquid petroleum products dynamic volume metering pipe system design, installation, construction and acceptance skills requirement. This section applies to petroleum and liquid petroleum products as the working medium volume line pipe fixed installation, the central station test tube volume, shift Acting prover can refer to use.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 9109.1 Dynamic measurement of crude oil general principles GB/T 17286.2 Liquid hydrocarbons - Dynamic measurement systems for volumetric meters - Part 2. Volume tube GB 50093 Automation Instrumentation Construction and Quality Acceptance GB 50231 mechanical equipment installation construction and acceptance of universal norms GB 50235 industrial metal pipeline construction norms GB 50253 pipeline engineering design GB 50275 compressor ﹑ ﹑ fan pump installation engineering construction and acceptance

3 General requirements

3.1 by volume as a standard metered tube station construction should follow the principle of GB/T 9109.1 given requirements. Basic Skills 3.2 volume pipe and auxiliary equipment requirements for the implementation of GB/T 17286.2 of the relevant provisions. 3.3 meters - for the transfer test tube volume, the repeatability should be better than 0.02%. 3.4 volume pipe system design should be based on the selected flowmeter type, nominal diameter, number of units and other factors to consider, at an affordable original Choose fixed installation or mobile prover volume tube. 3.5 and meet the technical requirements under the premise of the overall arrangement, the volume of pipe installation system should ensure a stable flow pattern, the volume of pipe system layout, Fire safety should be consistent with the relevant provisions. 3.6 volume pipe system design, including design of the installation process, the water flooding method verification systems and auxiliary systems. 3.7 volume tube design system should meet the volume of pipe installation, operation, operation and maintenance requirements to ensure stable performance measurement system, accurate and reliable. 3.8 according to the geographical and climatic conditions, determine the volume of the tube is installed indoors or outdoors, and take appropriate measures to maintain the ambient temperature, at full Foot Prover operating environment requirements. Northern cold areas should be installed indoors; in the south can be installed outdoors, but avoid direct sunlight. body Plot of control system should be set up in the control room of the explosion and fire. 3.9 volume tube should be used to sled the whole supply, the factory certified by; split supply disassembly should be qualified and then boxed in factory test.

4 System Design

4.1 Prover Selection 4.1.1 ball prover should adopt fixed installation, DN150 following ball prover can be mobile; piston prover (or small capacity ......
