US$189.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.

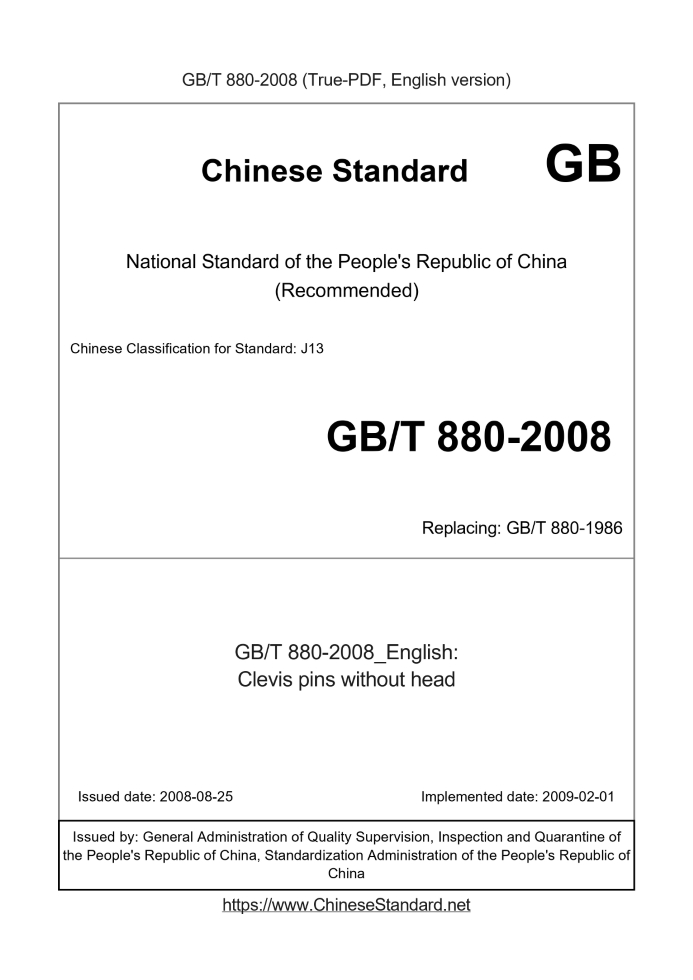

GB/T 880-2008: Clevis pins without head
Status: Valid

GB/T 880: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 880-2008	189	Add to Cart	3 days	Clevis pins without head	Valid
GB/T 880-1986	199	Add to Cart	2 days	Pins with split pin hole	Obsolete

Similar standards

GB/T 879.1 GB/T 894 GB/T 889.2 GB/T 879.3 GB/T 879.2

Basic data

Standard ID: GB/T 880-2008 (GB/T880-2008)
Description (Translated English): Clevis pins without head
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J13
Classification of International Standard: 21.060.10
Word Count Estimation: 8,855
Date of Issue: 2008-08-25
Date of Implementation: 2009-02-01
Older Standard (superseded by this standard): GB/T 880-1986
Adopted Standard: ISO 2340-1986, MOD
Regulation (derived from): National Standard Approval Announcement 2008 No.14 (Total No.127)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the nominal diameter d = 3 mm ~ 100 mm headless pin.

GB/T 880-2008: Clevis pins without head

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Clevis pins without head ICS 21.060.10 J13 National Standards of People's Republic of China Replacing GB/T 880-1986 Headless pin (ISO 2340. 1986, MOD) Posted 2008-08-25 2009-02-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This standard is one national standard "sell" product family standard. The series includes. a) cotter pin. GB/T 91; b) taper pin. GB/T 117, GB/T 118, GB/T 877 and GB/T 881; c) a cylindrical pin. GB/T 119.1, GB/T 119.2, GB/T 120.1, GB/T 120.2 and GB/T 878; d) pin. GB/T 880 and GB/T 882; e) spring pins. GB/T 879.1, GB/T 879.2, GB/T 879.3, GB/T 879.4 and GB/T 879.5; f) grooved pin. GB/T 13829.1, GB/T 13829.2, GB/T 13829.3, GB/T 13829.4, GB/T 13829.5, GB/T 13829.6, GB/T 13829.7, GB/T 13829.8 and GB/T 13829.9. This revised standard adopts ISO 2340. 1986 "headless pin" (in English), the main changes are as follows. --- In the reference file, instead of using our standards with international standards (Chapter 2); --- ISO 2340 does not provide packaging technology requirements, the standard to be prescribed (see Table 2); --- ISO 2340 does not provide for a simplified mark, according to the present standard GB/T 1237 presents a simplified mark (see 5.2). This standard replaces GB/T 880-1986 "pin hole." This standard compared with GB/T 880-1986 main changes are as follows. --- Standard (product) name changed to "headless pin"; --- Provisions of two types, A-type "no cotter pin hole", B-type "with a cotter pin hole" (see Figure 1); --- Increase. for railway and cotter withstand lateral forces alternating occasions, recommended the next file specified in Table 1 and a larger opening pin Corresponding aperture (see FIG. 1); --- Increase in nominal diameters. 24mm, 27mm, 30mm, 33mm, 36mm, 40mm, 45mm, 50mm, 55mm, 60mm, 70mm, 80mm, 90mm and 100mm, cancel nominal diameters. 25mm (see Table 1); --- To increase the nominal diameter of the agreement by both parties may be tolerance of. a11, c11 and f8, etc; --- Referenced in Table 2 instead of the provisions of GB/T 121 "pin technology"; --- Does not specify material grade, material type and hardness only provisions (see Table 2). The standard proposed by China Machinery Industry Federation. This standard by the National Standardization Technical Committee fasteners (SAC/TC85) centralized. This standard is drafted by. Productivity Promotion Center in the machine. Participated in the drafting of this standard. Zhejiang high-strength fasteners plant. This standard by the National Standardization Technical Committee Secretariat responsible for the interpretation of fasteners. This standard replaces the standards previously issued as follows. --- GB 880-67, GB 880-76, GB 880-86. Headless pin

1 Scope

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 90.1 fasteners acceptance inspection (GB/T 90.1-2002, idt ISO 3269.2000) GB/T 90.2 Fasteners marking and packaging GB/T 91 cotter pin (GB/T 91-2000, eqv ISO 1234.1997) GB/T 1237 fasteners labeling method (GB/T 1237-2000, eqv ISO 8991. 1986) GB/T 5267.1 fasteners plating layer (GB/T 5267.1-2002, idt ISO 4042.1999) GB/T 11376 metal phosphate conversion coatings (GB/T 11376-1997, eqv ISO 9717.1990)

3 Dimensions

Headless pin pattern dimensions shown in Figure 1 and Table 1. A B a, b (No cotter pin hole) (with split pin hole) Note. for railway and cotter under alternating lateral force recommended when using files specified in Table 1 of the next larger opening pin and the corresponding aperture. a remaining dimensions, angles and surface roughness values \u200b\u200bsee type A. Given value. Figure 1 ......
