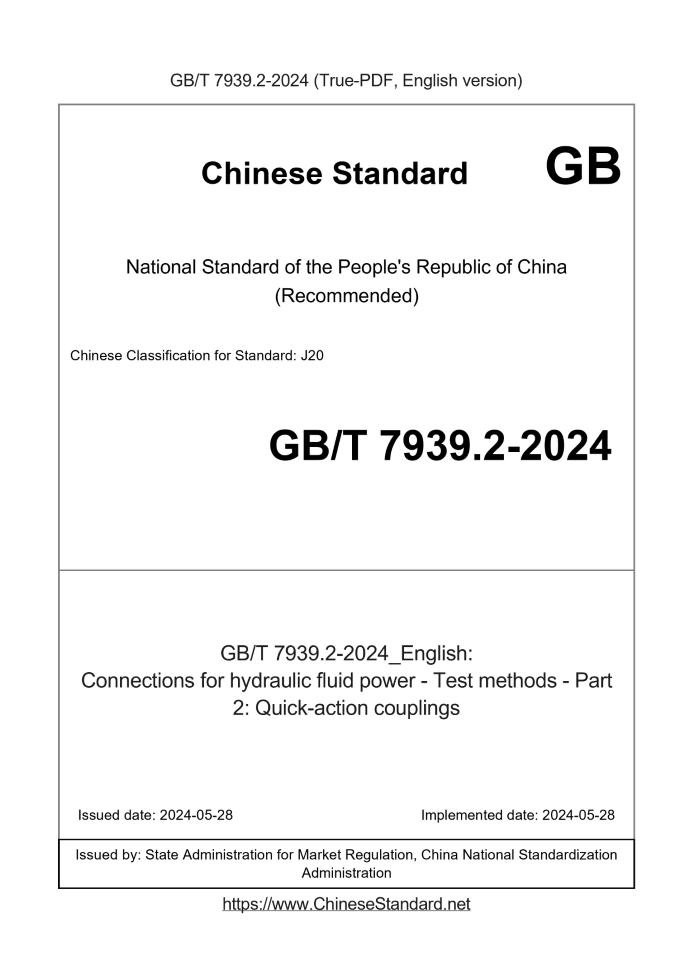

GB/T 7939.2-2024: Connections for hydraulic fluid power - Test methods - Part 2: Quick-action couplings
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 7939.2-2024	754	Add to Cart	6 days	Connections for hydraulic fluid power - Test methods - Part 2: Quick-action couplings	Valid

Similar standards

GB/T 2351 GB/T 7932 GB/T 3766 GB/T 7939.1 GB/T 7939.3 GB/T 7934

Basic data

Standard ID: GB/T 7939.2-2024 (GB/T7939.2-2024)
Description (Translated English): Connections for hydraulic fluid power - Test methods - Part 2: Quick-action couplings
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J20
Classification of International Standard: 23.100.40
Word Count Estimation: 38,319
Date of Issue: 2024-05-28
Date of Implementation: 2024-05-28
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 7939.2-2024: Connections for hydraulic fluid power - Test methods - Part 2: Quick-action couplings

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
ICS 23:100:40 CCSJ20 National Standards of People's Republic of China Test methods for hydraulic transmission connections Part 2: Quick-change fittings Part 2: Quick-action couplings Released on 2024-05-28 2024-05-28 Implementation State Administration for Market Regulation The National Standardization Administration issued

Preface III Introduction IV 1 Scope 1 2 Normative references 1 3 Terms and Definitions 2 4 Test Component Selection 3 5 Test conditions 3 6 Test equipment 4 7 Connection force or connection torque test 5 8 Breakaway force or breaking torque test 5 9 Leakage test 6 10 Vacuum test 8 11 Air entrainment test 9 12 Fluid loss test 10 13 Pressure drop (Δp) test 11 14 Pressure test 12 15 High and low temperature test 13 16 Durability test 14 17 Overload tightening test of threaded quick-change connectors 15 18 Explosion test 17 19 Pulse pressure test (according to ISO 6803) 17 20 Flexural impulse pressure test (according to ISO 6802) (only applicable to quick-change connectors in connected state) 18 21 Rotational pulse pressure test (only applicable to quick-change connectors in connected state) 19 22 Impact flow test (long time) 19 23 Impact flow test (short time) 20 24 Corrosion resistance test 21 25 Test reporting and data presentation 21 26 Test information to be reported 21 27 Notes (reference this document) 21 Appendix A (Normative) Test Data Table 22 Appendix B (Normative) Characteristic test with internal pressure 28 Reference 31

Foreword

This document is in accordance with the provisions of GB/T 1:1-2020 "Guidelines for standardization work Part 1: Structure and drafting rules for standardization documents" Drafting: This document is part 2 of GB/T 7939 "Test methods for hydraulic transmission connections": GB/T 7939 has been published in the following parts: --- Part 1: Pipe fittings; --- Part 2: Quick-change connectors; --- Part 3: Hose assemblies: This document is equivalent to ISO 18869:2017 "Test methods for quick-release couplings for hydraulic transmission with or without tools": The following minimal editorial changes were made to this document: --- In order to coordinate with the existing standards, the name of the standard is changed to "Hydraulic transmission connection test method Part 2: Quick-change connector"; --- Deleted "example" in terms and definitions because the example was wrong; --- The unit of pressure "bar" has been deleted because "bar" is not a legal unit of measurement: Please note that some of the contents of this document may involve patents: The issuing organization of this document does not assume the responsibility for identifying patents: This document was proposed by the China Machinery Industry Federation: This document is under the jurisdiction of the National Hydraulic and Pneumatic Standardization Technical Committee (SAC/TC3): This document was drafted by: Zhejiang Songqiao Pneumatic and Hydraulic Co:, Ltd:, Smart Metrology and Testing Co:, Ltd:, Anhui Shengfang Machinery Manufacturing Co:, Ltd: Ltd:, Ningbo Product and Food Quality Inspection Institute (Ningbo Fiber Inspection Institute), Zhejiang Zhida Pipe Industry Co:, Ltd:, Jiangyin Hongteng Machinery Machinery Co:, Ltd:, Dalian Yuandong Yongchang Automation Engineering Co:, Ltd:, Shandong Liaocheng Zhongkuang Machinery Co:, Ltd:, Beijing Tianze Electric Power Group Co:, Ltd:, Guangdong Nanxi Hydraulic Machinery Co:, Ltd:, Hebei Zhongmei Special Rubber Co:, Ltd:, Hebei Youlu Fluid Technology Co:, Ltd:, Xi'an Ruinuo Aviation Equipment Co:, Ltd:, Heli (Tianjin) Energy Technology Co:, Ltd:, and Beijing Machinery Industry Automation Research Institute Co:, Ltd: The main drafters of this document are: Lou Zhongyu, Chen Guoguang, Li Yong, Zheng Zhijian, Wang Bingshun, Yu Yandong, Zhang Shengxue, Jiang Hongyi, Quan Wei, Fu Wei, Li Yang, Zhang Bo, Li Zengyi, Zhu Xiaoting, Hou Lidong, Cao Qiaohui:

Introduction

In a hydraulic fluid power system, power is transmitted and controlled by pressurized fluid in a closed circuit: Connect or disconnect fluid conduits: Quick-release fittings as defined in ISO 5598 can be connected and disconnected without the use of tools: Other types Quick-release fittings require tools for connection and disconnection: GB/T 7939 specifies the test methods for hydraulic transmission connection elements and consists of three parts: --- Part 1: Pipe joints: The purpose is to determine the test and evaluation methods for the performance of pipe joints used in hydraulic transmission systems: --- Part 2: Quick-change connectors: The purpose is to determine the test and evaluation methods for the performance of quick-change connectors used in hydraulic transmission systems: --- Part 3: Hose assemblies: The purpose is to determine the test and evaluation methods for the performance of hose assemblies used in hydraulic transmission systems: Test methods for hydraulic transmission connections Part 2: Quick-change fittings

1 Scope

This document describes the test and evaluation methods for the performance of quick-change couplings used in hydraulic transmissions: This document does not apply to the Specified pipe joint testing and performance evaluation for various types of steel pipe connections, stud end connections and flange connections: The tests described in this document are independent of each other and are the documents that each test follows: For specific test items and performance requirements, see For different applications, not all items are required to be tested: Users can select the appropriate Combined test items: For the qualification judgment of quick-change joints, the minimum number of test samples specified in this document shall be used for testing, but in the relevant quick-change joint standards, Unless otherwise specified or agreed upon between the manufacturer and the user:

2 Normative references

The contents of the following documents constitute the essential clauses of this document through normative references in this document: For referenced documents without a date, only the version corresponding to that date applies to this document; for referenced documents without a date, the latest version (including all amendments) applies to This document: ISO 48-21) Rubber, vulcanized or thermoplastic - Determination of hardness - Part 2: Rubber hardness between 10 IRHD and 100 IRHD (Rub- 100IRHD) Note: GB/T 3141-1994 Industrial liquid lubricants ISO viscosity classification (eqvISO 3448:1992) ISO 3601-3 Fluid power systems-O-rings-Part 3: Quality acceptance criteria Note: GB/T 3452:2-2007 O-rings for hydraulic and pneumatic applications Part 2: Appearance quality inspection specification (ISO 3601-3:2005, IDT) Note: GB/T 8107-2012 Determination of pressure differential-flow characteristics of hydraulic valves (ISO 4411:2008, MOD) Note: GB/T 17446-2024 Fluid power systems and components vocabulary (ISO 5598:2020, MOD) ISO 6508-1 Metallic materials - Rockwell hardness test - Part 1: Test method nesstest-Part 1:Testmethod) Note: GB/T 230:1-2018 Rockwell hardness test for metallic materials Part 1: Test method (ISO 6508-1:2016, MOD) ISO 6802 Wire-reinforced rubber and plastic hoses and hose assemblies - Flexural hydraulic impulse test (Rubberandplastics Note: GB/T 14904-2011 Wire reinforced rubber and plastic hoses and hose assemblies flexural hydraulic impulse test (ISO 6802:2005, IDT) 1) The normative references to ISO 48 in ISO 18869:2017 have been replaced by ISO 48-2: ......
