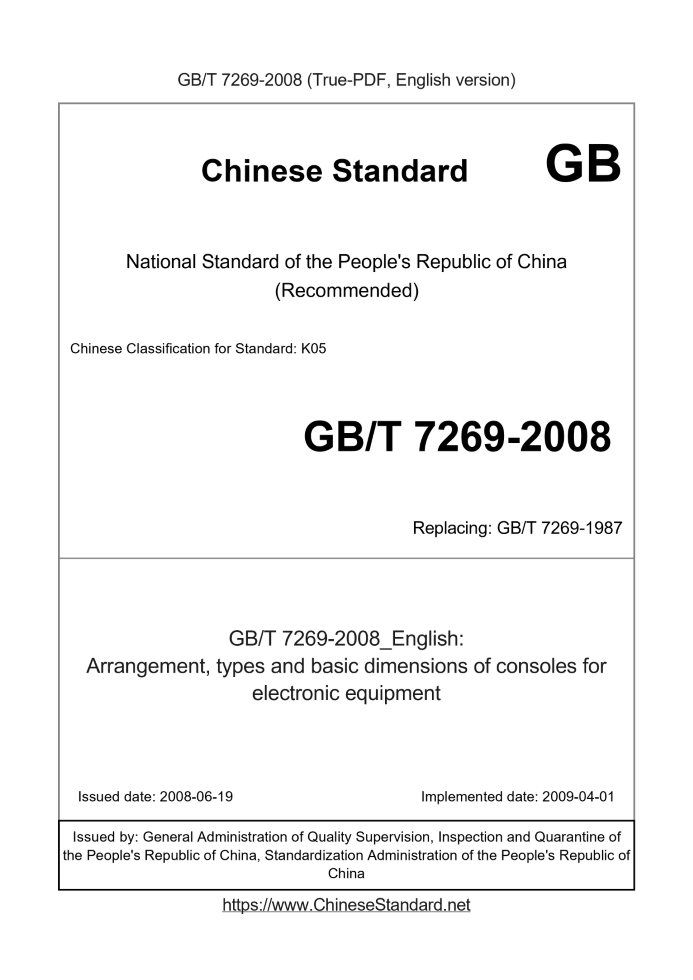

GB/T 7269-2008 English PDFUS$229.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 7269-2008: Arrangement, types and basic dimensions of consoles for electronic equipment Status: Valid GB/T 7269: Historical versions
Basic dataStandard ID: GB/T 7269-2008 (GB/T7269-2008)Description (Translated English): Arrangement, types and basic dimensions of consoles for electronic equipment Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: K05 Classification of International Standard: 31.240 Word Count Estimation: 10,196 Date of Issue: 2008-06-19 Date of Implementation: 2009-04-01 Older Standard (superseded by this standard): GB/T 7269-1987 Regulation (derived from): Announcement of Newly Approved National Standards No. 10 of 2008 (total 123) Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This standard specifies the Electronic Device Console (hereinafter referred to as "Control Panel") of the general requirements, the console surface requirements, as well as the layout of the console, types and basic dimensions. This standard applies to terrestrial fixed mounted electronic equipment console. GB/T 7269-2008: Arrangement, types and basic dimensions of consoles for electronic equipment---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Arrangement, types and basic dimensions of consoles for electronic equipments ICS 31.240 K05 National Standards of People's Republic of China Replacing GB/T 7269-1987 Electronic equipment console Layout, types and basic dimensions Posted 2008-06-19 2009-04-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released ForewordThis standard replaces GB/T 7269-1987 "layout electronic equipment consoles, types and basic dimensions." This standard compared with GB/T 7269-1987, the main changes are as follows. --- Increase the "scope" and "normative references" two chapters; --- Fig. 8 angle 25 ° (two) to 5 °; --- "Basic dimensions table" to increase the "Table 1" words; --- Revised Tables 1 and head form; --- Remove the additional instructions. The standard electrical and electronic equipment by the National Standardization Technical Committee integrated structure (SAC/TC34) and focal points. This standard was drafted. Electronic Equipment Co., Ltd., Jiangsu Reiter. The main drafters of this standard. Fushi Hai, Tianshu Song. Previous editions of the publication of this standard is replaced by. --- GB/T 7269-1987. Electronic equipment console Layout, types and basic dimensions1 ScopeThis standard specifies the general requirements for electronic equipment consoles (hereinafter referred to as "the console"), the console surface requirements, and cloth console Bureau, types and basic dimensions. This standard applies to electronic equipment console fixed ground installations.2 Normative referencesThe following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 3047.1-1995 height of 20mm hex panels, rack and cabinets Series of basic dimensions GB/T 19520.1-2007 electronic equipment mechanical structure 482.6mm (19in) series of mechanical structure size - Part 1. surface Plate and frame (IEC 60297-1. 1986, IDT)3 General requirements3.1 console or installed inside the box insert panel size should be consistent with GB/T 19520.1-2007 and GB/T 3047.1-1995. 3.2 Design group fight type console for operation of the most important, the most commonly used operations and information display control means should be arranged in the same s position. 3.3 When necessary, the console should have drawers and activities of the board, used for storing files, and Notepad. 3.4 The operator console should have the necessary leg and foot space.4 console surface requirements4.1 no direct relationship with the operator mark, code, such as factory names, trademarks, etc., should not appear in the console surface. 4.2 console surface should not be set and display a variety of means may hinder, instruments, tools and articles operators work. Operating mechanism 4.3 console surface arrangement and information display devices shall not interfere with each other. 4.4 console surface controls and information display device, according to function and are arranged in order. 4.5 console controls and information display device surface shall be arranged in the following range. --- Important and most frequently used controls and information display means to be arranged in optimum operating area and the optimal measurement area; --- Emergency device is arranged in manpower encompasses most vulnerable place, but not optimal operating areas; --- Minor and operating mechanism and periodic use of the information display means, should not be arranged in the optimal range, this time should be divided as needed Group, and to consider their mutual contact. 4.6 operating mechanism is arranged, all the operating mechanism should be disposed within manpower encompasses the area frequently used for sitting operating mechanism, Its height is within 1000mm. 4.7 in the same system, the same functions of the console surface operating mechanism shall be arranged in the same way. 4.8 console surface should have a light reflective or diffusion directional dispersion, to avoid reflection in the visual highlights of the region caused by operator error Judgment and misuse. 4.9 console surface position of the inclination angle of its value. ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 7269-2008_English be delivered?Answer: Upon your order, we will start to translate GB/T 7269-2008_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 7269-2008_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 7269-2008_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version GB/T 7269-2008?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 7269-2008 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
