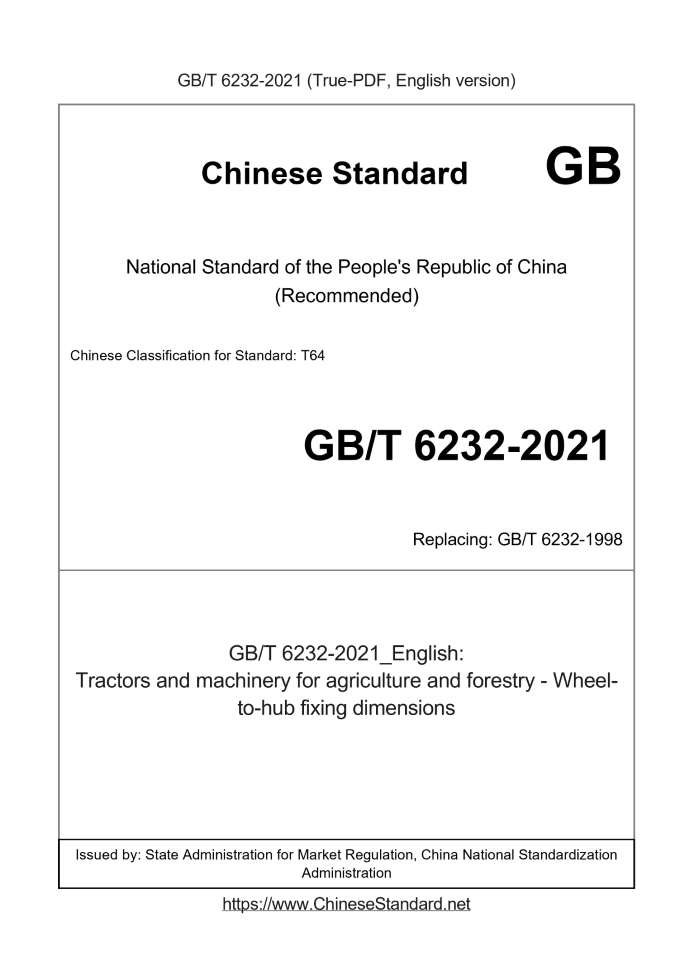

GB/T 6232-2021 English PDF

Q: How long will the true-PDF of English version of GB/T 6232-2021 be delivered?

Upon your order, we will start to translate GB/T 6232-2021_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of GB/T 6232-2021_English with my colleagues?

Yes. The purchased PDF of GB/T 6232-2021_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

Q: Should I purchase the latest version GB/T 6232-2021?

Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 6232-2021 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.

US$114.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 6232-2021: Tractors and machinery for agriculture and forestry - Wheel-to-hub fixing dimensions
Status: Valid

GB/T 6232: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 6232-2021	114	Add to Cart	3 days	Tractors and machinery for agriculture and forestry - Wheel-to-hub fixing dimensions	Valid
GB/T 6232-1998	239	Add to Cart	3 days	Tractors and machinery for agriculture and forestry. Wheel-to-hub fixing dimensions	Obsolete
GB/T 6232-1986	RFQ	ASK	3 days	Tractors and machinery for agriculture and forestry wheel fixing on hub--Dimensional characteristics	Obsolete

Similar standards

GB/T 39899 GB/T 21958 GB/T 33642 GB/T 3373

Basic data

Standard ID: GB/T 6232-2021 (GB/T6232-2021)
Description (Translated English): Tractors and machinery for agriculture and forestry - Wheel-to-hub fixing dimensions
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: T64
Word Count Estimation: 7,735
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 6232-2021: Tractors and machinery for agriculture and forestry - Wheel-to-hub fixing dimensions

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Tractors and machinery for agriculture and forestry-Wheel-to-hub fixing dimensions ICS 65.060.10 T64 National Standards of People's Republic of China Replace GB/T 6232-1998 Agriculture and forestry tractors and machinery Mounting dimensions of the wheel on the hub (ISO 5711.1995, IDT) Released on 2021-04-30 2021-11-01 implementation State Administration of Market Supervision and Administration Issued by the National Standardization Management Committee

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 6232-1998 "Installation Dimensions of Agricultural and Forestry Tractors and Machinery Wheels on Wheel Hubs". With GB/T 6232- Compared with.1998, the main technical differences except for editorial changes are as follows. ---Modified the scope of the standard (see Chapter 1, Chapter 1 of the.1998 edition); --- Deleted the requirements for the position of the radius SR of the sphere of the nut seat centered on the sphere of the spoke nut seat (see Table 3 in the.1998 edition); ---The diameter of the bolt with the number of equal-spaced bolt holes centered on the cone of the spoke nut seat is 8 (see A.2, Table 2 of the.1998 edition). The translation method used in this standard is equivalent to ISO 5711.1995 "Agricultural and Forestry Tractor and Mechanical Wheel Mounting Dimensions on the Wheel Hub". This standard has made the following editorial changes. ---In order to be consistent with my country's drawing regulations, the letter "d" is replaced by the letter "D", and the letter "sr", "SRr" and "r" are replaced by the letter "SR"; ---In order to comply with the provisions of GB/T 1.1-2009, the content of "Note 3" in Appendix A of ISO 5711.1995 is changed to A.1. No. postponed. This standard was proposed by the China Machinery Industry Federation. This standard is under the jurisdiction of the National Tractor Standardization Technical Committee (SAC/TC140). Drafting organizations of this standard. Luoyang Xiyuan Vehicle and Power Inspection Institute Co., Ltd., Hefei Fuyuan Automobile Modification Co., Ltd., Jiamusiji Chi Tractor Manufacturing Co., Ltd., Changzhou Dongfeng Agricultural Machinery Group Co., Ltd. The main drafters of this standard. Li Jingzhong, Jiao Changao, Lu Feng, Zou Yingjie, Suo Jingkun, Liu Benhu, Zhai Guoqing, Zhu Guoyuan, Shang Xiangsheng. The previous editions of the standard replaced by this standard are as follows. ---GB/T 6232-1998. Agriculture and forestry tractors and machinery Mounting dimensions of the wheel on the hub

1 Scope

This standard specifies the installation dimensions of agricultural and forestry tractors and machinery wheels on the hubs. Centering according to the spoke center hole is recommended as a new model Type. Note. Appendix A gives the installation dimensions of the wheel on the hub according to the spherical centering and conical centering of the spoke nut seat. The following installation dimensions do not mean that the wheels are interchangeable between the vehicle and the vehicle. This standard applies to agricultural and forestry tractors and mechanical spoke wheels, but does not apply to front and rear wheels equipped with gear reducers and corresponding mechanisms in the hub. Wheels assembled on the rear drive shaft.

2 symbols

The following symbols apply to this document. Symbolic name D Nut seat diameter D1 Bolt hole/nut seat distribution circle diameter D2 Bolt hole diameter D3 Center hole diameter D4 spoke support plane diameter D5 Hub center shoulder diameter D6 Hub support plane diameter SR spherical radius

3 Installation dimensions of the center hole of the spokes

The assembly dimensions centered on the spoke center hole should meet the requirements of Table 1 and Figure 1. Table 1 Dimensions of spoke wheels and hubs with center holes centered in millimeters Isometric screw Number of bolt holes wheel D1 D2 1 0 D3 0.5 0 D4min Bolt diameter a Wheel hub D5 0-0.2 D6 0-5 4 100 15 61 145 12 60.8 140 5 140 17 96 185 14 95.8 180 6 205 21 161 255 18 160.8 250 203.2 21 152.4 257 18 152.2 252 275 24 221 325 20 220.8 320 ......
