GB/T 4596-2012: E-cores for three-phase transformers for use in electronic equipment
Status: Valid

GB/T 4596: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 4596-2012	559	Add to Cart	5 days	E-cores for three-phase transformers for use in electronic equipment	Valid
GB/T 4596-1984	879	Add to Cart	6 days	E-cores for three-phase transformers used in electronic equipment	Obsolete

Similar standards

GB/Z 40842   GB/T 36103.1   SJ/T 11633   GB/T 40853.2   GB/T 40853.1   GB/T 40852.1

Basic data

Standard ID: GB/T 4596-2012 (GB/T4596-2012)
Description (Translated English): E-cores for three-phase transformers for use in electronic equipment
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L17
Classification of International Standard: 29.100.10
Word Count Estimation: 24,228
Older Standard (superseded by this standard): GB/T 4596-1984
Quoted Standard: GB/T 191-2008; GB/T 2421.1-2008; GB/T 2423.1-2008; GB/T 2423.2-2008; GB/T 2423.6-1995; GB/T 2423.10-2008; GB/T 2828.1-2003; GB/T 2829-2002
Regulation (derived from): National Standards Bulletin No. 41 of 2012
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the electronic equipment used in three-phase transformer E-shaped core (hereinafter referred to as " core ") classification, size, electromagnetic properties, test methods, inspection rules and signs, packaging, transportation and

GB/T 4596-2012: E-cores for three-phase transformers for use in electronic equipment

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

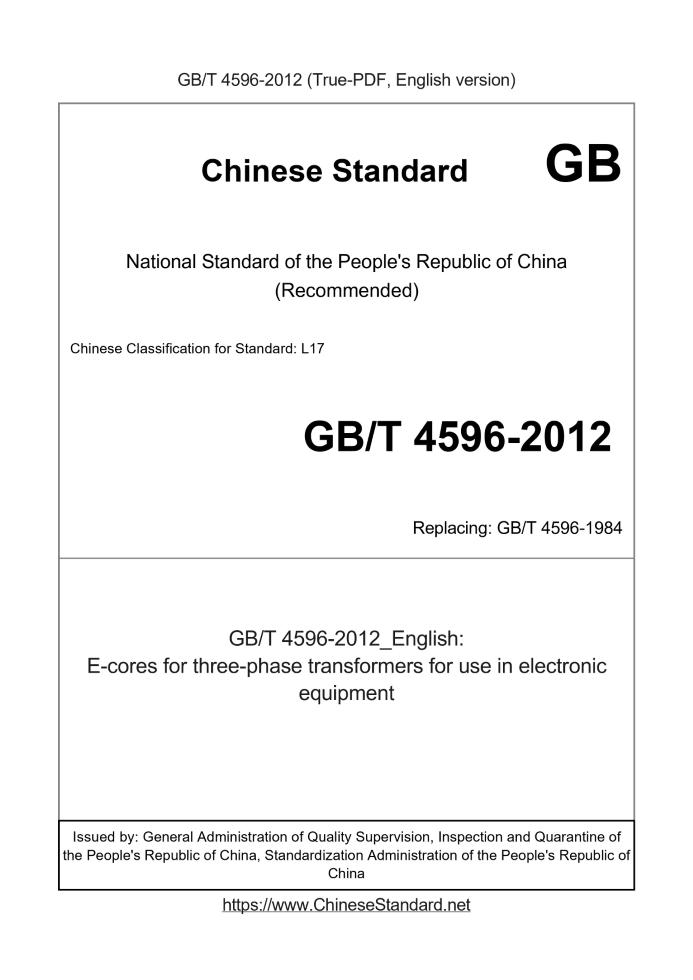

E-cores for three-phase transformers for use in electronic equipment ICS 29.100.10 L17 National Standards of People's Republic of China Replacing GB/T 4596-1984 Electronic equipment with three-phase transformer E-shaped core Issued on. 2012-12-31 2013-06-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

Introduction Ⅲ 1 Scope 1 2 Normative references 1 3 Classification, dimensions and electromagnetic properties 1 3.1 core classification and structure size 1 3.2 core material thickness selected 6 3.3 core operating temperature range 6 3.4 core electromagnetic properties 6 10 3.5 Core logo 4 requires 10 10 4.1 Appearance 4.2 electromagnetic properties of the core 10 4.3 mechanical pressure 10 10 4.4 High Temperature 4.5 cryogenic 12 12 4.6 Vibration 12 4.7 Collision 5 Test methods 12 5.1 Test normal atmospheric conditions 12 5.2 Appearance 12 5.3 electromagnetic properties of the core 12 5.4 mechanical pressure 12 13 5.5 High Temperature 5.6 cryogenic 13 13 5.7 Vibration 14 5.8 Collision 6 Acceptance Rule 14 6.1 Requirements 14 6.2 batch test 14 6.3 Periodic Inspection 14 7 signs, packaging, transportation and storage 15 Appendix A (normative) Electromagnetic Properties Test Method 16 A.1 Test circuit 16 A.1.1 on the instrument requirements 16 A.1.2 requirements for test coil 17 A.1.3 test power requirements 17 A.2 Test Method 17 A.2.1 core requirements 17 A.2.2 inspection form factor 17 A.2.3 Test-load current 17 A.2.4 measuring load loss 18

Foreword

This standard was drafted in accordance with GB/T 1.1-2009 given rules. This standard replaces GB/T 4596-1984 "electronic device with three-phase transformer E-shaped core." This standard compared with GB/T 4596-1984, the main changes are as follows. a) an increase of some chapters of the title; b) a reference to the file version specified redefined references, the latest version of the file, and adds a reference to the GB/T 2829 "Week Sampling of inspection procedures and tables (suitable for process stability test) "; c) on the "6 Acceptance Rules" chapter require more explicit; 1) "core factory delivery shall be subject to technical inspection department inspection" to "core factory delivery shall be subject to quality inspection department Doors batch testing and periodic inspection "(see 61, 1984, version 4.1.); 2) "when running tests on each batch of core settlement shall be 100% according to the provisions of the order 3.2 and 3.3 were tested. Settlement GB 2828-81 test can also be predetermined sampling inspection, then the provisions relating to consultation by both parties really When set "to" test batches, each batch of core settlement shall be 100% of the predetermined order of 5.3 and 5.4 trial Experience. Batch testing can also be GB/T 2828.1 standard, a sampling program, the general inspection level Ⅱ and the relevant provisions into Line "(see 62, 1984 version 4.3.); 3) "routine test" to "test period" (see 63, 1984 version 4.5 to 4.7).; 4) "routine tests at the manufacturer's technical inspection department once a year. When changing the raw materials and manufacturing processes must also enter Line routine tests "to" when one of the following conditions, periodic inspection should be carried out. " --- New products or old products to the plant production trial identification; --- Such as formal structure, materials, production processes are greatly changed, it may affect product performance; --- When normal production every six months (except life test); --- Resume production after the long shutdown when the product; When there are large differences --- batch test results the last inspection cycle; --- When the national supervisory bodies conduct periodic inspection requirements (see 6.3 1, 1984 edition 4.5). The standard proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This standard by the national magnetic components and ferrite materials Standardization Technical Committee (SAC/TC89) centralized. This standard was drafted. Device Technology Co., Ltd. Sichuan Changhong. The main drafters of this standard. Zhu Wei, Wang Qingdong, Yang Tao. This standard replaces the standards previously issued as follows. --- GB/T 4596-1984. Electronic equipment with three-phase transformer E-shaped core

1 Scope

This standard specifies the electronic equipment used E-shaped three-phase transformer core (hereinafter referred to as "core") classification, dimensions, electromagnetic properties, test Test methods, inspection rules and signs, packaging, transportation and storage. This standard applies to cold rolled grain oriented silicon steel strip core made of series.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 191-2008 Packaging - Pictorial signs (ISO 780.1997, MOD) GB/T 2421.1-2008 Environmental testing for electric and electronic products overview and guidance (IEC 60068-1. 1988, IDT) GB/T 2423.1-2008 Environmental testing for electric and electronic products Part 2. Test methods Test A. Cold (IEC 60068-2- 1.2007, IDT) GB/T 2423.2-2008 Environmental testing for electric and electronic products Part 2. Test methods Test B. Dry heat (IEC 60068-2- 2.2007, IDT) GB/T 2423.6-1995 Environmental testing for electric and electronic products Part 2. Test methods - Test Eb and guidance. Bump (idt IEC 60068-2-29. 1987) GB/T 2423.10-2008 Environmental testing for electric and electronic products Part 2. Test methods Test Fc. Vibration (sinusoidal) (IEC 60068-2-6.1995, IDT) GB/T 2828.1-2003 Sampling procedures for inspection - Part 1. by acceptance quality limit (AQL) retrieval batch test sample Programme (ISO 2859-1.1999, IDT) GB/T 2829-2002 periodic inspection Sampling procedures and tables (suitable for process stability test) 3 Classification, dimensions and electromagnetic properties 3.1 core classification and structure size HSD is divided into core type (50Hz use) and BSD-type (400Hz use). HSD type core structure size Figure 1 and Table 1; BSD Size-shaped core structure shown in Figure 2 and Table 2. ......
