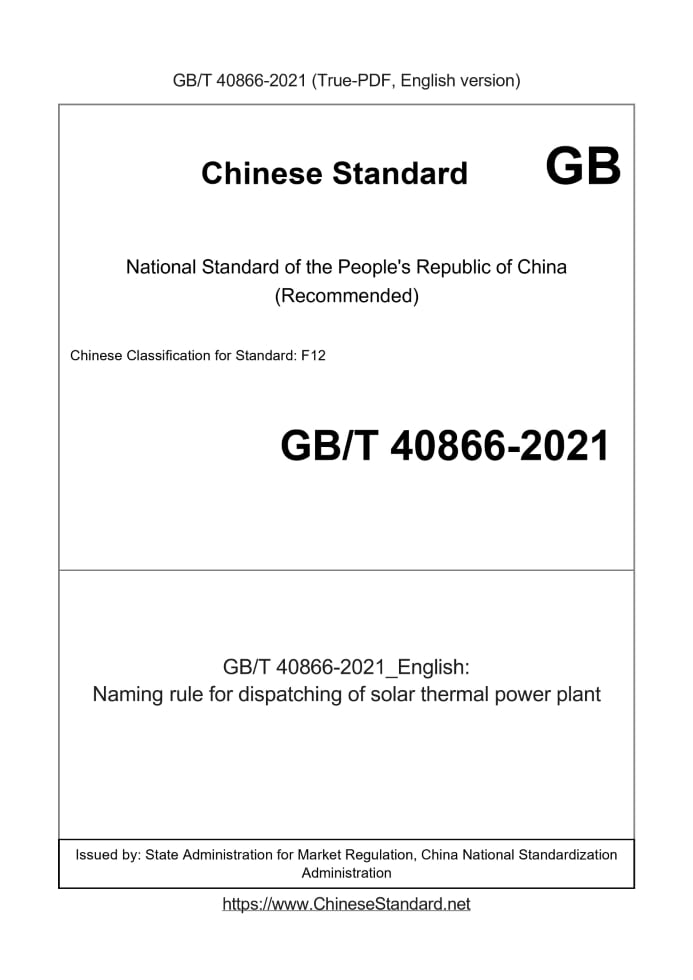

Naming rule for dispatching of solar thermal power plant ICS 27.160 CCSF12 National Standards of People's Republic of China Dispatching naming rules for solar thermal power stations Released on 2021-10-11 2022-05-01 implementation State Administration for Market Regulation Issued by the National Standardization Management Committee

Table of contents

Foreword Ⅲ 1 Scope 1 2 Normative references 1 3 Terms and definitions 1 4 General 1 5 Solar thermal power station 2 6 Solar thermal power station access system 2 6.1 General provisions 2 6.2 Access system line 2 6.3 Access system circuit breaker 2 7 Generator 3 7.1 CSP generators 3 7.2 Exciter of CSP station 3 8 Power station booster station equipment 3 8.1 Booster station system equipment scope 3 8.2 Bus 3 8.3 Main transformer, excitation transformer, high-voltage auxiliary transformer, start-up backup transformer 3 8.4 Current transformer, voltage transformer, reactor, lightning arrester 3 8.5 Main transformer circuit breaker 3 8.6 Bus tie, section circuit breaker 4 8.7 Starting the standby transformer circuit breaker 4 8.8 Isolating switch 4 9 Power station electrical secondary equipment and systems 5 9.1 General provisions 5 9.2 Relay protection equipment and safety automatic devices 5 9.3 Automation and communication equipment 5 10 Thermal system 6 10.1 Thermal system equipment 6 10.2 Collector system 6 10.3 Heat storage system 6 10.4 Heat Exchange System 6 10.5 Steam turbine equipment and systems 6 Appendix A (Informative) Naming of Typical CSP Station Equipment 7 Appendix B (informative) Legend of the electrical equipment number of CSP station (double bus connection mode) 8 Appendix C (informative) Legend of electrical equipment number of CSP station (3/2 wiring method) 9 Appendix D (Informative) Thermal oil collection working medium (trough type, linear Fresnel type) CSP system topology diagram of CSP station 10 Appendix E (informative) Direct molten salt working fluid (tower, trough, linear Fresnel) CSP system topology diagram of CSP station 11

Foreword

This document is in accordance with the provisions of GB/T 1.1-2020 "Guidelines for Standardization Work Part 1.Structure and Drafting Rules of Standardization Documents" Drafting. Please note that some of the contents of this document may involve patents. The issuing agency of this document is not responsible for identifying patents. This document was proposed by the China Electricity Council. This document is under the jurisdiction of the National Standardization Technical Committee for Solar Thermal Power Generation (SAC/TC565). Drafting organizations of this document. State Grid Shanxi Electric Power Company, State Grid Co., Ltd., China Guangdong Nuclear Power Development Co., Ltd., Zhejiang Supcon Solar Technology Co., Ltd. The main drafters of this document. Zhao Junyi, Pei Zheyi, Wang Qibing, Wang Yue, Guo Weidong, Fan Gaofeng, Yang Chaoying, Li Huipeng, Liang Zhifeng, Li Yanhe, He Zhifang, Zhao Xingquan, Bian Jiang, Lu Xiaohui, Yang Shengye, Yang Yunlei, Guo Qing, Song Shuting, Wang Qiang, Wang Jinhao, Radar, Chang Xiao, Zhao Jun, Tang Jianfang, Yin Hang, Zhang Zhengwei, Mi Xiaoling, Zhou Hui, Jin Jianxiang, Zhang Haobin, Xu Neng, Liu Zhiliang, Zhang Jiawei, Bao Lei, Bian Wei, Yang Dachun, Liu Yang, Han Weiheng, Linghu Jinjun, Fan Rui, Gao Le. Dispatching naming rules for solar thermal power stations

1 Scope

This document specifies solar thermal power stations, solar thermal power station access systems, generators, power station booster station equipment, power station electrical Dispatch naming rules for secondary equipment and systems, thermal systems, etc. This document is applicable to tower, trough, and linear Fresnel-type turbine generator sets that are connected to 110kV and above power systems. Newly build, expand and rebuild CSP stations. Other voltage levels and types of CSP stations shall be implemented by reference.

2 Normative references

The content of the following documents constitutes an indispensable clause of this document through normative references in the text. Among them, dated quotations Only the version corresponding to the date is applicable to this document; for undated reference documents, the latest version (including all amendments) is applicable to This document. GB/T 33601 General model data naming specification for power grid equipment GB/T 51307 Design standard for tower solar thermal power station GB/T 51396 Design standard for trough solar thermal power station

3 Terms and definitions

The terms and definitions defined in GB/T 33601, GB/T 51307, and GB/T 51396 apply to this document.

4 General

4.1 The naming scope of solar CSP station dispatching refers to the scope of systems and equipment that the dispatching agency exercises command power, and it is divided into the direct dispatch jurisdiction scope. Scope (hereinafter referred to as the scope of direct adjustment) and permitted jurisdiction (hereinafter referred to as the scope of license), specifically including solar thermal power stations, solar thermal Power station access systems, generators, power station booster station equipment, power station electrical secondary equipment and systems, thermal systems, etc. 4.2 The naming of the solar thermal power station system and equipment should be divided according to the scope of dispatch, follow the principle of specification and uniqueness, and accurately reflect the equipment Or the functional attributes of the system and its natural name. When there are multiple units (sets) of the same type of equipment, in addition to the process requirements, the rest of the equipment follows the natural The ordering principle is to name and number first east and then west, south and north, up and down. The electrical switches connected to the system should be double numbered. 4.3 Solar thermal power station, solar thermal power station access system (including external power supply line), generator, field station booster station The electrical secondary equipment and systems of the standby and power station belong to the direct dispatching equipment of the power dispatching agency, and are named by the power dispatching agency to which they belong. The dispatching agency issued the "Approval for Power Station Dispatching Equipment" to confirm. 4.4 The thermal system equipment in the station is the internal dispatching equipment of the power station, and the systems and equipment that directly affect the power generation conditions and regulation capabilities should be included The subordinate power dispatching agency permits the jurisdiction of dispatching, and the power station shall name it by itself, and submit it to the subordinate power dispatching agency for the record as an official document. 4.5 The change in the operation status of the direct-regulated equipment of a certain level of control agency has an impact on the operation of the direct-adjusted power generation, transmission and substation system of another level of control agency At the time, the equipment should be included in the scope of another level of regulation and control agency, and be reported to the other party’s regulation and control agency for record. License scheduling scope device life The name should be approved by the relevant licensing regulatory agency; for equipment authorized to be dispatched by the lower-level scheduling agency, the scheduling naming should be negotiated and confirmed by the two-level regulatory agency. Make and publish documents for the record. ......
