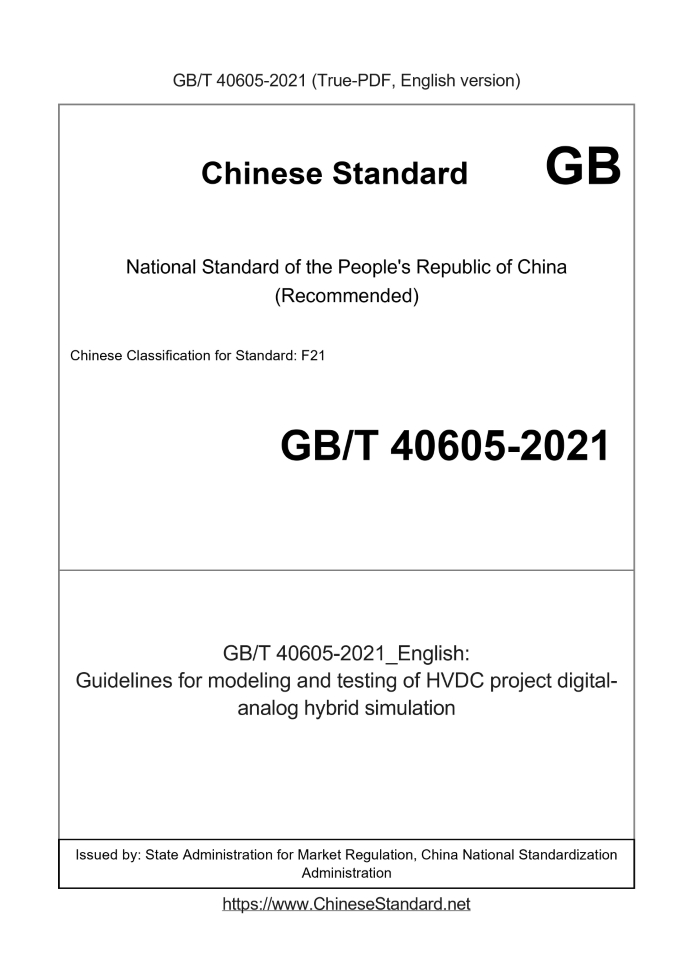

GB/T 40605-2021: Guidelines for modeling and testing of HVDC project digital-analog hybrid simulation
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 40605-2021	519	Add to Cart	5 days	Guidelines for modeling and testing of HVDC project digital-analog hybrid simulation	Valid

Similar standards

GB/T 40588 GB/T 40427 GB/T 40615 GB/T 40596 GB/T 40595

Basic data

Standard ID: GB/T 40605-2021 (GB/T40605-2021)
Description (Translated English): Guidelines for modeling and testing of HVDC project digital-analog hybrid simulation
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: F21
Word Count Estimation: 28,290
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 40605-2021: Guidelines for modeling and testing of HVDC project digital-analog hybrid simulation

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Guidelines for modeling and testing of HVDC project digital-analog hybrid simulation ICS 29.020 CCSF21 National Standards of People's Republic of China Digital-analog hybrid simulation modeling for HVDC engineering And test guidelines Released on 2021-10-11 2022-05-01 implementation State Administration for Market Regulation Issued by the National Standardization Management Committee

Foreword Ⅲ 1 Scope 1 2 Normative references 1 3 Terms and definitions 1 4 Basic regulations 2 4.1 General provisions 2 4.2 Real-time digital simulator 2 5 Digital model 2 5.1 General provisions 2 5.2 Digital Model of AC System 2 5.3 Digital Model of Primary System of DC Engineering 3 6 DC control and protection physical simulation system 4 6.1 General provisions 4 6.2 Architecture 4 6.3 Functional design 4 7 Digital-analog hybrid simulation interface 6 7.1 General provisions 6 7.2 Electrical signal interface 6 7.3 Optical signal interface 6 7.4 Interface interaction signal 6 8 Test verification 7 8.1 General provisions 7 8.2 Functional test verification of control system 7 8.3 Functional test verification of the protection system 8 8.4 Conformity test verification 8 Appendix A (Normative) Test Verification Item 9 A.1 Functional test verification of control system 9 A.2 Functional test verification of the protection system 16 A.3 Conformity verification test 24

Foreword

This document is in accordance with the provisions of GB/T 1.1-2020 "Guidelines for Standardization Work Part 1.Structure and Drafting Rules of Standardization Documents" Drafting. Please note that some of the contents of this document may involve patents. The issuing agency of this document is not responsible for identifying patents. This document was proposed by the China Electricity Council. This document is under the jurisdiction of the National Grid Operation and Control Standardization Technical Committee (SAC/TC446). Drafting organizations of this document. State Grid Corporation of China National Electric Power Dispatching Control Center, China Electric Power Research Institute Co., Ltd., State Grid Hubei Electric Power Co., Ltd., China Southern Power Grid Power Dispatching Control Center, China Southern Power Grid Research Institute Co., Ltd., NARI Group Co., Ltd., Xu Ji Group Co., Ltd. The main drafters of this document. Zhu Yiying, Wang Weiwei, Xie Guoping, Liu Chong, Chen Guoping, Li Yueting, Li Mingjie, Liu Lin, Xu Tao, He Jingbo, Yu Zhao, He Fei, Li Shuyong, Wang Yongping, Sean Junfang, Xie Huifan, Guo Qiang, Zhang Yi, Leng Xiwu, Jin Yiding, Li Jun, Lei Xiao, Liu Shicheng, Lin Shaobo, Zhang Xiaoli, Dong Peng, Zhang Xing, Wang Feng, Pan Xiaojie, Wang Yang, Wang Ying, Liu Yang, Wang Kefei, Yue Han, Liu Tao, Song Xinli, Wu Jianchao, Zhu Yanqing, Ma Shijun, Jia Yuan, Li Fang, Wu Guoyang, Dai Hanyang, Li Wenfeng, Wang Guanhong, Yu Dahai, Xiao Jing, Wang Hongfu, Chang Song, Tao Xianghong, Chen Xujiang, Huo Chengxiang, Wu Chaoqiang, Peng Hongying, Ding Ping, Wang Yi, Gao Lei, Han Zhiyong, Pu Jun, Zhang Yan, Li Zhaoting. Digital-analog hybrid simulation modeling for HVDC engineering And test guidelines

1 Scope

This document specifies the modeling requirements and testing of the digital-analog hybrid simulation system for HV/UHV DC transmission projects based on thyristor converters. Inspection requirements. This document is suitable for the study of the mutual influence of AC and DC power grids, the study of the characteristics of control and protection of DC transmission projects, and the update of DC control and protection software Check etc. This document does not apply to the factory test of DC control protection.

2 Normative references

The content of the following documents constitutes an indispensable clause of this document through normative references in the text. Among them, dated quotations Only the version corresponding to the date is applicable to this document; for undated reference documents, the latest version (including all amendments) is applicable to This document. GB/T 13498 Terminology for High Voltage Direct Current Transmission GB/T 14598.24 Measuring relays and protection devices Part 24.Power system transient data exchange (COMTRADE) communication Use format GB/T 30423-2013 System Test of HVDC Facilities DL/T 1130-2009 HVDC transmission engineering system test regulations DL/T 1131-2019 ±800kV HVDC transmission engineering system test regulations

3 Terms and definitions

The following terms and definitions defined in GB/T 13498 apply to this document. 3.1 DC control and protection physical simulation system DCcontrolandprotectionphysicalsimulationsystem Based on the actual control and protection system of the HVDC project, the HVDC transmission system is suitable for digital-analog hybrid simulation test after simplifying optimization and modifying the interface. Electrical engineering control and protection simulation system. 3.2 Digital-analog hybrid simulation of DC project Connect the digital simulation model of the AC and DC system with the DC control and protection physical simulation system (3.1) through the software and hardware interface to realize the hardware Real-time simulation in the loop. 3.3 Digitalreal-timesimulator The general term for computing hardware and software with real-time digital simulation capabilities. 3.4 Digital-analog hybrid simulation interface interfaceofdigital-analoghybridsimulation Used to form a closed-loop simulation test environment, directly connect the DC control and protection physical simulation system (3.1) and real-time digital simulator ......
