GB/T 3737-2008: 24-degree cone connectors -- Union
Status: Valid

GB/T 3737: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 3737-2008	139	Add to Cart	3 days	24-degree cone connectors -- Union	Valid
GB/T 3737.1-1983	199	Add to Cart	2 days	Union--Assembly	Obsolete

Similar standards

GB/T 1048   GB/T 1047   GB/T 4622.1   GB/T 3734   GB/T 3735   GB/T 3733

Basic data

Standard ID: GB/T 3737-2008 (GB/T3737-2008)
Description (Translated English): 24-degree cone connectors -- Union
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J15
Classification of International Standard: 21.060.60
Word Count Estimation: 6,641
Date of Issue: 2008-05-07
Date of Implementation: 2008-11-01
Older Standard (superseded by this standard): GB/T 3737.1-1983; GB/T 3737.2-1983
Regulation (derived from): National Standard Approval Announcement 2008 No.7 (Total No.120)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the size of the card sets through the pipe joints and fittings body, marking and technical requirements. This standard applies to pipe outside diameter 4mm ~ 42mm, the maximum working pressure of 10MPa ~ 63MPa hydraulic fluid power and general -purpose pipeline system.

GB/T 3737-2008: 24-degree cone connectors -- Union

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

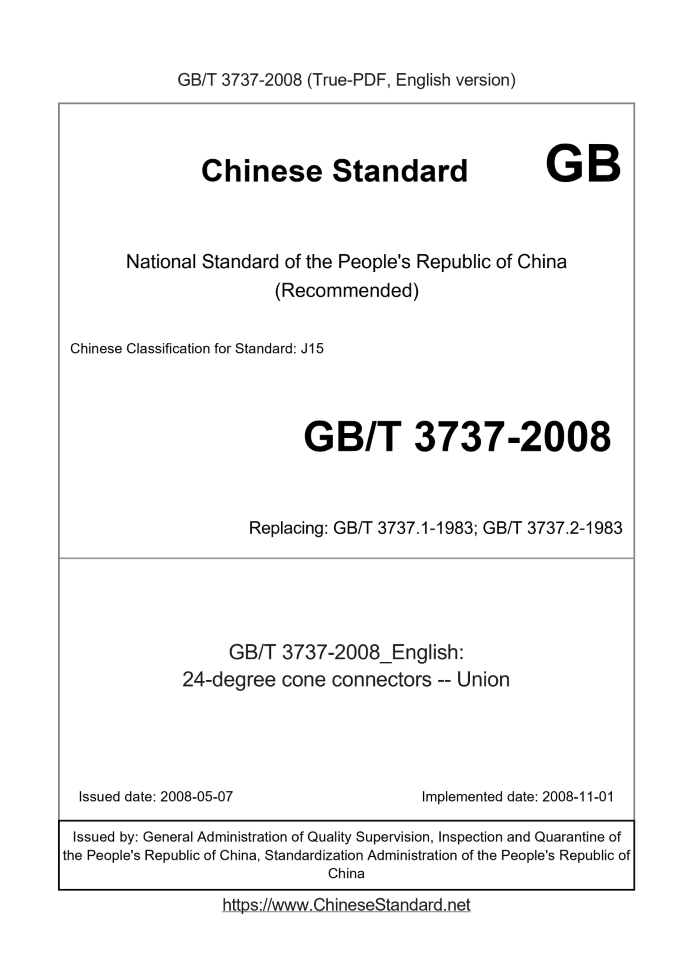

24-degree cone connectors. Union ICS 21.060.60 J15 National Standards of People's Republic of China Replacing GB/T 3737.1-1983, GB/T 3737.2-1983 Card sets straight couplings Posted 2008-05-07 2008-11-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This standard is one bite type pipe fittings series. The standard tube fitting structure type and dimensions ISO 8434-1.2007 "Metallic tube connections for fluid power and general use Part 1. 24 ° compression fittings "(in English) of the relevant part of the basic agreement. This standard is GB/T 3737.1-1983 "card sets straight couplings" and GB/T 3737.2-1983 "card sets through connector Amendment Style ". The main amendments are as follows. --- The two standard content integration; --- Modify the English name; --- The nominal pressure G (250) and J (400) to modify the maximum working pressure of 10MPa ~ 63MPa, and is divided into LL, L and S three Series; series of product size range of adjustment has been made; --- Adjust the size of the pipe diameter range, and revised the relevant size; --- Reducing the parameters should be part of the manufacturer's control; --- Cancel the weight data; --- Cancel the marked surface roughness, surface roughness is given in GB/T 3765 "bite type pipe joint technical conditions" in. Since the implementation of this standard replaces GB/T 3737.1-1983 and GB/T 3737.2-1983. The standard proposed by China Machinery Industry Federation. This standard by the National Standardization Technical Committee pipe accessories. This standard is drafted by. The machine Productivity Promotion Center, Haiyan Pipe Manufacturing Co., Limited Jianhu particularly good hydraulic fittings the company. Participated in the drafting of this standard. Eaton (Ningbo) fluid connector Ltd., Jiaxing Mai Site Pipe Manufacturing Co., Ltd., Zhejiang, China Valve Co., Ltd., a high-Bo Haiyan Pipe Fittings Co., Ltd., Haiyan tube Manufacturing Co., Ltd. Jiaozuo City roads lead to hydraulic attachments. The main drafters of this standard. Gengzhi school, Li Weirong, Zhou Shunhua, Feng Feng, Zuo Jun, Tao Zhongming, Xuchang Xiang, Ruanhao Feng, Zhou Jianfei, Wang Limin. This standard replaces the standards previously issued as follows. --- GB/T 3737.1-1983; --- GB/T 3737.2-1983. Card sets straight couplings

1 Scope

This standard specifies the ferrule type tube dimensions, marking and technical requirements of the joint and the joint body. This standard applies to pipe outside diameter 4mm ~ 42mm, maximum working pressure of hydraulic fluid power and general 10MPa ~ 63MPa Purpose pipeline system.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 3759-2008 bite type pipe joint connector nut GB/T 3764-2008 ferrule GB/T 3765-2008 bite type tube fittings

3 Dimensions

Ferrule type tube connector and the connector body size should be consistent with FIG. 1, the provisions of Figure 2 and Table 1, the end of the connector body sleeve size should be consistent GB/T 3764 provisions of.

4 Mark

4.1 labeling method Card sets straight connector and labeling methods of pipe joint body shall comply with GB/T 3765's. 4.2 tag example Connector Series L, the pipe diameter of 10mm, zinc coated steel ferrule type tube fittings marked. Fittings GB/T 3737 L10 Connector Series L, the pipe diameter of 10mm, the surface of galvanized steel-card sets through connector body marked. Joint body GB/T 3737 L10

5 Technical requirements

Technical requirements according to the provisions of GB/T 3765's. ......
