GB/T 36424.1-2018: Interface requirements of IoT household electrical appliance -- Part 1: Interface between control system and communication module

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

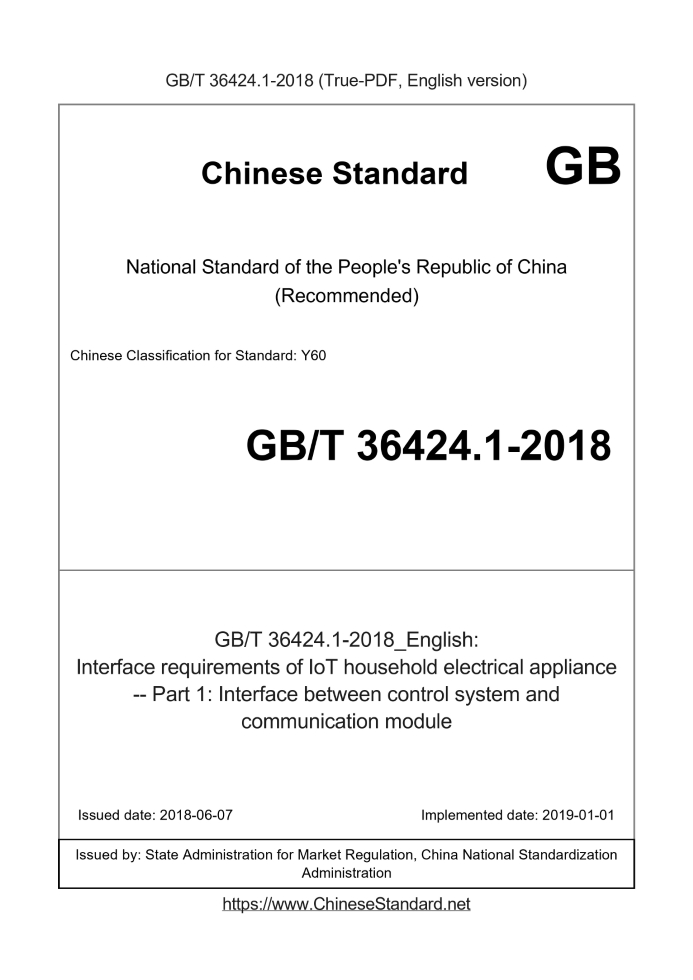

Interface requirements of IoT household electrical appliance--Part 1. Interface between control system and communication module ICS 97.030 Y60 National Standards of People's Republic of China IoT home appliance interface specification Part 1. Interface between control system and communication module Part 1. Interfacebetweencontrolsystemandcommunicationmodule Published on.2018-06-07 2019-01-01 implementation State market supervision and administration China National Standardization Administration issued

Content

Foreword I 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Interface between control system and communication module 1 5 interface hardware requirements 1 5.1 Basic requirements 1 5.2 Other requirements 2 6 interface software requirements 2 6.1 Basic requirements for communication methods 2 6.2 Communication Protocol 2 7 Communication process between control system and communication module 7 7.1 Internet of Things Appliances Working Status 7 7.2 Communication Process in Different Status 8 7.3 Other requirements during the transmission of communications 14

Foreword

GB/T 36424 is intended to be divided into the following sections. --- Part 1. Interface between the control system and the communication module. This part is the first part of GB/T 36424. This part is drafted in accordance with the rules given in GB/T 1.1-2009. Please note that some of the contents of this document may involve patents. The issuing organization of this document is not responsible for identifying these patents. This part was proposed by the China National Light Industry Council. This part is under the jurisdiction of the National Household Appliance Standardization Technical Committee (SAC/TC46). This section drafted by. China Household Electrical Appliances Research Institute, Hisense Kelon Electric Co., Ltd., Qingdao Haier Air Conditioner Co., Ltd. Zhuhai Gree Electric Co., Ltd., Whirlpool (China) Co., Ltd., Daikin (China) Investment Co., Ltd., Nanjing Touch Intelligent Division Technology Co., Ltd., Hangzhou Jiuyang Ou Nanduo Small Appliances Co., Ltd., Anhui Zhongjia Zhirui Technology Co., Ltd., Anhui Zhongjia Yun Internet of Things Technology Limited company. The main drafters of this section. Zhao Peng, Wang Youning, Zhu Yan, Wang Zhigang, Feng Chengwen, Chen Xiying, Yang Yucheng, Zhang Jianqiang, Shi Chunping, Pan Xingxiu, Zhang Tao. IoT home appliance interface specification Part 1. Interface between control system and communication module

1 Scope

This part of GB/T 36424 specifies the type of interface, hardware and software requirements between the appliance control system and the communication module of the Internet of Things. Inter-module communication flow, etc. This section applies to the internal module interface of the Internet of Things appliance.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. Safety of household and similar electrical appliances - Part 1. General requirements GB/T 33745-2017 Internet of Things terminology GB/T 36429-2018 IoT home appliance system structure and application model

3 Terms and definitions

The terms and definitions defined in GB/T 33745-2017 and GB/T 36429-2018 apply to this document.

4 interface between control system and communication module

The types of interfaces between the IoT appliance control system and the communication module include but are not limited to the four-wire interface. This section only applies to the four-wire interface. The software and hardware requirements are specified.

5 interface hardware requirements

5.1 Basic requirements The four-wire interface between the IoT appliance control system and the communication module should meet the following requirements. a) When the IoT home appliance control system is connected to the communication module, it is connected by a four-wire system (/pin), which is a power supply, a signal receiving end, Signal transmitting end, ground; b) If the interface is connected with compatible terminals, the pin spacing is 2.5mm, the control module interface is female, and the communication module interface is male, line The specification is shown in Figure 1. c) Power supply voltage. DC5V ± 0.25V; d) Maximum supply current. 500mA. Pin equivalent description. When the communication module uses the I2C bus mode to communicate with the home appliance electronic control board, the TX pin acts as the SCL pin. At the end, the RX pin acts as the SDA pin, which is the data side. When the communication module uses the USB bus mode to communicate with the home appliance electrical control board, the TX pin is equivalent to D-foot, RX foot is equivalent to D foot. ......
