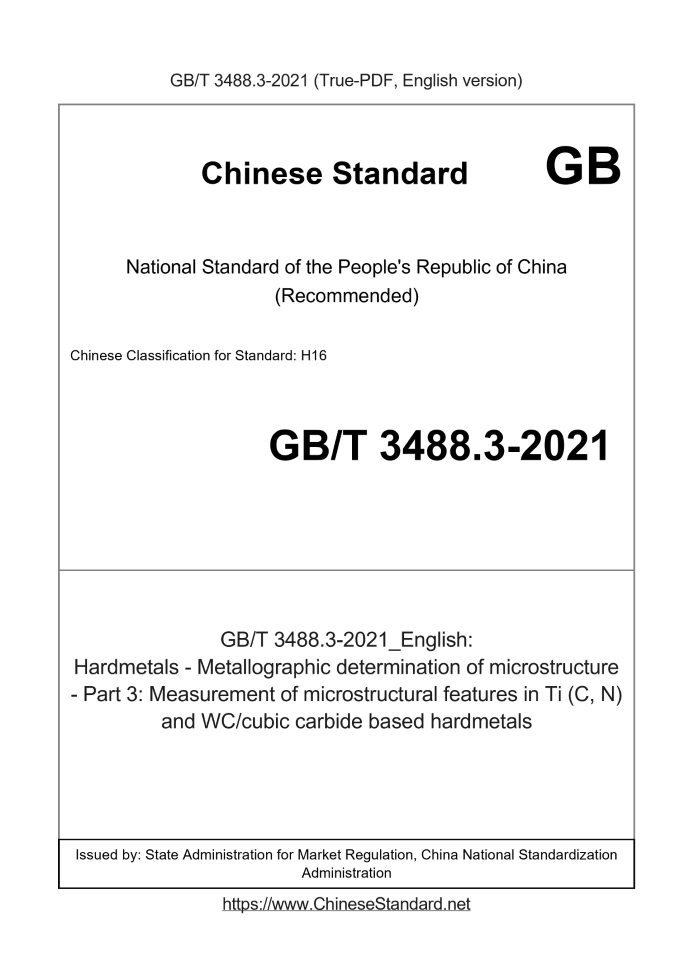

GB/T 3488.3-2021 English PDFUS$414.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 3488.3-2021: Hardmetals - Metallographic determination of microstructure - Part 3: Measurement of microstructural features in Ti (C, N) and WC/cubic carbide based hardmetals Status: Valid
Basic dataStandard ID: GB/T 3488.3-2021 (GB/T3488.3-2021)Description (Translated English): Hardmetals - Metallographic determination of microstructure - Part 3: Measurement of microstructural features in Ti (C, N) and WC/cubic carbide based hardmetals Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: H16 Word Count Estimation: 22,219 Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration GB/T 3488.3-2021: Hardmetals - Metallographic determination of microstructure - Part 3: Measurement of microstructural features in Ti (C, N) and WC/cubic carbide based hardmetals---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Hardmetals - Metallographic determination of microstructure - Part 3.Measurement of microstructural features in Ti (C, N) and WC/cubic carbide based hardmetals ICS 77.160 CCSH16 National Standards of People's Republic of China Metallographic Determination of Microstructure of Cemented Carbide Part 3.Ti(C,N) and WC cubic carbide Metallographic Measurement of Microstructure of Base Cemented Carbide (ISO 4499-3.2016, IDT) Released on 2021-03-09 2021-10-01 implementation State Administration of Market Supervision and Administration Issued by the National Standardization Management Committee Metallographic Measurement of Microstructure of Cemented Carbide Part 3.Ti(C,N) and WC cubic carbide Metallographic Measurement of Microstructure of Base Cemented Carbide 1 ScopeThis document specifies the use of optical or electron microscopy to determine Ti(C,N)-based cemented carbide and other cubic carbide phases. Metallographic determination method for the microstructure of WC/Co cemented carbide. This document applies to sintered cemented carbide (sintered carbide cemented carbide or cermet), the main hard phase of this alloy is no Organic carbides and nitrides. This document is also applicable to tests that use the intercept method to determine the phase size and distribution.2 Normative referencesThe contents of the following documents constitute the indispensable clauses of this document through normative references in the text. Among them, dated quotations Only the version corresponding to that date is applicable to this document; for undated reference documents, the latest version (including all amendments) is applicable to This document. GB/T 3488.1-2014 Metallographic determination of the microstructure of cemented carbide Part 1.Metallographic photographs and description (ISO 4499-1. 2008, IDT) GB/T 3488.2-2018 Metallographic determination of the microstructure of cemented carbide Part 2.Measurement of WC grain size (ISO 4499-2.2008, IDT)3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Nano grain nano The size of a single carbonitride or cubic carbide phase is less than 0.2 μm. Note. Use the average intercept method described in GB/T 3488.2-2018 to measure. 3.2 Ultrafine The size of a single carbonitride or cubic carbide phase is 0.2μm~0.5μm. Note. Use the average intercept method described in GB/T 3488.2-2018 to measure. 3.3 Submicron The size of a single carbonitride or cubic carbide phase is 0.5μm~0.8μm. Note. Use the average intercept method described in GB/T 3488.2-2018 to measure. 3.4 Fine The size of a single carbonitride or cubic carbide phase is 0.8μm~1.3μm. Note. Use the average intercept method described in GB/T 3488.2-2018 to measure. 3.5 Medium grain The size of a single carbonitride or cubic carbide phase is 1.3μm~2.5μm. Note. Use the average intercept method described in GB/T 3488.2-2018 to measure. 3.6 Coarse grain The size of a single carbonitride or cubic carbide phase is 2.5μm~6.0μm. Note. Use the average intercept method described in GB/T 3488.2-2018 to measure. 3.7 Extracoarse The size of a single carbonitride or cubic carbide phase is greater than 6.0 μm. Note. Use the average intercept method described in GB/T 3488.2-2018 to measure. 3.8 Ti(C,N) cermets Ti(C,N)cermets Ti (C, N) cermets contain 3% to 30% of the mass fraction of the binder phase metal, mainly Co and/or Ni, sometimes containing There is Mo. Note 1.The rest is a large amount of hard phase and a small amount of impurities. Note 2.The hard phase is mainly titanium carbide, titanium nitride and/or titanium carbonitride, and may also contain (Ti, Ta), (Ti, W) or (Ti, Ta, W) carbonitrides. Note 3.This type of material usually contains a hard phase of core/ring structure grains. 3.9 WC cubic carbide WC/cubiccarbidehardmetals Hexagonal WC-based cemented carbides containing a certain amount of cubic phase carbides, such as TiC or TaC. Such cubic phase carbides can be combined with W Form a solid solution. Note 1.These materials usually contain a hard phase of core/ring structure grains. Note 2.See Table 1. 3.10 Phaseregion The components in cemented carbide, such as WC, cubic carbide, and binder metal.4 Symbols and unitsThe following symbols apply to this document. A area, square millimeter (mm2) ECD equivalent circle diameter of the measured phase, micrometer (μm) L Total length of the cut line of the measured phase, millimeter (mm) li The measured length of a single line segment in the measured phase, micrometers (μm) ∑li The sum of the measured lengths of a single section lx The arithmetic mean of the length measured by the intercept method in the x phase, micrometer (μm) The number of N straight line crossing the grain boundary of the phase to be measured n The number of intercepted WC, carbonitride or cubic carbide grains m magnification mmax maximum magnification mmin minimum magnification5 PrincipleThis document gives the best method to measure the average size of the hard phase and binder phase in non-WC/Co cemented carbides. Recommended in this document Use the cut-line method to obtain the grain size data. The method described in GB/T 3488.1-2014 should be used to process metallographic samples. Metallographic sample preparation and corrosion methods are as important as phase size measurement methods (see ASTM B657, ASTM B665, References [1] And [2]). For the basic method, see GB/T 3488.1-2014.See Chapter 8 for further information. The main types of carbides that are usually considered There are two types of types. cemented carbide containing cubic carbides and WC, TiC or Ti(C,N) cermets (references [3], [4], [5]). The cubic carbide phase refers to the carbide with cubic lattice, such as TiC, TaC, this type of phase will contain W in the form of solid solution after sintering. This These materials usually contain a hard phase of core/ring structure grains. The guidance method for determining internal structure information refers to GB/T 3488.2-2018 Appendix A. The most direct method to measure the phase size is to polish the cross-section of the microstructure to be tested and corrode it with an etching solution, and then use the area calculation method or cross-section Method and other quantitative metallographic detection methods to measure the average value of the phase size. There are three ways to define the average size by the number of different phases. ---Length (the length of the cross-section through the two-dimensional cross-section of the phase); ---Area (the area of the two-dimensional cross-section of the phase region); ---Volume (single phase area). The sum of the measured parameters (length, area, volume) is divided by the number of parameters to get the average value of the corresponding parameters. The phase size is usually calculated by length. It can be calculated in the following ways. ---Measured by parallel lines or circles, the detailed method refers to ASTME112; ---Calculated by measuring the length of the section line across the structure to be tested, this method is the section line method, also known as the Heyn method; ---By calculating the circle equivalent diameter, first measure the area of the hard phase crystal grains, and then calculate the diameter of the circle with the same area, detailed See GB/T 3488.2-2018 for the method.6 Equipment6.1 Optical metallographic microscope, or other optical instruments with sufficient magnification to observe and measure. 6.2 Scanning electron microscope (SEM) can observe and measure the characteristic phases that are too small to be measured by optical microscopes. 6.3 Sample preparation equipment The phase size is measured by the microstructure photograph. In order to obtain the best microstructure photo of the prepared sample cross section, you can refer to Methods in GB/T 3488.1-2014, ASTMB657 and ASTMB665. An optical microscope or a scanning electron microscope (SEM) is usually used to take photos of the microstructure. For accurate measurement, choose scan The electron microscope is better. Even in samples with coarse grain materials, in the cross-sectional photos, the cut line will pass through the corners of the grains, resulting in very short The cut-line segments can only be accurately measured with SEM. In the captured photos, the measurement of the length of the cut-off line can be achieved by manual or semi-automatic image analysis. Automatic image analysis technology It can be used in relatively coarse and distinct environments. But for many materials, especially for very fine grains, the effect is good The photos are difficult to obtain and it is not appropriate to use automatic image analysis methods. For ultra-fine grains and nano grains, ordinary scanning electron microscopes that use tungsten wires as electron sources are difficult to take good photos. sheet. To measure these materials, a field emission scanning electron microscope is required. With this system, higher resolution photos can be taken. In these photos, crystal grains with an average particle size of 0.1μm~0.2μm can be measured. If the size of the grains in the material is smaller, you need to use Transmission electron microscope (TEM). However, the sampling and sample preparation requirements of this material sample are more stringent. For these materials, when preparing the sample Caution is essential to obtain good quality images, and it is usually more effective to use a combination of corrosion methods (see GB/T 3488.1- 2014).9 Microstructure measurement steps9.1 Microstructure selection 9.1.1 Overview The selection of the microstructure has a great influence on the accuracy of the measurement results. It is necessary to pay attention to the instructions in 9.1.2~9.1.4. 9.1.2 Representative selection The choice of analysis photos should be representative of the entire section and random. Prepare at least 4 photos for detailed analysis, each related Phase measurement at least.200 phase domains. 9.1.3 Determination of the same kind of hard phase In this case, a series of photos are obtained from the determined position of the sample for summary analysis to ensure that at least.200 phases are measured at each position. This measurement is allowed because the influence of the phase size on the error is greater than the measurement error caused by different positions (the relative error is proportional to 1/N, where N is the number of phases at each position). 9.1.4 Different types of materials If the microstructures in the two adjacent observation areas are different, you need to increase the number of photos used for judgment, but reduce the number of photos used for judgment. Frequency, the total number of simultaneous measurement results must be greater than.200. The choice of photo magnification should be controlled so that each field of view passes through 10 to 20 phase domains, allowing the measurement error of a single section Within 10%. It is generally allowed to draw 3 or 4 straight cut lines on a photo, and it is not allowed to cross any single phase domain many times. Most of The structure of cemented carbide is isotropic, so it is not very important whether the lines are parallel or not. If it is anisotropic, random lines should be drawn and allowed They intersect (see Reference [11]). Therefore, each image should be able to obtain about 50 cut lines. 9.2 Phase size determination 9.2.1 Overview It is recommended to use the arithmetic mean of the cut line to define the phase size. This method is the simplest, and can summarize all the data to quantify the distribution range. For materials with 2 phases, 3 phases or 4 phases, such as Ti(C,N) or WC cubic carbide mixed crystal hardened For gold, since each phase needs to be measured independently, the cut-line method is not easy to operate, but the cut-line method can still provide phase size distribution information. Draw a straight line on the metallographic photo of the calibrated cemented carbide. When this line intercepts a hard phase or binder phase area, use The ruler measures the length of this section line (li, where i=1,2,3,n, corresponding to the 1,2,3,nth crystal grain). It is recommended to count at least 100 long In order to reduce the average size (phase or grain) error to less than 10%, more than.200 should be counted. The average intercept phase or binder phase size dx is defined in formula (1). dx=∑li/n (1) The phase size of cemented carbide is generally 0.01μm~10μm. Due to the measurement error, one decimal place is reserved for those greater than 1.0μm, less than 1.0μm retains 2 decimal places. Therefore, the final reported result will have two forms, such as 3.4μm or 0.18μm. 9.2.2 Measuring the phase size by the cut-line method Figure 21 shows a typical WC/CC/Co microstructure, where the white crystals are WC, the black is the Co binder phase, and the cubic phase is shown as Crystal with dark gray core and light gray ring. Through the intercept method, the measurement of the size and volume fraction of all these constituent phases has become quite easy. ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 3488.3-2021_English be delivered?Answer: Upon your order, we will start to translate GB/T 3488.3-2021_English as soon as possible, and keep you informed of the progress. The lead time is typically 2 ~ 4 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 3488.3-2021_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 3488.3-2021_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
