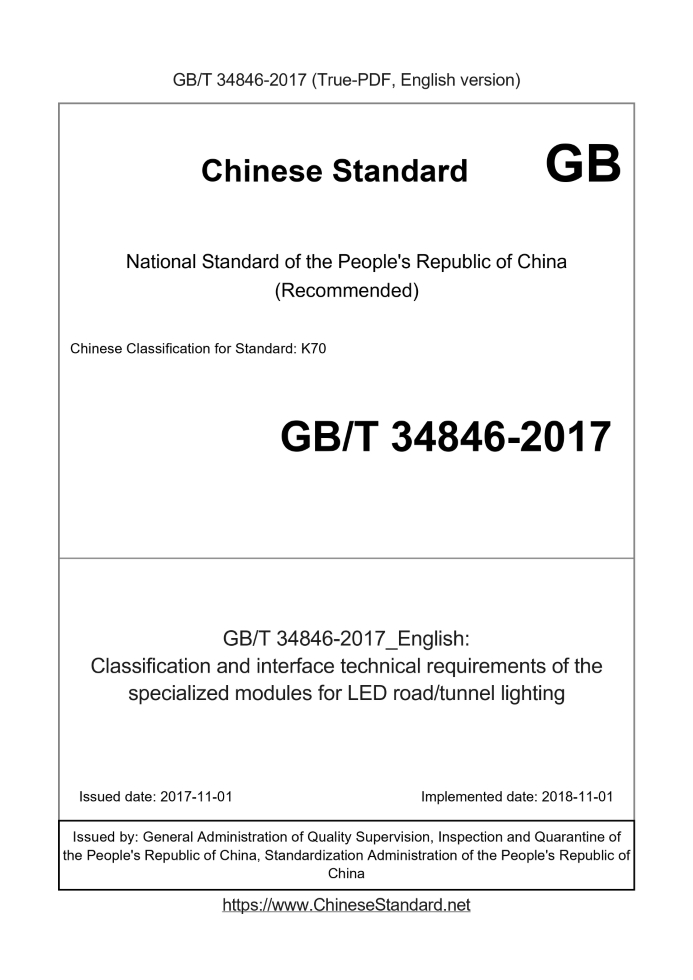

GB/T 34846-2017 English PDF

US$439.00 · In stock
Delivery: <= 5 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 34846-2017: Classification and interface technical requirements of the specialized modules for LED road/tunnel lighting
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 34846-2017	439	Add to Cart	5 days	Classification and interface technical requirements of the specialized modules for LED road/tunnel lighting	Valid

Similar standards

GB/T 39021   GB/T 39022   GB/T 35626   GB/T 45818   GB/Z 45268

Basic data

Standard ID: GB/T 34846-2017 (GB/T34846-2017)
Description (Translated English): Classification and interface technical requirements of the specialized modules for LED road/tunnel lighting
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K70
Classification of International Standard: 29.140.99
Word Count Estimation: 22,228
Date of Issue: 2017-11-01
Date of Implementation: 2018-11-01
Quoted Standard: GB 7000.1; GB/T 9468-2008; GB 17625.1; GB/T 17625.2; GB/T 17743; GB/T 18595; GB 24819; GB/T 24824-2009; GB/T 24826-2016; GB/T 24827; IEC 61984
Regulation (derived from): National Standard Announcement 2017 No. 29
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the road lighting or tunnel lighting with independent LED module specifications and interface of the technical requirements. This standard applies to integrated LED module, semi-integrated LED module or non-integrated LED module.

GB/T 34846-2017: Classification and interface technical requirements of the specialized modules for LED road/tunnel lighting

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Classification and interface technical requirements of the specialized modules for LED road/tunnel lighting ICS 29.140.99 K70 National Standards of People's Republic of China LED road/tunnel lighting module specifications and specifications Interface technical requirements Posted.2017-11-01 2018-11-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China China National Standardization Administration released Directory Foreword Ⅲ Introduction IV 1 Scope 1 2 Normative references 1 3 Terms and definitions 1 4 specification classification 2 5 General requirements 2 6 LED module specifications and technical requirements 3 7 LED module interface technical requirements 4 8 Test Method 5 9 logo 5 Appendix A (informative) A-type LED module technology program 6 Appendix B (informative) B-type LED module technical solutions 7 Appendix C (informative) C-type LED module technical solutions 8 Appendix D (informative) D-type LED module technical solutions 9 Appendix E (informative) Two-core LED module electronic connector technology solutions 10 Appendix F (informative) three-core LED module electronic connector technical solutions 14 Figure 1 LED module dimensions 4 Figure A.1 LED Module Size 6 Figure B.1 LED Module Size 7 Figure C.1 LED Module Size 8 Figure D.1 LED module shape and size 9 Figure E.1 male connector outline diagram 10 Figure E.2 Female connector outline of the electrical connector 10 Figure E.3 Male and Female Lead Schematic 10 Figure E.4 electronic connector male and female structure diagram 11 Figure E.5 Mating Connector Terminal Size 11 Figure E.6 Female connector mating size 12 Figure F.1 male connector outline diagram 14 Figure F.2 electronic connector female end shape diagram 14 Figure F.3 Male and Female Lead Schematic 14 Figure F.4 male and female connector structure diagram Figure F.5 Male connector mating size 15 Figure F.6 Electronic Connector Female Size 16 Table 1 light distribution specifications 2 Table 2 rated luminous flux specifications 3 Table 3 rated related color temperature specifications 3 Table 4 Non-integrated LED module input current 3 Table 5 LED module maximum size requirements 4 Table A.1 LED module size requirements 6 Table B.1 LED module size requirements 7 Table C.1 LED module size requirements 8 Table D.1 LED module size requirements 9 Table E.1 male and female connector size requirements 11 Table E.2 Electronic connector male size requirements 11 Table E.3 electronic connector female size requirements 12 Table F.1 male and female connector size requirements 15 Table F.2 Electronic Connector Male Size Requirements Table F.3 electronic connector female size requirements 16

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard proposed by the China Light Industry Federation. This standard by the National Lighting Standardization Technical Committee electric light source and its accessories Technical Committee (SAC/TC224/SC1) Focused. This standard was drafted by. Hangzhou Maple Yongming Photoelectric Co., Ltd., Chaoyang District, Beijing efficient lighting technology center, Source Co., Ltd., Nanjing Panda Lighting Co., Ltd., Foshan Electrical and Lighting Co., Ltd., Jiangsu Yaxi Lighting Group Co., Ltd. Division, Jiangsu Hao US Optoelectronics Technology Co., Ltd., Shaanxi Airlines route traffic Technology Co., Ltd., the national semiconductor light source product quality supervision and inspection Heart (Guangdong), Huizhou NVC Optoelectronics Technology Co., Ltd., Shanghai Feile Audio Co., Ltd., Shanghai Think Electronic Engineering Co., Ltd., Foshan City, the whole Electric Lighting Co., Ltd., Deqing Yi Te Electronics Co., Ltd. The main drafters of this standard. Huang Jianming, Liu Qian, Wang Zhiqiang, Chen Shixiong, Wei Bin, Shen Qingyue, Luo Yong, Cheng Sheng, Valley Valley, Song Shuwen, Tong Min, Chen Chungen, Ke Baiquan, Shao Wei.

Introduction

The issuing authority of this document draws attention to the fact that statements that conform to this document may relate to 7.1 and Appendix A with the following 2 items and LED road / Tunnel lighting module specifications and interface technology requirements related to the use of patents. The name of the patent is as follows. CN201310192447.9, Connection structure between light emitting modules, mounting method and LED lighting device; ZL201330194649.8, LED Use of module related patents. The issuing authority of this document has no position whatsoever about the truthfulness, validity and scope of this patent. The patentee has assured the issuing authority of this document that he is willing to work with any applicant on reasonable and non-discriminatory terms and conditions, Negotiate a patent license. The patent holder's statement has been filed with the issuing authority of this document. Related information can be passed below Contact to get. Name of patent holder Hangzhou Maple Yongming Optoelectronics Co., Ltd. Address. Gongshu District, Hangzhou, Zhejiang Kang Road 18, 3rd Floor, 2nd Floor, North Zip code Email.hlm @ hpwin.com Phone .0571-88396053 Fax .0571-88042207 Please note that in addition to the above patents, some of the contents of this document may still involve patents. The issuing agencies of this document are not responsible for identifying these specializations Lee's responsibility. LED road/tunnel lighting module specifications and specifications Interface technical requirements

1 Scope

This standard specifies the road lighting or tunnel lighting with independent LED module specifications and interface of the technical requirements. This standard applies to integrated LED module, semi-integrated LED module or non-integrated LED module.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version applies to this article Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB 7000.1 lamps Part 1. General requirements and tests General requirements for luminosity measurement of luminaire distribution GB/T 9468-2008 GB 17625.1 electromagnetic compatibility limit harmonic current emission limit (equipment input current per phase ≤ 16A) GB/T 17625.2 electromagnetic compatibility limits for each phase rated current ≤ 16A and unconditional access to the equipment in the public low-voltage power supply Voltage changes in the system, voltage fluctuations and flicker limitations GB/T 17743 Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment GB/T 18595 General lighting equipment EMC immunity requirements GB 24819 General lighting LED module safety requirements Test methods for LED modules for general lighting GB/T 24824-2009 GB/T 24826-2016 General lighting LED products and related equipment - Terms and definitions GB/T 24827 Road and street lighting performance requirements IEC 61984 Connector Safety Requirements and Tests (Connectors-Safetyrequirementsandtests)

3 Terms and definitions

GB/T 24826-2016 and GB/T 24824-2009 as defined by the following terms and definitions apply to this document. 3.1 Road lighting roadlighting Provision of lighting fixtures on urban roads, highways and venues connected to roads, to provide vehicle drivers and pedestrians necessary at night Visibility. 3.2 Tunnel lighting tunnellighting Lighting fixtures are provided on the tunnels and the venues connected to the tunnels to provide drivers and pedestrians with the necessary visibility. 3.3 tp-point tp-point Measure the temperature of the LED module on the surface. ......
