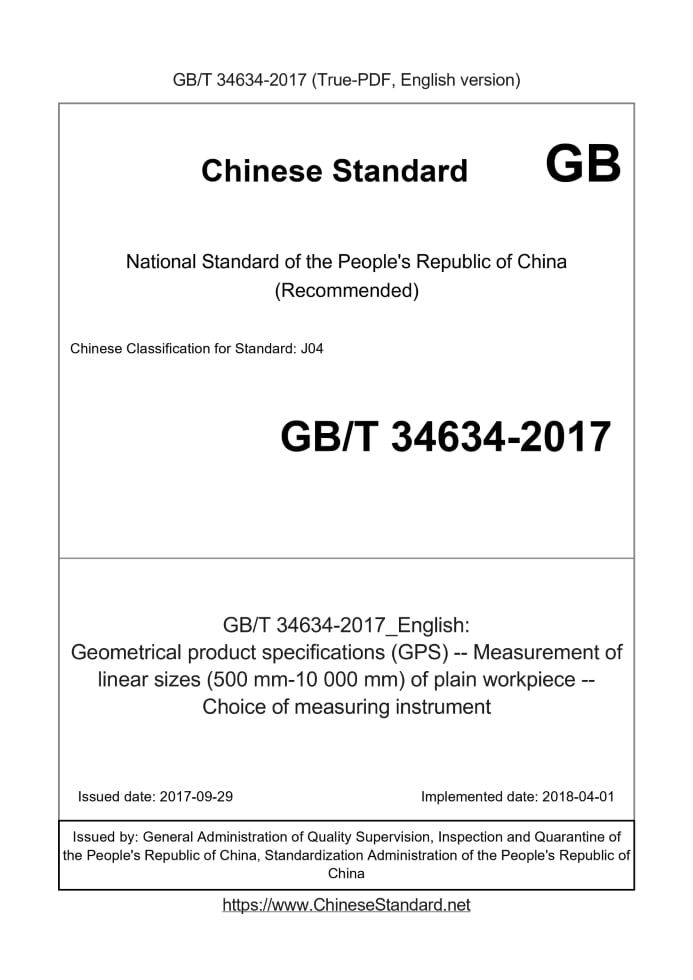

GB/T 34634-2017 English PDF

US$499.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 34634-2017: Geometrical product specifications (GPS) -- Measurement of linear sizes (500 mm-10 000 mm) of plain workpiece -- Choice of measuring instrument
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 34634-2017	499	Add to Cart	4 days	Geometrical product specifications (GPS) -- Measurement of linear sizes (500 mm-10 000 mm) of plain workpiece -- Choice of measuring instrument	Valid

Similar standards

GB/T 35839   GB/T 35977   GB/T 34018   GB/T 34632   GB/T 34631

Basic data

Standard ID: GB/T 34634-2017 (GB/T34634-2017)
Description (Translated English): Geometrical product specifications (GPS) -- Measurement of linear sizes (500 mm-10 000 mm) of plain workpiece -- Choice of measuring instrument
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J04
Classification of International Standard: 17.040.30
Word Count Estimation: 25,232
Date of Issue: 2017-09-29
Date of Implementation: 2018-04-01
Quoted Standard: GB/T 1800.1; GB/T 3177; GB/T 4249; GB/T 18779.1; GB/T 18779.2; GB/T 18780.1; GB/T 19765; GB/Z 20308
Regulation (derived from): National Standard Notice 2017 No. 23
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the principle of acceptance of smooth workpiece size (500mm ~ 10000mm), acceptance limit, the principle of selection of measurement equipment, the measurement equipment to allow the value of uncertainty and arbitration. This standard applies to product processing, final inspection and other processes, the tolerance level of 1 to 18 (ITl ~ IT18), the nominal size of 500mm ~ 10000mm smooth workpiece size inspection. This standard also applies to the general tolerances, extending the size of the tolerance test.

GB/T 34634-2017: Geometrical product specifications (GPS) -- Measurement of linear sizes (500 mm-10 000 mm) of plain workpiece -- Choice of measuring instrument

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Geometrical product specifications (GPS) - Measurement of linear sizes (500 mm-10 000 mm) of plain workpiece - Choice of measuring instrument ICS 17.040.30 J04 National Standards of People's Republic of China Product Geometry Specifications (GPS) Smooth workpiece size (500mm ~ 10000mm) measurement Measurement equipment selection Geometricalproductspecifications (GPS) -Measurementoflinearsizes (500mm-10000mm) ofplainworkpiece-Choiceofmeasuringinstrument 2017-09-29 Posted 2018-04-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China China National Standardization Administration released

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard by the National Geometrical Product Specifications Standardization Technical Committee (SAC/TC240) and focal point. This standard drafting unit. National major technical equipment geometric measurement station, machine productivity promotion center, China's second heavy machinery group Company, Zhengzhou University. The main drafters of this standard.Susu deposit, Ming Cuixin, Duan Ling, Zhang Xu, Liao Houhua, Zhang Linna, Deng level, Zheng Peng, Yu Su, Yun Jinfen. Product Geometry Specifications (GPS) Smooth workpiece size (500mm ~ 10000mm) measurement Measurement equipment selection

1 Scope

This standard specifies the smooth workpiece size (500mm ~ 10000mm) acceptance principles, acceptance limits, measurement equipment selection principles, measurement The measurement uncertainty of the device allows the value and arbitration. This standard applies to product processing, final inspection and other processes, the tolerance level of 1 to 18 (IT1 ~ IT18), nominal size 500mm ~ 10000mm smooth workpiece size inspection. This standard also applies to the general tolerances, extending the size of the tolerance test.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version applies to this article Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 1800.1 Geometrical Product Specifications (GPS) Limits and Fittings Part 1. Basics of Tolerance, Deviation and Fitting Geometrical product specifications (GPS) - Inspection of smooth workpiece dimensions GB/T 4249 Geometrical Product Specifications (GPS) Tolerance principle GB/T 18779.1 Geometrical Product Specifications (GPS) - Measurement of work piece and measuring equipment - Part 1. Inspection by specification Qualified or unqualified decision rules GB/T 18779.2 Geometrical product specifications (GPS) - Part 2. Measurement and measurement equipment - Part 2. Measurement equipment Evaluation of uncertainty in GPS surveying during calibration and product inspection GB/T 18780.1 Geometrical product specifications (GPS) geometric features - Part 1. Basic terms and definitions GB/T 19765 Geometrical product specifications (GPS) Geometrical product specifications and test the standard reference temperature Geometrical product specifications (GPS) master plan

3 Terms and definitions

GB/T 1800.1, GB/T 3177, GB/T 4249, GB/T 18779.1 and GB/T 18780.1 defined terms and definitions apply to This document.

4 General rules

4.1 Acceptance principle The acceptance method used is only valid for workpieces within the specified dimensional limits. 4.2 Acceptance method Due to the error of the measurement equipment and the measurement system, no true value can be measured by any measurement. In addition, most common measuring instruments are usually ......
