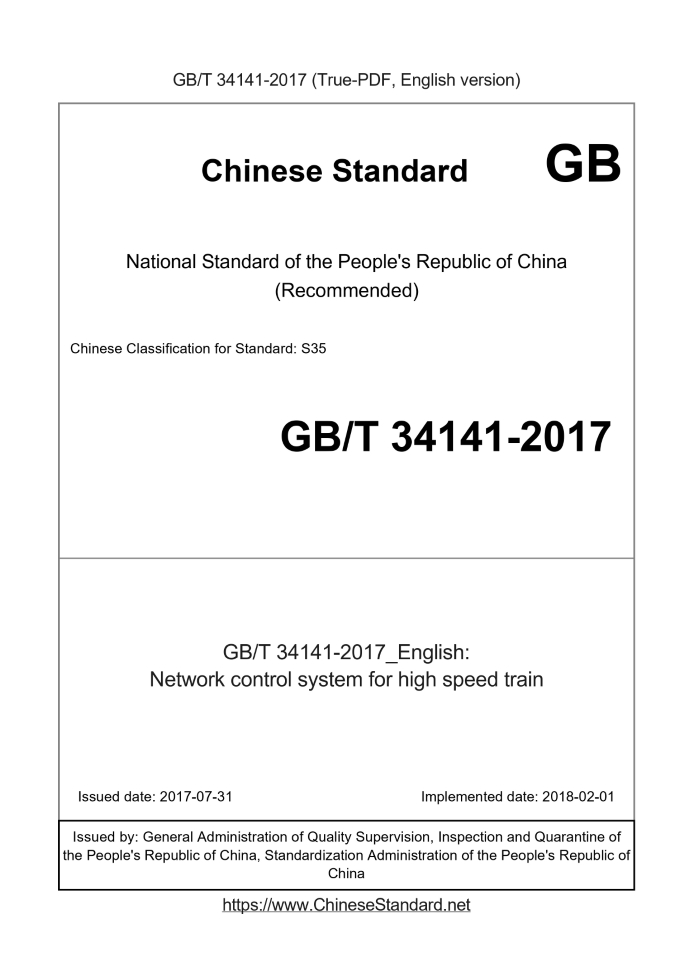

GB/T 34141-2017 English PDF

US$439.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 34141-2017: Network control system for high speed train
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 34141-2017	439	Add to Cart	4 days	Network control system for high speed train	Valid

Similar standards

GB/T 36287   GB/T 34574   GB/T 25123.4   GB/T 45306   GB/T 34571

Basic data

Standard ID: GB/T 34141-2017 (GB/T34141-2017)
Description (Translated English): Network control system for high speed train
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: S35
Classification of International Standard: 29.280
Word Count Estimation: 22,221
Date of Issue: 2017-07-31
Date of Implementation: 2018-02-01
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China

GB/T 34141-2017: Network control system for high speed train

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Network control system for high speed train ICS 29.280 S35 National Standards of People's Republic of China High Speed Train Network Control System 2017-07-31 Posted 2018-02-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China China National Standardization Administration released Directory Foreword Ⅲ 1 Scope 1 2 Normative references 1 3 Terms and definitions 1 4 working conditions 1 5 system structure 2 5.1 Overview 2 5.2 Gateway 2 5.3 Repeater 2 5.4 bus management unit 3 5.5 Central Control Unit 5.6 Vehicle Control Unit 3 5.7 Troubleshooting and Recording Unit 3 5.8 Input/Output Unit 3 5.9 Intelligent display unit 3 5.10 Communication Cables and Connectors 4 6 Electrical Requirements 4 7 technical requirements 4 7.1 General 4 7.2 Communication Function 4 7.3 Redundancy Configuration Function 4 7.4 Control Function 5 7.5 diagnostic and recording functions 6 7.6 Protection Function 7 7.7 Display and setting functions 7 7.8 car test function 8 7.9 RAMS Requirements 8 8 test method 8 8.1 Equipment Test 8 8.2 System Test 8 8.3 Ground test 11 Inspection rules 11 9.1 Test classification 11 9.2 factory inspection 11 9.3 Equipment Type Inspection 11 9.4 System Type Inspection 12 9.5 Research Tests 12 9.6 Inspection Items 12 10 Safety and Environmental Protection 13 10.1 Safety 13 10.2 Environmental protection 11 software release 13 12 Documentation Requirements 13 12.1 Overview 13 12.2 Validation Documents 14 12.3 Technical Documents 14 13 logo, packaging and storage 14 References 15

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. Please note that some of this document may be patentable. The issuing agencies of this document do not bear the responsibility of identifying these patents. This standard proposed by the National Railway Administration. This standard by the National Traction Electrical Equipment and Systems Standardization Technical Committee (SAC/TC278) centralized. This standard is drafted by Zhuzhou CSR Times Electric Co., Ltd. Participated in the drafting of this standard. China Railway Science Research Institute of rolling stock, car in Qingdao Sifang Vehicle Research Institute Co., Ltd.. The main drafters of this standard. Road to the sun, Huang He, Liu Jun, Zhao Hongwei, Xu Yanfen, Zhang Lizhi. High Speed Train Network Control System

1 Scope

This standard specifies the high-speed train network control system (hereinafter referred to as network control system) working conditions, system configuration, electrical requirements, Technical requirements, inspection methods, inspection rules, safety and environmental protection, software release, documentation requirements, labeling, packaging and storage. This standard applies to high-speed train installed on the basis of GB/T 28029.1-2011 network control system.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version applies to this article Pieces. For undated references, the latest edition (including all amendments) applies to this document. Specifications and examples of rail transit reliability, availability, serviceability and safety (IEC 62278-2002). 2002, IDT) GB/T 21563-2008 rail traffic rolling stock equipment impact and vibration test (IEC 61373.1999, IDT) GB/T 25119-2010 Railway rolling stock electronic devices (IEC 60571.2006, MOD) GB/T 28029.1-2011 Traction electrical equipment train bus - Part 1. Train communication network (IEC 61375-1.2007, IDT) GB/T 34119 rail transit locomotive electrical connectors TB/T 1484.4 Rolling stock cables - Part 4. Cables for halogen free, low smoke and flame retardant communication networks IEC 61133.2016 Railway rolling stock rolling stock Motor rolling stock Put into use before the test (Railwayapplica- tions-Rolingstock-Testing of rollingstock oncompletionofconstructionandbeforeentryinto service

3 Terms and definitions

GB/T 28029.1-2011 defined and the following terms and definitions apply to this document. 3.1 Group consist A single vehicle or a collection of multiple vehicles that can not be separated during normal operation. 3.2 Train Consisting of one or more groups, the composition does not change during normal operation. Remark GB/T 28029.1-2011, the definition of 1.3.28. 3.3 Reconnection train coupledtrain Made up of multiple trains, the composition can change during normal operations.

4 working conditions

Network control system should be able to work under the following environmental conditions. ......
