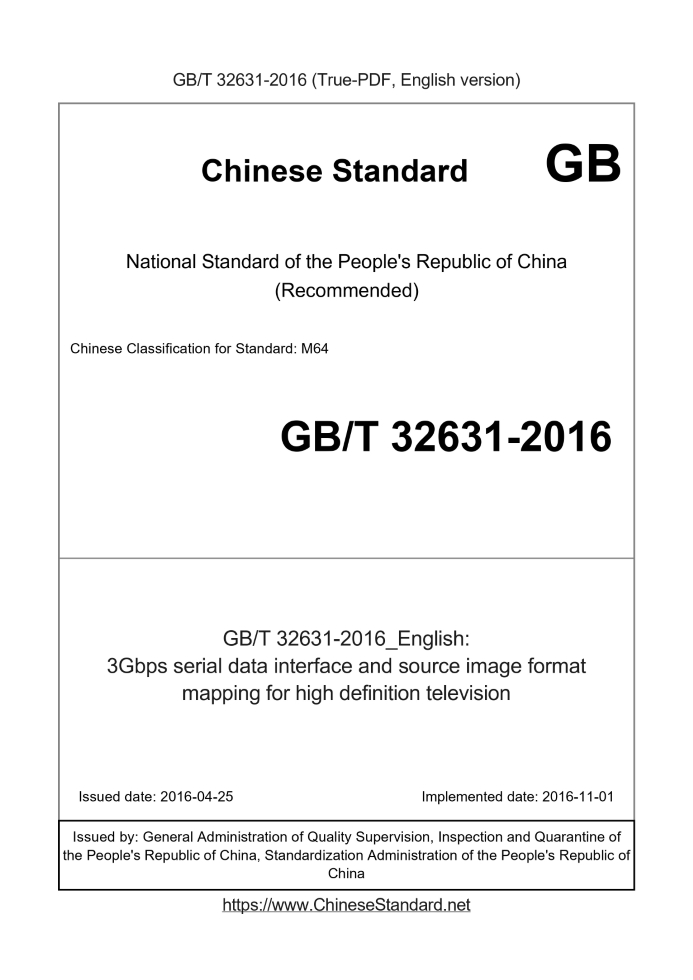

GB/T 32631-2016: 3Gbps serial data interface and source image format mapping for high definition television
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 32631-2016	439	Add to Cart	4 days	3Gbps serial data interface and source image format mapping for high definition television	Valid

Similar standards

GY/T 268.2 GY/T 229.3 GB/T 36982 GB/T 17953

Basic data

Standard ID: GB/T 32631-2016 (GB/T32631-2016)
Description (Translated English): 3Gbps serial data interface and source image format mapping for high definition television
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: M64
Classification of International Standard: 33.160
Word Count Estimation: 22,268
Date of Issue: 2016-04-25
Date of Implementation: 2016-11-01
Quoted Standard: GB/T 20562-2006; GY/T 155-2000; GY/T 157-2000; GY/T 160-2000; GY/T 162-2000; IEC 60169-8-1997; SMPTE 346M-2000; SMPTE 348M-2005; SMPTE 352M-2011; SMPTE 372M-2011
Regulation (derived from): National Standard Announcement No. 7 of 2016
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China

GB/T 32631-2016: 3Gbps serial data interface and source image format mapping for high definition television

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
3Gbps serial data interface and source image format mapping for high definition television ICS 33.160 M64 National Standards of People's Republic of China High Definition Television 3Gbps Serial Data Interface And source image format mapping 2016-04-25 released 2016-11-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Management Committee released Directory Preface I 1 Scope 1 2 normative reference document 1 Direct mapping of source image format 4 pairs of HDSDI to 3GSDI mapping 10 5 interface operating mode 11 Data for 3GSDI 12 7 parallel data format of virtual interface data stream 12 Serial data format after virtual interface data stream reuse Coaxial cable interface Appendix A (informative) Mode B Mapping - Dual HDSDI 17 Appendix B (informative) Scaling of NRZI generation polynomials

Foreword

This standard is drafted in accordance with the rules given in GB/T 1.1-2009. Please note that some of the contents of this standard may involve patents. The issuer of this standard does not assume responsibility for the identification of these patents. This standard is proposed by the State Press and Publication General Administration of Radio and Television. This standard by the National Radio, Film and Television Standardization Technical Committee (SAC/TC239) centralized. The drafting of this standard unit. the State Press and Publication of Radio and Television Broadcasting Planning Institute. The main drafters of this standard. Sun Yan, Wei Anming, Dong Wenhui, Li Ha, Europe Zhenyan. High Definition Television 3Gbps Serial Data Interface And source image format mapping

1 Scope

This standard specifies the mapping of the TV source image format at a rate of 3Gbps serial data interface (3GSDI), and Embedded audio data, ancillary data, stream ID in the 3GSDI on the transmission method. This standard applies to high-definition television program production and program exchange of 3Gbps serial data interface, and can be used as design, production, test The technical basis for the production, maintenance and maintenance of high-definition television program production systems and their equipment.

2 normative reference documents

The following documents are indispensable for the application of this document. For dated references, only the dated edition applies to this article Pieces. For undated references, the latest edition (including all modifications) applies to this document. Technical parameters and measurement methods for serial digital signal jitter of studio GB/T Graphical values of video parameters for the production and exchange of high - definition television programs GY/T 155-2000 GY/T 157-2000 studio high definition television digital video signal interface GY/T 160-2000 Digital component The satellite data format in the studio interface GY/T 162-2000 24-bit digital audio format as a satellite data in a high-definition TV serial interface IEC 6169-8..1997 Radio frequency connectors - Part 8. Jackets with outer conductor diameter 6.5 mm (0.256 in) Axis Connector Characteristic Impedance 50Ω (BNC Type) Revision 2 [Radio-frequencyconnectors-Part 8. RFcoaxialcon- nectorswithinnerdiameterofouterconductor6.5mm (0.256in) withbayonetlock-Characteristics impedance50ohms (TypeBNC); Amendment2] SMPTE346M..2000 TV Time Division Multiplexing Video Signal and Universal Data HD Interface (Fortelevision-Time divisionmultiplexingvideosignalsandgenericdataoverhigh-definitioninterfaces SMPTE348M..2005 TV High Data Rate Serial Data Transmission Interface [Fortelevision-Highdata-rateserial datatransportinterface (HD-SDTI)] SMPTE352M..2011 digital serial interface payload identification code (Payloadidentificationcodesforserialdig- italinterfaces SMPTE372M..2011 1920 × 1080 and 2048 × 1080 image format dual link 1.5Gb/s digital interface (Dual link1.5Gb/sdigitalinterfacefor1920 × 1080and2048 × 1080pictureformats)

3 direct mapping of source image formats

3GSDI data sources should be specified in Table 1 non-compressed 10bit or 12bit video signal, or packet data. Auxiliary component signal Alpha channel, referred to as A channel. May be available as an option with the R'G'B 'or Y'C'BC'R video signal Now. The interface containing the auxiliary component is identified as R'G'B 'A and Y'C'BC'RA. In this standard, if the A channel component exists, it should Has the same characteristics as the Y 'or G' channel defined in the source image format. ......
