GB/T 30104.103-2017 English PDF

US$4519.00 · In stock
Delivery: <= 14 days. True-PDF full-copy in English will be manually translated and delivered via email.

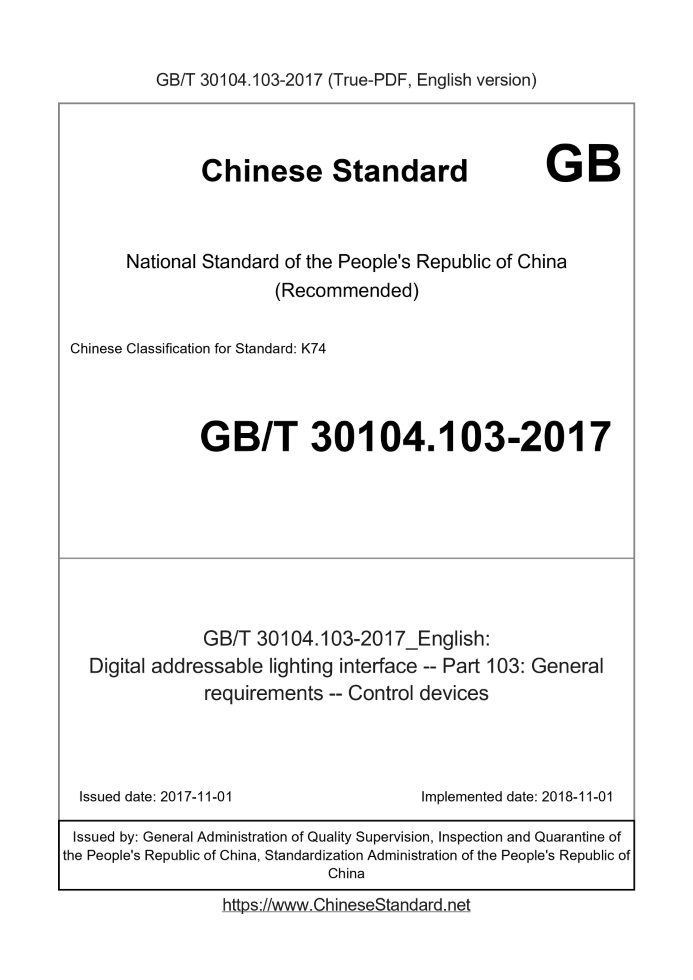

GB/T 30104.103-2017: Digital addressable lighting interface -- Part 103: General requirements -- Control devices
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 30104.103-2017	4519	Add to Cart	14 days	Digital addressable lighting interface -- Part 103: General requirements -- Control devices	Valid

Similar standards

GB/T 24825   GB/T 9473   GB/T 32483.2   GB/T 30104.201   GB/T 30104.301   GB/T 30104.102

Basic data

Standard ID: GB/T 30104.103-2017 (GB/T30104.103-2017)
Description (Translated English): Digital addressable lighting interface -- Part 103: General requirements -- Control devices
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K74
Classification of International Standard: 29.140; 29.140.50
Word Count Estimation: 226,284
Date of Issue: 2017-11-01
Date of Implementation: 2018-11-01
Regulation (derived from): National Standard Announcement 2017 No. 29
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China

GB/T 30104.103-2017: Digital addressable lighting interface -- Part 103: General requirements -- Control devices

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Digital addressable lighting interface-Part 103. General requirements-Control devices ICS 29.140; 29.140.50 K74 National Standards of People's Republic of China Digital Addressable Lighting Interface Part 103. General requirements for control equipment Digitaladdressablelightinginterface-Part 103. (IEC 62386-103.2014, IDT) Posted.2017-11-01 2018-11-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China China National Standardization Administration released Directory Foreword V. Introduction Ⅵ 1 Scope 1 2 Normative references 1 3 Terms and definitions 1 4 Overview 3 5 Electrical Specifications 4 6 interface power supply 4 7 Transmission Protocol Structure 4 8 timing 6 9 method of operation 7 10 Variables of the statement 24 Definition of order 26 12 Test Procedure 43 References 219 Figure 1 IEC 62386 Graphical Overview IV Figure 2 rated current test 66 Table 1 24-bit command frame encoding 4 Table 2 Example byte in command frame 5 Table 3 24-bit event message frame coding 6 Table 4 instance type 8 Table 5 Feature Type 8 Table 6 Example Group Variables 9 Table 7 Device Address Information in Power Failure Event 10 Table 8 Event Addressing Plan 10 Table 9 Signal Levels (Approx. 50%) with Accuracy and Input Value 11 Table 10 reads a 4-byte instance of the input value Query Sequence 12 Table 11 Memory Map of Main Memory 14 Table 12 Memory Bank 0 Memory Map 17 Table 13 Memory Bank 1 Memory Map 19 Table 14 Control Equipment Capabilities 23 Table 15 Control Equipment Status 23 Table 16 Example Status 23 Table 17 Device Variable Declaration 24 Table 18 Declaration of Instance Variables Table 19 Example Event Messages 26 Table 20 Device Event Messages 26 Table 21 Standard Commands Table 22 Special Commands (Implemented by Both Application Controller and Input Device) 30 Table 23 Device addressing "INITIALISE (device)" 40 Table 24 Accidental output 46 Table 25 Checking 103 Factory Default Test Parameters 55 Table 26 Test Program Parameters Used to check 103 factory default 59 for each logical unit Table 27 Bit Timing Test Sequence Parameters 62 Table 28 Maximum and minimum system voltage test parameters 64 Table 29 Voltage Transmission Test Procedure Parameters Table 30 Send Rising and Falling Edge Tests Parameter 69 Table 31 Test Sequence Parameters for Sending Bit Timing 73 Table 32 receives the parameters of frame timing test sequence 74 Table 33 Receiver Startup Test Sequence Parameter 76 Table 34 Test Sequence Parameters for Receiving Bit Timing 78 Table 35 Extended Receive Bit Timing Test Parameter 83 Table 36 Parameters for Recovery of Test Sequence Receiver Frames Invalid and Frame Size Invalid 83 Table 37 Receive Frame Timing Test Parameter 85 Table 38 Collision Avoidance Signal Transmission Test Parameter 88 based on priority Table 39 Sends the Collision Detection Parameter 91 of the Free Phase Table 40 Test Parameter for Transmission Collision Detection Extended Active 94 Table 41 resets the instance group test parameter 98 Table 42 Sends two test parameters 105 for timeout Table 43 Sends two timeout (example) test parameters 108 Table 44 (Equipment) Test Sequence Parameters 111 Table 45 Test Sequence Parameters 114 Table 46 Sets Short Address Test Parameter 122 Table 47 Parameters for Reset/Power-Up Value (Device) Test 124 Table 48 Reset/Power-Up Value (Example) Parameters for Test 126 Table 49 DTR0/DTR1/DTR2 Test Parameters 127 Table 50 DTR1.DTR0 and DTR2.DTR1 Test Parameters 128 Table 51 reads storage location test parameter 138 on memory 0 Table 52 reads test parameters 141 for storage location on memory 1 Table 53 Memory Write Test Parameters 147 Table 54 Enables Write Memory. Write Enable Status Test Parameter 150 Table 55 Write Store Enable. Timeout/Intermediate Command Test Parameter 153 Table 56 Memory Reset. Timeout/Intermediate Command Test Parameter 155 Table 57 resets memory test parameters 157 Table 58 Initialization - Device Addressing Test Parameters 160 Table 59 compares the parameters of the test 162 Table 60 Undo operation test parameters 164 Table 61 Short Address Programming Test Parameters 167 Table 62 Query Short Address 169 Table 63 Querying the Short Address Test Parameter 171 Table 64 Device Identification Test Parameters 173 Table 65 Addressing 2 Test Parameters 180 Table 66 Reserved Commands. Standard Device Command Test Parameter 203 Table 67 Reserved Instance Commands (Instance Type 0) Test Parameter 204 Table 68 Reserved Special Instruction Test Sequence Parameter 205

Foreword

GB/T 30104 "digital addressable lighting interface" is divided into 13 parts. --- Part 101. General requirements system; --- Part 102. General requirements of control devices; --- Part 103. General requirements for control equipment; --- Part.201. Particular requirements for control devices Fluorescent light (device type 0); --- Part 202. Particular requirements for control devices Self-contained emergency lighting (equipment type 1); --- Part 203. Particular requirements for control devices Discharge lamps (excluding fluorescent lamps) (type of equipment 2); --- Part 204. Particular requirements for control gear Low - voltage tungsten halogen lamp (type of equipment 3); --- Part 205. Particular requirements for control gear Incandescent lamp supply voltage controller (device type 4); --- Part 206. Particular requirements for control equipment Digital signal to DC voltage (device type 5); --- Part 207. Particular requirements for control devices LED module (device type 6); --- Part 208. Particular requirements for control devices Switching function (device type 7); --- Part 209. Particular requirements for control devices Color control (device type 8); --- Part 210. Particular requirements for control devices Program device (device type 9). This section GB/T 30104 Part 103. This section drafted in accordance with GB/T 1.1-2009 given rules. This section uses the translation method is equivalent to using IEC 62386-103.2014 "Digital Addressable Lighting Interface Part 103. General requirements controlling device". The documents of our country that are consistent with the corresponding international documents quoted in this part are as follows. --- GB/T 30104.101-2013 Digital Addressable Lighting Interface Part 101. General Requirements System (IEC 62386- 101.2009, IDT) --- GB/T 30104.102-2013 digital addressable lighting interface - Part 102. General requirements control device (IEC 62386-102.2009, IDT) This part is proposed by China National Light Industry Council. This part of the National Lighting Standardization Technical Committee electric light source and its accessories Technical Committee (SAC/TC224/SC1) Focused. This part of the drafting unit. Jiangsu Asia Lighting Group Co., Ltd., Foshan Electrical and Lighting Co., Ltd., Chaoyang District, Beijing efficient Zhao Photo Ming Technology Center, the National Semiconductor Light Source Product Quality Supervision and Inspection Center (Guangdong), Foshan City, All Electric Lighting Co., Ltd., Zhejiang Xiao You Fish Intelligent Technology Co., Ltd., Hangzhou Maple Yongming Photoelectric Co., Ltd., Philips Lighting (China) Investment Co., Ltd., Tridonic Lighting Sub (Shanghai) Co., Ltd. The main drafters of this section. Yin Jinxing, Shen Qingyue, Wei Bin, Liu Qian, Li Benliang, Ke Baiquan, Wei Wei, Huang Jianming, Huang Feng, Wu Xuan Kai.

Introduction

IEC 62386 as a series of standards contains several parts. Part 1xx includes basic requirements. Part 101 is a system composed of one General requirements; Part 102 extends to the general requirements for control devices; Part 103 extends to the general requirements for control equipment. Part 2xx is the "General requirements for control devices" to extend the special requirements of the lamp (mainly for backward compatibility with IEC 62386 version 1 Sexual) and extend the special functional requirements of the control device. Part 3xx, "General Requirements for Control Equipment," extends the special requirements for input devices, describes the type of instances and combines multiple Some common types of cases. This release of the first edition of IEC 62386-103 and IEC 62386-101.2014, IEC 62386-102.2014, and constitute IEC 62386-2xx control equipment, parts of the series, and constitute the IEC 62386-3xx control device special requirements of the various parts of the series formed as a A series of the whole. The separate publication of each section is for the convenience of future amendments and modifications. When the whole series has other needs and get recognized Available later, can be added. The standard setting can be marked as below. Figure 1 IEC 62386 graphical overview When this part of IEC 62386 refers to any of the other two parts of the IEC 62386-1xx series, the provisions of this clause The degree of application and the order of testing to be carried out. Other parts also include additional requirements, if necessary. All numbers used in this standard are in decimal notation unless otherwise stated. Hexadecimal numbers have a format of 0xVV, where VV is a numeric value. Binary numbers are in XXXXXXXXb format or XXXX XXXX format, where X is 0 or 1, and "x" in binary numbers means "arbitrary value". The following typographic expressions are used. The variable .variableName or variableName [3.0] gives only 3-0 bits of variableName Value range. [Lowest, highest] Command. "Command name" Digital Addressable Lighting Interface Part 103. General requirements for control equipment

1 Scope

GB/T 30104 applies to this part of the digital signal from the electronic lighting control bus system control equipment. The control device Meet the requirements of IEC 61347, DC power supply. NOTE The tests described in this section are type tests and do not include the testing requirements for individual products in the manufacturing process.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version applies to this article Pieces. For undated references, the latest edition (including all amendments) applies to this document. IEC 62386-101.2014 Digital Addressable Lighting Interface Part 101. General Requirements System (Digitaladdressable lightinginterface-Part 102.Generalrequirements-System) IEC 62386-102.2014 digital addressable lighting interface - Part 102. General requirements Control device (Digital addressablelightinginterface-Part 102.Generalrequirements-Controlgear)

3 Terms and definitions

IEC 62386-101.2014 defined in Chapter 3 and the following terms and definitions apply to this document. 3.1 Broadcast The addressing type that addresses all control device addresses in the system at the same time. 3.2 No address broadcast broadcastunaddressed The addressing type for all control device addresses without short addresses in the system can be addressed at the same time. 3.3 Device command devicecommand A command addressing the control device and having a value of 0xFE in the instance byte of the command frame. 3.4 Device group devicegroup Address type for addressing a control device group in the system at the same time. 3.5 DTR data transfer register DTRdatatransferregister Multi-purpose register used to exchange data. 3.6 Event Instance reports, which are characterized by an event number, a change in input value, or a sequence of change in input value. Note. The event number is determined by the instance type of the report being sent. ......
