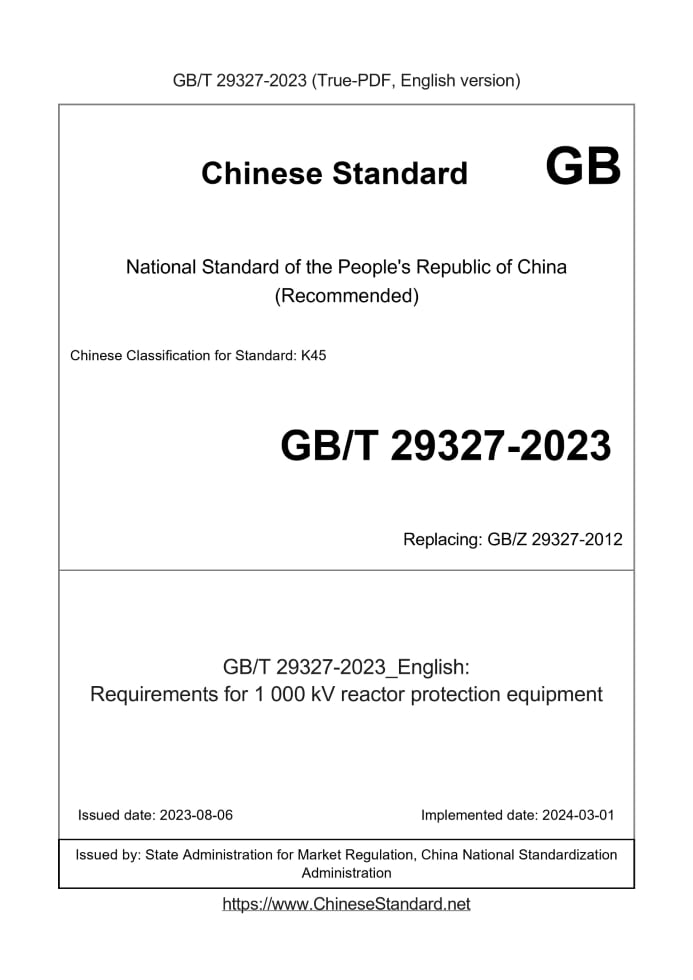

GB/T 29327-2023: Requirements for 1 000 kV reactor protection equipment
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 29327-2023	419	Add to Cart	4 days	Requirements for 1 000 kV reactor protection equipment	Valid

Similar standards

GB/T 38953 GB/T 37155.2 GB/T 19826 GB/T 29323 GB/T 29322

Basic data

Standard ID: GB/T 29327-2023 (GB/T29327-2023)
Description (Translated English): Requirements for 1 000 kV reactor protection equipment
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K45
Classification of International Standard: 29.240.99
Word Count Estimation: 22,249
Date of Issue: 2023-08-06
Date of Implementation: 2024-03-01
Older Standard (superseded by this standard): GB/Z 29327-2012
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 29327-2023: Requirements for 1 000 kV reactor protection equipment

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
ICS 29.240.99 CCSK45 National Standards of People's Republic of China Replace GB /Z 29327-2012 Technical requirements for 1000kV reactor protection devices Published on 2023-08-06 2024-03-01 Implementation State Administration for Market Regulation Released by the National Standardization Administration Committee

Preface III 1 Scope 1 2 Normative reference documents 1 3 Terms and Definitions 1 4 Technical requirements 2 4.1 Climate environment requirements 2 4.2 Rated electrical parameters 2 4.3 Power consumption3 4.4 General functional requirements 3 4.5 Technical performance requirements 4 4.6 Overload capacity 7 4.7 Insulation performance 7 4.8 Humidity and heat resistance 7 4.9 Electromagnetic compatibility requirements 7 4.10 Dynamic simulation 8 4.11 Continuous power on8 4.12 Mechanical properties 8 4.13 Structure, appearance and others8 5 Test methods 9 5.1 Test preparation 9 5.2 Technical performance test 9 5.3 Dynamic simulation test 9 5.4 Operating temperature test 10 5.5 Storage temperature test 10 5.6 Power consumption test 10 5.7 Overload capacity test 10 5.8 Insulation test 10 5.9 Damp heat test 10 5.10 Electromagnetic compatibility requirements test 10 5.11 Test on the impact of power supply changes on performance 11 5.12 Continuous power test11 5.13 Mechanical performance test 11 5.14 Structural and appearance inspection12 6 Inspection Rules 12 6.1 Inspection classification 12 6.2 Factory inspection12 6.3 Type test 13 6.4 Qualification determination 13 7 Marking, packaging, transportation and storage13 7.1 Flag 13 7.2 Packaging13 7.3 Transport14 7.4 Storage14 8 other14 8.1 Documents and objects accompanying the product when leaving the factory14 8.2 Quality Assurance14 Appendix A (informative) Typical protection configuration of 1000kV fixed capacity shunt reactor 15 Appendix B (informative) Typical protection configuration of 1000kV hierarchical controllable shunt reactor 16

Foreword

This document complies with the provisions of GB/T 1.1-2020 "Standardization Work Guidelines Part 1.Structure and Drafting Rules of Standardization Documents" Drafting. This document replaces GB /Z 29327-2012 "Technical Requirements for 1000kV Reactor Protection Devices" and is consistent with GB /Z 29327-2012 In addition to structural adjustments and editorial changes, the main technical changes are as follows. a) Added information security protection requirements (see 4.4.14); b) Added requirements for reactor protection transformer selection (see 4.4.15); c) The reactor zero-sequence differential protection in the protection configuration requirements is deleted, and the hierarchical controllable parallel reactor protection configuration requirements are added (see 4.5.1,.2012 version of 4.5.2); d) Added technical requirements for hierarchical controllable shunt reactor protection (see 4.5.2); e) The fault point location of the dynamic simulation test item has been refined, and the dynamic simulation test item of hierarchical controllable parallel reactor protection has been added. (See 5.3, 5.2.3 of the.2012 edition); f) The description of the sampling rules in the inspection rules has been deleted, and the description of the conformity determination has been optimized (see 6.4, 6.3.3 of the.2012 version). Please note that some content in this document may be subject to patents. The publisher of this document assumes no responsibility for identifying patents. This document is proposed by the China Electrical Equipment Industry Association. This document is under the jurisdiction of the National Standardization Technical Committee for Measuring Relays and Protection Equipment (SAC/TC154). This document was drafted by. China Electric Power Research Institute Co., Ltd., Zhuhai Kaipu Testing Technology Co., Ltd., State Grid Co., Ltd., China Southern Power Grid Co., Ltd., Xuchang Kaipu Electrical Research Institute Co., Ltd., State Grid Zhejiang Electric Power Co., Ltd., State Grid Co., Ltd. The company's North China Branch, State Grid Jiangsu Electric Power Co., Ltd., Beijing Qingneng Relay Control Technology Group Co., Ltd., and Guodian Nanjing Automation Co., Ltd. Company, Guodian Nari Nanjing Control System Co., Ltd., Nanjing Nari Relay Electric Co., Ltd., Xu Ji Group Co., Ltd., Beijing Sifang Relay Protection Engineering Technology Co., Ltd., State Grid Economic and Technological Research Institute Co., Ltd., State Grid Henan Electric Power Company Electric Power Research Institute, Xuchang University, Changchun Yuanshenrui Relay Automation Co., Ltd., Shanghai Siyuan Hongrui Automation Co., Ltd., Xuchang Kaipu Testing Research Institute Co., Ltd., State Grid Hebei Electric Power Co., Ltd. Electric Power Research Institute, State Grid Shandong Electric Power Company Electric Power Research Institute, China Energy Construction Group Anhui Province Electric Power Design Institute Co., Ltd., State Grid Jibei Electric Power Co., Ltd. The main drafters of this document. Liu Longhao, Yao Zhiqing, Liu Dan, Peng Ye, Yang Huixia, Qie Xin, Qiu Yutao, Du Juan, Chen Hao, Ge Rongshang, Guo Xiao, Dai Wei, Mo Pinhao, Chen Jirui, Dai Lijun, Shen Hongming, Han Wei, Zhou Hao, Qin Guifeng, Li Lei, Li Tiecheng, Li Kuan, Zhang Chao, Zhan Zhihua, Yuan Liang. The previous versions of this document and the documents it replaces are as follows. ---First released in.2012 as GB /Z 29327-2012; ---This is the first revision, and the standard type is adjusted from a guiding technical document to a recommended national standard. Technical requirements for 1000kV reactor protection devices

1 Scope

This document stipulates the basic technical requirements, test methods, inspection rules and marking, packaging and transportation requirements for 1000kV reactor protection devices. Transmission and storage requirements. This document is applicable to 1000kV reactor protection devices, including fixed capacity shunt reactor protection devices and hierarchical controllable parallel reactors. Reactor protection device (hereinafter referred to as "device"), as the basis for the design, manufacture, inspection and application of such devices.

2 Normative reference documents

The contents of the following documents constitute essential provisions of this document through normative references in the text. Among them, the dated quotations For undated referenced documents, only the version corresponding to that date applies to this document; for undated referenced documents, the latest version (including all amendments) applies to this document. GB/T 191 Packaging, storage and transportation pictorial mark GB/T 2887-2011 General specifications for computer sites GB/T 2900.17 Electrical terminology measuring relay GB/T 2900.49 Electrical terminology power system protection GB/T 4798.2 Environmental condition classification Environmental parameter group classification and severity classification Part 2.Transportation and loading and unloading GB/T 7261-2016 Basic test methods for relay protection and safety automatic devices GB/T 9361-2011 Computer site safety requirements GB/T 11287-2000 Electrical relays Part 21.Measuring vibration, shock, collision and earthquake of relays and protective devices Test Part 1.Vibration Test (Sine) GB/T 13384 General technical conditions for mechanical and electrical product packaging GB/T 14537-1993 Impact and collision test of measuring relays and protective devices GB/T 14598.2-2011 Measuring relays and protective devices Part 1.General requirements GB/T 14598.26-2015 Measuring relays and protective devices Part 26.Electromagnetic compatibility requirements GB/T 14598.27-2017 Measuring relays and protective devices Part 27.Product safety requirements GB/T 17626.9-2011 Electromagnetic compatibility testing and measurement technology pulse magnetic field immunity test GB/T 17626.10-2017 Electromagnetic compatibility test and measurement technology damped oscillating magnetic field immunity test GB/T 19520.12-2009 Electronic equipment mechanical structure 482.6mm (19in) series mechanical structure dimensions Part 3-101 Sub. plug-in box and its plug-ins GB/T 26864-2011 Dynamic model test of relay protection products for power systems DL/T 242-2012 General technical conditions for high voltage shunt reactor protection devices DL/T 478-2013 General technical conditions for relay protection and safety automatic devices DL/T 860 (all parts) Power automation communication networks and systems NB/T 10680-2021 Technical Guidelines for Information Security of Relay Protection and Safety Automatic Devices

3 Terms and definitions

The terms and definitions defined in GB/T 2900.17, GB/T 2900.49, GB/T 14598.2-2011, DL/T 242-2012 apply to this document. ......
