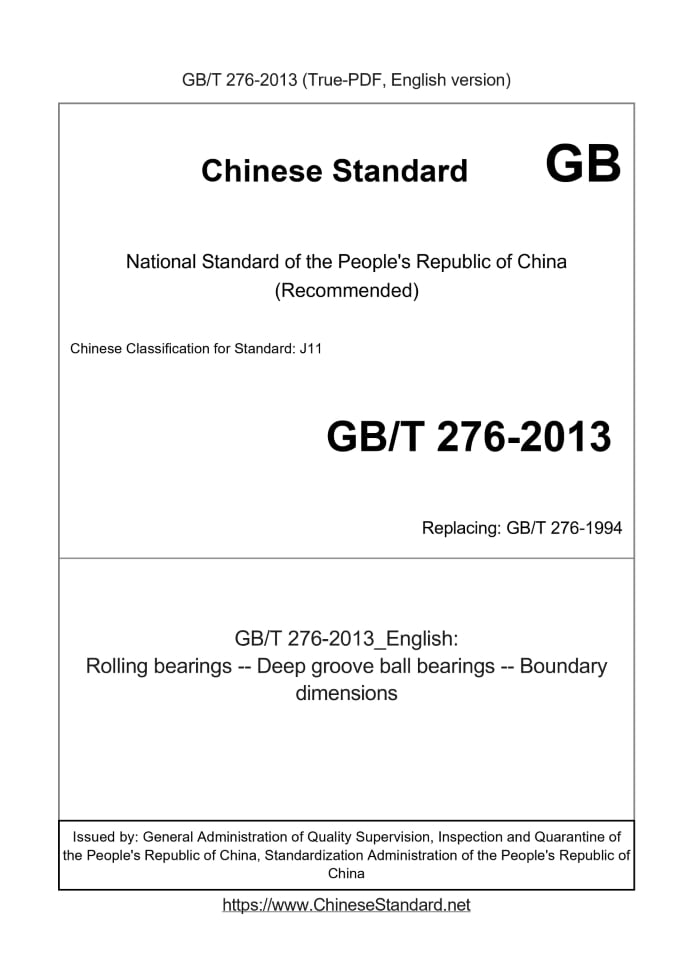

GB/T 276-2013 English PDF

US$399.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 276-2013: Rolling bearings -- Deep groove ball bearings -- Boundary dimensions
Status: Valid

GB/T 276: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 276-2013	399	Add to Cart	3 days	Rolling bearings -- Deep groove ball bearings -- Boundary dimensions	Valid
GB/T 276-1994	959	Add to Cart	6 days	Rolling bearings--Deep groove ball bearings--Boundary dimensions	Obsolete
GB 276-1989	RFQ	ASK	3 days	Rolling bearings--Deep groove ball bearings--Boundary dimensions	Obsolete

Similar standards

GB/T 274   GB/T 273.3   GBZ/T 276   GB/T 273.1   GB/T 283

Basic data

Standard ID: GB/T 276-2013 (GB/T276-2013)
Description (Translated English): Rolling bearings -- Deep groove ball bearings -- Boundary dimensions
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J11
Classification of International Standard: 21.100.20
Word Count Estimation: 17,134
Older Standard (superseded by this standard): GB/T 276-1994
Quoted Standard: GB/T 272-1993; GB/T 273.3-1999; GB/T 274-2000; GB/T 305-1998; GB/T 6930-2002; GB/T 7811-2007; JB/T 2974-2004
Regulation (derived from): National Standards Bulletin No. 19 of 2013
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies: meet GB/T 273. 3-1999-deep groove ball bearings, the outer ring with snap groove groove ball bearings, the outer ring and groove with snap ring deep groove ball bearings with dust Cover Deep groove ball bearings and with a ring de

GB/T 276-2013: Rolling bearings -- Deep groove ball bearings -- Boundary dimensions

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Rolling bearings. Deep groove ball bearings. Boundary dimensions ICS 21.100.20 J11 National Standards of People's Republic of China Replacing GB/T 276-1994 Rolling Deep groove ball bearings Dimensions Issued on. 2013-09-18 2014-06-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This standard was drafted in accordance with GB/T 1.1-2009 given rules. This standard replaces GB/T 276-1994 "Rolling Deep groove ball bearings Dimensions", compared with the GB/T 276-1994, the main To technical changes are as follows. --- Added "Terms and Definitions" chapter, "structure type" chapters "Code" chapter (see Chapter 3, Section 5 and Chapter 6); --- Increasing the stop and the outer ring groove deep groove ball bearings with snap structure type and graphics ring (see Figure 3); modify some graphic (See FIG. 4 to FIG. 9, 1994 edition of Figures 4, 5, 7, 8, 10, 11); --- Removed some structure type and graphics (see the 1994 edition of the Figs. 3, 6 and 9) and code and size (see 1994 Version of Table 3, Table 4, Table 6 to Table 8); --- An increase of some bearing type and dimensions (see Table 1 to Table 9); --- Remove the appendix "old code bearing control" (see 1994 edition of Appendix A). The standard proposed by China Machinery Industry Federation. This standard by the National Standardization Technical Committee of Rolling (SAC/TC98) centralized. This standard was drafted. Luoyang Bearing Science & Technology Co., Ltd., Luoyang Bearing Research Institute Co., Ltd. The main drafters of this standard. Li snow, Mayan Bo. This standard replaces the standards previously issued as follows. --- GB 276-1964, GB 276-1982, GB 276-1989, GB/T 276-1994; --- GB 277-1964, GB 277-1982, GB 277-1989, GB 278-1964, GB 278-1982, GB 278-1989, GB 279-1964, GB 279-1979, GB 279-1988, GB 4221-1984. Rolling Deep groove ball bearings Dimensions

1 Scope

This standard specifies the line with GB/T 273.3-1999 deep groove ball bearings, the outer ring groove deep groove ball bearings with snap groove on the outer ring And with snap ring of deep groove ball bearings with dust cover deep groove ball bearings and deep groove ball bearing with a ring (hereinafter referred to as bearing) shape size. This standard applies to the bearing design and selection.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 272-1993 Rolling Code Method GB/T 273.3-1999 Rolling bearings dimensions, general plan GB/T 274-2000 Rolling maximum chamfer dimensions 305-1998 Rolling stopper groove on the outer GB/T and ring dimensions and tolerances stop GB/T 6930-2002 Rolling Words GB/T 7811-2007 Rolling Parameter Symbol Supplementary Provisions JB/T 2974-2004 Rolling Code Method

3 Terms and Definitions

Terms and definitions GB/T 6930-2002 defined apply to this document.

4 Symbol

GB/T 7811-2007 and given the following symbols apply to this document. Unless otherwise indicated, numerical symbol Figs. 1 to 9 and shown in Tables 1 to 9 below have indicated nominal size. B. Bearing width D. Bearing outside diameter d. bearing bore r. the outer ring chamfer dimensions r1. outer stopper groove side chamfer dimensions rsmin. r smallest single chamfer dimension r1smin. r1 smallest single chamfer dimension

5 structure type

Bearing structure type shown in Figure 1 to 9. NOTE. Graphics only example of the structure. ......
