GB/T 26103.4-2010: NGCL curved tooth coupling with brake wheel
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 26103.4-2010	229	Add to Cart	3 days	NGCL curved tooth coupling with brake wheel	Valid

Similar standards

GB/T 5015   GB/T 5014   GB/T 30819   GB/T 26103.1   GB/T 26103.3   GB/T 26103.5

Basic data

Standard ID: GB/T 26103.4-2010 (GB/T26103.4-2010)
Description (Translated English): NGCL curved tooth coupling with brake wheel
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J19
Classification of International Standard: 21.120.20
Word Count Estimation: 10,162
Date of Issue: 1/10/2011
Date of Implementation: 10/1/2011
Quoted Standard: GB/T 3852; GB/T 11352; GB/T 26103.1
Regulation (derived from): Announcement of Newly Approved National Standards 2011 No. (No. 166 overall) 1
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This Standard specifies NGCL type with brake drum gear coupling of the type, the basic parameters and the main dimensions, technical requirements, inspection rules, marking, packaging and storage and other content. This Standard is applicable to the drive shaft coaxial line connecting the two levels, with some two-axis compensation relative displacement performance NGCL type with brake drum gear coupling, the working environment temperature -20��C ~ + 80��C, nominal torque transfer 0. 63kN �� m ~ 125kN �� m.

GB/T 26103.4-2010: NGCL curved tooth coupling with brake wheel

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

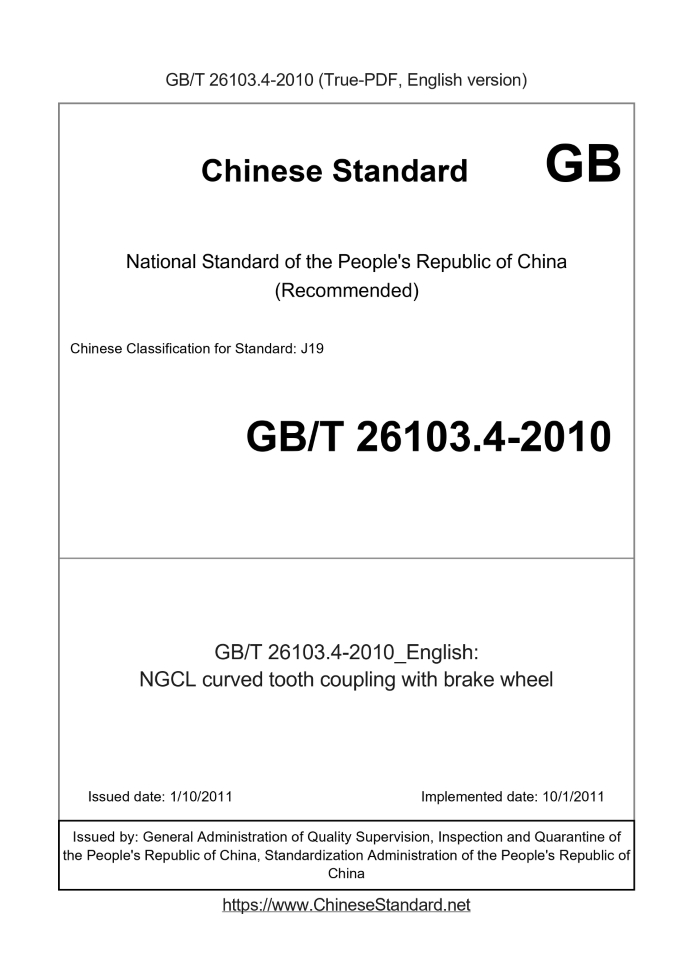

NGCL curved tooth coupling with brake wheel ICS 21.120.20 J19 National Standards of People's Republic of China NGCL type with brake drum gear coupling Issued on. 2011-01-10 2011-10-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

GB/T 26103 "drum-shaped teeth coupling" is divided into five parts. --- The first part 1. GⅡCL type drum gear coupling; Part --- Article 2. GⅡCLZ type drum gear coupling; Part --- Section 3. GCLD type drum gear coupling; Part --- Chapter 4. NGCL type with brake drum gear coupling; Part --- Article 5. NGCLZ type with brake drum gear coupling. This is Part 4 GB/T 26103 of. This part of the National Standardization Technical Committee of the machine shaft and accessories (SAC/TC109) and focal points. This section is drafted. the machine Productivity Promotion Center, China's second Heavy Machinery Group Company, Hebei Jizhou Joint Factory, Wuhan Transmission Technology Co. Zhengtong. The main drafters of this section. Mingcui new hair Guang, Liu Jingsheng, Suo Yu Xiao, Deng Takami. NGCL type with brake drum gear coupling

1 Scope

This section GB/T 26103 specifies the type NGCL type with brake drum gear coupling (hereinafter referred to as the coupling), basic Main parameters and dimensions, technical requirements, inspection rules, marking, packaging and storage and other content. This section applies to join two coaxial drive shaft system level, with some two-axis compensation relative displacement type with a brake performance NGCL The drum gear coupling, the working environment temperature -20 ℃ ~ 80 ℃, nominal torque is transmitted 0.63kN · m ~ 125kN · m.

2 Normative references

The following documents contain provisions which, through reference GB/T 26103 in this section constitute provisions of this section. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 3852 and the coupling shaft hole coupling type and size GB/T 11352 Carbon steel castings for general engineering (GB/T 11352-2009, ISO 3755.1991, ISO 4990.2003, MOD) GB/T 26103.1 GⅡCL type drum gear coupling 3 Types, basic parameters and the main dimensions 3.1 NGCL type with brake drum gear coupling structure, there are two types. A and B, Figure 1 and Figure 2. Figure 1 A-type (for NGCL1 ~ NGCL13 type) ......
