GB/T 25498.1-2010: Electroacoustics -- Simulators of human head and ear -- Part 1: Ear simulator for the calibration of supra-aural earphones
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 25498.1-2010	234	Add to Cart	3 days	Electroacoustics -- Simulators of human head and ear -- Part 1: Ear simulator for the calibration of supra-aural earphones	Valid

Similar standards

GB/T 31004.1   GB/Z 27764   GB/T 25078.1   GB/T 20243.2   GB/T 45305.4   GB/T 25498.5

Basic data

Standard ID: GB/T 25498.1-2010 (GB/T25498.1-2010)
Description (Translated English): Electroacoustics -- Simulators of human head and ear -- Part 1: Ear simulator for the calibration of supra-aural earphones
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: A59
Classification of International Standard: 17.140.50
Word Count Estimation: 12,158
Date of Issue: 2010-12-01
Date of Implementation: 2011-05-01
Older Standard (superseded by this standard): GB/T 7614-1987
Quoted Standard: GB/T 20441.4-2006
Adopted Standard: IEC 60318-1-1998, IDT
Regulation (derived from): Announcement of Newly Approved National Standards No. 9, 2010 (No. 164 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the calibration of audiometric and phone for electro-acoustic measurement with a silent leak pressure ear headphones ear simulator structure and characteristics. Provisions of this Part Ear Simulator its frequency range is 20 Hz ~ 10 000 Hz.

GB/T 25498.1-2010: Electroacoustics -- Simulators of human head and ear -- Part 1: Ear simulator for the calibration of supra-aural earphones

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

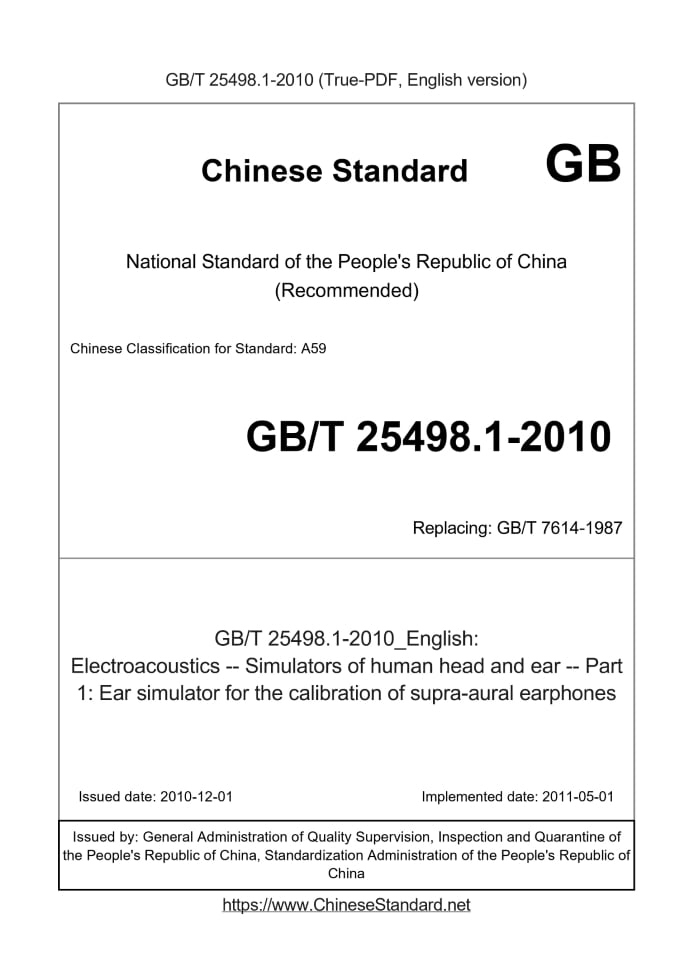

Electroacoustics Simulators of human hesd and ear Part 1. Ear sinulator for the calibration of supra-aural earphones ICS 17.140.50 A59 National Standards of People's Republic of China Replacing GB/T 7614-1987 Electro-acoustics simulator head and ear simulator Part 1. Align the ear headphones with the ear simulator Part 1. Earsimulatorforthecalibrationofsupra-auralearphones (IEC 60318-1.1998, IDT) Issued on. 2010-12-01 2011-05-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

Introduction Ⅲ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 Structure 1 Coupling 5 headset and ear simulator 2 6 Calibration 2 Appendix A (informative) ear simulator lumped parameter electrical analog network 4 Specific design examples in Appendix B (informative) ear simulator 7 References 8

Foreword

GB/T 25498 "electro-acoustics simulator head and ear simulator" is divided into seven sections. --- Part 1. Align the ear headphones with the ear simulator; --- Part 2. calibration of audiometric headphones with high-frequency range extending interim acoustic coupler; --- Part 3. Calibration of the ear-type headphones with audiometry acoustic coupler; --- Part 4. measuring insert earphones clogged ear simulator; --- Part 5. Measurement with hearing aids and earphones earbud headphones 2cm3 coupler; --- Part 6. measurement of bone vibrators force coupler; --- Part 7. air conduction hearing aids acoustic measurements Head and Torso Simulator. This section GB/T 25498 Part 1. This section identical with IEC 60318-1.1998 "electro-acoustics simulator head and ear simulator - Part 1. Align the ear headphones With the ear simulator "(in English). For ease of use, this section made the following editorial changes. a) with a decimal point instead of a comma as the decimal point, '' ''; b) Remove IEC 60318-1.1998 Foreword. This Part replaces GB/T 7614-1987 "calibration of audiometric headset with wideband type artificial ear." This section of the main changes compared to 7614-1987 GB/T as follows. a) of this section according to GB/T 1.1-2000 rules to increase the "Normative references" chapter; b) the name of the section from the "calibration of audiometric headset with wideband type artificial ear" to "electric and acoustic simulator poll Ear Simulator - Part 1. Align the ear headphones with ear simulator "; c) Article 4.1 increases the distance h dimensions and tolerances between the upper edge of the ear simulator plane microphone diaphragm; d) Chapter 6 Calibration content increased environmental tolerance requirements and environmental conditions. This section in Appendix A and Appendix B is an informative annex. This part is proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This part of the National Standardization Technical Committee electro-acoustics (SAC/TC23). This part of the main drafting units. China Electronics Technology Group Corporation Institute. Participated in the drafting of this section. Hubei Provincial Institute of Measurement and Testing Technology, Industry and Telecommunications Research Institute of the Ministry of Information China Telecommunication Technology Labs, Hangzhou Aihua Instrument Co., Ltd., Hung sound equipment factory (4380) Jiaxing branch. The main drafters of this section. Han Jie, Zhang Wei, Jiang Bo, Qu Lin. The drafters of some of the participants. a root fire, Zhu Xiaofeng, Zhang Shaodong, Shu Guohua. This part of the standard replaces the previous editions are. --- GB/T 7614-1987. Electro-acoustics simulator head and ear simulator Part 1. Align the ear headphones with the ear simulator

1 Scope

This section GB/T 25498 specifies the calibration of audiometric ear for analog phones and electro-acoustic measurement with a silent leak the ear headphones Structure and properties. This section provides an ear simulator which frequency range is 20Hz ~ 10000Hz. Note. This does not apply to means for calibrating Headphones. However, in order to calibrate circumaural audiometry headphones, IEC 60318-2 specifies the use of this section gives ear molds Quasi constituted interim acoustic coupler adapter.

2 Normative references

The following documents contain provisions which, through reference GB/T 25498 in this section constitute provisions of this section. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 20441.4-2006 Measurement microphones - Part 4. Specifications for working standard microphones (IEC 61094-4.1995, IDT)

3 Terms and Definitions

The following terms and definitions apply to this part of the GB/T 25498 of. 3.1 Ear Simulator earsimulator Device calibration headset, there are microphones for measuring sound pressure and calibrated within a band of acoustic impedance close to the overall average human ear Acoustic impedance of the acoustic coupler. 3.2 The ear headphones supra-auralearphone Close to the ear headphones. 3.3 Headphones circumauralearphone Having a large enough coverage, including the inner ear cavity headphones.

4 Structure

4.1 Overview Ear simulator consists of three acoustic coupling cavity components. Volume size conical main chamber and three coupling cavity defined in Figure 1. The coupling element Lumped values \u200b\u200bshall be adjusted as follows. L2 = 5 × 102Pa · s2 · m-3 L3 = 1 × 104Pa · s2 · m-3 R2 = 6.5 × 106Pa · s · m-3 R3 = 2 × 107Pa · s · m-3 L2 and L3 represent sound quality, R2 and R3 represents acoustic resistance. These values \u200b\u200bcorrespond to the specified test conditions and tolerances shall comply with the provisions of 4.2. NOTE. Volume V1 include equivalent volume of the microphone cover, protection grid consequential amendments were also taken into account. Between the upper edge of the ear simulator and the microphone diaphragm plane distance h should be 8.26mm ± 0.05mm. ......
