GB/T 25336-2018 English PDF

US$239.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 25336-2018: Rail heavy-duty maintenance machinery -- Test and inspection method
Status: Valid

GB/T 25336: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 25336-2018	239	Add to Cart	3 days	Rail heavy-duty maintenance machinery -- Test and inspection method	Valid
GB/T 25336-2010	559	Add to Cart	3 days	[Including 2018XG1] Test and inspection method for rail heavy-duty permanent way machinery	Obsolete

Similar standards

TB/T 2340   GB/T 25330   GB/T 25337

Basic data

Standard ID: GB/T 25336-2018 (GB/T25336-2018)
Description (Translated English): Rail heavy-duty maintenance machinery -- Test and inspection method
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: S22
Classification of International Standard: 45.120
Word Count Estimation: 12,142
Date of Issue: 2018-05-14
Date of Implementation: 2018-12-01
Older Standard (superseded by this standard): GB/T 25336-2010
Regulation (derived from): National Standards Announcement No. 6 of 2018
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 25336-2018: Rail heavy-duty maintenance machinery -- Test and inspection method

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

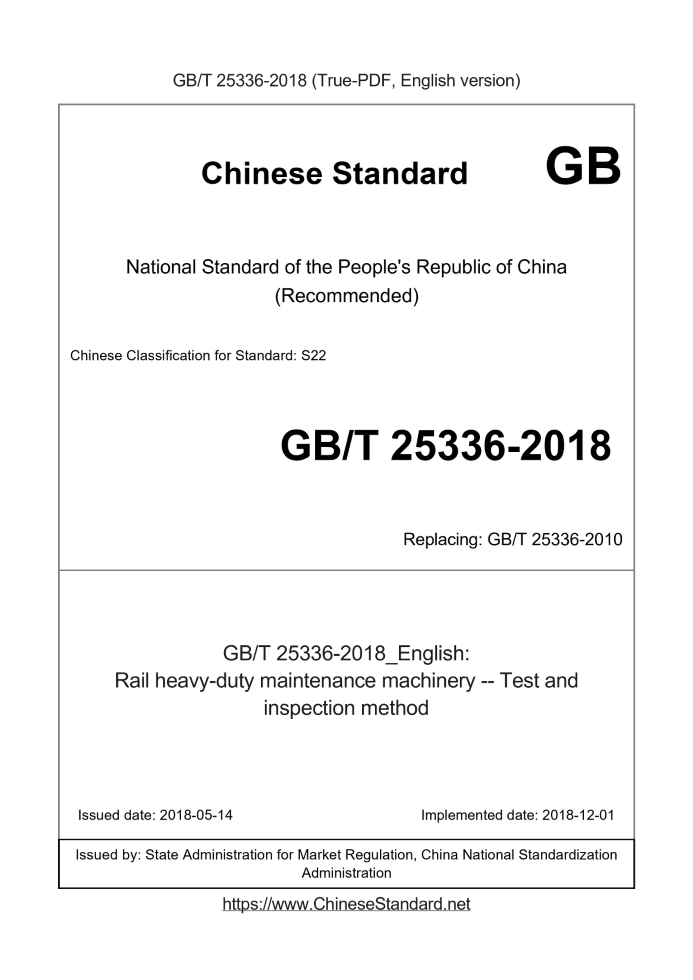

(Large Railway Maintenance Machinery Inspection and Test Methods) ICS 45.120 S22 National Standards of People's Republic of China Replace GB/T 25336-2010 Railway large-scale road maintenance machinery inspection and test methods Published on.2018-05-14 2018-12-01 implementation State market supervision and administration China National Standardization Administration issued

Content

Foreword III 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Inspection and test rules 2 5 Visual inspection 4 6 Structure check 4 7 Performance check 5 8 running performance test 8 9 Operational performance test 8 10 High-altitude large-scale road maintenance machinery special performance check 9 11 Application Assessment 9

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 25336-2010 "Mechanical inspection and test methods for large-scale railway lines", and GB/T 25336-2010 In addition to the editorial changes, the main technical changes are as follows. --- Revised the test and test rules (see Table 1 in Table 4.2, Table 1 of the.2010 edition of 4.2); --- Removed the spacing check (see 6.3 of the.2010 edition); --- Increased inspection and testing of close-coupled couplers (see 6.5); --- Modified the curve through performance check (see 6.6, 6.7 of.2010 edition); --- Removed the wheel size check (see 6.8 of.2010 edition); --- Removed diesel engine running-in inspection [see.2010 edition of 7.1a)]; --- Modified the static strength test of the steering frame (see 7.3, 7.3 of.2010 edition); ---Modified the test method for the axle gearbox and the bench. The test requirements and results are moved to GB/T 25337 (see 7.4, 7.4) of the.2010 edition; ---Modified electrical system test (see 7.6, 7.6 of.2010 edition); --- Increased cooling effect and heating effect check [see 7.12a), b)]; --- Increased the effectiveness check of the cab environment (see 7.13); --- Revised the headlamp illumination check distance value (see 7.15,.2010 version 7.14); --- Modified the self-running test (see 8.2, 8.2 of the.2010 edition); --- Modified the attached operation test (see 8.3, 8.3 of the.2010 edition); --- Removed the job performance check content of the extension type, and changed to the unified job performance test (see Chapter 9,.2010 edition) Chapter 9); --- Increased special performance inspection of high-altitude large-scale road maintenance machinery (see Chapter 10); --- Revised the use of assessment content (see Chapter 11, Chapter 10 of the.2010 edition). This standard is under the jurisdiction of the National Railway Administration. This standard was drafted. China Railway Research Institute Railway Construction Institute, China Railway Construction High-tech Equipment Co., Ltd., Golden Eagle Engineering Machinery Co., Ltd., China Railway Science and Technology Research Institute, China Railways Zhuzhou Electric Locomotive Research Institute Co., Ltd. Qishuyan Locomotive & Rolling Vehicle Technology Research Institute Co., Ltd., Baoji Zhongche Times Engineering Machinery Co., Ltd., Zhongche Beijing Erqi Locomotive Co., Ltd. The main drafters of this standard. Song Huijing, Hu Bin, Gao Chunlei, Xiang Zhiping, He Guohua, Chen Bin, Chen Zhengnan, Chen Pingsong, Li Sheng, Fang Health, Liu Xuehai, Zhao Li, Sun Baolin. The previous versions of the standards replaced by this standard are. ---GB/T 25336-2010. Railway large-scale road maintenance machinery inspection and test methods

1 Scope

This standard specifies the inspection requirements and test methods for the appearance, structure and main technical performance of railway large-scale road maintenance machinery. This standard is applicable to the inspection and test of the large-scale railway maintenance machinery and important components before they are put into use. Factory repair railway Road maintenance machinery can refer to implementation.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB 146.1 standard gauge railway locomotive vehicle limit GB/T 3315-2006 Test method for diesel locomotives before they are put into use GB/T 3450 railway locomotive and EMU cab noise limit and measurement method GB/T 5599 Railway Vehicle Dynamics Performance Evaluation and Test Identification Specification GB/T 16904.1 Standard gauge railroad rolling stock -- Limiting inspection - Part 1 . Examination method GB/T 17426 Railway special vehicles and railroad machinery dynamics performance evaluation and test methods GB/T 17626.2 Electromagnetic compatibility test and measurement technology Electrostatic discharge immunity test GB/T 17626.5 Electromagnetic compatibility test and measurement technology Surge (impact) immunity test (GB/T 17626.5-2008, IEC 61000-4-5.2005, IDT) GB/T 21413.1-2008 Railway applications - Electrical equipment for rolling stock - Part 1. General conditions and general rules (GB/T 21413.1-2008, IEC 60077-1..1999, IDT) GB/T 24338.4 Electromagnetic compatibility of rail transit - Part 3-2. Equipment for rolling stock (GB/T 24338.4-2009, IEC 62236-3-2.2003, MOD) GB/T 25119-2010 Rail transit rolling stock electronic device (IEC 60571.2006, MOD) GB/T 25337-2018 General technical conditions for railway large-scale road maintenance machinery TB/T 456 Locomotive and hook frame for rolling stock TB/T 1335 Railway Vehicle Strength Design and Test Identification Specification TB/T 1492 railway vehicle brake bicycle test method TB/T 2232 JZ-7 locomotive air brake single machine test, acceptance technical conditions TB/T 3139-2006 Limits of materials and indoor airborne pollutants for rolling stock TB/T 3143 railway passenger car close-coupled coupler cushioning device TB/T 3146.1 DK-1 locomotive electric air brakes - Part 1

3 Terms and definitions

The following terms and definitions as defined in GB/T 25337-2018 apply to this document. 3.1 Type test typetest Comprehensive assessment of the basic parameters, appearance, structure, operating performance, and performance of the vehicle. ......
