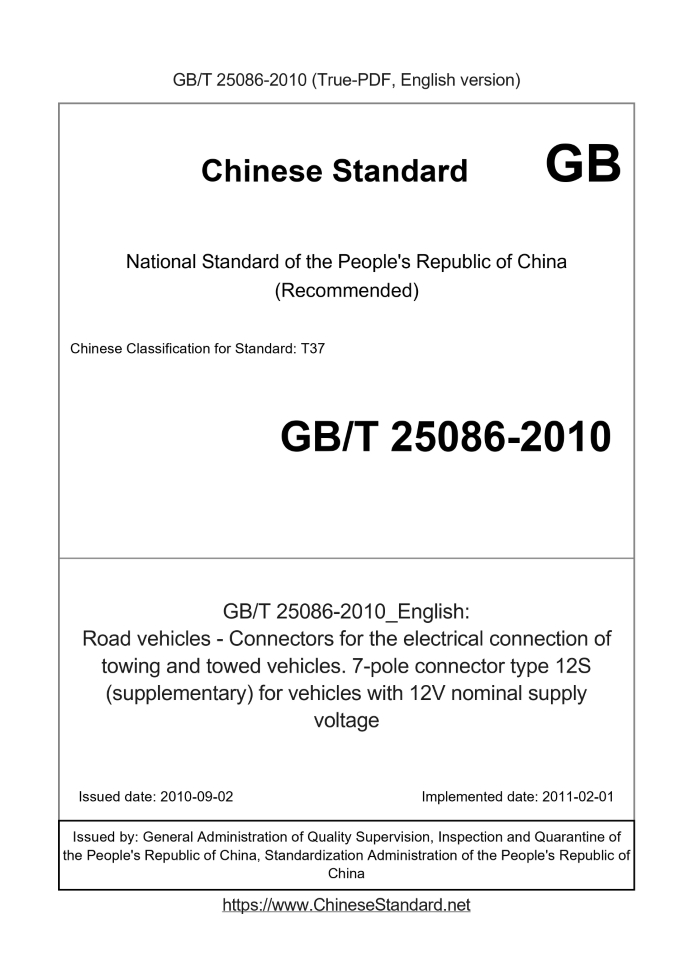

GB/T 25086-2010: Road vehicles - Connectors for the electrical connection of towing and towed vehicles. 7-pole connector type 12S (supplementary) for vehicles with 12V nominal supply voltage
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 25086-2010	209	Add to Cart	3 days	Road vehicles - Connectors for the electrical connection of towing and towed vehicles. 7-pole connector type 12S (supplementary) for vehicles with 12V nominal supply voltage	Valid

Similar standards

GB/T 38184 GB/T 34586 GB/T 7825 GB/T 25088

Basic data

Standard ID: GB/T 25086-2010 (GB/T25086-2010)
Description (Translated English): Road vehicles - Connectors for the electrical connection of towing and towed vehicles. 7-pole connector type 12S (supplementary) for vehicles with 12V nominal supply voltage
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: T37
Classification of International Standard: 43.040.10
Word Count Estimation: 9,988
Date of Issue: 2010-09-02
Date of Implementation: 2011-02-01
Quoted Standard: GB/T 5053.2; GB/T 5053.3; GB/T 5054.1; GB/T 5054.2; GB/T 5054.3; GB/T 5054.4; ISO 1103
Adopted Standard: ISO 3732-2003, MOD
Regulation (derived from): National Standard Approval Announcement 2010 No.4 (Total No.159)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the nominal voltage of 12V tractor (cars or light commercial vehicles) 12S-type electrical connector between the trailer and the seven core dimensions, performance requirements, joint distribution, 12S connector in preparation for more than seven core the request of the cases used with GB/T 5053. 2 of 12 N connector, This standard applies between the tractor and trailer 7 core 12S-type electrical connector Note: Preparing for the next over seven core requirements, the may-choose to use 13-pin electrical connector alternative combinations of seven core electrical connector with the standard GB/T 5053. 2 requirements.

GB/T 25086-2010: Road vehicles - Connectors for the electrical connection of towing and towed vehicles. 7-pole connector type 12S (supplementary) for vehicles with 12V nominal supply voltage

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Road vehicles.Connectors for the electrical connection of towing and towed vehicles.7-pole connector type 12S (supplementary) for vehicles with 12V nominal supply voltage ICS 43.040.10 T37 National Standards of People's Republic of China The electrical vehicle between the road vehicle tractor and the trailer 12V7 core auxiliary type (12S) towedvehicles-7-poleconnectortype12S (supplementary) for (ISO 3732..2003, MOD) 2010-09-02 release 2011-02-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People 's Republic of China China National Standardization Management Committee released

Foreword

This standard is modified using ISO 3732..2003 "Road vehicle between the tractor and the tractor between the electrical connector 12V Nominal voltage 7-pin 12S (auxiliary) type connector ". This standard is redrafted according to ISO 3732..2003. The differences between this standard and ISO 3732..2003 technical content and the reasons are as follows. --- In order to be consistent with the requirements of the 13-pin connector standard, 5.5 of this standard adds "such as connecting the other Cross-sectional area of the cable, should be agreed by the manufacturer and the user "; The number of samples in each section of 6.1 is not given in this section. In this standard, "each group of test samples should be 3" operating; - the provisions of the national standards, the scope of application increased "This standard applies to the tractor and trailer between the 7-core 12S-type electrical connection Device ". This standard is relative to ISO 3732..2003 Editorial changes are as follows. --- Figure 2 in the original Yj wrong, changed to Yi; --- the original "international standards" to "this standard". This standard is proposed by the National Development and Reform Commission. This standard is owned by the National Automobile Standardization Technical Committee. This standard by the China Automotive Technology Research Center, Jiali Baowei Auto Parts Shenzhen Co., Ltd., Suzhou Branch of the photoelectric Technology Co., Ltd., Changsha Automobile Electric Appliance Research Institute, Henan Tianhai Electric Co., Ltd. is responsible for drafting. The main drafters of this standard. Xu Xiuxiang, Xie Qiuhua, Zhan Baogen, Li Weiyang, Wang Wenling. The electrical vehicle between the road vehicle tractor and the trailer 12V7 core auxiliary type (12S)

1 Scope

This standard specifies the nominal voltage of 12V tractor (car or light commercial vehicle) and trailer between the 7-pin 12S-type electrical connector Size, characteristic requirements, contact distribution and so on. 12S connector in preparation for more than 7 core requirements and GB/T 5053.2 12N even Device used together. This standard applies to the 7-pin 12S electrical connector between the tractor and the trailer. Note. Prepare for use in more than 7 core requirements, you can choose to use 13-pin electrical connector instead of this standard and GB/T 5053.2 provisions of the 7-pin electrical connector The combination.

2 normative reference documents

The terms of the following documents are hereby incorporated by reference into this standard. Whichever is the date of the reference file, which is followed by all (Excluding corrigenda) or revisions do not apply to this standard, however, encourage the parties to reach an agreement under this standard Whether you can use the latest version of these files. For undated references, the latest edition applies to this standard. GB/T 5053.2 Road vehicles between trailers and trailers 7-pin 12V standard (12N) (GB/T 5053.2- 2006, ISO 1724..2003, IDT) GB/T 5053.3 Road vehicles - Definitions, test methods and requirements for electrical connectors between tractors and trailers (GB/T 5053.3- 2006, ISO 4091..2003, IDT) GB/T 5054 (all parts) Road vehicles Multi-core connecting cables (ISO 4141 (all parts), IDT) ISO 1103 road vehicles, and the articulated dimensions of the ballbar for light trailers

3 terms and definitions

The terms and definitions established in GB/T 5053.3 apply to this standard.

4 size

4.1 General The details of this standard are not determined by the manufacturer. Socket and plug in the plug should be slotted, the minimum length of 8.5mm, to ensure that the plug and socket with the flexibility. 4.2 plugs The size of the plug is shown in Figure 1. The plug should have 5 resilient pins (1, 3, 4, 6 and 7) and 2 jacks (2 and 5). ......
