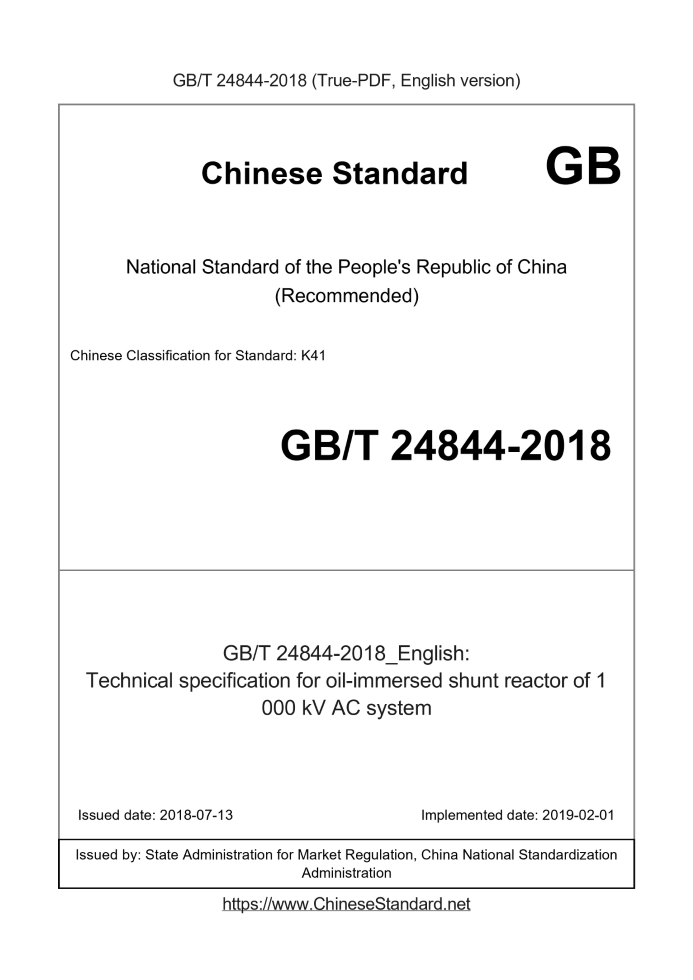

Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 24844-2018: Technical specification for oil-immersed shunt reactor of 1 000 kV AC system
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 24844-2018	359	Add to Cart	4 days	Technical specification for oil-immersed shunt reactor of 1 000 kV AC system	Valid

Similar standards

GB/T 19212.5 GB/T 10228 GB/T 8286 GB/T 24843 GB/T 24841

Basic data

Standard ID: GB/T 24844-2018 (GB/T24844-2018)
Description (Translated English): Technical specification for oil-immersed shunt reactor of 1 000 kV AC system
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K41
Classification of International Standard: 29.180
Word Count Estimation: 18,157
Date of Issue: 2018-07-13
Date of Implementation: 2019-02-01
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 24844-2018: Technical specification for oil-immersed shunt reactor of 1 000 kV AC system

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Technical specification for oil-immersed shunt reactor of 1 000 kV AC system ICS 29.180 K41 National Standards of People's Republic of China Replace GB /Z 24844-2009 Oil-immersed shunt reactor for 1000kV AC system specifications Published on.2018-07-13 Implementation of.2019-02-01 State Market Supervisory Administration China National Standardization Administration issued

Content

Foreword III 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Conditions of use 1 5 performance parameters 2 6 Technical requirements 4 7 test 6 8 signs, packaging, transportation 9 Appendix A (Normative Appendix) Neutral Grounding Reactor 10 for 1000kV AC Oil-immersed Shunt Reactor Reference 12

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB /Z 24844-2009 "Technical Specifications for Oil-immersed Shunt Reactors for 1000kV AC Systems", and Compared with GB /Z 24844-2009, the main technical changes are as follows. --- Updated normative references, deleted expired and unquoted standards (see Chapter 2,.2009, 2nd) chapter); --- Added basic parameters of 160Mvar/1000kV and 280Mvar/1000kV shunt reactors (see 5.1); --- Supplemented the relevant parameters of the neutral point insulation level of 1000kV shunt reactor (see 5.2); --- Removed the pressure release value of the 1000kV shunt reactor pressure release device (see 6.6.2 of the.2009 edition); --- Modified 1000kV shunt reactor test project. type test added "end lightning interception impact test"; radio dry The disturbance test is listed as a special test item; the "1.1 times overcurrent test" is changed to "1.05 times overcurrent test; the neutral point is deleted." "Discharge measurement", the "end external pressure test" is modified to "end external pressure test (with partial discharge monitoring)", the neutral point Partial discharge measurements are combined with neutral point external pressure test (see Chapter 7, Chapter 7 of the.2009 edition); --- Revised the requirement for dry gas before oil tanking, and the dew point was changed from "not higher than -40 °C" to "not higher than -50 ° C" (see 8.2.1, 8.2.2 of the.2009 edition); --- Removed the requirement for gas purity of gas-filled transport (see 8.2.2 of.2009 edition). --- Supplemented the insulation level at the head end of the neutral grounding reactor (see A.2.2); --- Revised the rated thermal short-circuit current of the neutral grounding reactor (see A.2.3,.2009 edition of A.2.4); --- Increased the requirements for the rated mechanical short-circuit current of the neutral grounding reactor (see A.2.4); --- Added pilot project for neutral grounding reactor (see A.3). Please note that some of the contents of this document may involve patents. The issuing organization of this document is not responsible for identifying these patents. This standard was proposed by the China Electricity Council. This standard is under the jurisdiction of the National UHV AC Transmission Standardization Technical Committee (SAC/TC569). This standard was drafted. State Grid Corporation, China Electric Power Research Institute Co., Ltd., State Grid Electric Power Research Institute, Shenyang Transformer Research Institute Co., Ltd., Xi'an Xidian Transformer Co., Ltd., Baoding Tianwei Baobian Electric Co., Ltd., Special Transformer Hengyang Transformer Co., Ltd., Shandong Power Equipment Co., Ltd., TBEA Shenyang Transformer Group Co., Ltd. The main drafters of this standard. Guo Huihao, Meng Qingqiang, Han Xiancai, Wang Xiaoning, Chen Jiangbo, Wang Shaowu, Wu Zhirong, Du Zhenbo, Liu Jie, Zhang Zhongguo, Chen Rong, Zhang Dong, Wang Ninghua, Tan Lijun, Tan Wei, Wang Jian. The previous versions of the standards replaced by this standard are. ---GB /Z 24844-2009. Oil-immersed shunt reactor for 1000kV AC system specifications

1 Scope

This standard specifies the performance parameters, technical requirements, tests, signs, packaging and performance of oil-immersed shunt reactors for 1000kV AC systems. Transportation and other requirements. This standard applies to single-phase oil-immersed shunt reactors with a voltage rating of 1000kV and a rated capacity of 160Mvar~320Mvar. product. In addition to the basic parameters of the product, the technical requirements of other capacity products can be implemented with reference to this standard.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 1094.1 Power transformers - Part 1. General GB/T 1094.2 Power transformers - Part 2. Temperature rises of liquid immersed transformers GB/T 1094.3 Power transformers - Part 3. Insulation level, insulation test and external insulation air gap GB/T 1094.6 Power transformers - Part 6. Reactors GB/T 1094.10 Power transformers - Part 10. Sound level determination GB 2536 Unused mineral insulating oil for electrical fluid transformers and switches GB/T 2900.95 Electrotechnical terminology transformers, voltage regulators and reactors GB/T 5273 high voltage electrical terminal size standardization DL/T 1094 Guidelines for Selection of Insulating Oil for Power Transformers JB/T 501 Power Transformer Test Guide

3 Terms and definitions

The terms and definitions defined in GB/T 2900.95 and GB/T 1094.6 apply to this document.

4 Conditions of use

4.1 Normal use conditions 4.1.1 Environmental conditions The environmental conditions are as follows. a) The altitude does not exceed 1000m. b) Ambient temperature. 1) Maximum temperature. 40 ° C; 2) The hottest month average temperature. 30 ° C; 3) The highest annual average temperature. 20 ° C; ......
