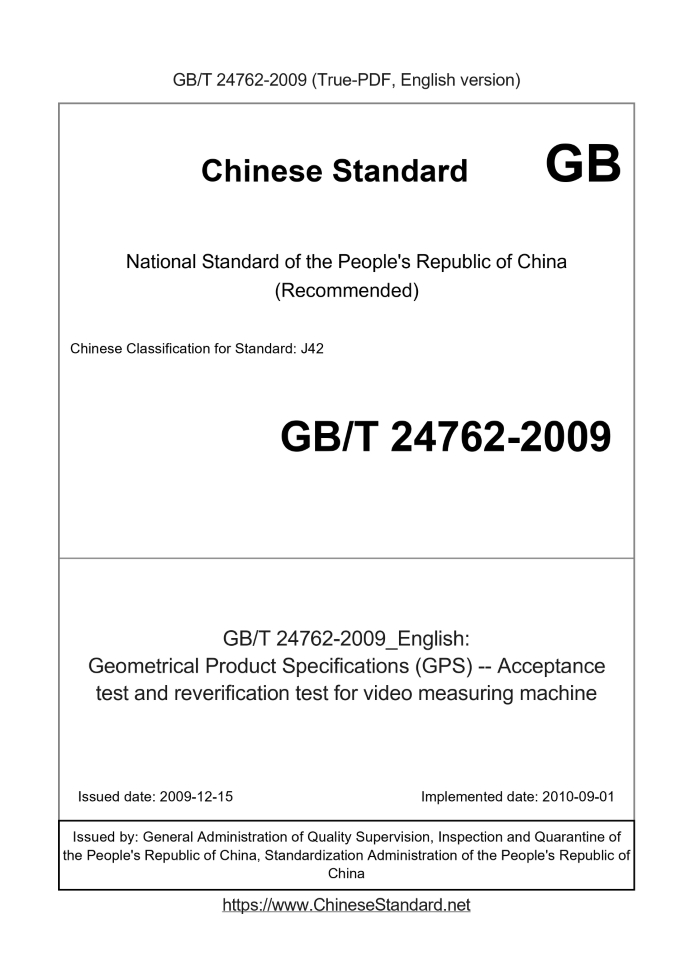

GB/T 24762-2009: Geometrical Product Specifications (GPS) -- Acceptance test and reverification test for video measuring machine
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 24762-2009	439	Add to Cart	4 days	Geometrical Product Specifications (GPS) -- Acceptance test and reverification test for video measuring machine	Valid

Similar standards

GB/T 40742.1 GB/T 22092 GB/T 26093 GB/T 24760 GB/T 24761 GB/T 24759

Basic data

Standard ID: GB/T 24762-2009 (GB/T24762-2009)
Description (Translated English): Geometrical Product Specifications (GPS) -- Acceptance test and reverification test for video measuring machine
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J42
Classification of International Standard: 17.040.30
Word Count Estimation: 19,144
Date of Issue: 2009-12-15
Date of Implementation: 2010-09-01
Quoted Standard: GB/T 17163; GB/T 17164; GB/T 18779.1-2002
Regulation (derived from): National Standard Approval Announcement 2009 No.15
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the device has been calibrated with a standard length of the image measuring instrument performance verification and acceptance testing, periodic re- validation and user reverification tests for video measuring performance. Acceptance and reverification tests specified in this standard apply to the XY plane of a Cartesian coordinate system of the image measuring instrument, comprising a positioning or measurement function image measuring instrument in a plane perpendicular to the direction of the Z Cartesian coordinate system.

GB/T 24762-2009: Geometrical Product Specifications (GPS) -- Acceptance test and reverification test for video measuring machine

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Geometrical Product Specifications (GPS) .Acceptance test and reverification test for video measuring machine ICS 17.040.30 J42 National Standards of People's Republic of China Geometrical product specifications (GPS) Acceptance and reverification tests for image measuring instrument Posted 2009-12-15 2010-09-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Preface Ⅰ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 metrological characteristics of claim 2 5 - Acceptance and reverification tests 3 6 standard testing qualified 7 7 7 Applications Appendix A (normative) special regulatory steps Technical Specifications 9 Annex B (informative) Lens parfocality 10 Annex C (informative) Relationship matching image measuring instrument resolution and magnification of 11 Annex D (informative) single, two-way approach and a single, two-way and on the measurement of 12 Appendix E (normative) Verification intermediate 13 Annex F (informative) position in the GPS matrix model 14 References 15

Foreword

Appendix A of this standard is a normative appendix, Appendix B, Appendix C, Appendix D, Annex E and Annex F is informative appendix. The standard proposed by China Machinery Industry Federation. The standard measuring instrument by the National Standardization Technical Committee (SAC/TC132) centralized. This standard is drafted by. Shenzhen Academy of Metrology and Quality Inspection, Shenzhen Digital Technology Development Co., Ltd. Mosaic. Participated in the drafting of this standard. Hexagon Measurement Technology (Qingdao) Co., Ltd., Chengdu Tool Research Institute, Guanglu Measuring shares have Limited, Shanghai Jiaotong University, Shenzhen FIG Instrument Co., Ltd., ULTI products Optical Instrument (Shanghai) Co., Ltd., scientific machinery House of machines Productivity Promotion Center. The main drafters of this standard. in Jiping, Tang Ning, Wang Jin, Jiang Zhigang, Wuji Yue, Miao Huaqing, Jiang Yayan, Zhao Hui, Lu Guozheng, Ma Junjie, Lu Rong, Li Xiaopei. Geometrical product specifications (GPS) Acceptance and reverification tests for image measuring instrument

1 Scope

This standard specifies performance verification image measuring instrument is calibrated with a standard length (hereinafter referred to as the "standard device") acceptance testing, and Users regularly revalidation reverification tests for image measuring instrument performance. Acceptance and reverification tests specified in this standard applies to the XY plane of a Cartesian coordinate system of image measuring instrument, including in the plane perpendicular to the With positioning or measuring function image measuring instrument on a Cartesian coordinate system Z direction. Acceptance and reverification tests specified in this standard does not apply to the coordinate measuring machine with video detection system with three-dimensional and the trigger probe Image measuring instrument. This standard specifies the method of complete acceptance and reverification tests confirmed image measuring instrument performance requirements, rules for determining eligibility and verification Income and reverification tests applications.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these referenced documents. For undated reference documents, the latest versions apply to this standard. GB/T 17163 dimensional measuring instruments - Basic terminology GB/T 17164 dimensional measuring instruments - Product terms GB/T 18779.1-2002 Geometrical Product Specifications (GPS) - Inspection by measurement of workpieces and measuring equipment - Part 1. Press Specification test pass or fail decision rules (ISO 14253-1.1998, IDT)

3 Terms and Definitions

GB/T 17163 and GB/T 17164 and established the following terms and definitions apply to this standard. 3.1 Imaged on the photoelectric coupling device based on optical imaging system (referred to as the imaging system), through the optical coupling device acquisition, through software at Image processing, displayed on the computer screen, using the measurement software for geometric operations obtain the final result of the non-contact measuring instrument. 3.2 EL Image measuring instrument calibrated to measure the length of the standard, the difference between the measured value and the actual value of the standard. 3.3 EXY The length in the direction parallel to the focal plane of the measurement indication error. Note 1. In this standard, XY plane parallel to the focal plane by default, if not, shall be marked accordingly (for example EXZ or EYZ). Note 2. If only a direction parallel to the X-axis direction or only in a direction parallel to the Y-axis shows the resulting error can be expressed as EX or EY. ......
