GB/T 24506-2009: Type and specification and model number of powered support
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 24506-2009	299	Add to Cart	3 days	Type and specification and model number of powered support	Valid

Similar standards

GB/T 2007.6   GB/T 2007.7   GB/T 45610   GB/T 23561.11   GB/T 18024.1

Basic data

Standard ID: GB/T 24506-2009 (GB/T24506-2009)
Description (Translated English): Type and specification and model number of powered support
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: D04
Classification of International Standard: 73.010
Word Count Estimation: 13,132
Date of Issue: 2009-10-30
Date of Implementation: 2010-04-01
Regulation (derived from): National Standard Approval Announcement 2009 No.12 (Total No.152)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the coal mine hydraulic support (hereinafter referred to as the cradle) of the type, parameters and model preparation. This standard applies to all kinds of stents used in Coal Face (excluding Simple stand).

GB/T 24506-2009: Type and specification and model number of powered support

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

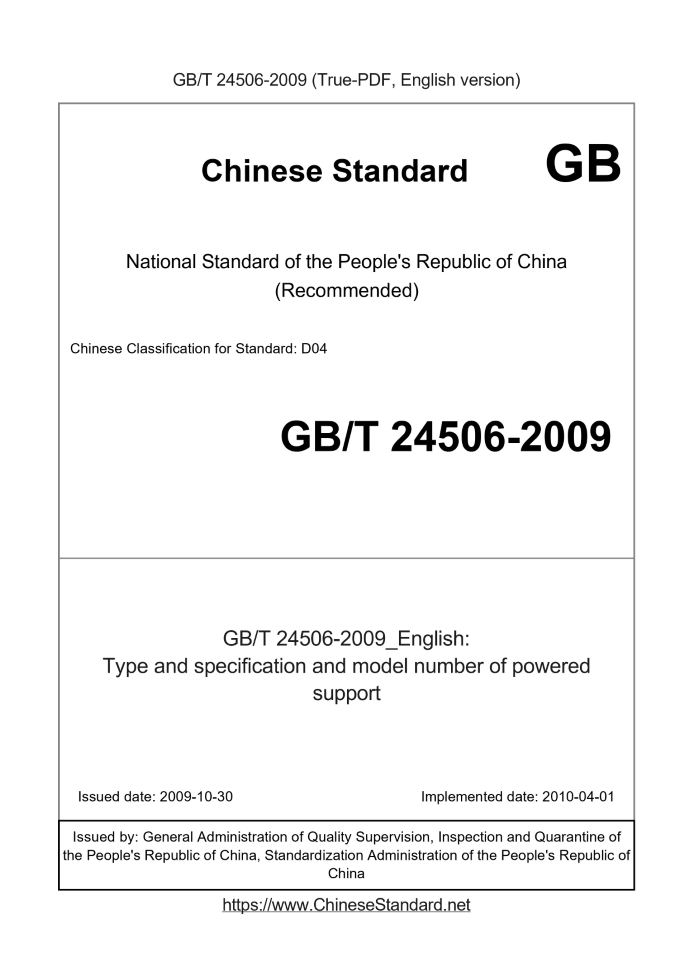

Type and specification and model number of powered support ICS 73.010 D04 National Standards of People's Republic of China Hydraulic support type, parameters and model designation Posted 2009-10-30 2010-04-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released
