GB/T 24463.2-2009 English PDF

US$629.00 · In stock
Delivery: <= 5 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 24463.2-2009: Interactive electronic technical manuals -- Part 2: User interface and function requirement
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 24463.2-2009	629	Add to Cart	5 days	Interactive electronic technical manuals -- Part 2: User interface and function requirement	Valid

Similar standards

GB/T 38633   GB/T 38666   GB/T 38672   GB/T 45228   GB/T 24467   GB/T 24463.1

Basic data

Standard ID: GB/T 24463.2-2009 (GB/T24463.2-2009)
Description (Translated English): Interactive electronic technical manuals -- Part 2: User interface and function requirement
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L67
Classification of International Standard: 35.240.01
Word Count Estimation: 27,238
Date of Issue: 2009-10-15
Date of Implementation: 2009-12-01
Quoted Standard: GB 2894; GB/T 24463.3
Regulation (derived from): Announcement of Newly Approved National Standards No. 11 of 2009 (No. 151 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the IETM user interface and functional requirements, including: basic display interface elements, the auxiliary display elements, common interface display requirements, information elements and information display requirements specific display requirements, etc., and functional classification, functional definition and functional matrix of the content. This section applies to a common source database based IETM specification of the user interface display style and style, as well as functional requirements specification.

GB/T 24463.2-2009: Interactive electronic technical manuals -- Part 2: User interface and function requirement

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

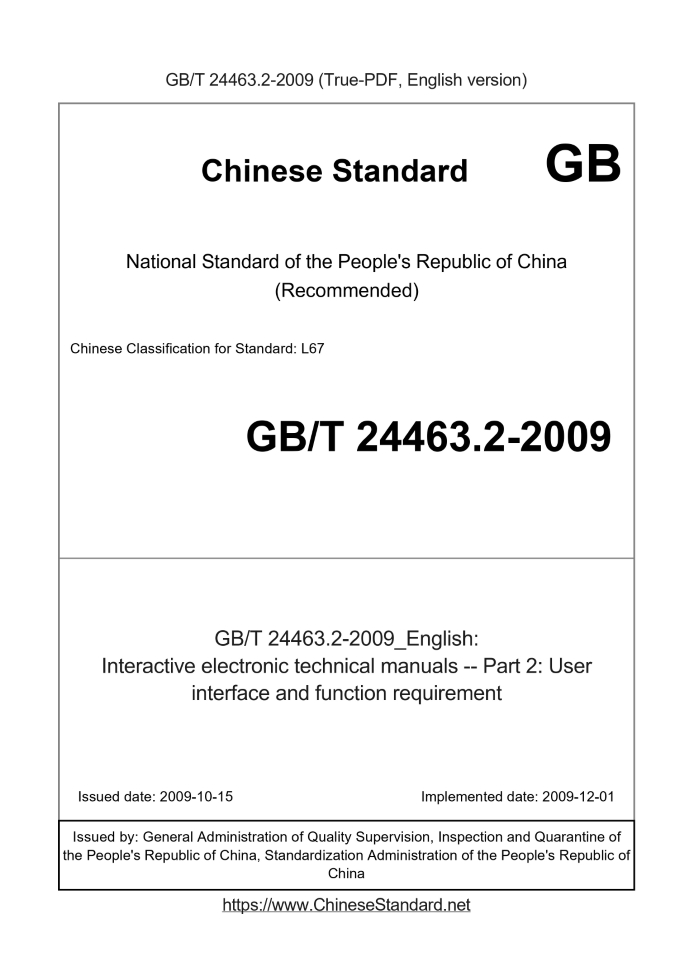

Interactive electronic technical manuals Part 2. User interface and function requirement ICS 35.240.01 L67 National Standards of People's Republic of China Interactive Electronic Technical Manual Part 2. The user interface and functional requirements Posted 2009-10-15 2009-12-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

Preface Ⅰ Introduction Ⅱ 1 Scope 1 2 Normative references 1 3 Terms, Definitions and Abbreviations 1 3.1 Terms and definitions 3.2 Abbreviations 2 4 user interface requires 2 4.1 Basic display elements 2 4.2 auxiliary display elements 2 4.3 General Interface Requirements 3 Display information element of claim 5 4.4 4.5 displays specific information requirements 10 5 Functional requirements 11 5.1 Overview 11 5.2 Functional classification 11 5.3 Reference 12 5.4 matrix column 12 5.5 functional definition 13 5.6 Functional Matrix 19 Appendix A (informative) function matrix 20 References 22

Foreword

GB/T 24463-2009 "Interactive Electronic Technical Manual" is divided into three sections. --- Part 1. Interoperability architecture; --- Part 2. User Interface and functional requirements; --- Part 3. Common Source Database requirements. This section GB/T 24463-2009 Part 2. Appendix A of this section is informative appendix. This section is proposed and managed by the China National Institute of Standardization. This section is drafted. Armored Force Engineering Institute, China National Institute of Standardization, Tianjian Shiyuki Technology Limited. The main drafters of this section. Xuzong Chang, Li Wenwu, Zhou Jian, Zhang Ying, Cao Jun risk, Xiao-Jing Wang, Lei Yusheng, Zhang Wenjun, Xie Hong Cheng, Zhao An, Huliang Yong, Zhang Weiguo, Guohong Fen, He Ping, Jiang Weiwei, Hongyan.

Introduction

With the development of science and technology, there have been many large and complex high-tech equipment. To address these equipment using paper Technical Manual The existence of high cost, large size and weight, timely delivery and transfer of poor, vulnerable contamination, inconvenient to use, and many other disadvantages can not adapt equipment The use and maintenance requirements, since the 20th century, the mid-1980s, the United States and developed countries in the world in the implementation of CALS (currently, CALS called Continuous Acquisition and Life Cycle Support) information technology policy, will be interactive electronic technical manuals (IETM) as an important Key technologies to be promoted. With the development and wide application IETM technology has become increasingly showing its role in enhancing the use of equipment, maintenance, so Great advantages of efficiency and effectiveness of fault diagnosis and training of personnel, therefore, currently IETM has become the world including China Military and civilian equipment manufacturing information technology to promote a country's technology, its application prospects. The main provisions of the standard user interface and functional requirements to be followed by the creation of IETM; clear display objects from the basic IETM Information Unit --- data module (DM) and other data associated with the module, context properties and the like; define the text, tables, graphics, and And other basic elements of the dialog box is displayed, and the basic display elements, the auxiliary display elements and display specific information of the specification for the user and Creators IETM functional requirements. Interactive Electronic Technical Manual Part 2. The user interface and functional requirements

1 Scope

This section GB/T 24463 specifies the IETM user interface and functional requirements, including. basic interface display elements, the auxiliary display Elements common interface display requirements, the specific requirements of the display information element and the information display requirements, etc; and functional classification, functional Related Content definitions and functional matrix. This section applies to the style and specifications based on the common source database IETM style user interface, as well as functional requirements specification.

2 Normative references

The following documents contain provisions which, through reference GB/T 24463 in this section constitute provisions of this section. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB 2894 Safety Signs and use guidelines GB/T 24463.3 Interactive Electronic Technical Manual Part 3. Common Source Database requirements 3 Terms, definitions and abbreviations 3.1 Terms and Definitions The following terms and definitions apply GB/T 24463 in this section. 3.1.1 Not tasks or subtasks necessary steps, but to ensure the correct implementation of the tasks necessary to confirm correct operation of technical personnel and apparatus Equipment operating correctly. 3.1.2 Storage and management of interactive electronic technical manuals for all information objects. 3.1.3 Any message requires manual confirmation, pay attention to or output, the basic operation or maintenance procedures, practice, condition, statement, etc. should be cause for concern An explanation, if not strictly implemented, will result in personal injury, death or long-term health risks. 3.1.4 The basic operation or maintenance procedure, practice, condition, statement, etc. should concern the short message, if not strictly observed, will result in equipment Damage, destroy or reduce the effectiveness of the task. 3.1.5 Rare for a program or conditions should be of concern for some reason a short message. ......
