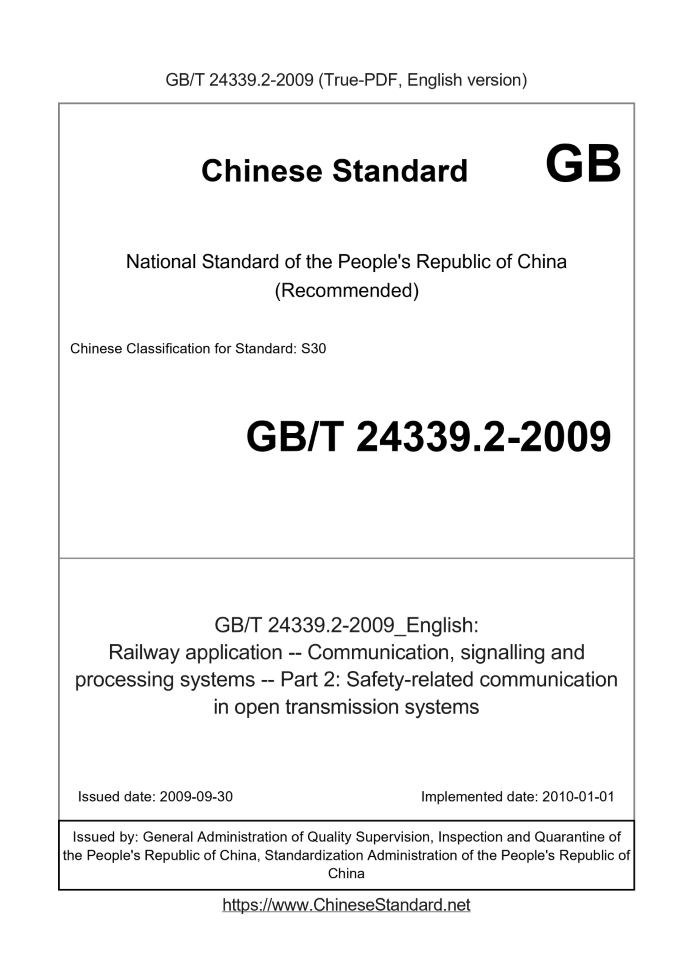

GB/T 24339.2-2009 English PDF
Basic dataStandard ID: GB/T 24339.2-2009 (GB/T24339.2-2009)Description (Translated English): Railway application -- Communication, signalling and processing systems -- Part 2: Safety-related communication in open transmission systems Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: S30 Classification of International Standard: 45.060 Word Count Estimation: 41,499 Date of Issue: 2009-09-30 Date of Implementation: 2010-01-01 Quoted Standard: GB/T 21562; EN 50129-2003 Adopted Standard: IEC 62280-2-2002, IDT Regulation (derived from): National Standard Approval Announcement 2009 No.10 (Total No.150) Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This standard specifies the basic requirements for safety-related communication of safety-related devices connected to the open transmission system between. Applicable to the use of open transmission system to achieve safety-related electronic systems and communications security requirements specification purposes. In order to achieve the specified safety integrity level (SIL). Safety requirements specification is a prerequisite for safety -related electronic systems security argument, the argument about the evidence required for safety (including quality management and safety management, etc.) specified in the EN 50129: 2003. The theme of this section is communication-related functions and technical requirements of safety arguments. The nature and behavior of open transmission system, only used to define properties. Not for security, so from a security point of view, open transmission systems can dive with any features. For example, various transmission, packets stored, illegal accessibility, etc., can only rely on a variety of process safety features. These shall be described in the safety arguments in. This section does not apply to existing systems prior to promulgation of this section has been adopted. No provision of this section: open transmission systems, open transmission systems connected devices, solutions (eg: Interoperability), define safety-related data. GB/T 24339.2-2009: Railway application -- Communication, signalling and processing systems -- Part 2: Safety-related communication in open transmission systems---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Railway application.Communication, signaling and processing systems.Part 2. Safety-related communication in open transmission systems ICS 45.060 S30 National Standards of People's Republic of China GB/T 24339.2-2009/IEC 62280-2..2002 Rail transit communications, signaling and processing systems Part 2. in the open transmission system Safety - related communication (IEC 62280-2..2002, IDT) 2009-09-30 release 2010-01-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People 's Republic of China China National Standardization Management Committee released Directory Preface III Introduction IV 1 Scope 1 2 normative reference document 1 3 Terms and definitions 1 4 reference structure 6 5 Source of the transmission system6 Protection requirements 8 6.1 General 8 6.2 General requirements 9 6.3 specific protection 9 7 Applicability of protective threat measures 13 7.1 Overview 13 7.2 Threat/Protection Matrix 7.3 Selection and use of secure coding and encryption technology 14 Appendix A (informative) Protection Guide 15 Appendix B (informative) Reference 23 Appendix C (informative appendix) This section uses guidelines 24 Appendix D (informative) Threats to open transmission systems GB/T 24339.2-2009/IEC 62280-2..2002ForewordGB/T 24339 "Rail traffic communication, signal and processing system" is divided into two parts. - Part 1. Safety - related communications in closed transmission systems; Part 2. Safety-related communications in open transmission systems. This part is part 2 of GB/T 24339. This part is equivalent to the use of IEC 62280-2..2002 "Rail Transit Communications, Signaling and Processing Systems Part 2. Open Systems Safety related communications "(English version). The main differences between this section and IEC 62280-2..2002 are as follows. a) the word "international standard" is replaced by the words "this part"; b) Replace the comma as a decimal point with a decimal point "." c) prerequisites for the removal of international standards; d) Referenced documents ENV50129..1998 to EN50129..2003. Appendix A, Appendix B, Appendix C, Appendix D of this section are informative. This part is made by the Ministry of Railways. This part is headed by the National Technical Committee for Standardization of Electrical Equipment and Systems (SAC/TC278). This part of the drafting unit. Beijing Jiaotong University, Zhuzhou CSR Times Electric Co., Ltd. The main drafters of this part. Tang Tao, Zhang Lizhi, Xu Tianhua, Yan Yunsheng, Niu Ru, Fan Zuocheng. GB/T 24339.2-2009/IEC 62280-2..2002IntroductionThe open transmission system consists of systems that are unknown or partially unknown, and this part is dedicated to safety related information in open transmission systems Interest transmission should be considered. If the safety-related electronic system involves the transmission of information between different locations, then the communication system becomes a safety-related system Components, and should be based on EN50129 end-to-end transmission is safe. The security requirements of the data communication system depend on their known or unknown characteristics. To simplify the complexity of proving system security methods, Consider two types of transmission systems. The first is a closed transmission system, its composition can be controlled by the safety system designer to a certain extent System, its safety requirements in GB/T 24339.1 requirements. The second is the open transmission system, GB/T 24339 of this part of the provisions Safety requirements for open transmission systems. This section considers the transmission system, and generally there is no specific prerequisite to be met. From the security point of view, the system is non-confidence Or not completely confident, is considered "black box". For crossacceptance for routine certification, not for special applications, the requirements shall be in accordance with EN50129 Requires the same. GB/T 24339.2-2009/IEC 62280-2..2002 Rail transit communications, signaling and processing systems Part 2. in the open transmission system Safety - related communication1 ScopeThis part of GB/T 24339 specifies the safety-related communications between safety-related equipment connected to an open transmission system. This requirement. Applicable to safety-related electronic systems for the purpose of communicating with the open transmission system and its safety requirements in order to The specified safety integrity level (SIL). The safety requirements specification is a prerequisite for the safety of safety-related electronic systems, and the evidence required for safety arguments (including quality Management and safety management, etc.) in EN50129..2003. The subject matter of this section is communication-related functional and technical safety arguments Claim. The nature and behavior of an open transmission system is used only to define features, not for security, and thus from an security perspective, The input system can be any potential, such as a variety of transmission methods, message storage, illegal access, security process can only rely on a variety of features, These must be stated in the security argument. This part does not apply to existing systems that have been adopted prior to the promulgation of this section. This section does not provide that. --- open transmission system; --- the equipment to which the open transmission system is connected; --- solutions (eg interoperability); Definition of safety-related data.2 normative reference documentsThe terms of this document are the terms of this part by reference to this part of GB/T 24339. Any reference to the date of the text , All subsequent amendments (excluding corrigenda) or revisions do not apply to this part, however, encouragement under this section The parties to the agreement study whether the latest version of these documents can be used. For undated references, the latest edition of this document applies section. GB/T 21562 Rail Transit Reliability, Availability, Serviceability and Security (RAMS) Specifications and Examples (GB/T 21562-2008, IEC 62278..2002, IDT) Safety - related electronic systems for use in signal systems for rail transit EN 50129..20033 terms and definitionsThe following terms and definitions apply to this part of GB/T 24339. 3.1 In order to prevent unauthorized reading or changing of information, a process is designed within a user safety-related system or within a transmission system. 3.1.1 Deliberately bypassing the person who visits the protection. 3.2 The information is valid and the information is known from the status of the specified information source. GB/T 24339.2-2009/IEC 62280-2..2002 ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 24339.2-2009_English be delivered?Answer: Upon your order, we will start to translate GB/T 24339.2-2009_English as soon as possible, and keep you informed of the progress. The lead time is typically 3 ~ 5 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 24339.2-2009_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 24339.2-2009_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
