GB/T 23714-2009 English PDF

US$314.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 23714-2009: Mechanical vibration and shock -- Performance parameters for condition monitoring of structures
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 23714-2009	314	Add to Cart	3 days	Mechanical vibration and shock -- Performance parameters for condition monitoring of structures	Valid

Similar standards

GB/T 23901.3   GB/T 23901.4   GB/T 23901.2   GB/T 23718.5   GB/T 23713.1   GB/T 23718.7

Basic data

Standard ID: GB/T 23714-2009 (GB/T23714-2009)
Description (Translated English): Mechanical vibration and shock -- Performance parameters for condition monitoring of structures
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J04
Classification of International Standard: 17.160; 91.120.25
Word Count Estimation: 16,111
Date of Issue: 2009-04-24
Date of Implementation: 2009-12-01
Adopted Standard: ISO 16587-2004, IDT
Regulation (derived from): PRC National Standard Approval Announcement 2009 No.6 (Total No.146)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the performance parameters to assess the structure of the state, including the type of measurement, setting allows factor performance limits, parameter data acquisition and internationally accepted measurement guidelines (such as the terms for the construction of a unified database, sensor calibration, sensor installation and acceptance of the transfer function technique). The in-service monitoring method and structure, but also to include all structural parts and subassemblies, as an overall operation required. Monitoring can be sustained over the entire life cycle performed structure.

GB/T 23714-2009: Mechanical vibration and shock -- Performance parameters for condition monitoring of structures

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

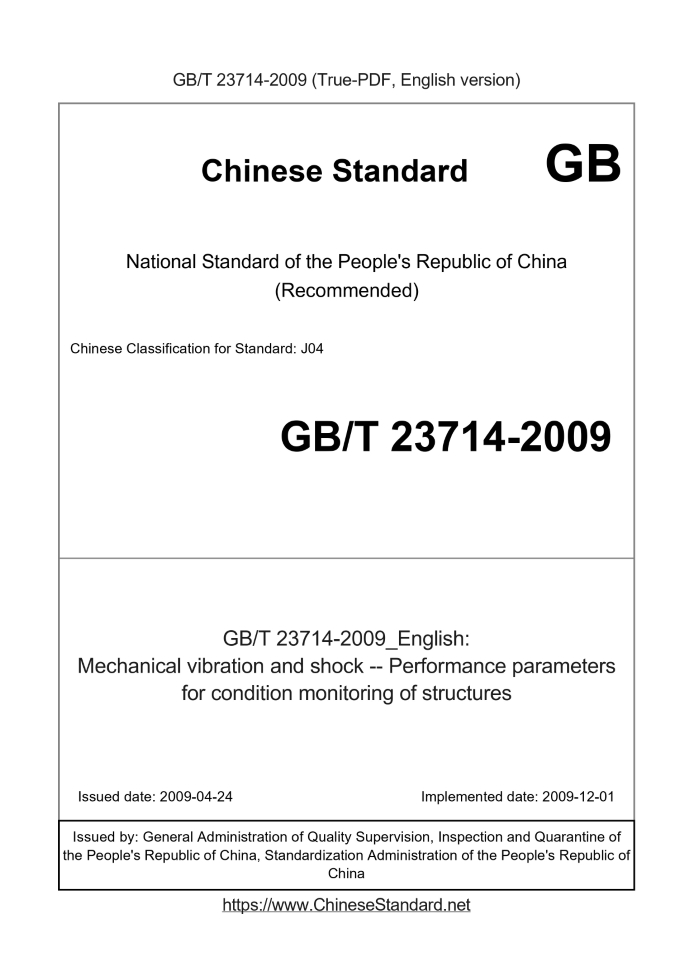

Mechanical vibration and shock.Performance parameters for condition monitoring of structures ICS 17.160; 91.120.25 J04 National Standards of People's Republic of China GB/T 23714-2009/ISO 16587.2004 Mechanical vibration and shock structural state Monitoring the performance parameters (ISO 16587.2004, IDT) Posted 2009-04-24 2009-12-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

Introduction Ⅲ Introduction Ⅳ 1 Scope 1 2 Normative references 1 3 Terms and definitions 2 4 monitoring parameters and limits 3 5 Methods of measurement and data processing 4 Diagnosis of defects 5 6 Appendix A (informative) Performance parameters and measurement sensors and systems Example 7 References 8 GB/T 23714-2009/ISO 16587.2004

Foreword

This standard is identical with ISO 16587.2004 "Mechanical vibration and shock structure condition monitoring of performance parameters" (in English). This standard is equivalent to translate ISO 16587.2004. For ease of use, this standard made the following editorial changes. --- Use the "standard" instead of "this International Standard"; --- Remove the foreword to international standards, rewrite the foreword of this standard; --- Of ISO 16587.2004 and other international standards cited, there was equated adopted as our standard, instead of using our standard correspondence International standards, is not identical with direct reference to international standards for our standards. Appendix A of this standard is an informative annex. This standard by the national mechanical vibration, shock and condition monitoring Standardization Technical Committee (SAC/TC53) and focal points. This standard is drafted by. Zhengzhou Machinery Research Institute. Participated in the drafting of this standard. Tsinghua University, the Ministry of Communications Highway Research Institute, State Power Beijing Electric Power Construction Research Institute, Dalian University of Technology. The main drafters of this standard. Han Guoming, Wangzong Gang, Liu Wenfeng, Wang Yang fine, Zhu Tong. GB/T 23714-2009/ISO 16587.2004

Introduction

This standard provides application parameters structural state monitoring guidelines, these parameters are typically used to measure or monitor the performance of the structure, such as bit Shift, strain, vibration, settlement, rotation, temperature and foundation pore water pressure. This standard is prepared with GB/T 20471 and GB/T 22393 (ISO 17359) coherence. The information provided in this standard will complement ISO 18431, ISO 18431 will be divided into several parts published. GB/T 23714-2009/ISO 16587.2004 Mechanical vibration and shock structural state Monitoring the performance parameters

1 Scope

This standard gives a structure to assess the state of the performance parameters, including the type of measure, the factors set performance limits allow for the construction of a unified Parameter data acquisition and internationally accepted measurement guidelines (such as the terms, sensor calibration, sensor installation and a database of identity The transfer function technique). This method of monitoring structures in service, but also to include all the structural components and sub-assemblies as a whole operation required. Supervisor Measurement can be continued over the entire life cycle of the structure. Note 1. Figure 1 is a flow chart showing how to make this a standard user from the initial demand for structural condition monitoring, until the appropriate fix performance parameters over Away. Follow standard will involve measurement and processing of these parameters. This standard assumes that the presence of structural condition monitoring "Advanced" requirements. Note 2. For the use of assets and the reliability of identification/auditing to identify the critical needs of this guide is included in the GB/T 22393 (ISO 17359) in. This standard applies to industry sectors, including. --- Construction works; --- Underground structures; ---transport; --- Power; ---Petroleum and natural gas; --- Leisure and entertainment industry. This standard applies to fixed structures, such as. ---building; --- Bridges and tunnels; --- Towers, masts and antennas; --- Tanks and silos; --- Berm wall and dam; --- Trestle and other shore structures; --- Offshore drilling platform; --- Pressure vessel; ---pipeline. This standard does not apply to non-fixed structure (such as self-propelled vessels) and mobile structures (such as jack-up offshore drilling platform).

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. ISO 2041.1990 Vibration and shock - Vocabulary GB/T 23714-2009/ISO 16587.2004 ......
