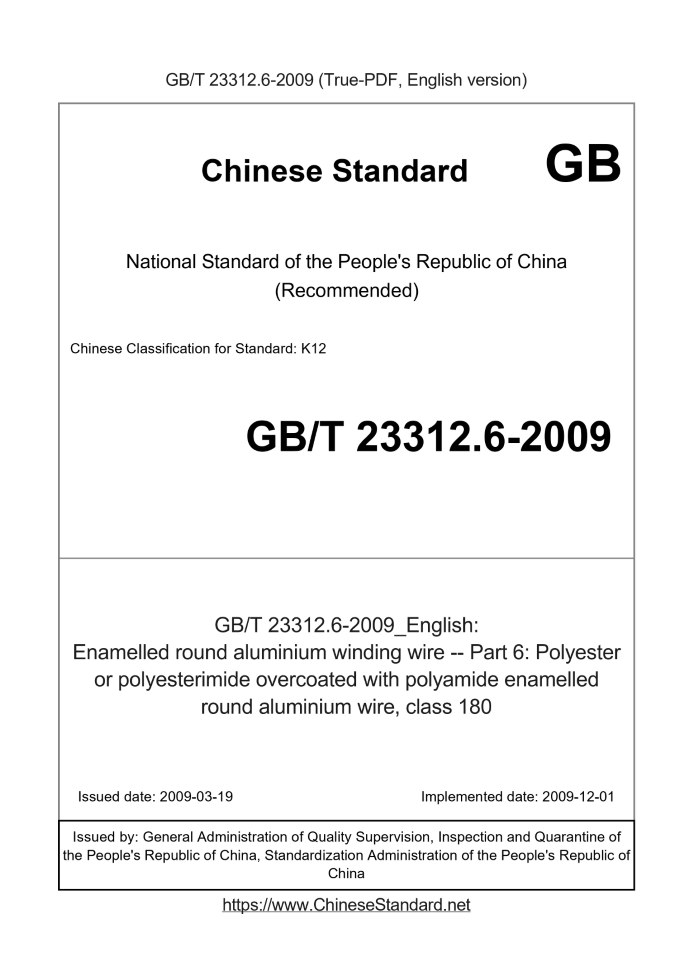

GB/T 23312.6-2009 English PDF

US$139.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 23312.6-2009: Enamelled round aluminium winding wire -- Part 6: Polyester or polyesterimide overcoated with polyamide enamelled round aluminium wire, class 180
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 23312.6-2009	139	Add to Cart	3 days	Enamelled round aluminium winding wire -- Part 6: Polyester or polyesterimide overcoated with polyamide enamelled round aluminium wire, class 180	Valid

Similar standards

GB/T 4074.21   GB/T 4074.3   GB/T 7095.1   GB/T 23312.3   GB/T 23312.4   GB/T 23312.2

Basic data

Standard ID: GB/T 23312.6-2009 (GB/T23312.6-2009)
Description (Translated English): Enamelled round aluminium winding wire -- Part 6: Polyester or polyesterimide overcoated with polyamide enamelled round aluminium wire, class 180
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K12
Classification of International Standard: 29.060.10
Word Count Estimation: 6,611
Date of Issue: 2009-03-19
Date of Implementation: 2009-12-01
Regulation (derived from): Announcement of Newly Approved National Standards No. 3, 2009 (No. 143 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the double paint layer 180 enamelled round aluminum wire requirements. Primer layer polyester or polyester -imide resin-based, such as to retain the original chemical properties of the resin and meets all the requirements for enameled wire, the resin can be modified. Thalidomide topcoat layer is polyethylene -based resin.

GB/T 23312.6-2009: Enamelled round aluminium winding wire -- Part 6: Polyester or polyesterimide overcoated with polyamide enamelled round aluminium wire, class 180

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Enamelled round aluminium winding wire Part 6. Polyester or polyesterimide overcoated with polyamide enamelled round aluminium wire, class 180 ICS 29.060.10 K12 National Standards of People's Republic of China Enameled round aluminum winding wire Part 6. 180 polyester or polyester-imide/polyamide Enamelled round aluminum wire Posted 2009-03-19 2009-12-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

GB/T 23312 "enamelled round aluminum winding wire" is divided into seven parts. --- Part 1. General requirements; --- Part 2. 120 acetal enamelled round aluminum wire; --- Part 3. Polyester enamelled round aluminum wire; --- Part 4. 155 polyester enameled round aluminum wire; --- Part 5. 180 polyester enamelled round aluminum wire; --- Part 6. 180 polyester or polyester-imide/polyamide composite enameled round aluminum wire; --- Part 7.200 polyester or polyester-imide/polyamide-imide enamelled round aluminum wire. This is Part 6 GB/T 23312 of. This part is proposed by the China Electrical Equipment Industrial Association. This part of the National Standardization Technical Committee Wire and Cable (SAC/TC213) centralized. This section is drafted. Shanghai Electric Cable Research Institute, Fuzhou Chase Electrical Co., Ltd., Zhejiang Honglei Copper Co., Ltd., Zhejiang Great Wall Electronics Technology Group, Zhejiang Hongbo Cable Co., Ltd., Zhejiang first board Electrical Equipment Co., Ltd., Galanz (Zhongshan) Electrical Wire Co., Ltd. Zhuji exposed laugh specialty lines, Shanghai Chongming special Electromagnetic Wire Factory, Tianjin and double metal wire Co., Tongling fine Xun special enameled wire limited liability company, Shanghai Yusheng Special Wire Co., Ltd., Foshan Electrical Sandwich Material Co., Ltd., Huang Yang Copper Co. The company, Wuxi Jufeng composite wires Ltd., Xuzhou Bao Sheng Industrial Co., Ltd. The main drafters of this section. Chen Hui-min, Liu Wei, Zhejiang strong, Yao Guihua, Cao Hengtai, Mengxiang Fu, Li Jingkang, small Lu Jun, Huang Xiaodong, Zhang Chunlong, Zhou Jun, Panlie Jun, Wang Huifeng, the Yellow River, Cai Lin, Yan Benjamin, Alan Li. This section first formulated. Enameled round aluminum winding wire Part 6. 180 polyester or polyester-imide/polyamide Enamelled round aluminum wire

1 Scope

This section GB/T 23312 180 specifies the requirements of enamelled round aluminum wire double coat of paint. A primer layer of polyester or polyester imide resin Based, chemical properties such as to retain the original resin and meet all the requirements of the provisions of enameled wire, the resin can be modified. Topcoat layer is poly An amide-based resin. NOTE. chemically-modified resin is a variation of, or contain one or more additives to improve certain properties of the resin or its usage characteristics. 180 represents the thermal level, requires a minimum temperature index of 180, the thermal shock temperature of at least 200 ℃. Corresponding to the temperature index temperature in Celsius is not recommended wire temperature, because it depends on the type of equipment used include Many factors within. Conductor nominal diameter range specified in this standard are. --- Level 1. 0.250mm and 3.150mm above and below; --- Level 2. 0.400mm and 5.000mm above and below. Conductor nominal diameter see GB/T 23312.1-2009 in Chapter 4.

2 Normative references

The following documents contain provisions which, through reference GB/T 23312 in this section constitute provisions of this section. For dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply to this section, however, encouraged to reach under this section Parties to research agreement to use the latest versions of these documents. For undated reference documents, the latest versions apply to this section. GB/T 23312.1-2009 enameled round aluminum winding wire - Part 1. General requirements (IEC 60317-0-3.2008, Specifica- tionsforparticulartypesofwindingwires-Part0-3. Generalrequirements-Enameledroundalumin- iumwire, IDT) 3 Definitions, test methods and General Appearance 3.1 Definitions, test methods - General General definitions and test methods see GB/T 23312.1-2009 in Chapter 3. If GB/T 23312.1-2009 in this section are contradictory to this section shall prevail. 3.2 Appearance See GB/T 23312.1-2009 Chapter 3.

4 Dimensions

See GB/T 23312.1-2009 in Chapter 4.

5 resistance

See GB/T 23312.1-2009 in Chapter 5. ......
