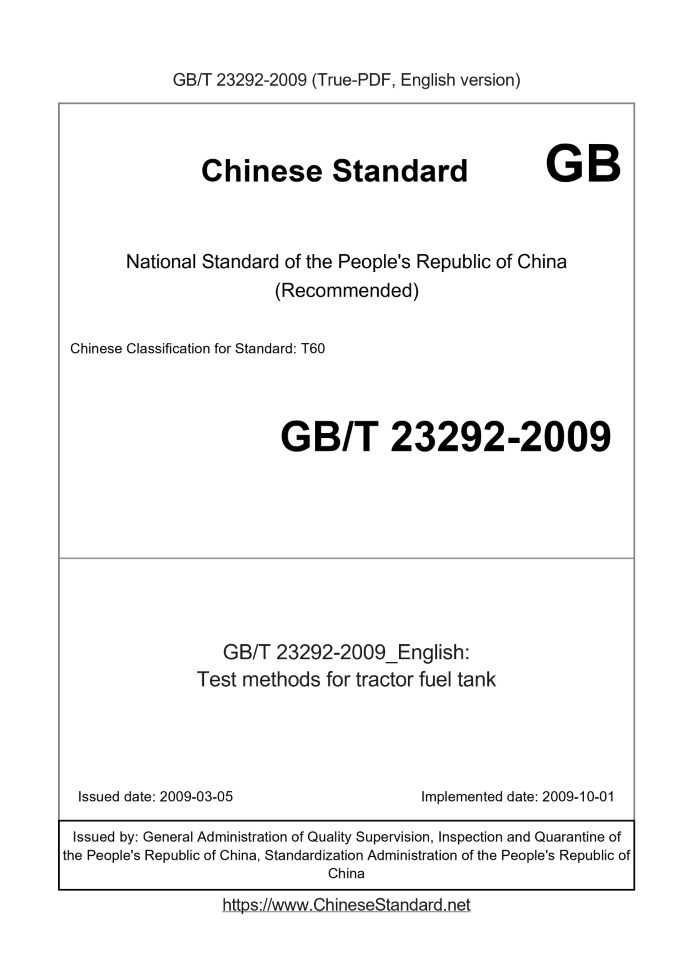

GB/T 23292-2009 English PDFUS$139.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 23292-2009: Test methods for tractor fuel tank Status: Valid
Basic dataStandard ID: GB/T 23292-2009 (GB/T23292-2009)Description (Translated English): Test methods for tractor fuel tank Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: T60 Classification of International Standard: 65.060.10 Word Count Estimation: 6,671 Date of Issue: 2009-03-05 Date of Implementation: 2009-10-01 Regulation (derived from): National Standard Approval Announcement 2009 No.2 (Total No.142) Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This standard specifies test methods tractor fuel tank. This standard applies to tractor fuel tank metal and plastic fuel tank. GB/T 23292-2009: Test methods for tractor fuel tank---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Test methods for tractor fuel tank ICS 65.060.10 T60 National Standards of People's Republic of China Tractor Fuel Tank Test Method Posted 2009-03-05 2009-10-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released ForewordThis standard adopts some elements of the EU regulations ECE-R34 (Rev.1,2003年版) "Uniform provisions concerning vehicle certified flameproof" (In English). The standard proposed by China Machinery Industry Federation. This standard by the National Standardization Technical Committee of the tractor. This standard was drafted. Luoyang Tractor Research Institute. The main drafters of this standard. Ren Yueguang. Tractor Fuel Tank Test Method1 ScopeThis standard specifies the test methods for tractor fuel tank. This standard applies to tractors metal and plastic fuel tank fuel tank. Test Method 2 2.1 Fuel tank cap sealing and venting means In the fuel tank was added 85% of its rated capacity of water, cover the fuel tank cap, good sealed all entry, exit port, flip the fuel tank to tank Cover to withstand the maximum pressure position, until the fuel tank standing 15s, with a stopwatch, then water dosage cup, measuring 1min fuel cap and venting means The total leakage site. 2.2 Safety valve opening pressure test Replace the fuel tank cap, fuel tank seal the other inlet and outlet, compressed air is applied to the fuel tank, the safety valve opens when the fuel tank measurement pressure. 2.3 Test vacuum intake valve is opened Replace the fuel tank cap fuel tank sealed when other imports and exports, with a vacuum pump to extract air in the fuel tank, fuel measuring intake valve is opened Tank vacuum. 2.4 vibration durability test Simulation of the loading state of the fuel tank fixed to the vibration test stand, fuel tank was added to 85% of the rated capacity of the water, cover the fuel tank cap close Seal all imports and exports, according to Table 1 will be vibration test. Table 1 fuel tank vibration durability test requirements Vibration acceleration/(m/s2) Vibration Frequency/Hz Vibration Time/h On the left, right front, rear 2.5 pressure resistance test metal fuel tank Simulation of loading the fuel tank is fixed on the test bench, sealed the fuel tank of all imports and exports and filler, is applied to the fuel tank 80kPa compressed air pressure is maintained 10min. 2.6 Performance Test pressure plastic fuel tank Simulation of loading the fuel tank is fixed on the test bench, sealed the fuel tank of all imports and exports and filler, is applied to the fuel tank 35kPa compressed air pressure is maintained 5h. 2.7 plastic fuel tank angle hammer impact test 2.7.1 diagonal hammer requirements. the side of an equilateral triangle, a square base, the quality of 15kg, vertex and edge fillet between half 3mm diameter steel impact body. 2.7.2 Analog loading fuel tank is fixed in the test apparatus, the rated capacity was added in the fuel tank of water and glycol mixture or other When non-corrosive liquids low freezing point (freezing point temperature below -50 ℃), the fuel tank until the temperature dropped to -40 ℃ ± 2 ℃, with the angle to hammer 30J Impact energy hit the fuel tank easy to damage the site. Each of the different parts of the test should use the new fuel tank samples. Easy to damage the fuel tank According to the site to determine the shape of the fuel tank and fitting manner on the tractor. 2.8 plastic fuel tank heat resistance test Simulation of loading the fuel tank is fixed in the test apparatus, the fuel tank was added to half of the rated capacity of 20 ℃ ± 2 ℃ of water, ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 23292-2009_English be delivered?Answer: Upon your order, we will start to translate GB/T 23292-2009_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 23292-2009_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 23292-2009_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
