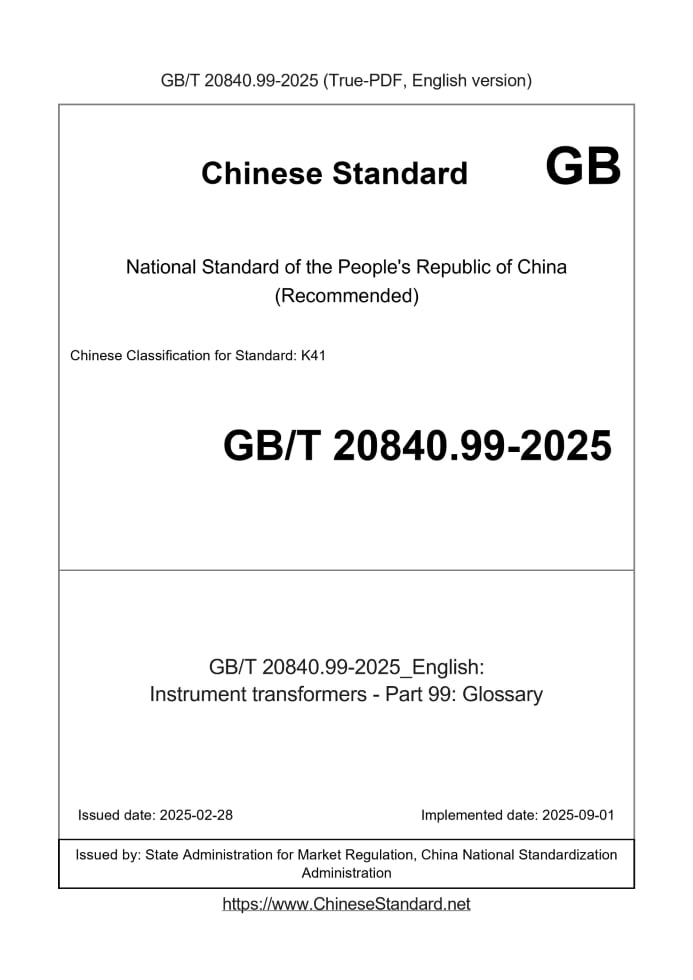

GB/T 20840.99-2025 English PDFUS$1159.00 · In stock
Delivery: <= 7 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 20840.99-2025: Instrument transformers - Part 99: Glossary Status: Valid
Basic dataStandard ID: GB/T 20840.99-2025 (GB/T20840.99-2025)Description (Translated English): Instrument transformers - Part 99: Glossary Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: K41 Classification of International Standard: 29.180 Word Count Estimation: 58,558 Date of Issue: 2025-02-28 Date of Implementation: 2025-09-01 Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration GB/T 20840.99-2025: Instrument transformers - Part 99: Glossary---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.GB/T 20840.99-2025 English version. Instrument transformers - Part 99.Glossary ICS 29.180 CCSK41 National Standard of the People's Republic of China Instrument transformers Part 99.Terminology (IEC 61869-99.2022,MOD) Released on 2025-02-28 2025-09-01 Implementation State Administration for Market Regulation The National Standardization Administration issued Table of ContentsPreface III Introduction V 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 3.1 Basic terms and definitions 1 3.2 Transformer types, components and details 3 3.3 Definition of current 10 3.4 Definition of voltage 12 3.5 Definitions related to accuracy 13 3.6 Other definitions 30 Index 34 Chinese Pinyin Index 34 English equivalents, abbreviations or symbols index 40 References 50ForewordThis document is in accordance with the provisions of GB/T 1.1-2020 "Guidelines for standardization work Part 1.Structure and drafting rules for standardization documents" Drafting. This document is part 99 of GB/T 20840 "Transformers". GB/T 20840 has published the following parts. --- Part 1.General technical requirements; --- Part 2.Supplementary technical requirements for current transformers; --- Part 3.Supplementary technical requirements for electromagnetic voltage transformers; --- Part 4.Supplementary technical requirements for combined transformers; --- Part 5.Supplementary technical requirements for capacitor voltage transformers; --- Part 6.Supplementary general technical requirements for low power transformers; --- Part 7.Electronic voltage transformer; --- Part 8.Electronic current transformer; --- Part 9.Digital interface for transformers; --- Part 10.Supplementary technical requirements for low power passive current transformers --- Part 11.Supplementary technical requirements for low power passive voltage transformers --- Part 14.Supplementary technical requirements for DC current transformers; --- Part 15.Supplementary technical requirements for DC voltage transformers; --- Part 99.Terminology; --- Part 100.Application Guidelines for Current Transformers for Power System Protection; --- Part 102.Ferroressonance in substations with electromagnetic voltage transformers; --- Part 103.Application of transformers in power quality measurements. This document is modified to adopt IEC 61869-99.2022 "Transformers - Part 99.Terminology". The technical differences between this document and IEC 61869-99.2022 and their reasons are as follows. --- Added the term and definition of "3.1.3 Voltage sensor" to conform to the actual situation in my country; --- Change "transformers are designed to" to "transformers for DC applications having at least one of the following functions.", in "measuring DC Add "(including significant harmonics)" after "current and/or DC voltage", change "with or without AC component" to "withstand DC voltage" Pressure” to make the definition more precise (see 3.2.1); --- Add the term and definition of "3.2.11 Electromagnetic voltage transformer" to conform to the actual situation in my country; --- Adjust the definition to "winding to which the measured current or voltage is applied" (see 3.2.27); --- The Chinese name of the term adds "measuring current transformer" and the English name adds "formeasuringCT" (see 3.5.27). In line with my country's actual situation; --- The Chinese name of the term has been added with "protective current transformer", the English name has been added with "forprotectiveCT", and the definition of "accurate The symbol "KALF" is added after "Limit coefficient" (see 3.5.28) to conform to the actual situation in my country; --- The Chinese name of the term adds "(for transformer)" and the English name adds "(forIT)" (see 3.5.42) to conform to the actual situation in my country Condition; Actual situation; --- "relative to the rated primary short-circuit current peak" (see 3.5.51) has been added to the definition to conform to the actual situation in my country; The following editorial changes were made to this document. ---Replace the international documents in the "Source" and "Note" of some terms and definitions with Chinese standards; --- Deleted "Note 2.In some countries (such as the United States), a conductor is used instead of the neutral point (grounding system corner) for grounding" (see 3.1.7); --- In Note 1, adjust "(e.g., calculated neutral point current)" to "e.g., calculated neutral point current (self-generated zero-sequence current)" (see 3.1.12); --- Adjust the "LPCT" in the note to "single-phase LPCT" (see 3.1.16); --- Adjust the "LPVT" in the note to "single-phase LPVT" (see 3.1.17); --- Adjust "between two points" to "output terminal" (see 3.1.21); --- Deleted "temperature sensor" in the example (see 3.2.23); --- Adjust the source of the term (see 3.4.10); --- Delete "Note 1.For digital signals, the rated transformation ratio is 1" (see 3.5.5); --- Adjust "expressed as a percentage (%)" in Note 1 to "expressed as a percentage of the root mean square value of the primary current (%)" (see 3.5.9); --- The expression "iε=kr×is-ip" is added to the definition (see 3.5.50); --- Correct "primary current" in Note 3 to the symbol tn to "primary voltage" (see 3.5.56); --- Correct "ysrmng" in the symbol description of item b) in Note 1 to "ysrmng(n)" (see 3.5.59); --- Add Note 2 and adjust the square root in the expression in 3.5.68 to extend to the entire expression (see 3.5.67 and 3.5.68); --- Correct "a) and b)" in the diagram symbol description in Note 1 to "a and b" (see 3.5.80); --- A Chinese index arranged in phonetic notation has been added to the appendix. Please note that some of the contents of this document may involve patents. The issuing organization of this document does not assume the responsibility for identifying patents. This document was proposed by the China Electrical Equipment Industry Association. This document is under the jurisdiction of the National Technical Committee for Standardization of Transformers (SAC/TC222). This document was drafted by. Shenyang Transformer Research Institute Co., Ltd., China Electric Power Research Institute Co., Ltd., Dalian First Instrument Transformer Co., Ltd. Limited Liability Company, Nanjing NARI Relay Protection Electric Co., Ltd., Zhejiang Tianji Instrument Transformer Co., Ltd., Chongqing Huahong Instrument Co., Ltd., Dalian Northern Instrument Transformer Group Co., Ltd., Jiangsu Kexing Electric Co., Ltd., Chongqing Shancheng Electric Factory Co., Ltd., Xi'an High Voltage Electric Equipment Research Institute Co., Ltd. Co., Ltd., Yunnan Power Grid Co., Ltd. Electric Power Research Institute, State Grid Shaanxi Electric Power Company Electric Power Research Institute, State Grid Jiangxi Electric Power Research Institute of Provincial Electric Power Co., Ltd. The main drafters of this document are. Liu Yufeng, Feng Yu, Sha Yuzhou, Xu Lei, Tang Fuxin, Deng Xiaopin, Qin Jiangfeng, Guan Yongqiu, Yang Feng, Liu Bin, Xu Wen, Wang Benjin, Feng Jianhua, Liu Hongwen, Xu Sien, Luo Sunan, Chen Yicong, Wan Hua.IntroductionThe purpose of formulating the transformer standard is to establish a set of optimal evaluation criteria for the transformer, from raw material selection, design, production, etc. GB/T 20840 aims to establish the requirements for transformers. The principles and relevant rules to be followed in design, manufacturing, testing, operation and maintenance are planned to consist of 17 parts. --- Part 1.General technical requirements. The purpose is to establish the requirements for the design, manufacture and production testing of various types of transformers. General technical requirements to be followed. --- Part 2.Supplementary technical requirements for current transformers. The purpose is to establish supplementary technical requirements applicable to various types of current transformers. Require. --- Part 3.Supplementary technical requirements for electromagnetic voltage transformers. The purpose is to establish the requirements applicable to various types of electromagnetic voltage transformers. Supplementary technical requirements. --- Part 4.Supplementary technical requirements for combined transformers. The purpose is to establish supplementary technical requirements applicable to various types of combined transformers. Require. --- Part 5.Supplementary technical requirements for capacitor voltage transformers. The purpose is to establish the requirements applicable to various types of capacitor voltage transformers. Supplementary technical requirements. --- Part 6.Supplementary general technical requirements for low power transformers. The purpose is to establish supplementary general technical requirements applicable to various types of low power transformers. Fill in the general technical requirements. --- Part 7.Electronic voltage transformers. The purpose is to establish supplementary technical requirements applicable to various types of electronic voltage transformers. --- Part 8.Electronic current transformers. The purpose is to establish supplementary technical requirements applicable to various types of electronic current transformers. --- Part 9.Digital interfaces for transformers. The purpose is to establish technical requirements for digital interfaces applicable to various types of electronic transformers. --- Part 10.Supplementary technical requirements for low power passive current transformers. The purpose is to establish Supplementary technical requirements for current transformers. --- Part 11.Supplementary technical requirements for low power passive voltage transformers. The purpose is to establish Supplementary technical requirements for voltage transformers. --- Part 14.Supplementary technical requirements for DC current transformers. The purpose is to establish supplementary technical requirements applicable to various types of DC current transformers. Fill in the technical requirements. --- Part 15.Supplementary technical requirements for DC voltage transformers. The purpose is to establish supplementary technical requirements applicable to various types of DC voltage transformers. Fill in the technical requirements. --- Part 99.Terminology. The purpose is to establish terms and definitions applicable to various types of transformers. --- Part 100.Guidelines for the application of current transformers for power system protection. The purpose is to Provide guidance on the application of protection. --- Part 102.Ferroresistance in substations with electromagnetic voltage transformers. Provide guidance on the generation mechanism and suppression of ferromagnetic resonance in substations with voltage transformers. --- Part 103.Application of transformers in power quality measurement. The purpose is to describe the application of various types of transformers in power quality measurement. Provide guidance on use. GB/T 20840 defines the technical specifications of various types of transformer products through 17 parts, and gives specific technical requirements, test items, By establishing clear scope, terminology, technical requirements and test requirements for various products So that personnel engaged in product design, production, testing and use can operate more clearly and accurately, thus providing It lays the foundation for the design and manufacture of high-quality products, better promotes trade, exchanges and technical cooperation, and provides the normal operation of my country's power grid. Assure. This document deals with terms and definitions related to GB/T 20840 (all parts). The structure of the term list in this document is not in the order of the product standard series, but in a logical order based on the concept hierarchy. That is, start with the most general concepts and then move on to more specific concepts. Instrument transformers Part 99.Terminology1 ScopeThis document defines terms and definitions specific to instrument transformers. This document applies to the field of transformers covered by GB/T 20840 (all parts). Unless otherwise specified, in this document, all peripheral Periodic charges are considered to be RMS values.2 Normative referencesThis document has no normative references.3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Basic terms and definitions 3.1.1 Transformer instrumenttransformer;IT A device intended to provide a secondary signal to a protection, measuring or control device, the instantaneous value of which is substantially the same as the primary signal with a specified accuracy. Proportional to the instantaneous value of voltage or current. 3.1.2 Current sensor currentsensor;CS A device intended to provide a secondary signal to a protection, measuring or control device, the instantaneous value of which is substantially the same as the primary signal with a specified accuracy. The instantaneous values of the currents are related but not proportional. Example. A Rogowski coil is an example of a current sensor. 3.1.3 Voltage sensor voltagesensor;VS A device intended to provide a secondary signal to a protection, measuring or control device, the instantaneous value of which is substantially the same as the primary signal with a specified accuracy. The instantaneous values of the voltages are related but not proportional. 3.1.4 primary circuit External circuit connected to the primary terminal. 3.1.5 Secondary circuit External circuit connected to the secondary terminals. 3.1.6 Neutral grounding system earthedneutralsystem A system with a neutral point directly grounded or grounded through a small resistor or reactance, the value of which is small enough to suppress transient oscillations and give ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 20840.99-2025_English be delivered?Answer: Upon your order, we will start to translate GB/T 20840.99-2025_English as soon as possible, and keep you informed of the progress. The lead time is typically 4 ~ 7 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 20840.99-2025_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 20840.99-2025_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
