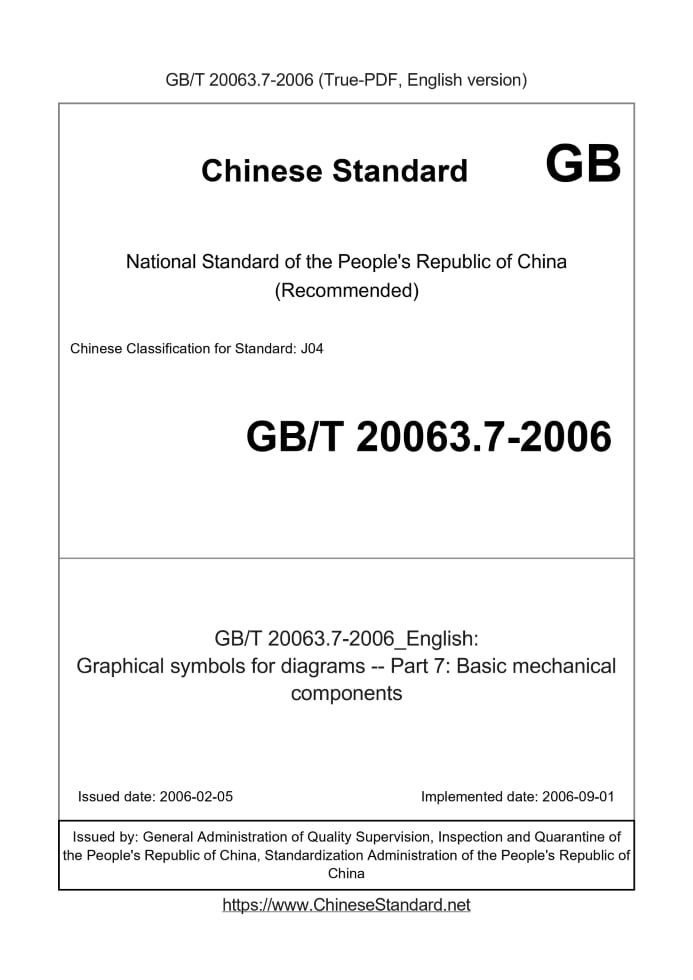

GB/T 20063.7-2006 English PDF

US$234.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 20063.7-2006: Graphical symbols for diagrams -- Part 7: Basic mechanical components
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 20063.7-2006	234	Add to Cart	3 days	Graphical symbols for diagrams -- Part 7: Basic mechanical components	Valid

Similar standards

GB/T 19799.1   GB/T 19802   GB/T 19943   GB/T 19799.3   GB/T 20063.15   GB/T 20063.13

Basic data

Standard ID: GB/T 20063.7-2006 (GB/T20063.7-2006)
Description (Translated English): Graphical symbols for diagrams -- Part 7: Basic mechanical components
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J04
Classification of International Standard: 01.080
Word Count Estimation: 12,136
Date of Issue: 2006-02-05
Date of Implementation: 2006-09-01
Quoted Standard: GB/T 16901.1-1997; GB/T 20063.1; GB/T 20063.4
Adopted Standard: ISO 14617-7-2002, IDT
Regulation (derived from): Announcement of Newly Approved National Standards 2006 No. 2 (No. 89 overall)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard provides a diagram of the graphical symbols, comprising: a mechanical element, for example, with weights, springs, clutches and brakes, tube and catheter components, such as flow restrictor, such as the nozzle and the discharge hole, storing means, such as tank, pressure vessels and gas cylinders. Graphical symbols for diagrams creation and use of the basic rules, see GB/T 16901. 1-1997. On the identification of patterns used in the creation of graphical symbols registration number and use of information, and these symbols represent, application rules, see GB/T 20063. 1.
