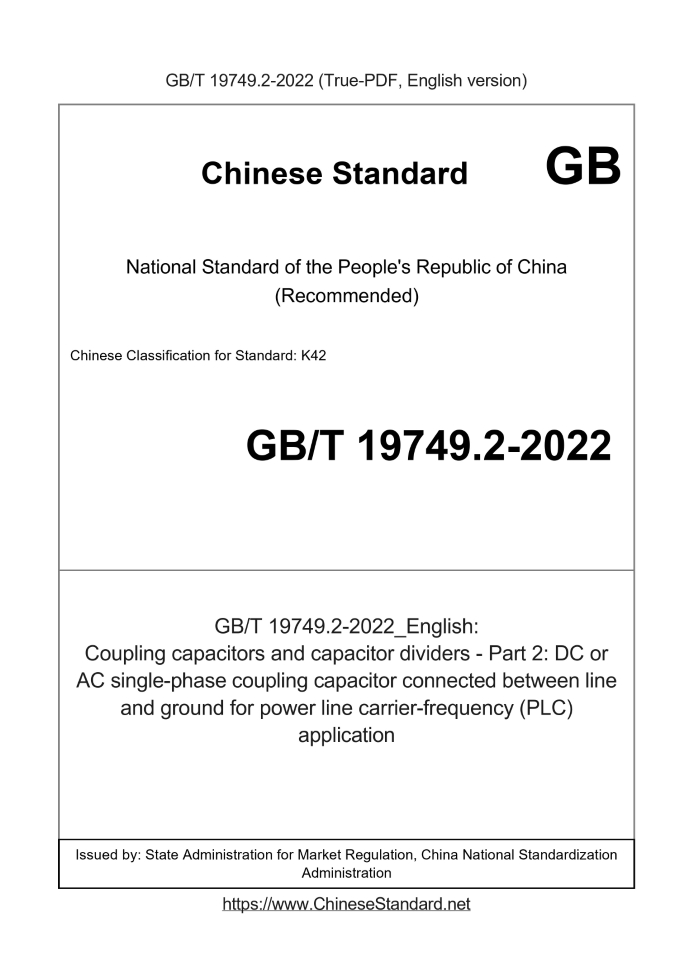

GB/T 19749.2-2022 English PDF

Q: How long will the true-PDF of English version of GB/T 19749.2-2022 be delivered?

Upon your order, we will start to translate GB/T 19749.2-2022_English as soon as possible, and keep you informed of the progress. The lead time is typically 2 ~ 4 working days. The lengthier the document the longer the lead time.

Q: Can I share the purchased PDF of GB/T 19749.2-2022_English with my colleagues?

Yes. The purchased PDF of GB/T 19749.2-2022_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.

Q: Does the price include tax/VAT?

Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries). Avoidance of Double Taxation Agreements (DTAs) between Singapore and 100+ Countries: https://www.iras.gov.sg/taxes/international-tax

Q: Do you accept my currency other than USD?

Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.

US$359.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 19749.2-2022: Coupling capacitors and capacitor dividers - Part 2: DC or AC single-phase coupling capacitor connected between line and ground for power line carrier-frequency (PLC) application
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 19749.2-2022	359	Add to Cart	4 days	Coupling capacitors and capacitor dividers - Part 2: DC or AC single-phase coupling capacitor connected between line and ground for power line carrier-frequency (PLC) application	Valid

Similar standards

GB/T 19212.5 GB/T 11024.4 GB/T 11024.2 GB/T 22582 GB/T 19749.4 GB/T 19749.3

Basic data

Standard ID: GB/T 19749.2-2022 (GB/T19749.2-2022)
Description (Translated English): Coupling capacitors and capacitor dividers - Part 2: DC or AC single-phase coupling capacitor connected between line and ground for power line carrier-frequency (PLC) application
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K42
Word Count Estimation: 18,196
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 19749.2-2022: Coupling capacitors and capacitor dividers - Part 2: DC or AC single-phase coupling capacitor connected between line and ground for power line carrier-frequency (PLC) application

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Coupling capacitors and capacitor dividers - Part 2.DC or AC single-phase coupling capacitor connected between line and ground for power line carrier-frequency (PLC) application ICS 31.060.70 CCSK42 National Standards of People's Republic of China Coupling Capacitors and Capacitive Dividers Part 2.Connected between line and ground for power lines DC or AC single-phase coupling capacitors for carrier (PLC) 2022-03-09 Released 2022-10-01 Implementation State Administration for Market Regulation Released by the National Standardization Administration directory Preface I Introduction III 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Conditions of use 2 5 Rating 2 6 Design Requirements 2 7 Test conditions 3 8 Test Category 3 9 Routine test 5 10 Type test 5 11 Special test - mechanical strength test 7 12 Flags 8 Appendix 9 Appendix A (informative) Typical diagram of equipment 10 Appendix 2A (Informative) High-Frequency Characteristics of Coupling Capacitors for Power Line Carrier Circuits 11 Reference 13 Figure A.200.1 Typical Figure 10 for coupling capacitors with carrier accessories Figure 2A.1 Wiring Diagram 11 of Measurement Circuit for Coupling Capacitor High-Frequency Capacitance and Equivalent Series Resistance Figure 2A.2 The relationship between the length and the capacitance value when the capacitance deviation below 500kHz satisfies -20% to 50% 12 Table.200 Limits for coil temperature rise7 Table.201 Nameplate information for carrier accessories8

foreword

This document is in accordance with the provisions of GB/T 1.1-2020 "Guidelines for Standardization Work Part 1.Structure and Drafting Rules of Standardization Documents" drafted. This document is part 2 of GB/T 19749 "Coupling capacitors and capacitive voltage dividers". GB/T 19749 has issued the following part. --- Part 1.General; --- Part 2.DC or AC single-phase coupling capacitors connected between lines and ground for power line carrier (PLC); --- Part 3.AC or DC coupling capacitors for harmonic filters. This document uses the redrafted method to modify and adopt IEC 60358-2.2013 "Coupling capacitors and capacitive voltage dividers - Part 2.Connected to the line AC or DC Single-Phase Coupling Capacitors for Power Line Carriers (PLC) to Earth". The technical differences between this document and IEC 60358-2.2013 and their reasons are as follows. --- Regarding normative reference documents, this document has made adjustments with technical differences to adapt to the technical conditions of our country and the circumstances of the adjustment. The situation is reflected in Chapter 2 "Normative References", and the specific adjustments are as follows. ● Replace IEC 60481 with non-equivalent GB/T 7329 which adopts international standards; ● Replacing IEC 60060-1 with GB/T 16927.1 which has been modified to adopt international standards; ● Replacing IEC 60358-1.2012 with GB/T 19749.1-2016 which has been modified to adopt international standards; ● Deleted IEC 60060-2 and IEC 61869-5; ● Added references to GB/T 11021 and GB/T 11032-2020. --- Delete the type of "low-voltage terminal permanent grounding" in the "Scope" chapter (see Chapter 1 of the International Standard), because it is not within the scope of this document For the relevant requirements, please refer to GB/T 19749.1; at the same time, the "low-voltage terminal of the coupling capacitor will never be connected to other equipment" is added. long-term grounding”, further clarifying the scope. --- The word "arrester" that appears alone in the international standard is clearly defined as "AC gapless metal oxide arrester". Due to IEC original In the routine test of 9.2.200.2.2 voltage limiting devices, the title of item b) has only the word "lightning arrester" in English, and the title of item a) is "empty". "Air gap arrester" does not correspond. Then the test content is the power frequency reference voltage measurement, which is an AC gapless metal oxygen The specific test of the chemical arrester (MOA), so the title of item b) is clarified. ---In "10.201.3 Type Test of Voltage-Limiting Devices with Drain Coils", the "AC gapless metal oxide avoidance" is added. Lightning arrester" test requirements. Because in 10.201.3, only air gap arresters and spark gap arresters are tested Type test regulations, and there were AC gapless metal oxide arresters in routine tests before, so here The corresponding clause of GB/T 11032-2020 adds the test of lightning impulse protection level. The following editorial changes have been made to this document. --- In accordance with the requirements of GB/T 1.1-2020, the given rules are standardized, and some arrangements and writing formats have been modified; --- For the convenience of understanding, the standard name is changed to "The DC or AC single-phase coupling between the line and the ground for the power line carrier (PLC) Combined capacitor"; --- Number the table of carrier accessories nameplate information in 12.2 as table.201; --- Changed "Appendix AA" to "Appendix 2A", and adjusted the bar number and figure number accordingly; --- Adjusted references. Please note that some content of this document may be patented. The issuing agency of this document assumes no responsibility for identifying patents. This document is proposed by China Electrical Equipment Industry Association. This document is under the jurisdiction of the National Standardization Technical Committee of Power Capacitors (SAC/TC45). This document is drafted by. Xi'an High Voltage Electric Apparatus Research Institute Co., Ltd., Xi'an Xidian Power Capacitor Co., Ltd., Guilin Electric Power Co., Ltd. Power Capacitor Co., Ltd., Nissin Electric (Wuxi) Co., Ltd., China Electric Power Research Institute Co., Ltd., Shaoxing Daming Power Design Institute Co., Ltd., Anhui Feida Electric Technology Co., Ltd., State Grid Anhui Electric Power Co., Ltd. Electric Power Research Institute, Herong Electric Co., Ltd. Co., Ltd., Xuji Electric Co., Ltd., Wuxi Chenrui New Energy Technology Co., Ltd., ABB Power Grid Investment (China) Co., Ltd., State Grid Zhejiang Electric Power Company Shaoxing Power Supply Company, Xiamen Farah Electronics Co., Ltd. The main drafters of this document. Jia Hua, Liu Jing, He Manchao, Ren Chunyang, Yuan Fuxing, Mo Huaming, Zhong Zhengliang, Lei Xiaoyan, Fu Sanchuan, Hu Zhongsheng, Ni Xuefeng, Zhao Xin, Wu Qun, Zhang Chenchen, Fu Zhongxing, Xie Chong, Lin Hao, Li Dian, Huang Yongrui, Li Xu, Huang Shunda.

Introduction

GB/T 19749 "Coupling Capacitors and Capacitive Voltage Dividers" is intended to consist of the following four parts. --- Part 1.General. The purpose is to establish general principles and related rules to be followed by coupling capacitors and capacitive voltage dividers. --- Part 2.DC or AC single-phase coupling capacitors connected between line and ground for power line carrier (PLC). aim at Specific requirements and related rules for establishing such coupling capacitors. --- Part 3.AC or DC coupling capacitors for harmonic filters. The purpose is to establish the special characteristics of such coupling capacitors requirements and related rules. --- Part 4.DC or AC single-phase capacitive voltage divider connected between line and ground. The purpose is to establish the Special requirements and related rules. This document is used together with GB/T 19749.1-2016, unless otherwise specified in this document, this document implements GB/T 19749.1-2016 Provisions. In order to simplify the repeated expression of the same requirements, the terms of this document are the same as GB/T 19749.1-2016, when GB/T 19749.1- When a clause in.2016 is not covered in this document, the clause shall apply as long as it is reasonable. When this document states "additions", "modifications" or When "replaced", the relevant content in GB/T 19749.1-2016 shall be adjusted accordingly. Supplement to these terms in the same reference are given under the heading, while additional clauses are numbered starting at.200. Coupling Capacitors and Capacitive Dividers Part 2.Connected between line and ground for power lines DC or AC single-phase coupling capacitors for carrier (PLC)

1 Scope

This document specifies the terminology and definition of DC or AC single-phase coupling capacitors connected between line and ground for power line carrier (PLC) use Definition, conditions of use, ratings, design requirements, test conditions, test classification, routine tests, type tests, special tests and marks. This document applies to capacitors complying with Chapter 1 of GB/T 19749.1-2016, with the following additions. This document is applicable to power line load with rated voltage above 1000V, connected between line and ground, and frequency of 30kHz~500kHz Wave (PLC) equipment connection, or DC or AC single-phase coupling connected with similar purpose (DC or AC) equipment with a power frequency of 15Hz~60Hz combined capacitor. Transmission requirements for coupling equipment for power line carrier (PLC) systems are given in GB/T 7329. The low-voltage terminal of the coupling capacitor is permanently grounded when not connected to other equipment. NOTE. A typical diagram of coupling capacitors to which this document applies is shown in Figure A.200.1.

2 Normative references

The contents of the following documents constitute essential provisions of this document through normative references in the text. Among them, dated citations documents, only the version corresponding to that date applies to this document; for undated references, the latest edition (including all amendments) applies to this document. GB/T 7329 Power Line Carrier Combination Equipment (GB/T 7329-2008, IEC 60481.1974, NEQ) GB/T 11021 Electrical Insulation Heat Resistance and Representation Method (GB/T 11021-2014, IEC 60085.2007, IDT) GB/T 11032-2020 AC gapless metal oxide arrester (IEC 60099-4.2014, MOD) GB/T 16927.1 High Voltage Test Technology Part 1.General Definitions and Test Requirements (GB/T 16927.1-2011, IEC 60060-1.2010, MOD) GB/T 19749.1-2016 Coupling capacitors and capacitive voltage dividers - Part 1.General (IEC 60358-1.2012, MOD)

3 Terms and Definitions

The terms and definitions defined in GB/T 19749.1-2016 and the following terms and definitions apply to this document. 3.200 Carrier Equipment Definition 3.200.1 couplingdevice In conjunction with the corresponding one or more coupling capacitors, under specified conditions, the carrier signal can be guaranteed between one or more power conductors and the Equipment for transmission between carrier connections. 3.200.2 carrier-frequencyaccessories The circuit element connected between the low-voltage terminal of the coupling capacitor and the ground for injecting the carrier signal, its impedance is very small at the power frequency, but at the carrier frequency. ......
